VORONEZH K8544 Prasa do kucia na gorąco ROK : 1980 / 2008 REMONT I INSTALACJA SIŁA: 2500ton SKOK SUWAKA: 350 mm ROZMIAR RAM: 1120X1070 mm WYMIARY CAŁKOWITE STOŁU: 1400X1200 mm LICZBA CYKLI W TRYBIE CIĄGŁYM: 60 LICZBA CYKLI W TRYBIE RĘCZNYM : 26 WYSOKOŚĆ ZAMKNIĘCIA : 890 mm SKOK GÓRNEGO WYBICIA: 60 mm ODLEGŁOŚĆ OD DOLNEGO WYBICIA: 70 mm SILNIK GŁÓWNY: 132 KW (ZMIENIONY NA HYUDAI HEAVY Y2012) WYMIARY CAŁKOWITE PRASY: 5380X4680X6400 mm PODPARCIE HYDRAULICZNE NOWOŚĆ W 2007 ROKU STAN : BARDZO DOBRE WARUNKI PRACY Dostępna prasa do przycinania
2000 Ton Sumitomo Hot Forging Press linia Rok 2006 Skok tłoka 350 mm (13,78 cala) Uderzenia na minutę 75 Wysokość zamknięcia 850 mm (33,47 cala) SlideAdj. 7 mm (.27inch) Rozmiar suwaka 1200 mm LR X 1300 mm FB Rozmiar łóżka: 1320 mm LR X 1300 mm FB 4-stopniowy system transferu Nokaut wślizgowy Nokaut dolny System złomu Podwójny zmieniacz matryc Buty Extra Die Dostępna również nagrzewnica kęsowa i piła kęsowa Ta linia została wykorzystana przez HONDĘ do produkcji przekładni, Bierze kęs, tnie go na wymiar, ogrzewa do 1300 C, a następnie prasa uderza w niego 4 razy. Może odróżnić dobre części od złych, złe części są wysyłane do zbiornika hartowniczego, dobre części są wysyłane do przenośnika chłodzącego, który można odebrać ręcznie na końcu. Cały system był obsługiwany przez jednego operatora.
(2) Pozioma prasa kuźnicza Asahi THP500-6 (maszyna do główkowania) Rok: 2008 Pierwszy skok: 24 mm Drugi skok: 50 mm Moc wyrzutu: 150 kN Wysokość otwarta: 625 mm Wysokość zabudowy: 425 mm Matryca (szer. x dł.): 500x490 mm Stempel (szer. x dł.): 250x350 mm Skok suwaka: 200 mm Siła kucia: 5000 kN Czas jazdy na rowerze: 6,5 s Prędkość korby: 60 RPM Masa maszyny: 28 t
pressure:080 tthroat:280 mmstroke:8 - 112 mmno. of strokes:30 - 120 /mindistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:840 x 580 mmhole in the table:150 mmtable height over floor:910 mmpassage to the back:640 mmram surface:560 x 300 mmram adjustment:80 mmpower requirement:7,5 kWweight:8,0 tdimensions (WxDxH):1,6 x 2,3 x 3,3 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:hydraulisch ram adjustment:motoric
pressure:025 tthroat:200 mmstroke:8 - 80 mmno. of strokes:180 /mindistance table/ram, max. stroke up, adjustment up:330 mmtable surface area:550 x 400 mmhole in the table:60 mmtable height over floor:800 mmpassage to the back:200 mmram surface:355 x 220 mmram adjustment:50 mmpower requirement:2,7 kWweight:2,5 tdimensions (WxDxH):1,2 x 1,8 x 2,4 moverload protection in ram:mechanical
Pressure:035 tthroat:225 mmstroke:8 - 100 mmno. of strokes:130 /mindistance table/ram, max. stroke up, adjustment up:370 mmtable surface area:580 x 450 mmhole in the table:210 x 170 mmtable height over floor:700 mmram surface:350 x 180 mmram adjustment:70 mmpower requirement:2,2 kWweight:2,2 tdimensions (WxDxH):1,0 x 1,8 x 2,2 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical

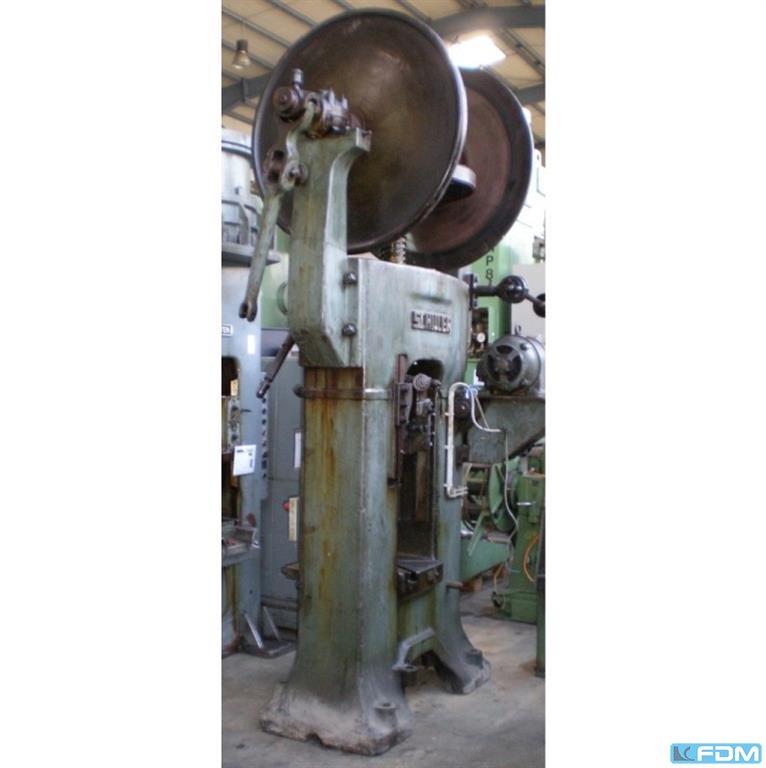

pressure:2 tdayligth:80 mmCenter of spindle to wall or column:100 mmweight of the machine ca.:0,5 tdimensions of the machine ca.:0,8 x 0,6 x 2,0 mHand operated fly press, with center turning device appr. 100 x 400 mm length- Handwheel diameter 600 mm
pressure:120 tdistance between columns:430 mmstroke:125 mmdistance table/ram, stroke up:400 mmtable surface area:430 x 450 mmtable height over floor:860 mmside window:230 mmram surface:250 mmworking speed:10 mm/spower requirement:11,0 kWweight:2,5 tdimensions (WxDxH):1,6 x 1,3 x 2,4 mGerman Safety: permitted for manual loading:CE-sign
Pressure:250 tstroke:30 mmno. of strokes:60 - 500 /minDistance between columns:1500 mmdistance table/ram, max. stroke up, adjustment up:390 mmtable surface area:1580 x 1100 mmhole in the table:1270 x 300 mmtable height over floor:1470 mmside window:600 mmram surface:1500 x 900 mmram adjustment:100 mmmaterial width:500 mmmaterial thickness:0,5 - 1,5 mmcoil weight:6,5 tcoil internal diameter:420 - 560 mmcoil external diameter:1500 mmpower capacity:45,0 kWWeight:44,0 tDimensions (WxDxH):3,3 x 1,8 x 4,5 mclutch:pneumatisch ram adjustment:motorisch double decoiler:LH 2-1,5-500 straightening machine:R 500 roll feed:mechanisch; Schuler, WK 8-500

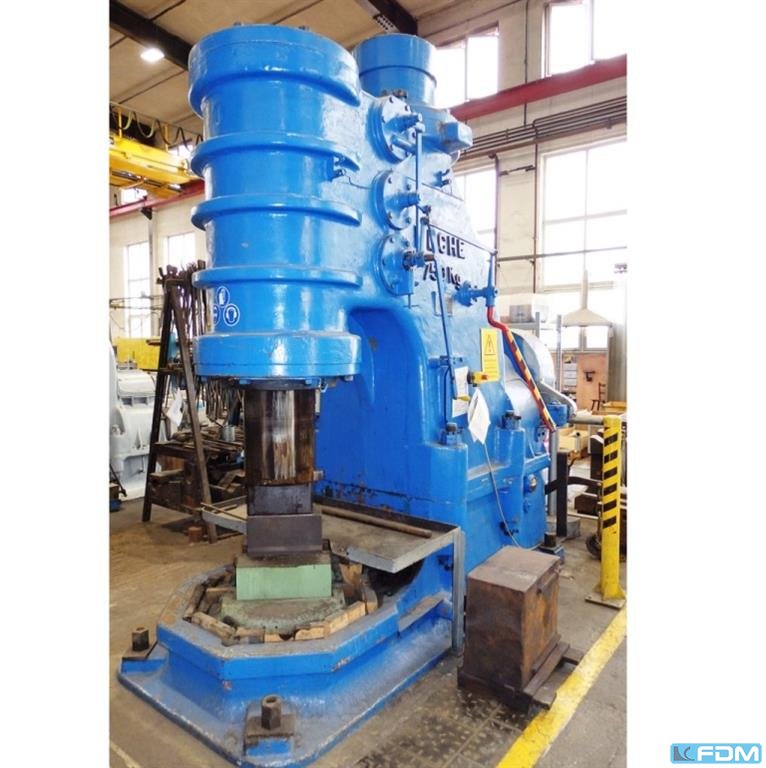

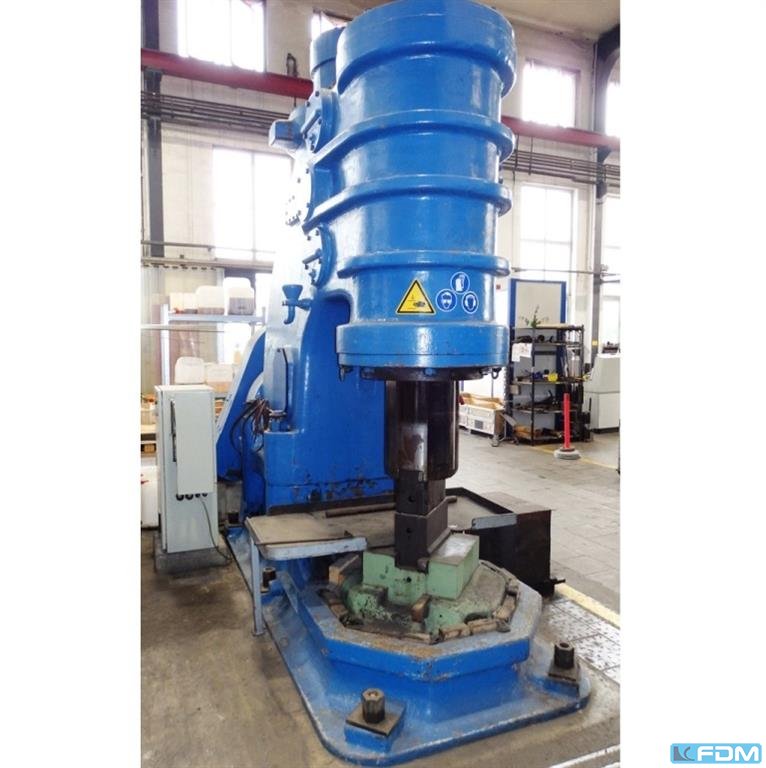

impact energy:207951 mkgram hammer stroke:660 mmno. of strokes:100 /minimpact energy:2040 kJdistance lower die block / ram gudeway:660 mmThroat:750 mmsteel forging - rectangular up to:240 mmsteel forging - diameter up to:270 mmpower requirement:75,0 kWweight of hammer:16,5 tweight of anvil:15,5 tram hammer weight:750 kgweight:32,0 tdimensions (WxDxH):3,2 x 1,45 x 3,45 mMode of operation:pneumatisch
pressure:500 tdistance between columns:1910 mmstroke:500 mmDistance table/ram, max. stroke up, adjustment up:700 mmtable surfache without cutting impact cushions:1910 x 1360 mmtable surfache with cutting impact cushions:1600 x 1360 mmtable height over floor:800 mmram surface:1600 x 1270 mmSide window:600 mmspeed down:400 mm/sspeed up:330 mm/sworking speed:10 - 28 mm/soil volume:1200 lpower requirement:60,0 kWweight:40,0 tDimensions (WxDxH):3,6 x 2,5 x 5,0 mheight over floor:4,5 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 cutting impact cushioning:hydraulic ram interlocking:hydraulic
pressure:200 tdistance between columns:1400 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:1300 x 1100 mmpressure of drawing cushion in table:80 tstroke of drawing cushion in table:150 mmdie cushion area:700 x 700 mmcapacity of ejector in ram:10 tejector stroke in ram:50 mmtable height over floor:930 mmside window:770 mmram surface:1300 x 1100 mmspeed down:400 mm/sspeed up:410 mm/sworking speed:20 - 50 mm/sreturn capacity:30 toil volume:1350 lpower requirement:70,0 kWweight:23,0 tdimensions (WxDxH):4,5 x 3,0 x 3,5 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic ejector in ram:hydraulic foundation pit:not necessary
Pressure:1000 tdistance between columns:4100 mmstroke:1200 mmDistance table/ram, stroke up:2100 mmTable surface area:4000 x 2200 mmpressure of drawing cushion in table:360 tDie cushion stroke in table:300 mmDie cushion area in table:3500 x 1600 mmDie cushion pressure in ram:100 tDie cushion stroke in ram:160 mmDie cushion area in ram:3250 x 1600 mmRam surface:4000 x 2200 mmSide window:1300 mmOil volume:8000 lPower capacity:300,0 kWDimensions (WxDxH):5,75 x 4,3 x 9,55 mHeight above floor:7,7 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact cushioning:hydraulic
Pressure:1600 tdistance between columns:4100 mmslide stroke:1450 mmDistance table/ram, stroke up:2750 mmdistance table/blank holder, stroke up:2200 Table surface area:4000 x 2200 mmram pressure:1000 tPressure of blank holder:600 tstroke of blankholder:1000 mmblank holder surface:4050 x 2200 mmRam surface:3200 x 1650 mmpressure of drawing cushion in table:360 tDie cushion stroke in table:300 mmdie cushion area:3500 x 1600 mmSide window:1100 mmOil volume:9000 lPower capacity:390,0 kWWeight:250,0 tDimensions (WxDxH):5,95 x 4,3 x 10,5 mHeight above floor:8,6 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable
Pressure:800 tdistance between columns:3250 mmstroke:1100 mmDistance table/ram, stroke up:1900 mmTable surface area:3100 x 1900 mmpressure of drawing cushion in table:300 tDie cushion stroke in table:300 mmDie cushion area in table:2500 x 1800 mmDie cushion pressure in ram:80 tDie cushion stroke in ram:200 mmDie cushion area in ram:2200 x 1000 mmRam surface:3100 x 1900 mmSide window:900 mmOil volume:4700 lPower capacity:200,0 kWDimensions (WxDxH):4,95 x 3,3 x 10,2 mHeight above floor:7,05 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact absorption:hydraulic
Pressure:800 tdistance between columns:2560 mmstroke:1050 mmDistance table/ram, stroke up:1870 mmTable surface area:2500 x 1730 mmpressure of drawing cushion in table:300 tDie cushion stroke in table:395 mmDie cushion area in table:2300 x 1300 mmRam surface:2500 x 1730 mmDie cushion pressure in ram:63 tDie cushion stroke in ram:150 mmSide window:1000 mmOil volume:4300 lPower capacity:200,0 kWDimensions (WxDxH):4,1 x 2,8 x 10,0 mHeight above floor:7,0 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable
Pressure:600 tdistance between columns:2600 mmstroke:900 mmDistance table/ram, max. stroke up, adjustment up:1600 mmTable surface area:2500 x 1730 mmpressure of drawing cushion in table:250 tDie cushion stroke in table:400 mmDie cushion area in table:2300 x 1300 mmDie cushion pressure in ram:63 tDie cushion stroke in ram:160 mmDie cushion area in ram:1900 x 1300 mmRam surface:2500 x 1730 mmSide window:1100 mmOil volume:3500 lPower capacity:200,0 kWDimensions (WxDxH):4,1 x 2,8 x 9,6 mHeight above floor:6,4 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact absorption:hydraulic
Pressure:800 tdistance between columns:3550 mmstroke:1100 mmDistance table/ram, max. stroke up, adjustment up:1900 mmTable surface area:3500 x 1800 mmpressure of drawing cushion in table:350 tDie cushion stroke in table:280 mmDie cushion pressure in ram:80 tDie cushion stroke in ram:160 mmRam surface:3500 x 1800 mmSide window:1900 mmWeight:100,0 tFloor Space (WxD):5,3 x 4,3 mHeight above floor:7,3 mHeight below floor:5,0 - 6,0 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact cushioning:hydraulic sliding table:without rails for moving table
: neu : ca. 6-8 Wochen ab Auftrag : Italien : 3800 €: 20 to: fix : 825 mm: 520 mm: 1150 mm: 500 mm: 1800 (PSS: 1950) mmThe table can be lifted manuallyHydraulic unit with motor and pumpAdjustable maximum pressureManometerEquipment compliant with CE regulations. Operating instructions in German and English.MODEL VERSIONS:PSS 20 TL: 1 speed 4 mm/s, single-hand control with lever € 3.800,00 PSS 20 L: 2 speeds 9 / 3 mm/s, single-hand control with lever € 4.500,00 PSS 20 NC: 2 speeds29 / 4 mm/s, two-hand control with lever and push button € 5.100,00 PSS 20: same as PSS 20 NC but with stroke 500 mm € 5.200,00The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure:160 tthroat:400 mmstroke:30 - 200 mmno. of strokes:50 /mindistance table/ram, max. stroke up, adjustment up:600 mmtable surface area:1000 x 770 mmtable height over floor:810 mmhole in the table:360 mmPassage to the back:450 mmram surface:710 x 450 mmram adjustment:110 mmpower requirement:15,0 kWweight:10,5 tDimensions (WxDxH):1,7 x 2,0 x 3,2 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic

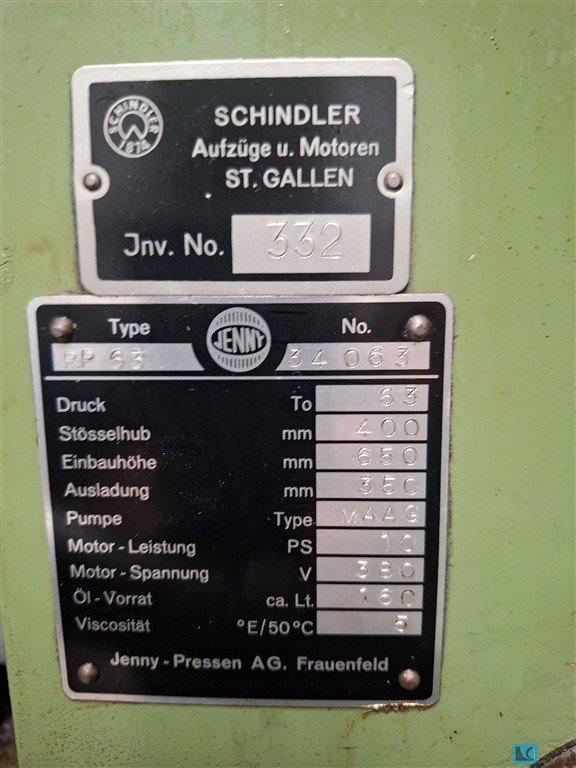

pressure:63 tthroat:350 mmstroke:400 mmdayligth:650 mmtotal power requirement:8 kWweight of the machine ca.:4 tdimensions of the machine ca.:3 x 1,9 x 2,7 m
pressure:60 tthroat:400 mmstroke:600 mmDistance table/ram, stroke up:700 mmTable surface area:1120 x 700 mmtable height over floor:850 mmRam surface:700 x 700 mmOil volume:275 lPower capacity:7,5 kWWeight:7,3 tDimensions (WxDxH):1,6 x 2,0 x 3,7 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20
: neu : ca. 6-8 Wochen ab Auftrag : Italien : 8600 €: 165.98 €: 100 to: horizontal verschiebbar : 900 mm: 1050 mm: 1900 mm: 1000 mm: 2250 (PSS: 2400) mmThe table can be lifted with a chainHydraulic unit with motor and pumpAdjustable maximum pressureManometerEquipment compliant with CE regulations. Operating instructions in German and English.MODEL VERSIONS:PSS 100 M TL: 1 speed 4 mm/s, single-hand control with lever € 8.600,00 PSS 100 M L: 2 speeds 9 / 3 mm/s, single-hand control with lever € 9.300,00 PSS 100 M NC: 2 speeds29 / 4 mm/s, two-hand control with lever and push button € 9.900,00 PSS 100 M: same as PSS 70 M NC but with stroke 500 mm € 11.400,00The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure:500 tstroke:fix 300 mmno. of strokes:20 - 70 Hub/mindistance between columns:3100 mmside window:1400 mmdistance table/ram, max. stroke up, adjustment up:1000 mmTable area:2800 x 1600 mmram surface:2800 x 1450 mmram adjustment:100 mmpower requirement:90,0 kWweight:100,0 tDimensions (WxDxH):5,75 x 3,2 x 7,8 mheight above floor:6,4 mheight beneath floor:1,4 mclutch:pneumatic; Ortlinghaus ram adjustment:motoric overload protection in ram:hydraulic ram counterbalance:pneumatic
pressure:063 tthroat:250 mmstroke:8 - 100 mmStroke rate:60 - 160 / minDistance table/ram, max. stroke up, adjustment up:415 mmTable surface area:710 x 500 mmHole in the table:250 / 280 mmTable height above floor:800 mmPassage to the back:290 mmRam surface:450 x 280 mmRam adjustment:63 mmWeight:4,3 tDimensions (WxDxH):1,5 x 1,7 x 2,7 minfinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
: neu : ca. 12 Wochen ab Auftrags : Türkei : 7700 €: 148.61 €: 80 to: horizontal verschiebbar : 250 mm: 1040 mm: 865 mm: 200x120 mm: 5 mm/s: 10 mm/s: 1710 mm: 700 mm: 2100 mm: 835 kghorizontal adjustable cylinder with clamping leversteel welded framestop at any positionpressure manometersafety valve against overloading2 V-blockstable height adjustabletable up-down movement attachmentcontrol by operating leveraccording to CE regulations user manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure:063 tthroat:250 mmstroke:8 - 100 mmStroke rate:47 - 140 / minDistance table/ram, max. stroke up, adjustment up:415 mmTable surface area:710 x 480 mmHole in the table:280 / 250 mmTable height above floor:800 mmPassage to the back:290 mmRam surface:450 x 280 mmRam adjustment:63 mmWeight:4,0 tDimensions (WxDxH):1,5 x 1,6 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
: neu : ca. 12 Wochen ab Auftrags : Türkei : 10000 €: 193 €: 100 to: horizontal verschiebbar : 300 mm: 1570 mm: 220x160 mm: 5 mm/s: 10 mm/s: 2630 mm: 1000 mm: 2430 mm: 1600 kghorizontal adjustable cylinder with clamping leversteel welded framestop at any positionpressure manometersafety valve against overloading2 V-blockstable height adjustabletable up-down movement attachmentcontrol by operating leveraccording to CE regulations user manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure:63 tthroat:270 mmstroke:160 mmDistance table/ram, max. stroke up, adjustment up:360 mmtable surface area:560 x 490 mmhole in the table:280 x 190 mmtable height above floor:850 mmram surface:450 x 360 mmoil volume:360 lpower requirement:23,0 kWweight:4,6 tdimensions (W x D x H):1,2 x 1,8 x 2,9 m
pressure:70 tdistance between columns:750 mmstroke:900 mmtable surface area:700 x 1000 mmDistance table/ram, stroke up:900 mmtable height over floor:680 mmram surface:700 x 1000 mmside window:600 mmmax. tool weight:5,0 tmax. capacity of swivelling ram plate:2,0 tSpeed down:0 - 50 mm/sSpeed up:0 - 48 mm/sWorking speed:0 - 8 mm/soil volume:140 lpower capacity:9,5 kWweight:8,0 tDimensions (WxDxH):2,2 x 1,2 x 3,7 m
