Producent:
(Kategoria: 106)
Pressure:1600 tdistance between columns:4100 mmslide stroke:1450 mmDistance table/ram, stroke up:2750 mmdistance table/blank holder, stroke up:2200 Table surface area:4000 x 2200 mmram pressure:1000 tPressure of blank holder:600 tstroke of blankholder:1000 mmblank holder surface:4050 x 2200 mmRam surface:3200 x 1650 mmpressure of drawing cushion in table:360 tDie cushion stroke in table:300 mmdie cushion area:3500 x 1600 mmSide window:1100 mmOil volume:9000 lPower capacity:390,0 kWWeight:250,0 tDimensions (WxDxH):5,95 x 4,3 x 10,5 mHeight above floor:8,6 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable
: neu : ca. 4-6 Monate ab Auftrag : Türkei : 231900 €: 400 to: 6050 mm: Y1 / Y2 / X und R Achse : 365 mm: 5100 mm: 510 mm: 630 mm: hydraulisch : 150 mm/s: 9 mm/s: 150 mm/s: 750 mm: 160 l: 7500 mm: 2110 mm: 3810 mm: 34600 kg1 SERVO MOTOR AND PUMP PER CYLINDER4 axes (Y1, Y2,X andR)CNC control SKY 22- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD- with 2D and 3D working screen- direct programming of the bending angle- user friendly programming in dialogue form optionally in 2D or 3D mode- 2D and 3D simulation of the bending sequence- automatic tool selection in 3D mode- automatic calculation of the blank sheet size- bending order calculation- graphic product and tool memory- correction possibility- USB and Ethernet interfaces for import, backup and programm transportation- OS: Windows- IGES, STEP, DXF files importservo motorized b ...
Pressure:800 tdistance between columns:3250 mmstroke:1100 mmDistance table/ram, stroke up:1900 mmTable surface area:3100 x 1900 mmpressure of drawing cushion in table:300 tDie cushion stroke in table:300 mmDie cushion area in table:2500 x 1800 mmDie cushion pressure in ram:80 tDie cushion stroke in ram:200 mmDie cushion area in ram:2200 x 1000 mmRam surface:3100 x 1900 mmSide window:900 mmOil volume:4700 lPower capacity:200,0 kWDimensions (WxDxH):4,95 x 3,3 x 10,2 mHeight above floor:7,05 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact absorption:hydraulic
: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 137900 €: 2606.31 €: 220 to: 6050 mm: Y1 / Y2 / X Achse : 265 mm: 5100 mm: 450 mm: 530 mm: hydraulisch : 160 mm/s: 10 mm/s: 140 mm/s: 500 mm/s: 350 mm/s: 250 mm: 1050 mm: 154 mm: 250 l: 22 kW: 7500 mm: 1770 mm: 3350 mm: 20800 kg3 axes (Y1, Y2,X)CNC control DT-15- 2D grafic display 15",- intuitive touch-screen control (simple drawing of the bending outline with your finger)- user friendly programming in dialogue form- automatic calculation of the bending sequence- automatic calculation of the blank sheet size- graphic product and tool memory- correction possibility- USB interfaces for backup and programm transportation- PC software, generating programms on the PC and transfer to the machine by USBservo motorized back gauge on linear guides and ball screwsback gauge finger blocks on double linear guidesCNC crowning tableupper tool 1010 ...

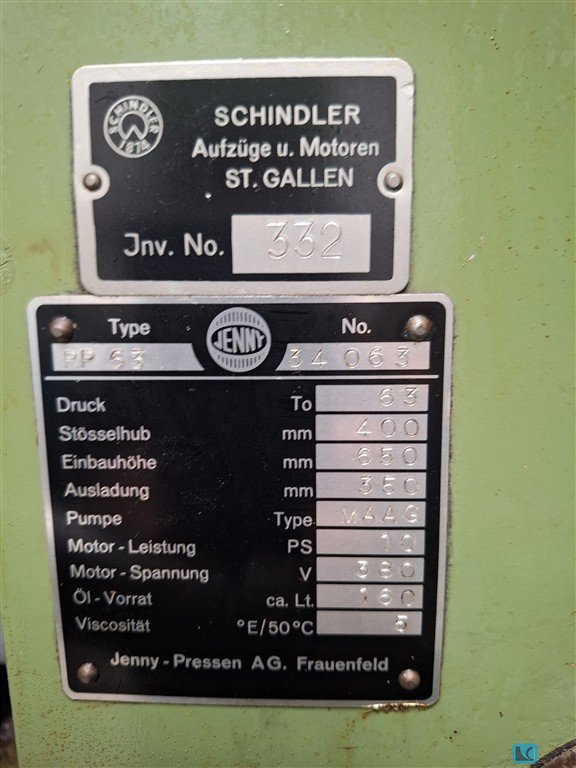

pressure:63 tthroat:350 mmstroke:400 mmdayligth:650 mmtotal power requirement:8 kWweight of the machine ca.:4 tdimensions of the machine ca.:3 x 1,9 x 2,7 m
Pressure:800 tdistance between columns:2560 mmstroke:1050 mmDistance table/ram, stroke up:1870 mmTable surface area:2500 x 1730 mmpressure of drawing cushion in table:300 tDie cushion stroke in table:395 mmDie cushion area in table:2300 x 1300 mmRam surface:2500 x 1730 mmDie cushion pressure in ram:63 tDie cushion stroke in ram:150 mmSide window:1000 mmOil volume:4300 lPower capacity:200,0 kWDimensions (WxDxH):4,1 x 2,8 x 10,0 mHeight above floor:7,0 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable
Pressure:600 tdistance between columns:2600 mmstroke:900 mmDistance table/ram, max. stroke up, adjustment up:1600 mmTable surface area:2500 x 1730 mmpressure of drawing cushion in table:250 tDie cushion stroke in table:400 mmDie cushion area in table:2300 x 1300 mmDie cushion pressure in ram:63 tDie cushion stroke in ram:160 mmDie cushion area in ram:1900 x 1300 mmRam surface:2500 x 1730 mmSide window:1100 mmOil volume:3500 lPower capacity:200,0 kWDimensions (WxDxH):4,1 x 2,8 x 9,6 mHeight above floor:6,4 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact absorption:hydraulic
Pressure:800 tdistance between columns:3550 mmstroke:1100 mmDistance table/ram, max. stroke up, adjustment up:1900 mmTable surface area:3500 x 1800 mmpressure of drawing cushion in table:350 tDie cushion stroke in table:280 mmDie cushion pressure in ram:80 tDie cushion stroke in ram:160 mmRam surface:3500 x 1800 mmSide window:1900 mmWeight:100,0 tFloor Space (WxD):5,3 x 4,3 mHeight above floor:7,3 mHeight below floor:5,0 - 6,0 mdie cushion in table:hydraulic, controllable die cushion in ram:hydraulic, controllable cutting impact cushioning:hydraulic sliding table:without rails for moving table
pressure:160 tthroat:400 mmstroke:30 - 200 mmno. of strokes:50 /mindistance table/ram, max. stroke up, adjustment up:600 mmtable surface area:1000 x 770 mmtable height over floor:810 mmhole in the table:360 mmPassage to the back:450 mmram surface:710 x 450 mmram adjustment:110 mmpower requirement:15,0 kWweight:10,5 tDimensions (WxDxH):1,7 x 2,0 x 3,2 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic
pressure:60 tthroat:400 mmstroke:600 mmDistance table/ram, stroke up:700 mmTable surface area:1120 x 700 mmtable height over floor:850 mmRam surface:700 x 700 mmOil volume:275 lPower capacity:7,5 kWWeight:7,3 tDimensions (WxDxH):1,6 x 2,0 x 3,7 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20
: neu : ca. 4 Monate ab Auftragse : Italien : 72500 €: 1370.25 €: 35 to: 500 mm: 700x350 mm: 700x500 mm: 600 mm: 250 mm: 125 mm/s: 43 mm/s: 9 mm/s: 68 mm/s: 4 kW: 1100 mm: 1400 mm: 2300 mm4 guides for the slideT-slots in the tableRexroth hydraulic unitMonitored electrovalvesAir/oil heat exchangerPressure switchDouble pushbuttons controlStroke adjustment by limit switch micronsSiemens CPULateral fixed protrection gratesCE certification following ",IV enclosure",OPTIONS(prices on request):Blank holderPrismatic guidesFrontal light curtainCNC control Siemens with touchscreenHydraulic pump with variable flowProportional valvesLateral sliding guides with security micronsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

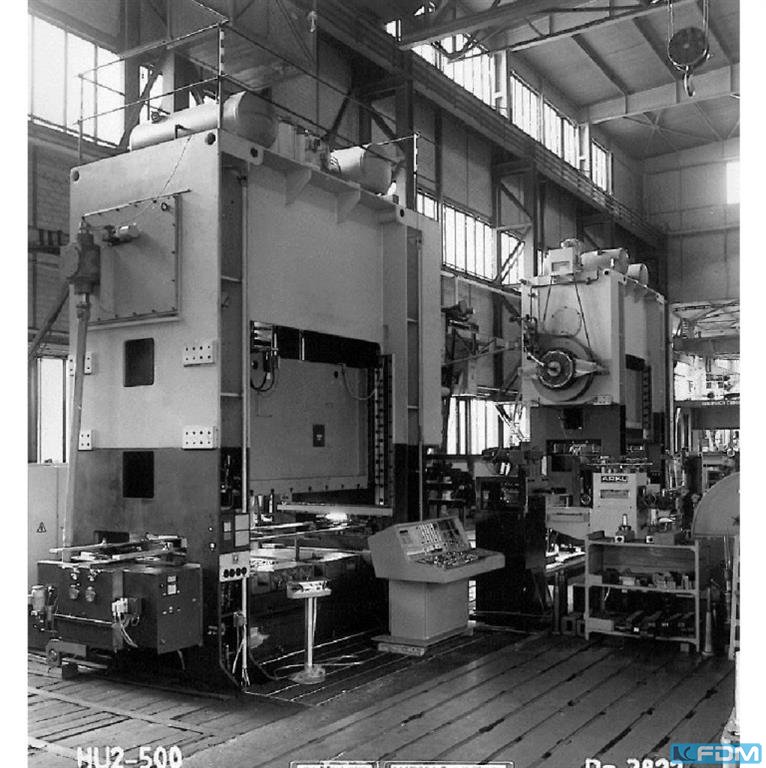

pressure:500 tstroke:fix 300 mmno. of strokes:20 - 70 Hub/mindistance between columns:3100 mmside window:1400 mmdistance table/ram, max. stroke up, adjustment up:1000 mmTable area:2800 x 1600 mmram surface:2800 x 1450 mmram adjustment:100 mmpower requirement:90,0 kWweight:100,0 tDimensions (WxDxH):5,75 x 3,2 x 7,8 mheight above floor:6,4 mheight beneath floor:1,4 mclutch:pneumatic; Ortlinghaus ram adjustment:motoric overload protection in ram:hydraulic ram counterbalance:pneumatic
pressure:063 tthroat:250 mmstroke:8 - 100 mmStroke rate:60 - 160 / minDistance table/ram, max. stroke up, adjustment up:415 mmTable surface area:710 x 500 mmHole in the table:250 / 280 mmTable height above floor:800 mmPassage to the back:290 mmRam surface:450 x 280 mmRam adjustment:63 mmWeight:4,3 tDimensions (WxDxH):1,5 x 1,7 x 2,7 minfinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
pressure:063 tthroat:250 mmstroke:8 - 100 mmStroke rate:47 - 140 / minDistance table/ram, max. stroke up, adjustment up:415 mmTable surface area:710 x 480 mmHole in the table:280 / 250 mmTable height above floor:800 mmPassage to the back:290 mmRam surface:450 x 280 mmRam adjustment:63 mmWeight:4,0 tDimensions (WxDxH):1,5 x 1,6 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
pressure:63 tthroat:270 mmstroke:160 mmDistance table/ram, max. stroke up, adjustment up:360 mmtable surface area:560 x 490 mmhole in the table:280 x 190 mmtable height above floor:850 mmram surface:450 x 360 mmoil volume:360 lpower requirement:23,0 kWweight:4,6 tdimensions (W x D x H):1,2 x 1,8 x 2,9 m
: neu : ca. 10 Wochen ab Auftrags : Türkei : 127400 €: 2407.86 €: 220 to: 4050 mm: Y1 / Y2 / X und R Achse : 265 mm: 3600 mm: 410 mm: 530 mm: hydraulisch : 200 mm/s: 12 mm/s: 180 mm/s: 650 mm: 500 mm/s: 250 mm: 900 mm: 104 mm: 5250 mm: 1770 mm: 2900 mm: 15000 kg1 SERVO MOTOR AND PUMP PER CYLINDERStandard accessories:4 axes (Y1, Y2,X andR)CNC control SKY 22- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD- with 2D and 3D working screen- direct programming of the bending angle- user friendly programming in dialogue form optionally in 2D or 3D mode- 2D and 3D simulation of the bending sequence- automatic tool selection in 3D mode- automatic calculation of the blank sheet size- bending order calculation- graphic product and tool memory- correction possibility- USB and Ethernet interfaces for import, backup and programm transportati ...
pressure:70 tdistance between columns:750 mmstroke:900 mmtable surface area:700 x 1000 mmDistance table/ram, stroke up:900 mmtable height over floor:680 mmram surface:700 x 1000 mmside window:600 mmmax. tool weight:5,0 tmax. capacity of swivelling ram plate:2,0 tSpeed down:0 - 50 mm/sSpeed up:0 - 48 mm/sWorking speed:0 - 8 mm/soil volume:140 lpower capacity:9,5 kWweight:8,0 tDimensions (WxDxH):2,2 x 1,2 x 3,7 m
: neu : ca. 3-6 Wochen ab Auftrag : Türkei : 64000 €: 1209.6 €: 80 to: 900 mm: 540 mm: 180 mm: 4 - 102 mm: 54 1/min: 490x325 mm: 280 mm: 380 mm: 7.5 kW: 2010 mm: 1390 mm: 2750 mm: 5400 kg8-fold ram guidefront protection by light guardmanual stroke adjustmentram adjustment witch ratchetdrive over gearcombined clutch brake unit with pneumatic controlfix tablesingle and continuous strokefoot pedal and 2 hand controlmech. overload safety deviceautomatic central lubricationuser manual in GERMAN and ENGLISHaccording to CE rulesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure:40 tthroat:285 mmstroke:500 mmDistance table/ram, stroke up:630 mmtable surface area:560 x 560 mmpressure of drawing cushion in table:16 tstroke of drawing cushion in table:200 mmdie cushion area:425 x 425 mmtable height over floor:800 mmram surface:450 x 450 mmpower requirement:11,0 kWweight:4,0 tdimensions (WxDxH):1,15 x 1,8 x 2,85 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 light guard:Sick
pressure:30 tthroat:110 mmstroke:50 mmno. of strokes:35 - 80 /mindistance table/ram, max. stroke up, adjustment up:230 mmtable surface area:410 x 260 mmtable height over floor:790 mmpassage to the back:170 mmram surface:190 mmram adjustment:35 mmweight:1,3 tdimensions (WxDxH):1,0 x 1,1 x 1,8 mGerman Safety: moving screen:UVV 11.062 - VBG 7n5.1 § 6
pressure:160 tdistance between columns:1360 mmstroke:300 mmDistance table/ram, max. stroke up, adjustment up:620 mmtable surface area:1300 x 900 mmtable height over floor:950 mmside window:640 mmram surface:1300 x 900 mmpower requirement:45,0 kWweight:16,0 tDimensions (WxDxH):2,5 x 2,1 x 4,1 mcutting impact cushioning:hydraulic
: neu : ca. 14 - 16 Wochen ab Auf : Italien : 28000 €: 534.8 €: 70 to: fix : 1050 mm: 500 mm: 700 mm: 900 mm: 29 mm/s: 10 mm/s: 5 mm/s: 800x600 mm: 700x350 mm: 1700 mm: 1000 mm: 2300 mm: 1400 kgHydraulic multifunction workshop press for pressing and straightening and optional bendingVersion A (automatik): with 2-hand panel with limit micron switch for up/downstroke stop, automatic piston retraction, Siemens CPUVersion S (semiautomatik): 2-hand function by hand lever and pushbutton, limit micron switch for up/downstroke stopStandardmodel for pressing and straightening: table with t-sloats and straightening punchOPTIONS:Bending accessorie with tool holder, upper tool, dies with 4 slots and 2 frontal support armsMobile truck for quick assembly/disassembly of bending unitSiemens controlPressure switchHeat exchangerPiece counterTimerPlate supports for the rear sideSafety light guardALTERN ...
pressure:600 tdistance between columns:3640 mmstroke:350 mmno. of strokes:11 - 44 /minDistance table/ram, max. stroke up, adjustment up:1550 mmtable surface area:3600 x 2500 mmsliding table:3600 x 2500 mmram surface:3600 x 2500 mmSide window:2200 mmram adjustment:400 mmmaterial width coil line:500 - 1950 mmMaterial thickness at 1200 mm material width:0,6 - 2,5 mmMaterial thickness at 1850 mm material width:0,6 - 2,0 mmMaterial thickness at 1950 mm material width:0,6 - 1,75 mmCoil weight:35,0 tcoil internal diameter:610 mmcoil external diameter:900 - 1900 mmno. of straightening rolls:13 straightening roll diameter:50 mmStack height:400 mmstacking dimensions - station 1+2 (L x W):150-2000 x 250-2000 mmstations:2 power requirement:112,0 + 35,0 kWWeight:390,0 tDimensions (WxDxH):7,3 x 5,1 x 15,0 mHeight above floor:9,1 mHeight below floor:5,9 mclutch-/ brake combination:pneumatic overload pr ...
pressure:315 tdistance between columns:1290 mmstroke:700 mmdistance table/ram, max. stroke up, adjustment up:950 mmtable surface area:1250 x 1100 mmpressure of drawing cushion in table:125 tstroke of drawing cushion in table:300 mmdie cushion area:900 x 900 mmCapacity of ejector in ram:20 tStroke of ejector in ram:250 mmtable height over floor:800 mmram surface:1250 x 1100 mmoil volume:1200 lpower requirement:40,0 kWweight:22,0 tdimensions (WxDxH):2,6 x 1,6 x 5,2 mheight over floor:4,05 mdrawing cushion in table:hydraulic ejector in ram:hydraulic cutting impact cushioning:hydraulic
Pressure:40 tthroat:330 mmstroke:250 mmdistance table/ram, max. stroke up, adjustment up:450 mmtable surface area:800 x 500 mmhole in the table:100 mmtable height over floor:900 mmram surface:100 mmSpeed down:406 mm/sSpeed up:393 mm/sWorking speed:14 mm/soil volume:350 lpower requirement:7,5 kWweight:4,6 tdimensions (WxDxH):1,3 x 2,3 x 3,4 mGerman Safety: permitted for manual loading:CE-sign depth stop:mechanical
pressure:40 tthroat:300 mmstroke:630 mmDistance table/ram, stroke up:900 mmTable surface area:620 x 520 mmHole in the table:150 mmtable height over floor:600 mmRam surface:150 mmPower capacity:15,0 kWWeight:4,5 tDimensions (WxDxH):1,0 x 1,9 x 3,0 mGerman Safety: permitted for manual loading:CE-sign
pressure:400 tdistance between columns:1060 mmstroke:450 mmno. of strokes:15 - 30 /mindistance table/ram, max. stroke up, adjustment up:1160 mmtable surface area:1000 x 700 mmcapacity of ejector in table:2 x 16 tejector stroke of ejector in table:125 mmDie cushion pressure in table:120 tDie cushion stroke in table:2 mmcapacity of ejector in ram:2 x 4 tstroke of ejector in ram:100 mmram surface:1000 x 700 mmcolumn travel -side:630 mmpower capacity:55,0 kWweight:50,0 tdie cushion in table:2. station
no. of strokes:150 /minimpact energy:420 kJdistance lower die block / ram gudeway:435 mmThroat:425 mmsteel forging - rectangular up to:110 mmsteel forging - diameter up to:125 mmpower requirement:22,0 kWweight of hammer:3,9 tweight of anvil:3,0 tram hammer weight:200 kgweight:6,9 tdimensions (WxDxH):1,1 x 2,3 x 2,4 m
Pressure:080 tthroat:345 mmstroke:20 - 160 mmno. of strokes:65 /mindistance table/ram, max. stroke up, adjustment up:495 mmtable surface area:920 x 610 mmtable height over floor:800 mmHole in the table:280 mmpassage to the back:670 mmram surface:650 x 400 mmram adjustment:50 mmpower capacity:10,0 kWweight:7,7 tDimensions (WxDxH):1,5 x 2,2 x 3,15 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:hydraulic ram adjustment:motoric
pressure:800 tdistance between columns:1050 mmstroke:200 mmno. of strokes:8 - 25 /mindistance table/ram, max. stroke up, adjustment up:1300 mmSide window:550 mmtable surface area:1030 x 900 mmCapacity of ejector in table:15 tStroke of ejector in table:85 mmram surface:1040 x 800 mmram adjustment:120 mmCapacity of ejector in ram:12 tejector stroke in ram :80 mmpower requirement:36,0 - 112,6 kWweight:65,0 tDimensions (WxDxH):3,0 x 3,1 x 6,07 mejector in table:hydraulic ejector in ram:hydraulic
