DOOSAN MX2100ST turning center, year 2022, equipped with FANUC 31i-B5 control. This multi-tasking lathe offers X1/Z1 travels of 565/1,050 mm, Y-axis ±85 mm, and B-axis indexing. Main and counter spindle each deliver 22/18.5 kW at 5,000 rpm with A2-6 nose and 8 chuck; 76 mm spindle bore accommodates bar stock up to ø65 mm. BMT55P turret with 12 driven tool positions (5,000 rpm) plus 80-station Capto C6 ATC with 12,000 rpm milling spindle (18.5/15/11 kW) and 2.0 s tool change. Single Swiss owner; delivered complete with LNS Sprint 565 S2 bar feeder (3.2 m, ø3â€34 mm), 55-bar high-pressure coolant to milling spindle, electric tool-measuring arm, parts catcher, oil-mist extraction and HAINBUCH TOPlus/Mando workholding.

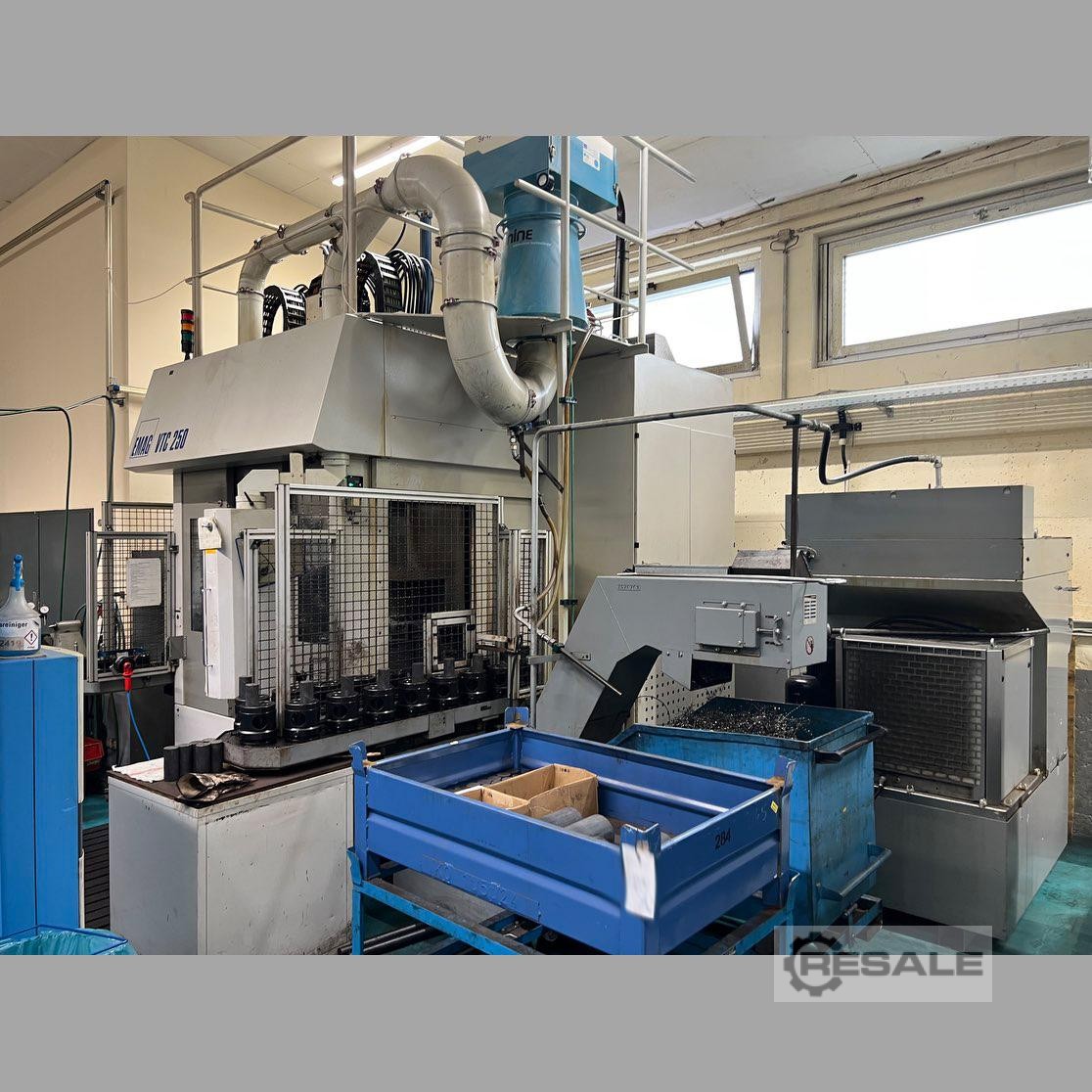

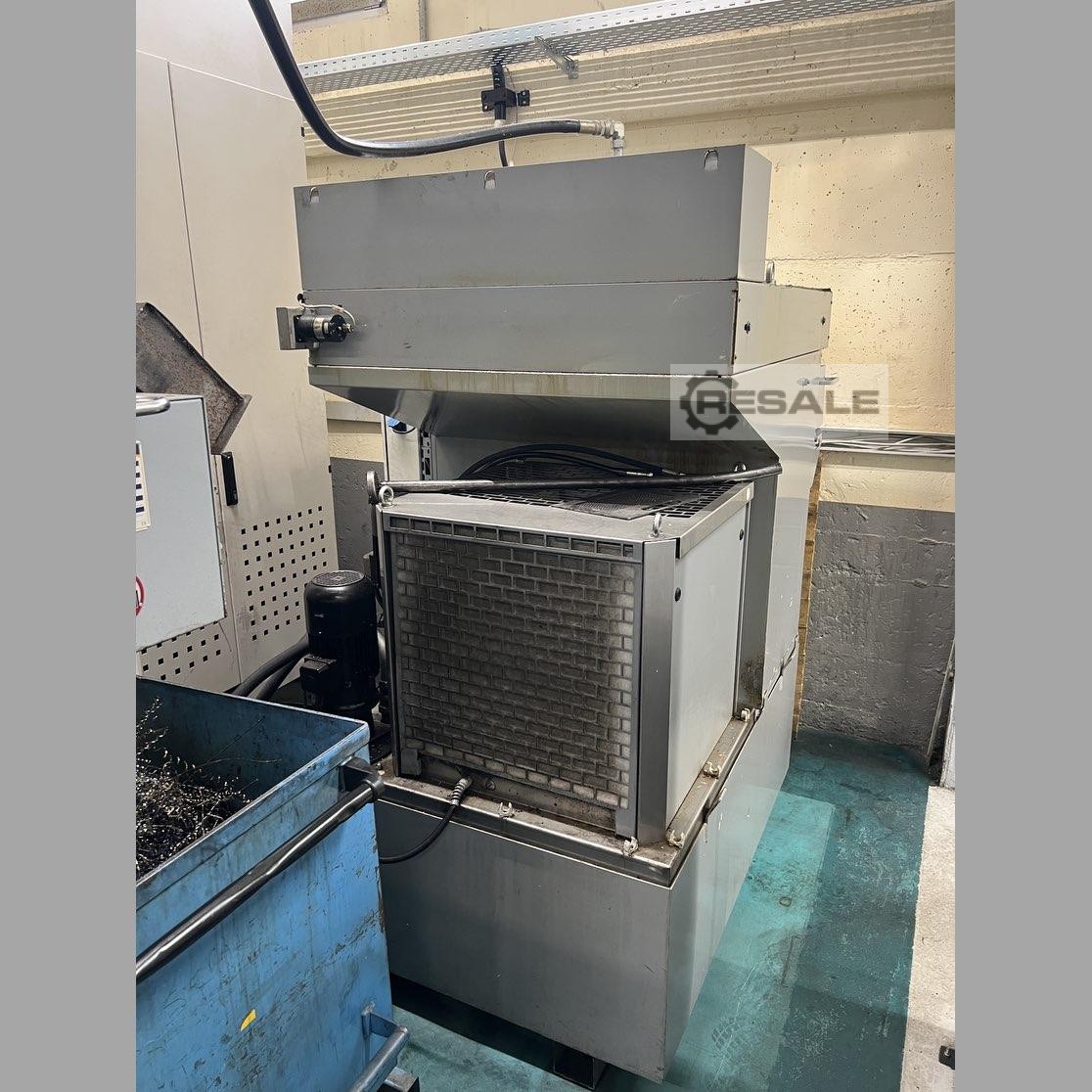

CONTROLS CNC controls SIEMENS BASIC FUNCTIONS number of spindles: 2 number of turrets: 1 number of c-axes: 2 WORKING RANGE TURNING turning diameter (max): 100 mm worpiece length max.: 150 mmMAIN SPINDLE spindle revolutions (max): 6000 /minTOOL MAGAZINE number of positions: 12 ELECTRICAL SPECIFICATIONS total power consumption: 36 kW mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS total weight approx.: 7000 kgATTACHMENTS (TURNING) hydraulic system: yes European CE standards: yes Machines in good condition:- Integrated pick-up automation- Two EMAG machines configured in a line are for sale.- A robot destacking unit with 100% parts inspection can also be purchased.
CONTROLS CNC controls NUM 1060 WORKING RANGE TURNING swing diameter (max): 2000 mm workpiece weight max.: 25000 kgCROSS BEAM SLIDE - rotation speeds (min): 2 /min - rotation speeds (max): 450 /minELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS space requirements -left/right-: 4100 mm space requirements -front/back-: 3500 mm total height: 5600 mm
CONTROLS CNC controls FANUC BASIC FUNCTIONS number of spindles: 1 number of turrets: 1 WORKING RANGE TURNING turning diameter (max): 220 mm worpiece length max.: 175 mmMAIN SPINDLE spindle revolutions (max): 6000 /minX/Z SLIDE Z-axis travel: 300 mm X-axis travel: 660 mmELECTRICAL SPECIFICATIONS total power consumption: 36 kW mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS space requirements -left/right-: 3820 mm space requirements -front/back-: 2040 mm total height: 2400 mm total weight approx.: 6500 kg
CONTROLS CNC controls FANUC BASIC FUNCTIONS number of spindles: 2 number of turrets: 2 live positions: yes number of c-axes: 2 number of y-axes: 1 number of b-axes: 1 WORKING RANGE TURNING bar diameter (max): 50 mmMAIN SPINDLE spindle revolutions (max): 5000 /min drive power: 11 kW spindle bore diameter: 50 mm c-axis: yes COUNTER SPINDLE spindle revolutions (max): 5000 /min drive power: 7.5 kW c-axis: yes Z-axis travel: 465 mmX/Z SLIDE tool fixture: Turret number of tool positions (total): 24 number of live positions: 24 - rotation speeds (max): 6000 /minELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS space requirements -left/right-: 4500 mm space requirements -front/back-: 2200 mm total height: 1900 mm total weight approx.: 5500 kgATTACHMENTS (TURNING) work ...
高品質で精密なシャウブリンの110-CNC旋盤。機械は全 体的に非常に良好な状態で、慎重に使われています 注意:スピンドルアンプは現在不良品で修理または交 換が必要です。それ以外は、旋盤は完全に整備され おり、よくメンテナンスされています。
CONTROLS NC controls HEIDENHAIN BASIC FUNCTIONS number of spindles: 1 WORKING RANGE TURNING swing diameter (max): 320 mm turning diameter (max): 150 mm worpiece length max.: 750 mmMAIN SPINDLE spindle revolutions (max): 4000 /min drive power: 16 kWTAILSTOCK sleeve diameter: 60 mm taper: MK 4 ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS total weight approx.: 2500 kgATTACHMENTS (TURNING) European CE standards: yes 6000 Hours
CONTROLS CNC controls FANUC 31I MODEL A BASIC FUNCTIONS number of spindles: 2 number of turrets: 2 live positions: yes number of c-axes: 2 number of y-axes: 1 WORKING RANGE TURNING turning diameter (max): 230 mm worpiece length max.: 700 mmMAIN SPINDLE spindle revolutions (min): 50 /min spindle revolutions (max): 5000 /min c-axis: yes COUNTER SPINDLE spindle revolutions (min): 50 /min spindle revolutions (max): 6000 /min c-axis: yes X/Z SLIDE tool fixture: Turret ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS space requirements -left/right-: 2800 mm space requirements -front/back-: 1630 mm total height: 2200 mm total weight approx.: 9000 kgATTACHMENTS (TURNING) chip conveyor: yes coolant unit: yes band filtration unit: yes coolant through turret: yes through sp ...
CONTROLS CNC controls SIEMENS BASIC FUNCTIONS number of spindles: 4 number of turrets: 2 live positions: yes number of c-axes: 4 WORKING RANGE TURNING turning diameter (max): 100 mm bar diameter (max): 20 mmMAIN SPINDLE spindle revolutions (max): 5000 /minCOUNTER SPINDLE spindle revolutions (max): 5000 /minTOOL MAGAZINE number of positions: 48 ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS space requirements -left/right-: 9600 mm space requirements -front/back-: 1500 mm total height: 2200 mm total weight approx.: 2600 kgATTACHMENTS (TURNING) bar magazine: optional - bar length (max): 3000 mm chip conveyor: yes coolant unit: yes hydraulic system: yes Features:- various tool holders- various collets in every millimeter increment- bar feeder (dual channel)
この5軸のHanwha XD20 COMBEDは2013年に製造されました。最大回転数は10,000rpm 、最大作動直径は20mmです。この機械は定格電圧220〜 240 / 380〜415 VAC、重量2,500 kgで動作します。高品質な旋盤機能を求めているな 、当社で販売中のHanwha XD20 COMBEDスイス型旋盤機を検討してください。詳細につ てはお問い合わせください
この5軸ハンファXD20V COMEDは2014年に製造されました。最大回転数は10,000rpm 最大作動直径は20mmです。堅牢な設計と2500kgの重量 持つこの機械は、精密旋盤用途に最適です。高品 なスイス型旋盤性能をお求めなら、当社で販売中の Hanwha XD20V COMIVE機械を検討してください。詳細についてはお問 合わせください
この9軸の中村NTJ100ターンミルセンターは2017年に製 され、最大65mmのバー容量と最大回転数4500rpmと5000rpm のデュアルスピンドルを備えています。サムシスの ーローダー、アブソレント抽出システム、そして ピンドルを通じた冷却材供給、部品キャッチャー、 自動工具セット装置など、さまざまな自動機能を備 ています。この中村NTJ100ターンミルセンターを購 するチャンスをぜひご検討ください。この機械につ いての詳細はお問い合わせください
control: SIEMENS 840D SL ShopTurn turning diameter: 700 mmswing over bed: 900 mmturning length: 3065 mmc-axis: indexing: 0.001 °turning speeds: -2500 U/mintool taper: VDI 50 Top turret tool hodler:: 12 tailstock quill taper MT: 5 y-travel: 160 mmrapid traverse X-axis: 40 m/minrapid traverse Z-axis: 30 m/minOverall size: 4450x2100x2350 mmrapid traverse Z-axis: m/minweight of the machine ca.: 7200 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
CONTROLS CNC Teach In Controls SIEMENS BASIC FUNCTIONS design principle: flatbed number of spindles: 1 WORKING RANGE TURNING swing diameter (max): 720 mm turning diameter (max): 380 mm bar diameter (max): 108 mm worpiece length max.: 1500 mmMAIN SPINDLE spindle revolutions (min): 0 /min spindle revolutions (max): 1200 /min number of gears: 3 spindle bore diameter: 108 mmX/Z SLIDE traverse velocity Z (max): 5000 mm/min traverse velocity X (max): 5000 mm/min rapid traverse Z: 5000 mm/min rapid traverse X: 5000 mm/min tool fixture: Steel Holder TAILSTOCK distance betw. centers (max): 1500 mm sleeve stroke: 200 mm sleeve diameter: 120 mm taper: MK 6 ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 HzDIMENSIONS / WEIGHTS space requirements -left/right-: 4050 mm space requirements -front/back-: 1730 mm ...
control: SIEMENS 810D turning diameter over bed: 1000 mmcentre height: 500 mmcentre distance: 2000 mmturning dia. over face-slide: 700 mmspindle bore: 128 mmspindle taper ISO: DIN55027/11 spindle turning speed - stepless: 6.4-1600 U/mintailstock quill taper MT: 6 diameter of quill: 125 mmquill stroke: 280 mmfeed - longitudinal/cross: 5000/4000 mm/minrapid traverse longitudinal and cross: 10/5 m/mindimensions of machine: 5600 x 2600 x 2800 mmweight: 9.1 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
control: MAZAK Mazatrol 640T Nexus swing over bed: 610 mmswing diameter over bed slide: 350 mmturning length: 982 mmc-axis: indexing: 0.001 °turning speeds: 4000 U/mintool taper: ASA A2-8 tailstock quill taper MT: 5 rapid traverse X-axis: 30 m/minrapid traverse Z-axis: 33 m/minOverall size: 4500 x 2000 x 1600 mmweight of the machine ca.: 6.5 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
ベッド上の回転直径:400 mm中心の高さ:195 mmスライドレスト上の回転直径:246 mm回転長さ:650 mmスピンドル回転速度-無段階:0-2500 U/min総電力要件:7,5 kW機械の重量約:1,8 t機械の寸法:2x1.3x1.6 m
制御:ハイデンハインマニュアルプラスM ベッド上の回転直径:320 mm中心高さ:160 mm中心距離:800 mm回転直径 面スライド上:150 mmスピンドルボア:50 mmスピンドルテーパー:DIN 55027/B6 スピンドル回転速度-無段階:0-4000 U /分総電力要件:7 kW機械の寸法約:400x160x190 cm機械の重量: 2.2ト
