旋盤 中古 販売のため (3,103)

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Minimag bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Year of manufacture 2012 A KEYENCE IM-6020 optical measuring machine is available for sale, in good working condition. The IM series is known for fast, high-precision and operator-independent measurements and is ideal for use in quality assurance, incoming goods inspection and production monitoring. Technical data (excerpt): Model: IM-6020 Year of manufacture: 09/2012 Measuring method: Optical / non-contact Measuring range (X/Y): approx. 200 × 200 mm Measuring range (Z): Height measurement via autofocus Measuring accuracy: up to approx. ±2 µm (depending on measurement conditions) Repeatability: very high, operator-independent Camera: high-resolution CCD camera Illumination: reflected light / transmitted light / contour illumination Measuring functions: Length, angle, radius and diameter measurement Contour and shape measurement Comparative measurement (OK/NOK) Automatic dimension reco ...

Technical data subject to change, errors and prior sale reserved!

Year of manufacture: 08_2022 Fanuc control of the 0i series Hanwha CNC Swiss Type Lathe XD10 Y2 with Fanuc Control of the 0i Series The Hanwha CNC Swiss type lathe XD10 Y2 is a high-precision Swiss type automatic lathe with integrated Fanuc control of the 0i series, designed for machining small diameters in series production. It features a main spindle, sub-spindle, extensive tooling equipment, and accessories for efficient manufacturing processes. Main Spindle Maximum turning diameter: 10 mm Maximum spindle bore diameter: 15 mm Maximum speed: 15,000 rpm Maximum power: 3.7 kW (Built-in Motor) Z1 travel: 155 mm Synchronous rotating guide bushing unit: Type F853 Collet: Type 120E Sub-Spindle Maximum speed: 10,000 rpm Maximum power: 1.1 kW C-axis: Resolution 0.001° Maximum pick-up diameter: 10 mm Z2 travel: 180 mm Collet: Type 120E Tool Slide X1, Y1: Tool holder plate for 5 external turnin ...

The machine can be viewed on site by appointment. Subject to changes and errors in the technical data and specifications, and prior sale!

Technical data and specifications may be subject to change and error. Subject to prior sale.

The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

Year of manufacture: 2011 Machine operating hours: 56,000 hrs Machine automatic cycle hours: 48,000 hrs FANUC 31i CNC control – Model A, 7-axis Technical data - Number of axes: 7 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 60 [mm] - Spindle speed: 5000 [rpm] - Spindle drive power: 7.5 [kW] COUNTER SPINDLE (on the turret) - Max. bar diameter: 42/ (60) [mm] - Spindle speed: 5000 [rpm] - Spindle drive power: 3.7 [kW] Powered tools (turret): Tool drive power: 3.7 kW Max. speed: 6,000 rpm Rear-end machining: 4 fixed tool stations Up to 14 tools / capacity possible Bar loading magazine FMB Turbo 5-55 / 3200 / A Year of manufacture: 2008 Bar diameter: 5 - 55 [mm] Bar length: 3,200 [mm] Chip conveyor The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Technical data Type: TBA-60 Year of manufacture: 2005 Machine type: CNC multi-slide automatic lathe Control: CNC (Fanuc-based control) Working range Max. round bar capacity: 60 mm Max. turning length: 100 mm Spindle Spindle power: 7.5 kW Max. spindle speed: up to 3,150 rpm Tool system Servo-driven 6-station star turret Turret change time: approx. 0.3–0.4 s Multi-slide concept with: Front horizontal slide (X1/Z1) Rear horizontal slide (X2) Two vertical slides (X3/X4) () Travel distances Horizontal slide travel distance: 45 mm Vertical slide travel distance: 45 mm Machine data Machine weight: 2,000 kg Equipment Single bar feed Multi-carriage turning system for high productivity Coolant device Chip disposal / chip tray The machine can be viewed under power by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

The machine can be viewed in operation by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale

Year of manufacture: 2004. Control: Heidenhain iTNC 530. Technical data: Travel distance X: 2,500 mm. Travel distance Y: 920 mm. Travel distance Z: 820 mm. B-axis: x/- 105° Work table: 3100 x 900 mm Spindle exception: HSK 63 Spindle speeds: 20 - 18,000 rpm Tool changer: 30 pcs. Equipped with: - Chip conveyor - Cooling via spindle 40 bar - Operating instructions Country of origin: Germany Motor power: 35 KW Machine LxWxH: 6000 x 3800 x 2950 mm Machine weight: 25,000 kg The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 16 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Turbo 3-26 bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Subject to changes and errors in technical data, and prior sale!

The machine can be viewed under power by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

The machine can be viewed under power by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Technical data and information are subject to change and errors. Prior sale reserved.

Year of Manufacture: 2013 Control: Fanuc 32i A Operational Status: Fully operational Operating Hours: approx. 60,000 hours Technical Data Spindle Bore: Ø 27 mm Spindle Nose: A2-5 Chuck Capacity: max. 80 mm Maximum Spindle Speed: 6,000 rpm X-Axis Travel: 607 mm Z-Axis Travel: 286 mm Coolant System Loading and Unloading System: FMB MH5LS-SP / 5 workpiece pallets, double gripper Accessories / Tools / Manuals Machine Dimensions and Weight Machine Dimensions: approx. 1850 × 1750 × 1750 mm Machine Weight: approx. 2100 kg Loading/Unloading System Dimensions and Weight Dimensions: approx. 1900 × 950 × 2000 mm Weight: approx. 1000 kg Coolant System Dimensions and Weight Dimensions: approx. 1500 × 800 × 1100 mm Weight: approx. 250 kg The machine is fully operational and in good used condition. For further information or to arrange a live demonstration under power, please feel free to contac ...

Year of manufacture: 2015 Key Features: Manufacturer: Mitutoyo Corporation Model: PJ-A3000 Projection Screen: Ø 315 mm Magnification: 10× standard (optional 20×, 50×, 100×) Measurement Accuracy: ±0.001 mm (XY resolution) Table Travel: Various measuring ranges depending on model (up to 200×100 mm) Illumination: Halogen lamp 24 V / 150 W Functions: Digital XY readout, angle measurement, RS?232C interface Max. Workpiece Height: approx. 92.5–123.5 mm Special Features: Telecentric optical system for distortion-free projection, rotatable table, manual focusing Condition: Used, tested, and fully functional. Applications: Ideal for metal and plastic processing, training, laboratories, and precision measurements. The machine can be inspected under power by appointment. Technical specifications are subject to change, errors and prior sale reserved.

The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

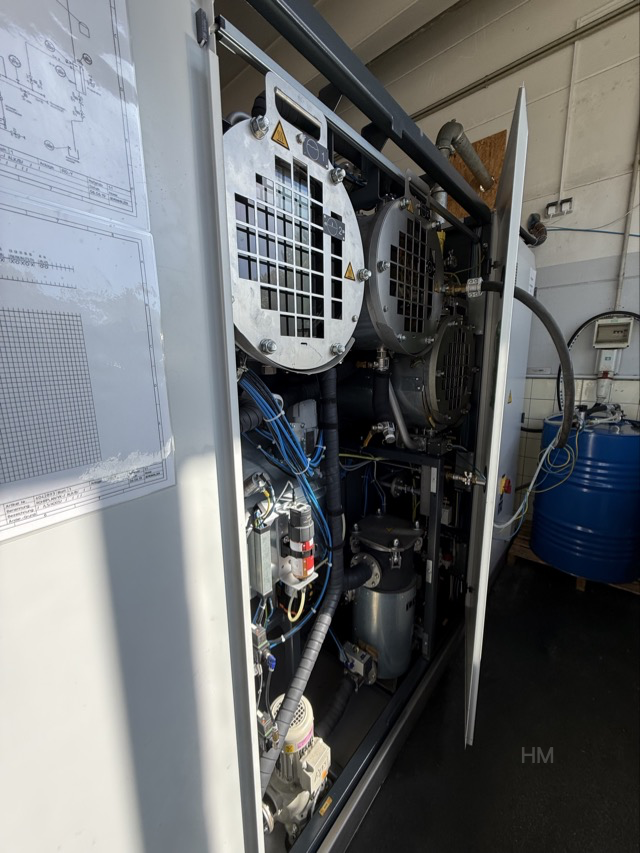

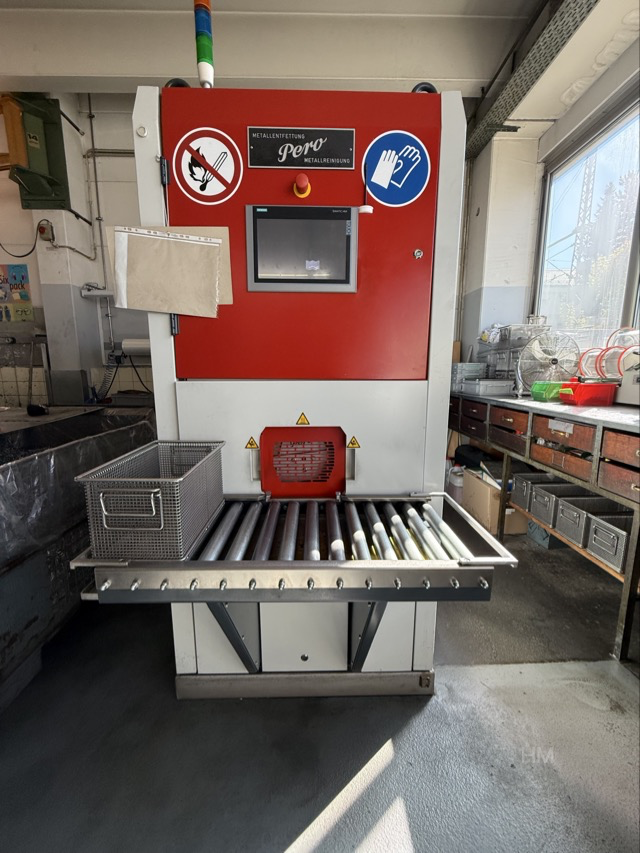

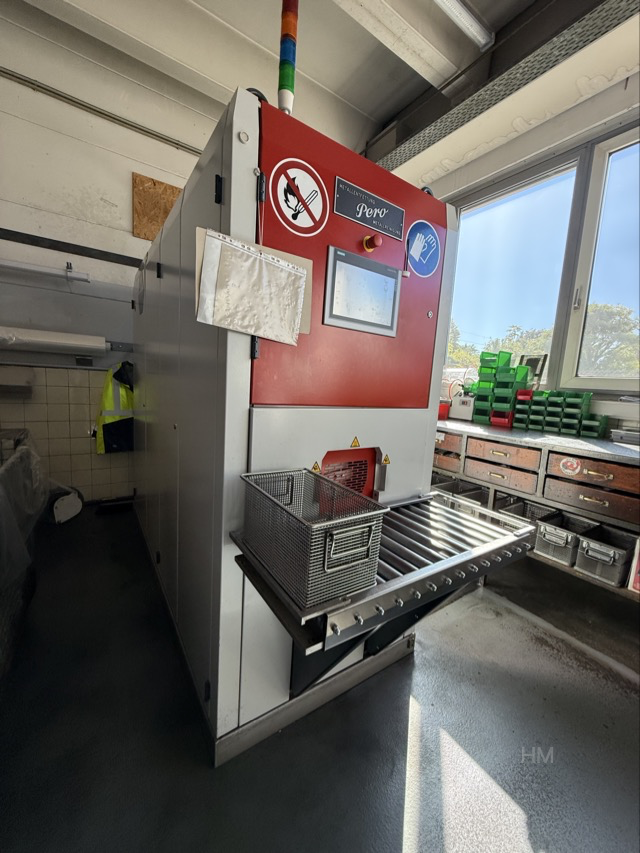

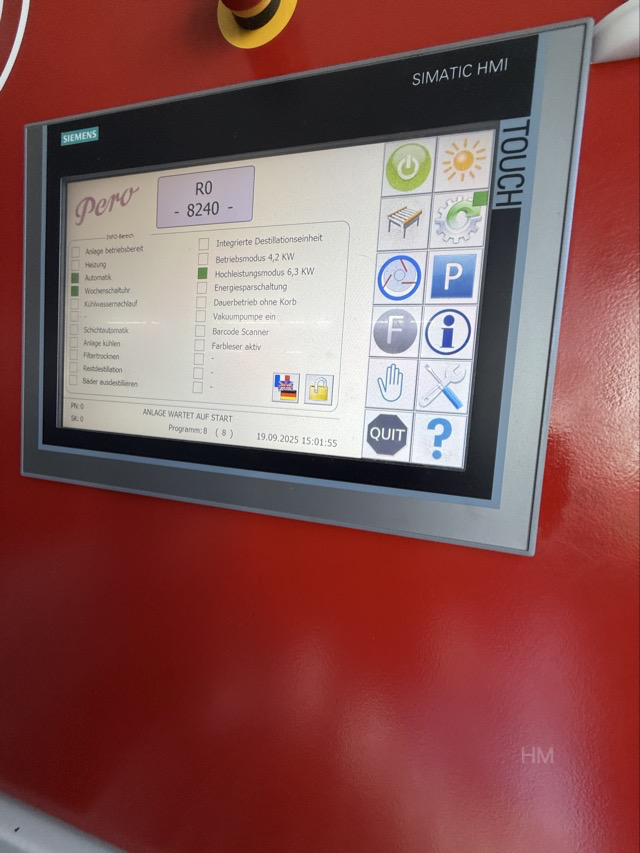

Year of manufacture: 10 / 2017 Machine type: Cleaning system / Degreasing unit Process: Solvent cleaning (e.g. modified alcohols or hydrocarbons) Technical data (typical for this series): Cleaning system: Closed-loop system, fully automatic Working chamber dimensions: approx. 530 × 320 × 200 mm Maximum batch weight: approx. 50 – 80 kg Solvent: Modified alcohol (hydrocarbon-based) Drying: Vacuum drying Control system: PLC control with touch panel Equipment: Integrated distillation unit, filtration system, oil separator Power consumption: approx. 10 – 15 kW Vacuum pump: Integrated Condition: Very good, well-maintained condition – from ongoing production Special features: Energy-efficient cleaning system with closed solvent circuit Excellent cleaning quality with minimal solvent consumption Ideal for precision engineering and metal-cutting industries The machine can be inspected und ...

Technical data and information subject to change and error. Intermediate sale reserved.

The machine can be inspected by appointment. Subject to changes and errors in the technical data and information as well as prior sale!

The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

The machine can be inspected under power by appointment. Changes and errors in the technical data and information as well as subject to prior sale!

The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

Technical data IEMCA ELITE 112, built in 2012: Manufacturer: IEMCA Model: ELITE 112 Year of manufacture: 2012 According to the manufacturer, the ELITE 112 series is designed for machining thin bars and, depending on the version, covers a range from 0.8 to 12.7 mm. The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

Technical data for BARBOY Type 29-AA-1 bar feeder: Manufacturer: BARBOY Type: 29-AA-1 Equipment type: Bar feeder Feeder length: 3,000 mm The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

Year of manufacture: 2023 Features/highlights Horizontal CNC lathe Powerful main spindle Robust machine construction for high dimensional accuracy Tool turret with fast indexing Compact design, low space requirement User-friendly CNC control High reliability and low maintenance Technical data Max. turning diameter: approx. 300 mm Max. turning length: approx. 300 mm Spindle bore: approx. Ø 52 mm Main spindle speed: up to approx. 4,500 rpm Tool turret: 12 stations Control: FANUC CNC Machine weight: approx. 2,200 kg Machine fully functional, both electrically and mechanically Complete technical documentation available The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!
