旋盤 中古 販売のため (3,106)

The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

Year of manufacture: 2007 Type: Bar loading magazine Easy changeover of the guide channel in less than approx. 2 minutes. Complete changeover of the guide elements possible in less than approx. 8 minutes. Technical details: Diameter range: 2 mm to 20 mm Channel Ø 22 mm Maximum bar length: 3,000 mm Installation dimensions / dimensions (L x W x H): 3,970 x 480 x 1,250 mm Weight: approx. 850 kg Condition: fully functional The machine can be viewed in operation by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale! Translated with DeepL.com (free version)

Year of Manufacture: 2021 Control: Fanuc 32i Operational Status: Fully operational Operating Hours: approx. 15.000 hours Technical Data Spindle Bore: Ø 27 mm Spindle Nose: A2-5 Chuck Capacity: max. 80 mm Maximum Spindle Speed: 6,000 rpm X-Axis Travel: 607 mm Z-Axis Travel: 286 mm Coolant System Loading and Unloading System Accessories / Tools / Manuals Machine Dimensions and Weight Machine Dimensions: approx. 1850 × 1750 × 1750 mm Machine Weight: approx. 2100 kg Loading/Unloading System Dimensions and Weight Dimensions: approx. 1900 × 950 × 2000 mm Weight: approx. 1000 kg Coolant System Dimensions and Weight Dimensions: approx. 1500 × 800 × 1100 mm Weight: approx. 250 kg The machine is fully operational and in good used condition. For further information or to arrange a live demonstration under power, please feel free to contact us. All technical data and information are approxima ...

Year of manufacture: 12/2020 Operating hours: approx. 17,265 Serial no.: 8794_463 Internal no.: 231023 CNC control: FANUC 0i-TD with 7 axes C-axis on main and sub spindle Convertible from sliding headstock to fixed headstock turning Main and sub spindle collet type: E145 Synchronized driven guide bush unit Guide bush type: T223 HFT (High-Frequency Turning) eliminates chip problems CE declaration of conformity Bar feeder FMB micromag 20 / 3200 A Serial no.: 31-320684 R1845925 Hinged belt conveyor MAYFRAN type MT 10 Fire extinguishing system Kraft & Bauer with CO? container (6 kg) High pressure unit SFB-200eco Serial no.: 12631 Machine dimensions: approx. 2070 x 1177 x 1760 mm Machine weight: approx. 1,800 kg Bar feeder dimensions: approx. 5015 x 720 x 1700 mm Bar feeder weight: approx. 600 kg High-pressure unit dimensions: approx. 1500 x 500 x 1000 mm High-pressure unit weight: approx. 25 ...

Technical data - branded LNS FOX IFS WS 500 Feature Specification Model FOX IFS WS 500 Year of manufacture 2012 Delivery rate approx. 500 m³/h Motor power approx. 0.37 kW Voltage 400 V / 50 Hz (typical) Weight approx. 35 kg Dimensions approx. 465 × 500 × 1 145 mm (WxDxH) Filter stages 1. pre-filter F52. Centrifugal separator3. Post-filter F5 (optional HEPA H13) Filtration efficiency 99 % at ? 1-2 µm (F9), optional HEPA 99.95 % at ? 0.1 µm Noise level approx. 65 dB (WS2 mod. similar) Accessories & features - Compact design for mounting directly on or next to CNC machines - Statiff for extraction - Three cleaning stages for effective oil and emulsion mist separation - Cartridge filter can be optionally retrofitted with HEPA kit - Easy maintenance, low-noise operation and durable filter elements Subject to changes and errors in the technical data and information as well as prior sale!

Technical data Type: Synchronous servo motor, model 1FK6, 6-pole Nominal torque: 11 Nm Nominal speed: 3000 rpm (100 Hz) Cooling: Naturally cooled, IM B5 (V1, V3) design Connection: Power/signal connector, rotatable by 270° Encoder: EnDat 2048 S/R absolute encoder (encoder A-2048) Shaft: Smooth, tolerance class N, with integrated holding brake Protection class: IP65, on shaft flange (DE) additionally IP67 Weight: approx. 14.6 kg Design/flange: DE flange compatible with IP67 Origin: Germany Standard: Machinery Directive 2006/42/EC compliant The motor can be inspected by appointment. Subject to changes and errors in the technical data and information as well as prior sale! Translated with DeepL.com (free version)

Technical data Type: Synchronous servo motor, 1FK6 series, 6-pole Nominal torque: 16 Nm Nominal speed: 3000 rpm (at 100 Hz) Cooling: Self-cooled, IM B5 (V1, V3) design Connection: Power and signal connector, can be rotated through 270° Encoder: EnDat 2048 S/R absolute encoder (A-2048 encoder) Shaft: Smooth shaft, tolerance class N, with holding brake Protection class: IP65, additional DE flange IP67 Weight: approx. 18.4 kg Customs tariff number: 85015220 Standard connection per Siemens Sinamics / Simodrive systems usual. Origin: Germany Standard: Machinery Directive 2006/42/EC compliant The motor can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

Year of manufacture: 2018 Operating hours: 47548 Machining time: 31241 Status: October 2025 Control: Fanuc 30i B Maximum flexibility of the MULTISPRINT thanks to its modularity and Y-axes in every position Use of driven tools on all spindle positions Y-axis on all spindle positions as standard SWISSTYPEkit for short and long turning up to 170 mm length Chuck or bar machining: bars from 4 to ø 36 mm, chuck components up to ø 50 mm Double rear and off-center machining Machine type: Multi-spindle automatic lathe SWISSTYPE machining: up to 170 mm turning length Control: FANUC Series 30i Maximum flexibility thanks to modularity and Y-axes on all spindle positions Use of driven tools on all spindle positions Machining: Bars from Ø 4 – 36 mm, chuck parts up to Ø 50 mm Double rear and off-center machining possible Performance data Feature Value Max. workpiece diameter 36 mm Max. workpiece  ...

FMB loading magazine Turbo 3-26 year 2004 Fire extinguishing system Kraft & Bauer / GUT Feuerschutz Mayfran chip conveyor The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

The machine can be viewed under power by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Technical data and information subject to change and error. Intermediate sale reserved.

Technical data Max. turning diameter over bed: approx. 320 mm Max. turning diameter over support: approx. 160 mm Max. turning length: approx. 470 mm Bar passage: approx. 36 mm Spindle: Speed range: approx. 30 - 3550 rpm Spindle nose: A 2 - 5 Drive power: approx. 3.0 kW Automatic longitudinal & cross feeds: Feed range: approx. 0.020 - 2.0 mm/rev The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Year of manufacture: 2004 – major overhaul by manufacturer CHIRON in 2013 The machine underwent a complete factory overhaul by CHIRON in 2013. Operating hours: approx. 80,374 h Spindle replacement: March 2021 – spindle hours: approx. 8,000 h Last maintenance performed: January 2024 Technical Specifications: Control: Siemens 840D (PCU50, NCU572.4) NC swivel head High-speed package: Motor spindle up to 12,000 rpm, 140 Nm Travels: X 6,000 mm / Y 630 mm / Z 550 mm Rapid traverse in X / Y / Z: 60 m/min Chip-to-chip time: 3.0 sec (3.3 sec DIN) vertical / 4.7 sec (5.0 sec DIN) horizontal Production package: Scraper belt conveyor, discharge height 1,050 mm Preparation for internal coolant supply (IKZ) Vacuum rotary filter KNOLL VRF250 (for steel, cast iron, aluminum, plastic, brass) High pressure 70 bar with HP pump and variable valve Automatic loading doors Central partition for pendulum ma ...

Technical data and specifications are subject to change, errors excepted, and prior sale reserved.

FMB loading magazine Can be viewed by appointment. Subject to changes and errors in the technical data and information as well as prior sale!

FMB loading magazine - switch cabinet with contents Condition: Used Sale of individual components also possible For sale is a used FMB loading magazine control cabinet including fully installed technology, as shown in the pictures. ? Scope of delivery (as visible in pictures): Control cabinet incl. complete cabling & control Control components (e.g. Siemens S5/S7, relays, terminals, power supply units, frequency inverter if applicable) Individual components can also be sold (e.g. PLC, panel, power supply unit, relay, etc.). ) Manufacturer: FMB Maschinenbaugesellschaft mbH Type: Loading magazine / bar loading magazine Power supply: Standard 230/400 V (depending on control system) Condition: Used, untested, as shown Documentation: Documents available Subject to changes and errors in technical data and specifications as well as prior sale!

Technical data - branded LNS FOX IFS WS 500 Feature Specification Model FOX IFS WS 500 Year of manufacture 2011 Delivery rate approx. 500 m³/h Motor power approx. 0.37 kW Voltage 400 V / 50 Hz (typical) Weight approx. 35 kg Dimensions approx. 465 × 500 × 1 145 mm (WxDxH) Filter stages 1. pre-filter F52. Centrifugal separator3. Post-filter F5 (optional HEPA H13) Filtration efficiency 99 % at ? 1-2 µm (F9), optional HEPA 99.95 % at ? 0.1 µm Noise level approx. 65 dB (WS2 mod. similar) Accessories & features - Compact design for mounting directly on or next to CNC machines - Statiff for extraction - Three cleaning stages for effective oil and emulsion mist separation - Cartridge filter can be optionally retrofitted with HEPA kit - Easy maintenance, low-noise operation and durable filter elements Subject to changes and errors in the technical data and information as well as prior sale!

Technical Description – SMW-Autoblok HFKN-D 165-45 A5 Designation: Three-jaw wedge-bar power chuck Manufacturer: SMW-Autoblok Model: HFKN-D 165-45 A5 Design: High-performance power chuck with wedge-bar actuation Technical Data (typical for this model): Chuck diameter: 165 mm Central through-hole (bore): approx. 45 mm Mounting interface: A5 (DIN 55026) Actuation: Hydraulic (wedge-bar mechanism) Number of jaws: 3 (self-centering) Max. clamping force: approx. 45–60 kN (depending on hydraulic pressure) Max. speed: approx. 5000 rpm Repeatability: typically ? 0.01 mm Jaw type: Standard soft jaws or hard jaws, depending on configuration Subject to technical changes, errors, and prior sale.

Technical Description – SMW-Autoblok HFKN-D 165-45 A5 Designation: Three-jaw wedge-bar power chuck Manufacturer: SMW-Autoblok Model: HFKN-D 165-45 A5 Design: High-performance power chuck with wedge-bar actuation Technical Data (typical for this model): Chuck diameter: 165 mm Central through-hole (bore): approx. 45 mm Mounting interface: A5 (DIN 55026) Actuation: Hydraulic (wedge-bar mechanism) Number of jaws: 3 (self-centering) Max. clamping force: approx. 45–60 kN (depending on hydraulic pressure) Max. speed: approx. 5000 rpm Repeatability: typically ? 0.01 mm Jaw type: Standard soft jaws or hard jaws, depending on configuration Subject to technical changes, errors, and prior sale.

Technical data and specifications are subject to change, errors excepted, and prior sale reserved.

Technical Description – Schunk ROTA 2B 160 Designation: Manual Two-Jaw Wedge-Style Chuck Manufacturer: SCHUNK GmbH & Co. KG Model: ROTA 2B 160 Design: Manually operated wedge-style chuck with 2 self-centering jaws Typical Technical Data: Chuck diameter: 160 mm Number of jaws: 2 Actuation: Manual via chuck key Clamping mechanism: Wedge hook system (for high clamping force and reliability) Central through-hole: approx. 40–45 mm (depending on version) Mounting interface: Flange or direct mount, e.g., DIN 55026 A5 (depending on configuration) Max. clamping force: approx. 30–35 kN (depending on applied torque) Repeatability: typically ? 0.02 mm Application: Suitable for irregular or sensitive workpieces; ideal for use on lathes, indexing fixtures, and custom setups Material: Body and clamping components hardened and ground for extended durability Key Features: Two-jaw version for spec ...

Technical data and specifications subject to change and error. Subject to prior sale.

Technical data and specifications subject to change and error. Subject to prior sale.

Technical data and specifications subject to change and error. Subject to prior sale.

Subject to changes and errors in technical data, and prior sale!

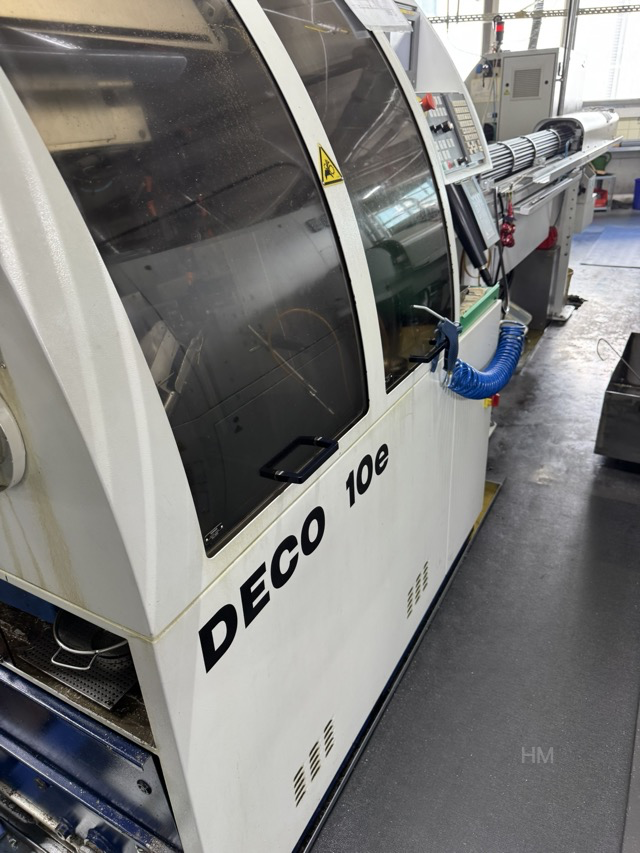

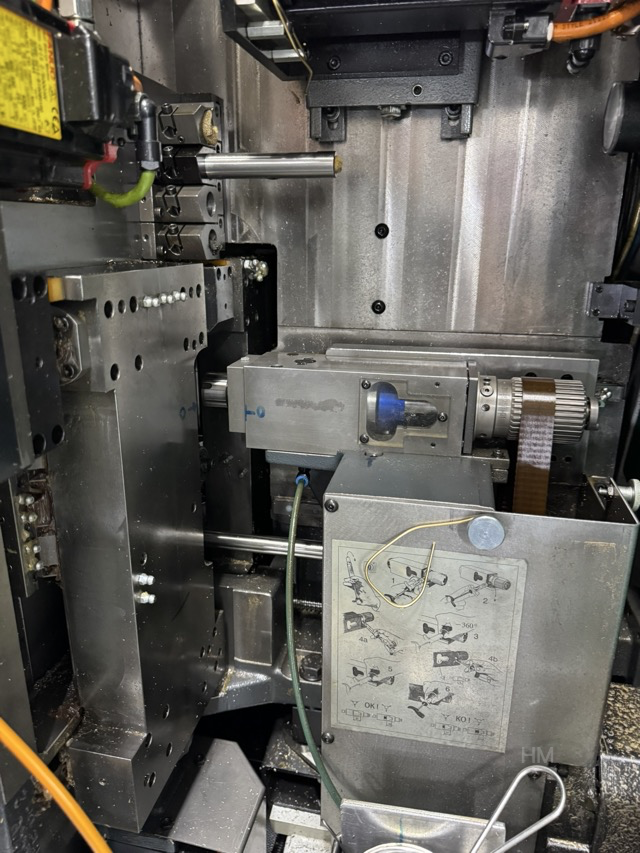

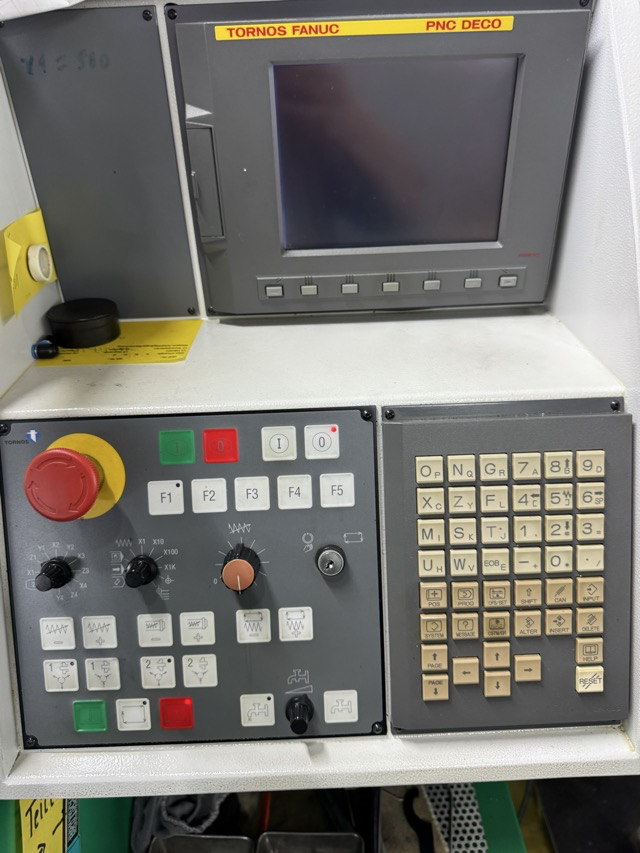

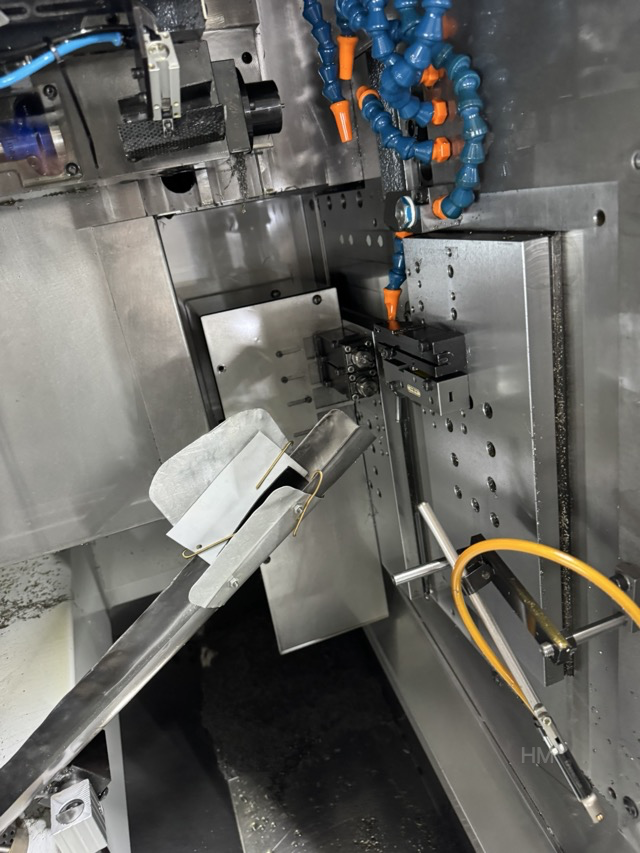

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Minimag bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Minimag bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Year of manufacture 2012 A KEYENCE IM-6020 optical measuring machine is available for sale, in good working condition. The IM series is known for fast, high-precision and operator-independent measurements and is ideal for use in quality assurance, incoming goods inspection and production monitoring. Technical data (excerpt): Model: IM-6020 Year of manufacture: 09/2012 Measuring method: Optical / non-contact Measuring range (X/Y): approx. 200 × 200 mm Measuring range (Z): Height measurement via autofocus Measuring accuracy: up to approx. ±2 µm (depending on measurement conditions) Repeatability: very high, operator-independent Camera: high-resolution CCD camera Illumination: reflected light / transmitted light / contour illumination Measuring functions: Length, angle, radius and diameter measurement Contour and shape measurement Comparative measurement (OK/NOK) Automatic dimension reco ...

Technical data subject to change, errors and prior sale reserved!
