sierras madera usadas para la venta (1,108)

Dimensión de la mesa deslizante- 1600x375mm Capacidad de corte bruto- 1500mm Ancho de corte entre la hoja de la sierra y la valla de rasgadura - 1140mm Diámetro de la hoja de sierra - 400mm Altura de corte (90) - 115mm Altura de corte (45)- 105mm Velocidad del husillo de la sierra principal - 4500/6000rpm Diámetro del husillo principal - 30mm Hoja de sierra inclinada - 0-45o Sierras levantando, arriba y abajo, control eléctrico. Motor principal - 5,5 kW Diámetro de la hoja de la sierra de puntuación - 120mm Velocidad de la hoja de sierra de puntuación - 7000-8000rpm Diámetro de la sierra de puntuación - 20mm Motor de puntuación - 1,1 kW Peso: 650 kg Dimensiones de transporte - 1800x1000x1200mm Usando la hoja 400mm, el más pequeño debe ser removido. La hoja de sierra reducida debe utilizarse con un escudo principal de no más de 350 mm.

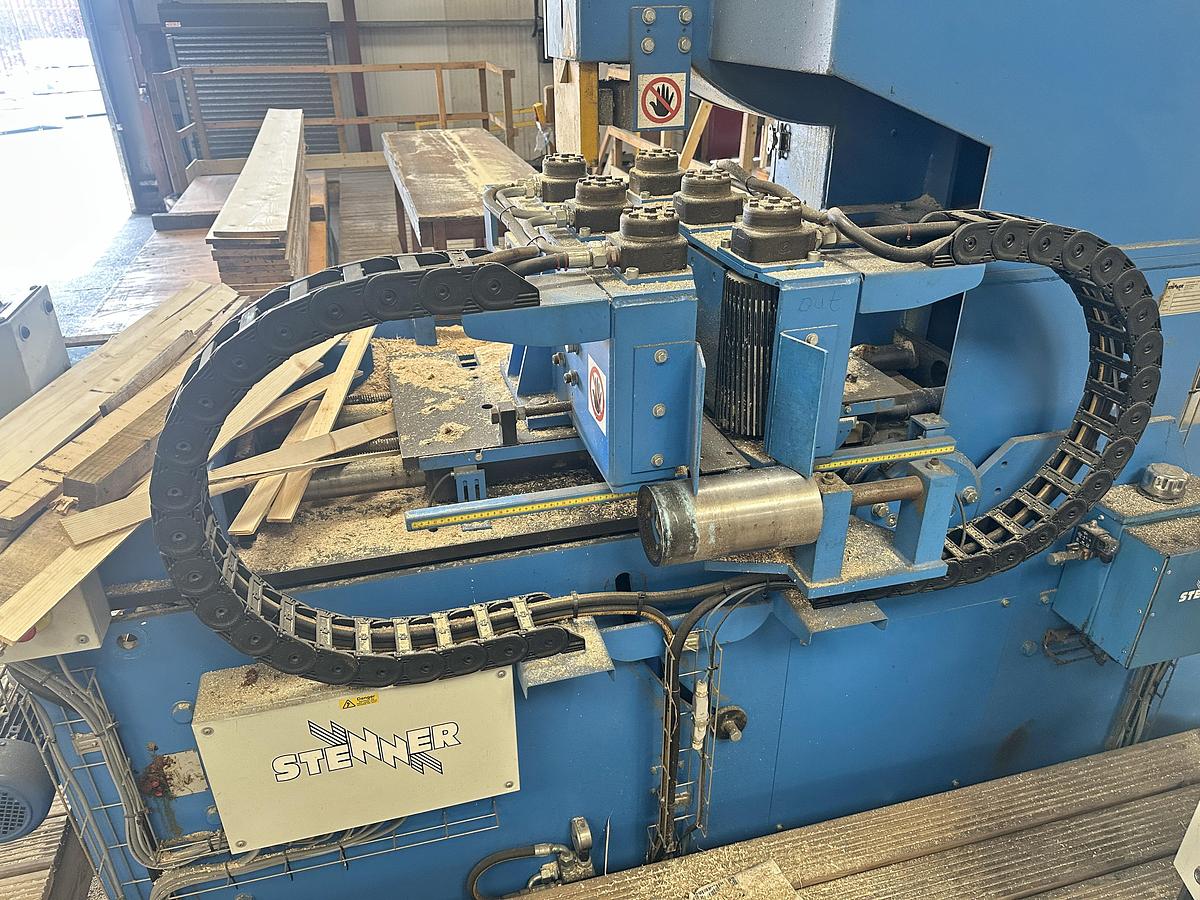

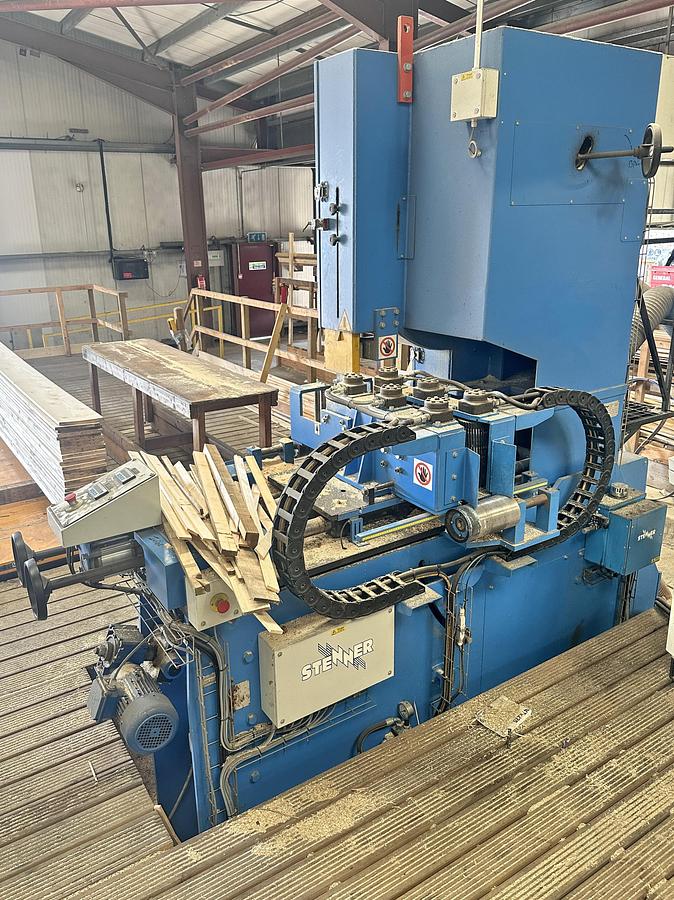

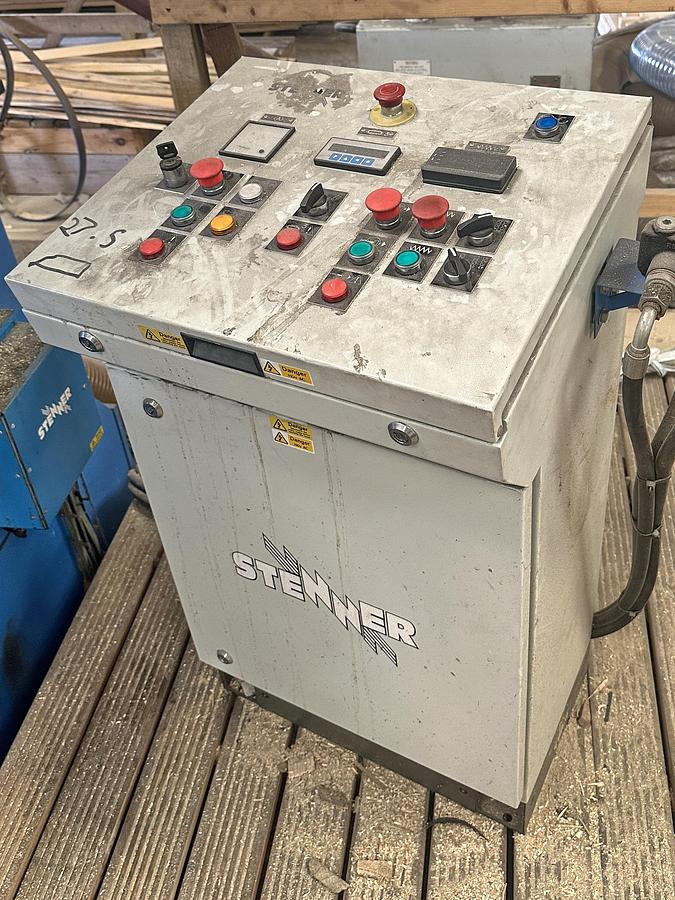

STENNER tilting resaw, type ST10F, Manufacture year 2019, - Tilting saw unit up to 45°, - Centre, off- centre or dimension cutting., - No special foundation required

STENNER resaw, type ST100R, Manufacture year 2015, Resaw requires no pit or any special foundation., Machine specifications:, - Flywheel diameter 915 mm, - Max bandsaw width 100 mm, - Max. cutting height 380 mm, - Motor power 15 kW, - HMI controller, - Digatal saw thinkness readout, - Automatic closing feeding roller, - Manual adjustment saw guide, - Manual adjustment feed roller, - Variable feed, - Blade lubrication

Maggi 640 Junior Manufacturer: Maggi Type: 640 Year: 199. Cutting height: 125mm Stroke: 450mm Saw eleavation: 90mm Saw diameter: ø400mm Arbor: ø30mm Motor: 3 kW RPM: 2800 rpm Dust extraction: 2x 100mm

Graule Model ZS 135/N (tilting and swivelling) Motor: 2 or 3 KW 400 Volts Cutting height: 135 mm – 90°, 92 mm – 45°tilted Stroke: 460 mm – 90° and 320 mm – 45° Saw: 350 mm Swivelling: 45° – 90° – 25° Titling: 45° – 90°

OMGA T55 300: 3 pcs. for sale Manufacturer: OMGA Type: T55 300 Year: 1990-10 M. Nr.: 199899 Max. saw height: 75mm Max. saw length: 135mm Saw diameter: ø300mm Diameter zaagblad as: ø30mm Motor: 1,2 kW Speed: 3000 tpm Dust extraction: 80 Condition: Functionel tested

HHARWI 1550 Giraffe vertical panel saw Manufacturer: Harwi Type: Giraffe 1550D Year: 1995 M-Nr: 5000 CK Max. Cutting Heigt: 1.550 mm Max. saw width: 3.200 mm Max. Dept/- panelwidth: 50 mm Saw blade diameter: 250 mm Saw Blade Arbor: 30 mm Motor: 2.2 kW, 400 V, 4.3 Amp Saw RPM: 2.800 tpm. Product support bottom: Blocks Sawwall: Closed wall Product support small work pieces: Yes Measurement system: vertically and horizontally analog Turning sawhead: Manual Sawing motion: Manual Machine frame : stand-alone A-frame Dust extraction: direct hood suction Saw truck fixation: Manual Suction connections: 80 mm Dimensions: 4.300 x 1.850 x 1.250 m Weight: 495 KG Condition: Fully functional tested.

Agazzanio N’RA700 Bandsaw Manufacturer: Agazzani Motor: 2,2kW Table size: 740640mm Wheel: 700mm saw height: 405 mm Max saw widt: 680mm Saw band length: 5020/51400mm Band width: max. 40mm Tilting/blade: 45° Working height: 960 Dust extraction: ø120 mm Machine dimensions: 13506702170 Average sound level: 82,3 dB(A)

Striebig Automatic 6220AV vertical panelsaw Manufacturer: Striebig Type: Standaart II 6220A Year: 1985 M-Nr.: 14118 Max. Cutting Heigt: 2.100 mm Max. saw width: 5.300 mm Max. Dept/- panelwidth: 80 mm Saw blade diameter: 300 mm Saw Blade Arbor: 30 mm Motor: 4.4/5.5 KW Saw RPM: 4.750 rpm Product support bottom: Rolls Product support small work pieces: Yes Measurement system: analoog Turning sawhead: Manual Sawing motion: Manual Machine frame : vrijstaand met staanders a/d/ achterzijde Dust extraction: ø100 mm Saw truck fixation: Manual Dimensions: 6.5 x 2.5 x 1.3 m Condition: Fully functional tested.

Altendorf F45 ELMO III Panel saw Manufacturer: Altendorf Type: F45 ELMO III Year: 1996 Mach.Nr.: 96-02-044 Technische gegevens: Control: LCD screen, eye level, swing away saw width, saw height, saw tilting, Sliding Table: 3200 mm (Double trolley on hard-chrome rail, smooth upper carriage lock) Cutting Width: 1300 mm Main saw: ø250 – 450 mm, 5.5 KW, 3.000-6.000 rpm NC-electromotive height and swivel adjustment 0-46 °: h Scoring saw: Non Sidetable: extendable 700 mm Length stopper: 0-3.500 mm, with fixed 90 ° position, 2 stoppers Condition: well-maintained machine, functional and technically checked. Avaialable: immediate

DeWalt 722KN -XS Manufacturer: DeWalt Type: 722KN-XS M.Nr: 00180 Cutting height: 90mm Stroke: 510mm Saw diameter: ø300mm Arbor: Ø 30mm Motor: 3 KW RPM: 2650 rpm Dust extraction: 2x 100mm Weight: 115 kG

Griggio Unica 400 sliding table saw Manufacturer: Griggio Type: Unica 400 Year: 2010 M-Nr.: MC00101468 Main saw: ø400 mm, saw height: 125 mm, tilting: 0-45° Saw height setting, tlting: electric with digital counter Rotation speed: Cutting Heigt: 0-125 mm electric with digital reading Saw tilting: 0 – 45° electric with digital reading Motor: 7.5 KW Scoring saw: 0.75 KW, ø125 Sliding Table: 3.200 mm Cutting Width: 1.250 mm electric with digital reading on the fence Cross cut fence: 2.200 – 3.300 mm Side table: steel with angle prefix, productsupport and easy loading roll Dust extraction: Top: ø80 mm, bottom: ø120 mm Weight: 820 KG Condition: Full Functionaly

HARWI 1850 Giraffe vertical panel saw Manufacturer: Harwi Type: Giraffe 1850 M-Nr.: 5008KM Year: 2003 Max. Cutting Heigt: 1.850 mm Max. saw width: 4.300 mm Max. Dept/- panelwidth: 55 mm Saw blade diameter: 250 mm Saw Blade Arbor: 30 mm Motor: 3.0 kW, 400 V, 4.3 Amp Saw RPM: 2.800 tpm. Product support bottom: Blocks Sawwall: Closed rear support wall Product support small work pieces: Yes Measurement system: vertically and horizontally analog Turning sawhead: Manual Sawing motion: Manual Machine frame : stand-alone A-frame Dust extraction: direct hood suction Saw truck fixation: Manual Suction connections: 80 mm Dimensions: 5.200 x 1.300 x 2.700 mm Weight: 570 KG Condition: Fully functional tested.

Harwi 130 Type: 130 M-Nr.: 4000JG Year: 1995 Cutting height (Max): 25 – 135 mm Cutting height 45° ( (ø450 mm): 98 mm Saw diameter (max): ø450 mm Saw blade inner-ø: ø30 mm Saw width (max): 0-650mm Saw blade tilting: 0-45° Motor: 5,5 kW RPM-Motor: 2800 rpm RPM-Saw blade: 2801 rpm Dust extraction points: 1 x 100, 1x120mm Weight: 320 KG

Martin T72A sliding table saw Hydraulic saw tilting with digital display at eye-level Hydraulic saw elevation with digital display at eye-level NC-controlled parallel fence Cross-cut fence with 2-point stops Scoring saw Manufacturer: MARTIN Type: T72A Comfort M-Nr.: V403081 Year: 1999 Control panel: Eye-level integrated in dust extraction cover, LCD displays showing saw height, -saw tilting angle, width/parallel fence positioning; scoring saw positioning Saw blade elevation: Hydraulic footpedal elevation 0 – 170 mm – with LCD display Saw blade tilting: Hydraulic footpedal tilting 0 – 46° – with LCD display Parallel fence Positioning: Handwheel positioning (frontsidemachine) – digital reading on central control Dust cover top: Electrically controlled elevation Manual sideward positioning for large objects sawing Cross-cut table: Aluminium swivelling table suitable for mitre cut ...

Martin T71 sliding table saw Manufacturer: Martin Type: T71 M-Nr.: 1982 Year: V123342 Mainsaw: max. ø450 mm, max Sawheight: 170 mm, Saw tilting: 0° – 46° Scorer: No RPM: 2.800/4.000/5.500 tpm Motor: 5,5 KW Sliding table: 1.900 mm Width: 1.250 mm Cross cutfence: Length measuring fence 2.200 – 3.300 mm with 2 -point system Cross cut table: with fixed positions for most used angles Dustextraction: Top: ø80 mm, Bottom: ø140 mm Weight: 1.200 KG

Martin T17 with tilting saw Manufacturer: Martin Type: T17 M-Nr.: V070521 Table Size: 1030 x 1050 mm. Table Heigt: 800mm Sliding Table: Yes Main saw: kW Speed: 2800 – 4000 – 5500 tpm Saw Blade Arbor: ø30 mm Saw Blades: ø450 Cutting Heigt: 147mm Blade Width: 0 – 45° Cutting Width: 1.050 mm Condition: Volledig functioneel

Omga Radial 600P3S Manufacturer: OMGA Type: Radial 600P3S M.Nr: 163864 Max. saw height: 90mm Max. saw length: 505mm Saw diameter: ø300mm Saw spindle: Ø 30mm Motor: 3 kW Speed: 3000 tpm Dust extraction: 80mm Weight: 190 kG Condition: functional

OMGA T50 350 Manufacturer: OMGA Type: T50 350 Year: 1993 M. Nr.: 222415 Max. saw height: 110 mm Max. saw length: 170 mm Saw diameter: ø350mm Saw spindle: ø30mm Motor: 2,2 kW Dust extraction: 80mm Incl. Ventilator Condition: Functionel tested

OMGA T50 350 Manufacturer: OMGA Type: T50 350 Year: 1993 M. Nr.: 222420 Max. saw height: 110 mm Max. saw length: 170 mm Saw diameter: ø350mm Saw spindle: ø30mm Motor: 2,2 kW Dust extraction: 80mm Incl. Ventilator Condition: Functionel tested

Rema DMMC sliding table saw Manufacturer: Rema Type: DMMC40 Year M. Nr: 1995 Main saw: max. max. ø400 mm, max Sawheight: 130 mm, Saw tilting: 0° – 45° Scorer: Yes RPM: 2.800/4.000/5.500 RPM Motor: 5,5 KW Sliding Table: 3.000 mm Parallel fence Positioning: 1.250 mm Cross cut fence: 2.200-3.300 mm 2-point fence Sidetable: with fixed positions for most used angles Dust extraction: Top: ø80 mm, Bottom: ø140 mm Weight: 900 KG

Martin T72A sliding table saw with electric saw elevation, -tilting, NC-controlled parallel fence, cross-cut fence with 2-point stops and mitre cross cut table Manufacturer: MARTIN Type: T72A M-Nr.: V238101 Year: 1997 Control panel: Eye-level integrated in dust extraction cover, electric saw elevation, -saw tilting, NC-controlled parallel fence positioning; Saw blade elevation: Electric controlled – digital reading on central control Saw blade tilting: Electric controlled – digital reading on central control Parallel fence Positioning: NC-controlled with digital reading on central display Sidetable: Mitre cross cut table, Cross cut fence: Aluminium: 2.200 mm, extendable upto 3.300 mm, with Digital 2-point stops Main saw: max. ø450 mm, bookthickness; 0-170 mm, tilting 0° – 46° RPM: 2.800/4.000/5.500 RPM Motor: 5,5 KW Sliding Table: 3.300 mm Parallel fence Positioning: 1.250 mm Du ...

Altendorf TKR45 Manufacturer: Altendorf Type: TKR45 Mach. Nr: 89-1-221 Year: 1989 saw length: 1350mm Sidetable: JA Saw width: 850mm saw height: 155mm Saw diameter (max): ø450 Saw spindle: ø30 Saw blade tilting: 0-45° Motor: 5,5 kW Speed: 3000/4000/5000 omw/m Weight: 910KG

Manufacturer: Harwi Type: 625-U Year: 1998 Swivelling: 0-45° Tilting: 0-45° Cutting heigth: 135mm Cutting length: 625mm High adjustment: 50mm Saw: Ø 400mm Saw arbor: Ø 30mm Motor: 3 kW Toerental: 2800 tpm Dust extraction: 2x 100mm

SCM SI400 Vanguard sliding table saw, 3-ax Control, Swivelling cross-cut table Manufacturer: SCM Type: SI400 Vanguard M-Nr.: Year: 2004 Touchscreen: 12″full-colour touchscreen, start-stop function in sliding table Control: 3-ax control, with control panel at eye -level 999 programm positions, 6 cuts per programm, help function with graphics, collision control Sliding Table: 3.200mm Saw Blades: Ø 250 – 400 mm Main saw: 5,5 kW, 3.000-4.000-5.000 rpm Cutting Heigt: 130 mm (saw diam.. 400 mm-90°, 92 mm- 45°.) Tilting: 0 – 45° Scorer: ø120 mm, 2-ax control Motor: 0.75 KW, 8.500 rpm Cutting Width: 1.500 mm Rip fence: anodised aluminium Cross-cut table: Vanguard cross-cut table with swiveling -50° upto 50° Cross-cut fence: Aluminium 2 digital stops with angular length correction, max 3.2 m

SCM SI15 with tilting saw Manufacturer: SCM Type: SI15F Year: M-Nr.: AB20182 Table Size: 1150 x 800 mm. Table Heigt: 800mm Sliding Table: Ja Main saw: 5,5 kW RPM: 3200 – 4500 – 6000 tpm Saw Blade Arbor: ø30 mm Saw Blades: ø350 Cutting Heigt: 115mm Blade tilting: 0 – 45° Cutting width: 850 mm Weight: 560KG

Graule ZS170N 3D – with NC controlled tilting & swivelling Manufacturer: Graule – with Tigerstop NC-control Type: ZS170N – with Tigerdrive control (tilting & swivelling) M-Nr.: 2014/78/27 Year: 2014 Graule ZS170N Motor: 3 kW Saw: ø420 mm As zaagblad: ø40 mm Cutting height: 170mm Swivelling: 45° – 90° – 25° Tilting: 0° – 45° Stroke: 450 mm – 90° 310 mm – 45 ° Saw: ø420 40 48 WZ Neg. (used) Machine stand: Inclusive

DeWalt 1600S Manufacturer: Dewalt Type: 1600S M. Nr: nn Max. Saw heigth: 100 mm Max. Saw length: 610 mm Saw: ø350 mm Saw spindle: Ø30 mm Motor: 3 kW Toerental: 2.650 rpm Dust extraction: ø100 mm Weight: 115 KG

Maggi 640 Junior Manufacturer: Maggi Type: 640 Year: 1994 Thickness: 125mm Stroke/sawlength: 450mm arial: 90mm Saw blade-outside diameter: ø400mm Saw blade-inner diameter: ø30mm Motor: 3 kW RPM: 2800 tpm Dust extraction: 2x 100mm
