Prensas transfer (de 2 a 4 montantes)

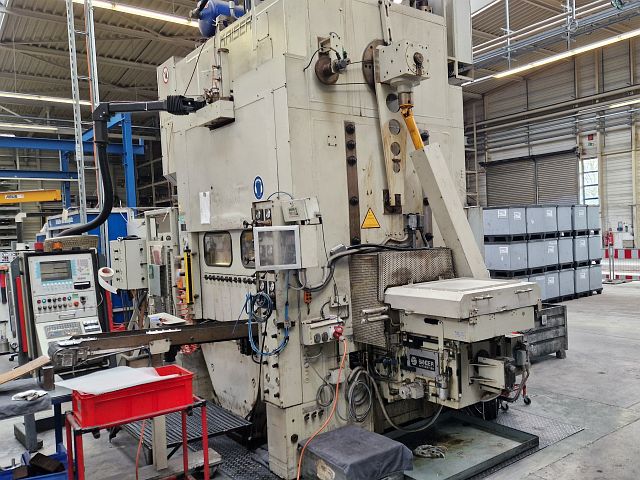

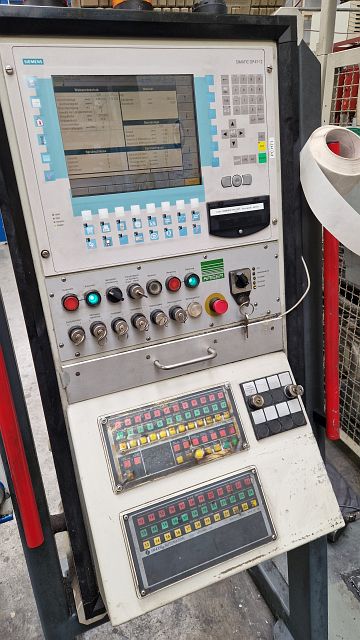

CONTROLS  PLC SIEMENS S5 PRESS DESIGN  drive system: eccentric / crank   frame design: H-frame, monoblock   openings in uprights: yes   number of suspensions: 2   number of slide actions: 1   table cushion: yes   quick die change system: yes   feedstock transport direction: left to right PRESS FORCES  total force (nominal): 400 to  nominal work capacity: 32 kNmPRESS TABLE  table surface (left-right): 2600 mm  table surface (front-back): 990 mm  thickness of bolster plate: 200 mm  height above floor level: 800 mm  opening in bed (left-right): 2250 mm  opening in bed (front-back): 280 mmSLIDE  slide force: 400 to  table surface (left-right): 2600 mm  table surface (front-back): 990 mm & ...

Prensa de transferencia IHI Modelo SL4-1600-450-220. Con NC Feeder, sistema de transferencia que incluye robots. Nuevo : 1984 Capacidad : 1600 ton Carrera : 850mm Altura del troquel: 1400mm Ajuste de la diapositiva: 500 mm No. de Ictus : 16R. P.M Área de refuerzo: 4500 x 2200mm Presión de aire de trabajo del embrague: 4.5kg / cm2

PRESS DESIGN  drive system: eccentric / crank   frame design: H-frame, tie rod   openings in uprights: yes   table cushion: yes   feedstock transport direction: left to right PRESS FORCES  total force (nominal): 200 toPRESS TABLE  table surface (left-right): 1780 mm  table surface (front-back): 1300 mm  opening in bed (left-right): 1445 mm  opening in bed (front-back): 260 mmSLIDE  slide force: 200 to  table surface (left-right): 1500 mm  table surface (front-back): 1100 mm  stroke: 178 mm  stroke rate (max.): 120 /minSLIDE (MECHAN. PRESS)  slide adjustment: 150 mm  stroke rate (min.): 20 /min  stroke rate (max.): 120 /minDIE CUSHION (TABLE CUSHION)  number of cushions: 11   cushion force:  ...

pressure: 2500 ttable length: 5200 mmtable width: 2300 mmPRESS FORCES: • CAPACITY : 2500ton• Point pressure capacity: • - Upper 1600t• - Down 900ton• Slide stroke: 650mm• Slide adjustment: 225mm• Slide stroke number: continue 9~25spm • Die-height: 1250mm• Slid size(LxR ,FxB): 5400x2400mm• Bolster size(LxR, FxB, T): 5200x2300x200mm• Balance capacity: 30ton• Main motor: DC 355kw• Feed back(bolster upper side): 700,780mm• Feed back stroke : 550,700,1000mm• Cramp stroke : 0-250mm• Lift stroke: 0~150mm• Transfer inner size(cramp): 650~2200mm • Die cushion capacity• No.1 station 120ton• No.2 station 80ton• No.3 station 60ton• No.5,6,7 station: 5ton• Stroke: 200mm• Bed size: 480x1780mm• Stop time: 430msThe data for this ad was created with ModulMWS - the software solut ...

PRESS DESIGN  drive system: eccentric / crank   openings in uprights: yes   feedstock transport direction: right to left PRESS FORCES  total force (nominal): 315 to  nominal work capacity: 45 kNmPRESS TABLE  table surface (left-right): 2250 mm  table surface (front-back): 1100 mm  thickness of bolster plate: 150 mm  height above floor level: 1000 mmSLIDE  slide force: 315 to  table surface (left-right): 2250 mm  table surface (front-back): 880 mm  stroke: 210 mm  stroke rate (max.): 80 /minSLIDE (MECHAN. PRESS)  slide adjustment: 120 mm  stroke rate (min.): 25 /min  stroke rate (max.): 80 /min  main drive power: 60 kWSLIDE EJECTOR / CUSHION  working principle: pneumatical   nominal force: 1. ...

KruPP PST-A 160 prensa de transferencia construido en 1980. Datos técnicos de la prensa KRUPP PST-A 160: - presión nominal: 160 toneladas - grado de fuerza de corte 1: 400 KN - fuerza entre soportes: 1200 KN - número de pasos de trabajo, incluida la etapa de corte: 11 - distancia entre soportes: 200 mm - Carrera deslizante: 210 mm - Profundidad de dibujo: 70 mm - gama de saltos, infinitamente ajustable: 15-75 / min. - gama de producción de saltos con repetibilidad de su ajuste: 25-75 / min. - número de movimientos de accionamiento: 15-25 / min. - un recurso de trabajo utilizable para un salto en el rango de 25-75 golpes por minuto. : 20.000 J - carga máxima en un solo paso: 500 KN - carga máxima de un solo paso utilizando plaquitas: 630 KN - anchura máxima de la cinta: aprox. 340 mm - diámetro máximo del corte: 120 mm - Diámetro mínimo del patrón: 30 mm - ...

CONTROLS  PLC PRESS DESIGN  drive system: eccentric / crank   number of slide actions: 12 PRESS FORCES  total force (nominal): 36 toSLIDE  slide force: 3 to  stroke: 38 mmSLIDE (MECHAN. PRESS)  variable speed: yes   main drive power: 4 kWOVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 50 mm  feedstock transport direction: front-back STRIP-FEEDER  feeder type: roll feeder   sheet width max.: 50 mm  pilot release system: no   band lubrication system: optional TRANSFER SYSTEM  number of tool stations: 13   distance between tools, stroke X fixed: 63.5 mmELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 HzDIMENSIONS / WEIGHTS  space requirements -left/right-: 2400 mm   ...

PRESS DESIGN  number of slide actions: 12 PRESS FORCES  total force (nominal): 36 toSLIDE  stroke: 44 mm  stroke rate (max.): 160 /minThis machine will have the following installed/added to ito new lubricationo new electrical installationo new protectionso CE conformityNumber of station 13 (12+1).Capacity on any one station 3 tons.Max stroke 44 mm.Standard stroke cams.Max blank diameter 47 mm.Operating speed range 40 to 160 SPM max.Machine weight approx. 3200 kg.

CONTROLS  PLC SCHNEIDER PRESS DESIGN  drive system: eccentric / crank   number of slide actions: 11   feedstock transport direction: left to right PRESS FORCES  total force (nominal): 66 toSLIDE  slide force: 6 to  stroke: 114 mmSLIDE (MECHAN. PRESS)  variable speed: yes   stroke rate (min.): 40 /min  stroke rate (max.): 130 /min  main drive power: 7.5 kWSTRIP-FEEDER  feeder type: roll feeder TRANSFER SYSTEM  distance between tools, stroke X fixed: 82 mmDIMENSIONS / WEIGHTS  space requirements -left/right-: 2875 mm  space requirements -front/back-: 1500 mm  total height: 2900 mm  total weight approx.: 7500 kgATTACHMENTS (PRESSES)  safety guard / safety door: yes   2-hand engagement: yes   n ...

PRESS FORCES  total force (nominal): 72 toA new electrical control system and a mechanical and lubrication rebuild are required.One used PLATARG model 611 transfer press, high speed type.Full follow cams.Number of stations: 12Number of rams: 11 + 1 slaveCapacity on any one ram: 6 tonsSpeed range: 30 – 120 SPMMax shell height: 20 mmTransfer slideMachine awaiting refurbishment

PRESS DESIGN  drive system: eccentric / crank   number of slide actions: 10 SLIDE  stroke rate (max.): 110 /min10 stations + 1 auxiliary5 ton per stationDistance between stations: 54 mm  (2-1/8")STROKE OF CAMS (STANDARD)#1 25-35 mm  (1- 1-3/8")#2 to #10  25-41 mm, (1 - 1-5/8")Speed: 110 SPM

PRESS DESIGN  drive system: eccentric / crank   number of slide actions: 6   table cushion: yes 6 stations plus auxiliary stationUsed for eyelet production - tooling still mounted

PRESS DESIGN  drive system: eccentric / crank   number of slide actions: 6
