ZEULENRODA máquina utilizada para venda

Dados técnicos: - máx. força de pressão 40 t - máx. Traçado 500 mm - Velocidade de elevação 0 - 40 mm/s - Devolução 0 - 200 m/min - Altura de instalação de 750 mm - Extensão para o pilão médio 360 mm - Intervalo de execução de impacto de 440 x 360 mm - Pinos de colocação de impacto 40 mm - Tamanho da mesa 630 x 500 mm - Furo de mesa / avanço de 200 mm - Altura da mesa sobre o corredor 710 mm - Enchimento de óleo aprox. 300 ltr - Unidade 400 V / 4 kW - Requisito de espaço aprox. W 1200 x H 2800 x D 1600 mm - Peso aprox. 2500 kg

PRESS DESIGN   drive system: hydraulic   frame design: C-frame, single sided   table cushion: yes PRESS FORCES   total force (nominal): 160 to PRESS TABLE   table surface (left-right): 1250 mm   table surface (front-back): 600 mm   thickness of bolster plate: 100 mm SLIDE   table surface (left-right): 750 mm   table surface (front-back): 450 mm   stroke: 500 mm SLIDE (HYDR. PRESS)   approximation velocity max.: 200 mm/s   return velocity max.: 250 mm/s TOOL ASSEMBLY DIMENSIONS   distance table - slide max.: 800 mm   throat (C-frame): 360 mm ELECTRICAL SPECIFICATIONS   total power consumption: 20.5 kW   mains voltage: 380 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1250 mm ...

pressure:100 t throat:360 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:900 x 560 mm table height over floor:710 mm ram surface:630 x 400 mm speed down:200 mm/s speed up:200 mm/s power requirement:17,0 kW weight:5,0 t Dimensions (WxDxH):1,2 x 1,9 x 3,3 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

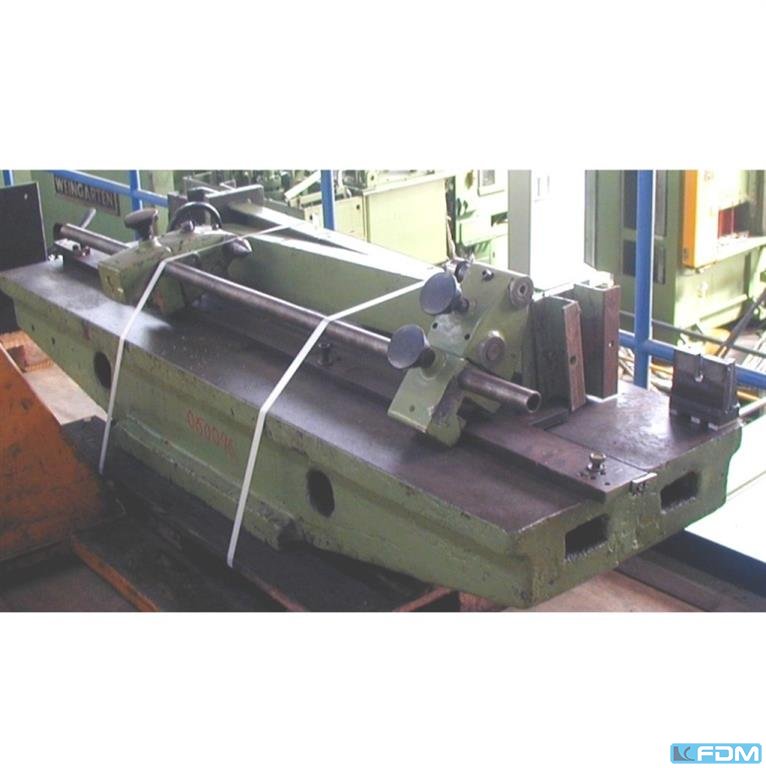

table length:2000 mm table width:600 mm table height:300 mm mounting surface:700 x 600 mm centre distance:1200 mm centre height:160 mm Dimensions (WxDxH):2,0 x 0,6 x 0,3 m

pressure:40 t throat:360 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:660 / 1000 mm table surface area:630 x 500 mm hole in the table:200 mm table height over floor:1060 / 720 mm ram surface:450 x 360 mm speed down:60 mm/s speed up:300 mm/s power requirement:7,5 kW weight:2,75 t dimensions (WxDxH):1,0 x 1,8 x 3,05 m additional plate in table:height approx. 340 mm

pressure:25 t throat:355 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:500 x 500 mm hole in the table:180 mm table height over floor:700 mm ram surface:250 x 250 mm power requirement:7,5 kW weight:2,1 t dimensions (WxDxH):1,45 x 0,9 x 2,55 m

pressão: 63 t garganta: 315 mm curso: 16 - 125 mm tabela de distância máxima - RAM: 417 mm ram ajuste: 70 mm Nº de cursos: 80 Hub/min área da superfície da tabela: 800 x 630 mm Superfície RAM: 500 x 400 mm Potência total necessária: 6 kW peso da máquina ca.: 5 t dimensões da máquina ca.: 1,5 x 2,2 x 2,75 m

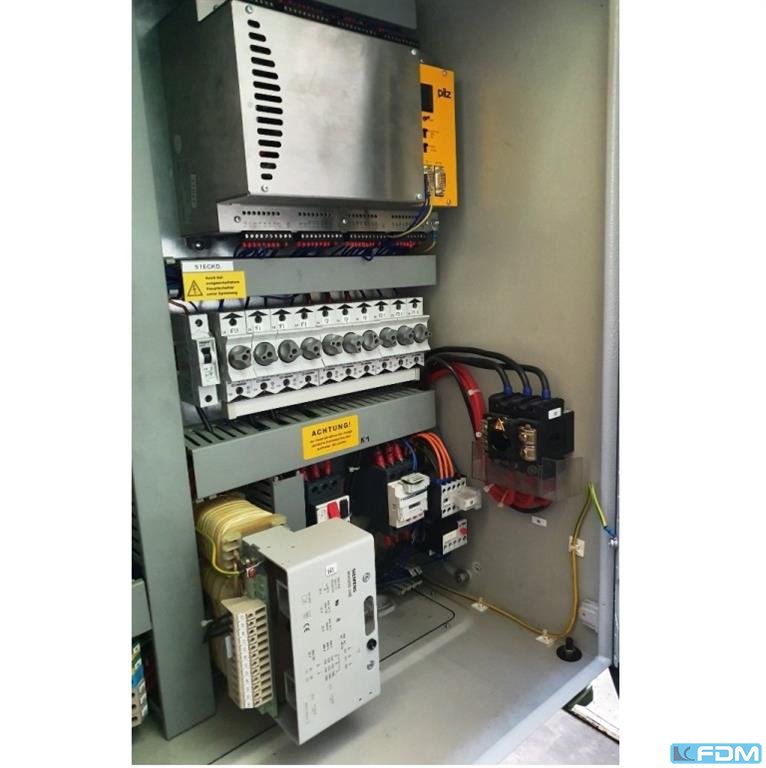

pressure: 63 t throat: 315 mm stroke: 8 - 120 mm table surface area: 630 x 800 mm dayligth: 560 mm ram adjustment: 70 mm no. of strokes: 56/90 Hub/min ram surface: 400 x 500 mm total power requirement: 6 kW weight of the machine ca.: 5,5 t dimensions of the machine ca.: 1,5 x 2,2 x 2,75 m The following work is/was carried out on the machine. partial overhaul: - Machine is completely disassembled, checked - Machine is repainted - new press safety valve - New separate control cabinet with touch panel and ABB safety control - new shaft bearing - A current UVV test and braking time measurement is carried out before delivery The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressão: 400 t curso: 600 mm dayligth: 900 mm superfície de fixação (lateral): 2500x1000 mm área de superfície: 2000x1500 mm furo na mesa: 1500x200 mm necessidade de potência total: 45 kW peso da máquina ca.: 32 t área da almofada da matriz: 100 mm área da almofada da matriz: 150 mm

pressure: 63 t throat: mm stroke: 8 - 120 mm no. of strokes: 135 Hub/min max. distance table - ram: 560 mm ram adjustment: 70 mm table surface area: 800 x 600 mm ram surface: 500 x 400 mm total power requirement: 12 kW weight of the machine ca.: 5,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 63 t throat: - mm stroke: 16 - 125 mm max. distance table - ram: 417 mm ram adjustment: 70 mm no. of strokes: im Dauerlauf 80 Hub/min table surface area: 800 x 630 mm ram surface: 500 x 400 mm clamping plate thickness: 70 mm total power requirement: 6 kW weight of the machine ca.: 5,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressão: 160 t rota: 360 mm stroke: 500 mm f de superfície: 1250x630 mm ram: 1000x450 mm altura: 1000 mm dayligth: 800 mm peso da máquina ca.8

pressão: 10 t stroke: 400 mm feed down: 200 mm/seg feed up: 450 mm/seg max. tabela de distâncias - ram: 630 mm despesto de potência: 8,5 kW pelho da máquina ca.: 1,3 t escadimensionas da máquina ca.: m

pressão: 63 t roat: - mm stroke: 16 - 125 mm se: 800 x 600 mm force: 250 superfície de corte: Gama de regulação stá se de 1600 mm: 220 mm se de potência máxima máxima: 6 kW peso da máquina ca.: 5 t distância mesa/ram: 562 mm

pressure: 100 t throat: 355 mm stroke: 8 - 130 mm table surface area: 710 x 1200 mm T-slots at tabel: 3 clamping plate thickness: 75 mm no. of strokes: 50/80 Hub/min ram adjustment: 80 mm ram surface: 450 x 560 mm T-slots at ram: 2 tool shank hole (depth x diameter): 100 x 50 mm max. distance table - ram: 540 mm distance between columns: 400 mm connected load: 11,5 kW weight of the machine ca.: 9,0 t Overall size: 1,65 x 2,25 x 3,05 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
