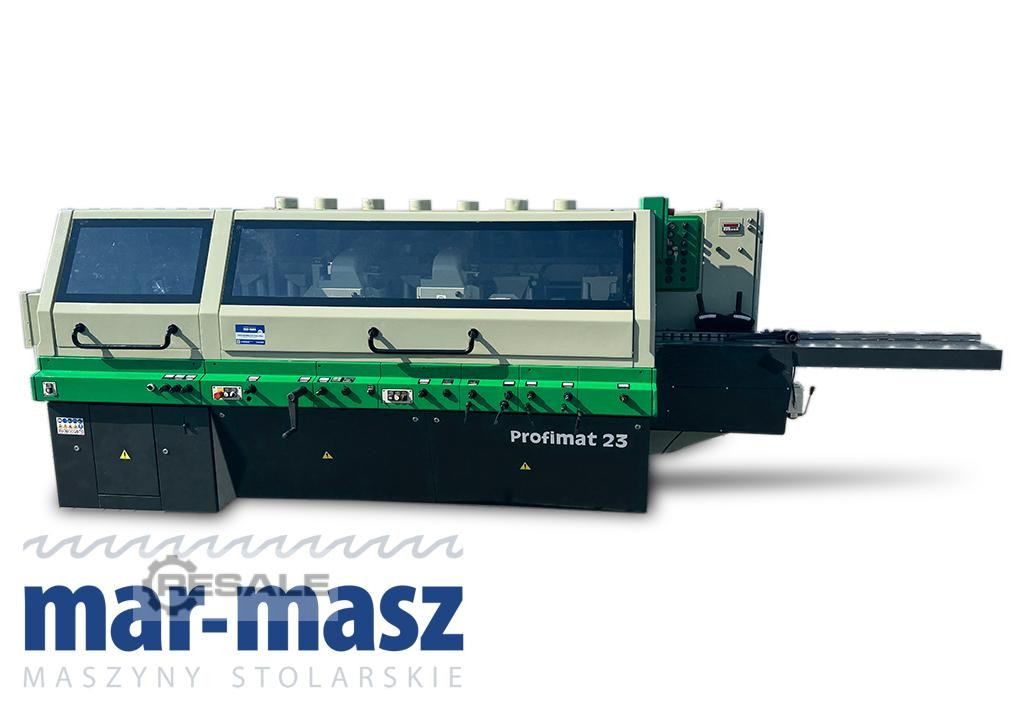

5 WEINIG profimat 23 máquinas usadas

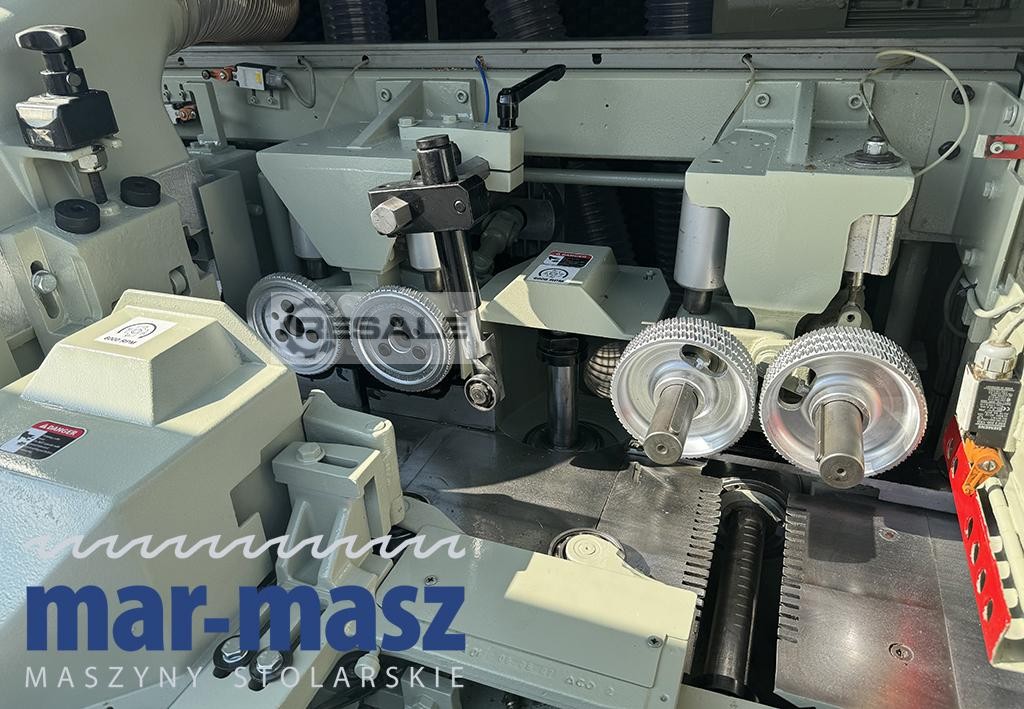

Part number 7994 SPECIFICATIONS - max width of the workpiece 230mm - max workpiece height 130mm 7 spindle: 1) horizontal bottom 230mm 4kW 2) Vertical right 130mm 3) Vertical left 130mm (2 and 3 spindle) 11kW 4) Horizontal top 230mm 5.5kW 5) horizontal top 230mm 5.5kW 4 & 5 Spindle Electrically Adjustable Up/Down 6) horizontal bottom 230mm 4kw 7) universal 230mm, 360° adjustable 5.5kW - all spindles adjustable up/down, right/left - spindle diameter 40mm - 4 pulling input rollers from above - 4 leading, pulling, rubber, smooth shafts from above, including 3 double - metal pulling roller at the bottom - feed on cardan shafts - pneumatically pressed rollers - infinitely variable feed speed control on the inverter - 3kW feed motor - working pressure 6-10bar - Electric planing thickness setting - central lubrication of the table top - length of the introductory tab ...

Part number 7994 SPECIFICATIONS - max width of the workpiece 230mm - max workpiece height 130mm 7 spindle: 1) horizontal bottom 230mm 4kW 2) Vertical right 130mm 3) Vertical left 130mm (2 and 3 spindle) 11kW 4) Horizontal top 230mm 5.5kW 5) horizontal top 230mm 5.5kW 4 & 5 Spindle Electrically Adjustable Up/Down 6) horizontal bottom 230mm 4kw 7) universal 230mm, 360° adjustable 5.5kW - all spindles adjustable up/down, right/left - spindle diameter 40mm - 4 pulling input rollers from above - 4 leading, pulling, rubber, smooth shafts from above, including 3 double - metal pulling roller at the bottom - feed on cardan shafts - pneumatically pressed rollers - infinitely variable feed speed control on the inverter - 3kW feed motor - working pressure 6-10bar - Electric planing thickness setting - central lubrication of the table top - length of the introductory tab ...

Part number 7994 SPECIFICATIONS - max width of the workpiece 230mm - max workpiece height 130mm 7 spindle: 1) horizontal bottom 230mm 4kW 2) Vertical right 130mm 3) Vertical left 130mm (2 and 3 spindle) 11kW 4) Horizontal top 230mm 5.5kW 5) horizontal top 230mm 5.5kW 4 & 5 Spindle Electrically Adjustable Up/Down 6) horizontal bottom 230mm 4kw 7) universal 230mm, 360° adjustable 5.5kW - all spindles adjustable up/down, right/left - spindle diameter 40mm - 4 pulling input rollers from above - 4 leading, pulling, rubber, smooth shafts from above, including 3 double - metal pulling roller at the bottom - feed on cardan shafts - pneumatically pressed rollers - infinitely variable feed speed control on the inverter - 3kW feed motor - working pressure 6-10bar - Electric planing thickness setting - central lubrication of the table top - length of the introductory tab ...

ESPECIFICAÇÕES: Comprimento de alimentação: 1970 mm Largura machinável: 230 mm Altura machinável: 120 mm Eixo: Ø 40 mm Número de fusos: 6 Transmissão por veio (4 kW) Velocidade: 6000 rpm Potência instalada: 43 kW Equipado com sistema ATS para ajuste automático Tensão: 380 V CONFIGURAÇÃO DO EIXO: I inferior (5 kW) II direita (11 kW) III esquerda (11 kW) III acima (11 kW) Topo IV (5,5 kW) VI inferior (4 kW) EQUIPAMENTO: Completo com ferramentas Acessórios CE

ESPECIFICAÇÕES: Comprimento de alimentação: 1970 mm Largura machinável: 230 mm Altura machinável: 120 mm Eixo: Ø 40 mm Número de fusos: 6 Transmissão por veio (4 kW) Velocidade: 6000 rpm Potência instalada: 43 kW Equipado com sistema ATS para ajuste automático Tensão: 380 V CONFIGURAÇÃO DO EIXO: I inferior (5 kW) II direita (11 kW) III esquerda (11 kW) III acima (11 kW) Topo IV (5,5 kW) VI inferior (4 kW) EQUIPAMENTO: Completo com ferramentas Acessórios CE
