Liczba pionowych niezależnych wrzecion: 9 Liczba wrzecion poziomych na osi X : (2+2) Liczba wrzecion poziomych na osi Y: (1+1) Zespół brzeszczotów N 1: (ø 100 mm) Głowica routera 3,6 Kw ISO 30 - 12000/24000 obr./min grubość panelu: 50 mm Sterowanie: Pełna parametryczna Maksymalna waga panelu: Kg 25 Maksymalny rozmiar panelu: X, Y 1100, Z 50 mm Minimalny rozmiar panelu: X 270,Y 150 (70 op.), Z 12mm Liczba kontrolowanych osi: 3 Prędkość podawania panelu: 25 m / min Obroty wrzeciona: 3600 obr./min Prędkość obrotowa brzeszczotu: 7000 obr./min Ciśnienie powietrza: 7 bar Średnica odsysania pyłu: ø 140 mm Zużycie powietrza wywiewanego: (2000 mc/ora) - (30 m/s) Maksymalna głębokość wiercenia w horiz. na osiach X i Y: 30 mm Maksymalna głębokość wiercenia w pionie: 45 mm Maksymalna średnica pozioma narzędzi: 12 mm Maksymalna pionowa średnica narz ...

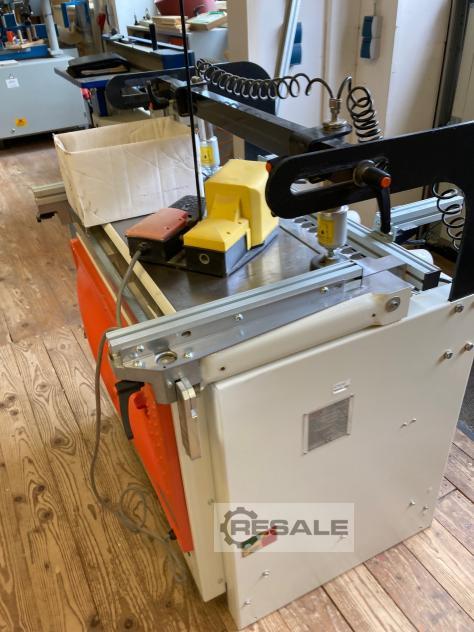

Wiertarka kołkowa VITAP Wiertarnica do otworów rzędowych Typ ALFA 21 Rok budowy 2006 Jednostka wiertnicza z 21 wiertnicami w 32 skokach Jednostka wiertnicza obraca się pneumatycznie o 45° Odległość między pierwszym a ostatnim wrzecionem 640 mm Maksymalna głębokość wiercenia 70 mm Obroty wrzeciona 2800 obr./min. Moc silnika 1,8 kW Ciśnienie robocze 6-8 barów Lewy i prawy regulowany ogranicznik na stole maszynowym Z zatrzymaniami długości Masa na palecie około 330 kg
CNC boring machine Brand: VITAP Type: POINT 2 New machine Vitaps smart solution for throughfeed drilling and grooving with autom. panel return to operator 3 controlled axis - Axe X Uninterrupted movement of the panel due to a ?New patented belt transport system?. - Axe Y Movement of the drilling head - Axe Z latest generation motor and ball screw. - No limit in panel length Perfect for batch 1: - Setup time = 0 - High productivity and flexibility Easy TPA programming - Monitor LCD TFT 19 5/4 Usb port for loading programs run on a station in each office - Cutting optimization Software - Graphics programming CAD TPA, base version - Saving all files with all data - Macro Programming - Import DXF files - Control: Full Parametric - Office programming software TPA Technical data: - 9 vertical independent spindles - 2+2 horizontal spindles on X ax ...
CNC punching machine Brand: Vitap Type: MICRA New machine High-Performance CNC machine for the production of acoustic panels with Micro-Perforation - Every 4 seconds the punching of 1.000 up to 2.331 holes are possible (depending on the workpiece) 3 controlled axes: - X-axis: drive via 2 motors and planetary reduction gear, guidance via pinion and rack - Y-axis: drive via 1 motor and planetary reduction gear, guidance via pinion and rack - Z-axis: drive via central hydraulical unit Easy handling with TPA control - Virtual display of programmed punching holes in the CAD environment - Optimization software for the working process - LCD TFT Monitor 20 - USB port - Basic Version CAD TPA - Macro programming Processing head - 5mm grid in X- and Y-direction - Punch depth: 3mm - Changable punching tools The processing head can optionally be customized ...
Trimming machine Make: VITAP Type: RC 92 New machine Technical data: - 2 high frequency motors HP.0,75 (Kw 0.55) each. 12000 RPM, in vertical opposite position with inverter; - 2 cutter heads with cutters one knife straight 15° the other radius 3mm; - CE standards Options (for a surcharge): - Couple of cutters (without knives) ? 274,00 - Set 8 knives 15 degrees angle and radius 2 mms. ? 122,00 - Set 8 knives 15 degrees angle and radius 3 mms. ? 122,00 - Pneumatic lifting of the upper motor ? 474,00 - Optional for panels max. high 120 mms ? 227,00
Corner rounding machine Make: VITAP Type: ROUNDER New machine Technical datas: - For corner rounder and straight corners - Standard cutters 15° R2 mm or R3 mm; - Foot pedal to start the cycle; - Movable reference with mechanical digital readout; - Complete protection with safety microswitch; - CE standards Options: CUTTER R1 MM CUTTER R2 MM CUTTER R3 MM
CNC boring- routering machine Brand: Vitap Type: K3 New machine Throughfeed process from the bottom and automatic panel return to the operator. Develop a new individual class: - With this machine you can do grooves and drill processings as well as different milling works, from simple edge milling to the milling of forms and letters. - There are no limits for your creativity Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position or just via click on the virtual workpiece Vitap Bar Nesting - efficient and time saving - This patent ...
Troughfeed boring machine Make: VITAP Type: ACOUSTIC For creation of acoustic panels for noise reduction Boring machine with through feed panel, boring from the bottom and automatic panel return to the operator. Three controlled axes: - X Axis - Panel movement by means of a strong pneumatic clamp - Y Axis - Boring head movement - Z Axis - Panel boring - Newly patented, high rigidity boring head movement on Y and Z axis. - Constant Side pusher: Side pusher with constant preload for perfect positioning of the panel on the machine zero point. - New frontal and more user friendly tool change system No limit in panel length High productivity and flexibility - The drilling head processes several holes at the same time - Different grids are possible also drilling grids with shift - Different drilling heads are optional available Easy TPA programming - Control: F ...
New CNC drilling- and dowel inserting machine Brand: VITAP Type BLITZ 3.0 Blitz CNC drilling glueing and dowel inserting machine (axis X) 1300mm. Highly efficient and reliable thanks to a easy software. Ideal for JUST IN TIME production or mass production. Machine standard equipment: - Drilling head 3500 rpm - N °3 horizontal indipendent spindles - N° 3 vertical indipendent spindles - N °1 glue and dowels inserting unit - N °1 high capacity vibrator to feed the dowels - N° 1 low pressure pump for the glue Working area horizontal head: - X= 1300 mm - Y= 50 mm - Z= 50mm (vertical) - Z=25mm (horizontal) Combined drilling and driving unit for dowels: - Configurations of min. 6 x 25 mm and max. 10 x 40 mm are possible. - The desired dowel configuration must be specified when ordering. Sets for further dowel configurations are optionally availab ...
Dowel hole drilling machine Brand: VITAP Type: ALFA 21 CLASSIC New machine - One boring unit 21 spindles - QUICK CHANGE SPINDLES - Pneumatic cylinder for horizontal/vertical positioning of the boring group (45 degreed and any intermediate angles) - Front/top caliper to obtain the same boring measure between horizontal and vertical position - Tilting side stops adjustable by metric scale and nonius and magnifying lens on each stop - 2 safety clamps inclined 4 degrees - Height regulation of the boring group by mechanical digital position indicator; - 6 positions turret to adjust the drilling depth (0-80 mm) - Automatic vertical-horizontal depth difference device (10 mms) - Drilling speed adjustment from the panel control - Strengthened steel structures for tilting of the boring group - 1 motor HP. 2 (Kw 1,50) - Start/stop electropneumatic circuit by mean ...
Contour edge banding & trimming machine Make: VITAP Type: SMART-3 New machine - With swivable trimming station - For straight and formed workpieces (convex and concave) - 1 glue spreading roller for 10-60 mm panel thickness - Guillotine to cut bands up to 3 mm thickness - edge 0,5-3mm 2 tape feeding speed (3 m/min or 7 m/min) -Glue pot 1kg capacity - Tape plate Ø=520mm Solid Phenolic table - Easy to clean - With no heat transmission - Electronic temperature control - Foot pedal command for the guillotine Tilting trimming unit - with 1 high frequency motor HP 0.75 (kw0,55) - 1 cutter Head with 2 knives r1mm/r2mm/r3mm - Support tape plate Ø 600 mm - Semi-automatic end-cutter with motor 0,5 kw and blade Ø=125 mm - Working table 400 x 300 mm. - CE standards. Optional available for an extra charge: - Cutter (without knives) - Set ...
Manufacturer: Vitap, Type: Point K2, Year: 2018, Barcode scanner: yes, Machining stations: 1050, Work piece width min-max mm: 1010, Work piece length min-max mm: unendlich, Work piece thickness min-max mm: 50, 3 axis control: yes, Working range X: 270 - unendlich, Working range Y-axis: 185 - 1200, Working range Z: 4 - 50, Vertical drilling station from below: 9, Milling spindles horizontal: 1 vertikal, Power kW 1: 5,0, RPM min-max 1: 12.000 - 24.000, Milling spindles vertical: yes, Horizontal drills-X: 2 + 2, Drill horizontal Y: 1 + 1, Sawing unit: 100 mm, Lochraster: 32, Machining stations: 1050, Year :2018
Ten opasowacz krawędzi VITAP GIOTTO wyprodukowany w 2025 roku został zaprojektowany do oklejania krawędzi na panelach prostych, kształtowanych, wklęsłych i wypukłych. Posiada półautomatyczny opaskę krawędzi konturowej z pojemnikiem pokrytym teflonem, regulowaną aplikację kleju oraz automatyczne narzędzie do cięcia rolkowego. Idealny do obsługi dużych obrabianych elementów dzięki wzmocnionej, obrotowej ramieniu i zintegrowanemu podciśnieniu. Rozważ możliwość zakupu tego edgebandera VITAP GIOTTO. Skontaktuj się z nami, aby uzyskać więcej informacji o tej maszynie.
To 3-osiowe CNC centrum obróbki drewna VITAP K3 zostało wyprodukowane w 2023 roku. Rozważ możliwość zakupu tego CNC centrum obróbki drewna VITAP K3. Skontaktuj się z nami, aby uzyskać więcej informacji.
Grooving machine for throughfeed process Brand: Vitap Type: Grooving New machine For the processing of acoustic panels Processing unit: - Shaft with 7 presettable saw blades, distance 30mm. - Blade thickness 4mm - Rotation of the shaft , 7000 rpm. - presetting with rapid hook HSK - Max diameter of the blade 125mm Workpieces: - Max. thickness of the panel 50mm - Max weight of the panel: Kg 50 - Max panel size : X no limit, Y 1200 mm, Z 50 mm - Min panel size: X 400 mm, Y 300 mm, Z 12 mm - Panel feeding speed : 25m/min Characteristics: 3 controlled axes: - X Axis - Panel movement with two dinamic clamps - Y Axis - Grooving head movement with pinion and precision rack - Z Axis - Movement with screw at spherical recirculation - Newly patented, high rigidity operating unit movement on Y and Z axis. - Constant side pushing to keep the 0-line - Positioning ...
CNC processing centre Brand: Vitap Type: Galileo 2 New machine Create great things on small space - the best kind of using 5m² production space With this 3-axis machine you can drill, mill and groove in throughfeed. Vitap Bar Nesting - efficient and time saving - This patented Software processes whole corpus elements out of one longer workpiece. - Just insert the workpiece and when you take the first finished element, the machine contues with the processing of the next element Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position ...
autom. boring machine Brand: VITAP Type: SIGMA B1 New machine technical detail: - 2800 mm working table - PLC and touch screen - 2 horizontal boring heads with 21 spindles each prepared for quick chucks - 2 motors each 1,5 kW - the right horizontal boring head is movable with the possibility to pass over the vertical boring groups and fitted on prismatic guide with ball bushes and electronic digital indicator. - Digital position indicators for height regulation of the horizontal boring heads - 2 pneumatic stops - changing horizontal/vertical drilling circuit - Belt conveyors fitted on springs sliding on prismatic guide with ball bushes - Front and side pneumatic pushers - Security on line circuit - 700 mm Infeed conveyor - Horizontal movement of the right head by ball bushes guide with electronic digital indicator - Standard accessories - CE standards Dust ...
Multi spindle drilling machine Brand: VITAP Type: ALFA DIGIT New machines - QUICK CHANGE SPINDLES - Side reference fences with digital electronic readouts and with manual exclusion for the execution of the system 32 mm drilling holes - Pneumatic cylinder for horizontal/vertical positioning of the boring group - Front caliper with digital electronic readouts - Nr. 2 alu fences with 2 stops each (1500 mm. each) - Quick change fitting of the alu fences with stops - 2 safety clamps inclined 4 degrees - 6 positions turret to adjust the drilling depth (0-80mm) - Height regulation of the boring group by mechanical digital position indicator - Automatic vertical-horizontal depth difference device (10 mm) - Drilling speed adjustment from the panel control - Strengthened steel structure for tilting of the boring group - 1 motor HP. 2 (Kw 1,50) - Start/stop electropne ...
Semi automatic edge bander Make: VITAP Type: FUSION 2.0 New machine Technical datas: - For straight and shaped pieces 10 - 60 mm - Edge thickness 1-3 mm - Tefloned gluing station with quick disassembly system - Glue and tape application on big and small shaped panels - Equipped with glue pot with 1 Kg capacity - 1 glueing roller - 2 rollers to copy the shape of the piece - 1 tilting support roller to enable the exit of the panel after banding - Glue application amount is adjusted via knob - Set up of the glue temperature - Automatic guillotine for coiled material up to 3 mm x 45 mm THREE KIND OF WORKS: - By Encoder - By Encoder + laser - By Pedal cut Panel materials - Solid wood - Chipboard (laminated or not) - Multilayer material - MDF or HDF (laminated or not) - Panel dimensions range: min 50x200mm max 1000x2000 mm - Shaped pieces Dimensions ran ...
Contour edge bander Fabrikat: VITAP Type: BC91 EVO Demonstration machine Technical data: - For straight and curved pieces (convex and concave) - To glue pieces thickness 10-60 mms., in PVC, melamine, veneer, plastic laminate and solid wood - 2 glue spreading rollers - Cutting guillotine up to 3 mm. thickness - Encoder for high precision cutting of the tape ( for shaped closed pieces) - Band length measuring by means of a digital electronic counter - Tape cut by foot pedal to edge just one piece - End switch tape cut (only for straight pieces) - Feeding speed adjustable from 3mt to 20mt per min. - Solid Phenolic table easy to clean and with no transmission of heat - Manual / Automatic band cutting device - Glue pot (kgs. 3), with electronic adjustable heating system -Tilting table 0°-45° - Standard accessories - CE standards
Contour edge bander Fabrikat: VITAP Type: BC91 EVO New machine Max. flexibility by means of a smart construction - For gluing chamfers on rectangular or formed workpieces - Tilting table 0°-45° - To glue pieces 10-60 mm thickness - Edge material: PVC, melamine, veneer, plastic, laminate, solid wood - Nr. 2 glue spreading rollers - Cutting guillotine up to 3 mm thickness - Glue pot (kg 3), with electronic adjustable heating system - Band length measuring by means of a digital electronic counter - Tape cut by foot pedal to edge just one piece and measuring edge length - Feeding speed adjustable from 7m to 20m per min. Solid Phenolic table - Easy to clean - With no transmission of heat - Plastic cups to raise the piece above the table - 2 kg vitap glue 280.00 for test - CE standards Optional: - Enlarged tape plate 800 mm - Semi-automatic end-c ...
Hot melt contour edge bander Make: VITAP Type: SMART New machine For straight and shaped (convex or concave) pieces - To glue pieces 10-60 mm thickness, - PVC / melamine / veneer / plastic / laminate / solid wood - Edge 0,5 - 3 mm - 1 glue spreading roller 10-60 mm thickness - Guillotine to cut bands up to 3 mm thickness - 2 tape feeding speed (3m/min or 7 m/min) - Tape plate d=520mm - Glue pot 1kg capacity Solid Phenolic table - Easy to clean - No transmission of heat - Plastic cups to raise the piece above the table. So the panel weight is not focused on the glued band. - Electronic temperature control - Foot pedal cutting system - CE standards Optional for an extra charge available - Vitap glue 2 kg - Vitap glue 10 kg
Kod kodowy: 0342 Marka: VITAP Model: ALFA 35 - CE Standard Półautomatyczna maszyna do wiercenia wielocylindrowego z 35 wrzecionami do mebli, kuchni, mebli łazienkowych, mebli na zamówienie, paneli – standard CE Dane techniczne Wrzeciona N 35 z szybkim sprzęgłem Odległość środkowa między każdym wrzecionem 32 mm Odległość środkowa między pierwszym a ostatnim wrzecionem mm 1088 Maksymalna głębokość otworu to 70 mm Wymiary płyty mm 1330 x 500 Obroty wrzeciona na minutę 2800 Silnik Hp 3 Wieża z 6 różnymi pozycjami głębokości Ogrodzenie boczne Pozioma/pionowa pneumatyczna głowica przechylająca 45 stopni Pręt metryczny 3000 mm z ogranicznikami Ciśnienie robocze 6-8 atm Wymiary całkowite mm 1590 x 860 x 1250 h Masa kg 454
Kod kodowy: 0405 Marka: VITAP - WŁOCHY Model: ALFA 21 Maszyny do przewiercania mebli, kuchni, mebli na zamówienie, mebli łazienkowych i różnych Dane techniczne: N° 21 wrzeciona - odległość środkowa mm 32 Maksymalna głębokość wiercenia mm 80 mm Wymiary stołu mm 860 x 500 Obroty wrzeciona 2800 Silnik Hp 2,5 Przechylenie głowicy 0-90° Ciśnienie robocze 6-8 atm Wymiary całkowite: mm 950 x 800 x 1140 h Masa kg 300
SPECYFIKACJE: Wymiar stołu mm: 1600 x 500 Liczba wrzecion: 21 + 3 (głowica akcesoriów) Rozstaw osi między każdym wrzecionem mm: 32 Max. głębokość wiercenia mm: 90 2 zaciski obrabianego przedmiotu Zainstalowana moc: Hp 2.5 Pneumatyczne urządzenie przechylające urządzenie z góry do poziomu
