VITAP máquina utilizada para venda

Máquina de perfuração VITAP modelo SUPERFAST 27: – Cabeça de 27 eixos com acoplamento rápido – guias de alumínio com indicador digital eletrónico – perfuração a 0° - 45° - 90°, da vertical inferior à horizontal – movimento pneumático da cabeça de perfuração – Revólver de profundidade de perfuração de 6 posições – 4 grampos pneumáticos para segurar as peças Ano 2018, máquina padrão CE

ESPECIFICAÇÕES: Dimensão da mesa mm: 1600 x 500 Número de fusos: 21 + 3 (cabeça acessória) Distância entre eixos entre cada eixo mm: 32 Profundidade máxima de perfuração mm: 90 2 grampos para peças Capacidade instalada: Hp 2.5 Dispositivo basculante pneumático da unidade de cima para a horizontal

21 fusos Eixos esquerdo/direito Dimensões do tampo da mesa 840x440mm 2 cilindros de pressão pneumáticos Espaçamento dos fusos 32mm Controlo do pedal ajuste pneumático da unidade Fonte de alimentação de 380 V

Modelo Forma duas vigas de perfuração verticais 17 – fuso ajustável, 1 viga de perfuração horizontal 17 – fuso móvel Vendas em nome dos clientes

Maquinação completa em acessórios interiores em apenas 4,8 m2 CNC completo Serra de perfuração de moagem Conectores Clamex Lamello Largura de trabalho de 1250 mm Comprimento infinito Mudança de ferramenta

Número de eixos verticais independentes: 9 Número de eixos horizontais no eixo X : (2+2) Número de eixo horizontal no eixo Y: (1+1) N 1 unidade de lâmina de serra: (ø 100 mm) Cabeça de router 3,6 Kw ISO 30 - 12000/24000 rpm Máridade do painel: 50 mm Controlo: Paramétrico completo Peso máximo do painel: Kg 25 Tamanho do painel máximo: X ,Y 1100, Z 50 mm Tamanho do painel min: X 270,Y 150 (70 op.), Z 12mm Número de eixos controlados: 3 Velocidade de alimentação do painel: 25m/min Rotação de velocidade dos fusos: 3600 rpm Rotação da velocidade da lâmina da serra: 7000 rpm Pressão do ar: 7 bar Diâmetro da extração do pó: ø 140 mm Conssunção do ar de escape: (2000 mc/ora) - (30 m/s) Profundidade máxima de perfuração em horiz. no eixo X e Y: 30 mm Profundidade máxima de perfuração na vertical: 45 mm Diâmetro horizontal máximo das ferramentas ...

MÁQUINA CHATA TIPO VITAP ALFA 21 n.21 mandrins motor hp 2,5 ( Kw 1,8) cabeça titlável por movimento pneumático chato vertical ou horizontal Marca CE : SIM volt. 380/50

MÁQUINA AUTOMÁTICA CHATA TIPO VITAP 212 n.02 cabeças chatas (n.21 mandrins cada uma) horizontal e/ou vertical aborrecida inclinação pneumática cercas de referência lateral 45 deg. horizontal chato Pormenores Técnicos: n.21 mandrins (x2) distância central entre mandrins mm. 32 velocidade de rotação mandrins rpm 2800 n.02 motores Hp 2 cada um kg de peso líquido. 600 Volt, volt. 380/50

Grooving machine for throughfeed process Brand: Vitap Type: Grooving New machine For the processing of acoustic panels Processing unit: - Shaft with 7 presettable saw blades, distance 30mm. - Blade thickness 4mm - Rotation of the shaft , 7000 rpm. - presetting with rapid hook HSK - Max diameter of the blade 125mm Workpieces: - Max. thickness of the panel 50mm - Max weight of the panel: Kg 50 - Max panel size : X no limit, Y 1200 mm, Z 50 mm - Min panel size: X 400 mm, Y 300 mm, Z 12 mm - Panel feeding speed : 25m/min Characteristics: 3 controlled axes: - X Axis - Panel movement with two dinamic clamps - Y Axis - Grooving head movement with pinion and precision rack - Z Axis - Movement with screw at spherical recirculation - Newly patented, high rigidity operating unit movement on Y and Z axis. - Constant side pushing to keep the 0-line - Positioning ...

CNC punching machine Brand: Vitap Type: MICRA New machine High-Performance CNC machine for the production of acoustic panels with Micro-Perforation - Every 4 seconds the punching of 1.000 up to 2.331 holes are possible (depending on the workpiece) 3 controlled axes: - X-axis: drive via 2 motors and planetary reduction gear, guidance via pinion and rack - Y-axis: drive via 1 motor and planetary reduction gear, guidance via pinion and rack - Z-axis: drive via central hydraulical unit Easy handling with TPA control - Virtual display of programmed punching holes in the CAD environment - Optimization software for the working process - LCD TFT Monitor 20 - USB port - Basic Version CAD TPA - Macro programming Processing head - 5mm grid in X- and Y-direction - Punch depth: 3mm - Changable punching tools The processing head can optionally be customized  ...

CNC processing centre Brand: Vitap Type: Galileo 2 New machine Create great things on small space - the best kind of using 5m² production space With this 3-axis machine you can drill, mill and groove in throughfeed. Vitap Bar Nesting - efficient and time saving - This patented Software processes whole corpus elements out of one longer workpiece. - Just insert the workpiece and when you take the first finished element, the machine contues with the processing of the next element Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position ...

Trimming machine Make: VITAP Type: RC 92 New machine Technical data: - 2 high frequency motors HP.0,75 (Kw 0.55) each. 12000 RPM, in vertical opposite position with inverter; - 2 cutter heads with cutters one knife straight 15° the other radius 3mm; - CE standards Options (for a surcharge): - Couple of cutters (without knives) ? 274,00 - Set 8 knives 15 degrees angle and radius 2 mms. ? 122,00 - Set 8 knives 15 degrees angle and radius 3 mms. ? 122,00 - Pneumatic lifting of the upper motor ? 474,00 - Optional for panels max. high 120 mms ? 227,00

Corner rounding machine Make: VITAP Type: ROUNDER New machine Technical datas: - For corner rounder and straight corners - Standard cutters 15° R2 mm or R3 mm; - Foot pedal to start the cycle; - Movable reference with mechanical digital readout; - Complete protection with safety microswitch; - CE standards Options: CUTTER R1 MM CUTTER R2 MM CUTTER R3 MM

CNC boring- routering machine Brand: Vitap Type: K3 New machine Throughfeed process from the bottom and automatic panel return to the operator. Develop a new individual class: - With this machine you can do grooves and drill processings as well as different milling works, from simple edge milling to the milling of forms and letters. - There are no limits for your creativity Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position or just via click on the virtual workpiece Vitap Bar Nesting - efficient and time saving - This patent ...

Troughfeed boring machine Make: VITAP Type: ACOUSTIC For creation of acoustic panels for noise reduction Boring machine with through feed panel, boring from the bottom and automatic panel return to the operator. Three controlled axes: - X Axis - Panel movement by means of a strong pneumatic clamp - Y Axis - Boring head movement - Z Axis - Panel boring - Newly patented, high rigidity boring head movement on Y and Z axis. - Constant Side pusher: Side pusher with constant preload for perfect positioning of the panel on the machine zero point. - New frontal and more user friendly tool change system No limit in panel length High productivity and flexibility - The drilling head processes several holes at the same time - Different grids are possible also drilling grids with shift - Different drilling heads are optional available Easy TPA programming - Control: F ...

CNC boring machine Brand: VITAP Type: POINT 2 New machine Vitaps smart solution for throughfeed drilling and grooving with autom. panel return to operator 3 controlled axis - Axe X Uninterrupted movement of the panel due to a ?New patented belt transport system?. - Axe Y Movement of the drilling head - Axe Z latest generation motor and ball screw. - No limit in panel length Perfect for batch 1: - Setup time = 0 - High productivity and flexibility Easy TPA programming - Monitor LCD TFT 19 5/4 Usb port for loading programs run on a station in each office - Cutting optimization Software - Graphics programming CAD TPA, base version - Saving all files with all data - Macro Programming - Import DXF files - Control: Full Parametric - Office programming software TPA Technical data: - 9 vertical independent spindles - 2+2 horizontal spindles on X ax ...

New CNC drilling- and dowel inserting machine Brand: VITAP Type BLITZ 3.0 Blitz CNC drilling glueing and dowel inserting machine (axis X) 1300mm. Highly efficient and reliable thanks to a easy software. Ideal for JUST IN TIME production or mass production. Machine standard equipment: - Drilling head 3500 rpm - N °3 horizontal indipendent spindles - N° 3 vertical indipendent spindles - N °1 glue and dowels inserting unit - N °1 high capacity vibrator to feed the dowels - N° 1 low pressure pump for the glue Working area horizontal head: - X= 1300 mm - Y= 50 mm - Z= 50mm (vertical) - Z=25mm (horizontal) Combined drilling and driving unit for dowels: - Configurations of min. 6 x 25 mm and max. 10 x 40 mm are possible. - The desired dowel configuration must be specified when ordering. Sets for further dowel configurations are optionally availab ...

Multi spindle drilling machine Brand: VITAP Type: ALFA DIGIT New machines - QUICK CHANGE SPINDLES - Side reference fences with digital electronic readouts and with manual exclusion for the execution of the system 32 mm drilling holes - Pneumatic cylinder for horizontal/vertical positioning of the boring group - Front caliper with digital electronic readouts - Nr. 2 alu fences with 2 stops each (1500 mm. each) - Quick change fitting of the alu fences with stops - 2 safety clamps inclined 4 degrees - 6 positions turret to adjust the drilling depth (0-80mm) - Height regulation of the boring group by mechanical digital position indicator - Automatic vertical-horizontal depth difference device (10 mm) - Drilling speed adjustment from the panel control - Strengthened steel structure for tilting of the boring group - 1 motor HP. 2 (Kw 1,50) - Start/stop electropne ...

Semi-automatic boring machine Brand: VITAP Typ: ALFA 35 T New machine Technical data: - One boring head 35 spindles - QUICK CHANGE SPINDLES - Pneumatic cylinder for horizontal/vertical positioning of the boring group (45 degreese and any intermediate angles) - Frontal/top 51aliper to obtain the same boring measure between horizontal and vertical position - Tilting side stops adjustable by metric scale and nonius and magnifying lens on each stop - 2 safety clamps inclined 4 degrees - Height regulation of the boring group by mechanical digital position indicator - Stroke regulation by means of 6 positions revolver (turret) (0-80 mm) - Automatic vertical-horizontal depth difference device (10 mm) - Speed regulation of the boring group command by control board - Strengthened steel structures for tilting of the boring group - 1 motor HP. 3 (Kw 2,2) - Sta ...

Dowel hole drilling machine Brand: VITAP Type: ALFA 21 CLASSIC New machine - One boring unit 21 spindles - QUICK CHANGE SPINDLES - Pneumatic cylinder for horizontal/vertical positioning of the boring group (45 degreed and any intermediate angles) - Front/top caliper to obtain the same boring measure between horizontal and vertical position - Tilting side stops adjustable by metric scale and nonius and magnifying lens on each stop - 2 safety clamps inclined 4 degrees - Height regulation of the boring group by mechanical digital position indicator; - 6 positions turret to adjust the drilling depth (0-80 mm) - Automatic vertical-horizontal depth difference device (10 mms) - Drilling speed adjustment from the panel control - Strengthened steel structures for tilting of the boring group - 1 motor HP. 2 (Kw 1,50) - Start/stop electropneumatic circuit by mean ...

autom. boring machine Brand: VITAP Type: SIGMA B1 New machine technical detail: - 2800 mm working table - PLC and touch screen - 2 horizontal boring heads with 21 spindles each prepared for quick chucks - 2 motors each 1,5 kW - the right horizontal boring head is movable with the possibility to pass over the vertical boring groups and fitted on prismatic guide with ball bushes and electronic digital indicator. - Digital position indicators for height regulation of the horizontal boring heads - 2 pneumatic stops - changing horizontal/vertical drilling circuit - Belt conveyors fitted on springs sliding on prismatic guide with ball bushes - Front and side pneumatic pushers - Security on line circuit - 700 mm Infeed conveyor - Horizontal movement of the right head by ball bushes guide with electronic digital indicator - Standard accessories - CE standards Dust ...

Hot melt contour edge bander Make: VITAP Type: SMART New machine For straight and shaped (convex or concave) pieces - To glue pieces 10-60 mm thickness, - PVC / melamine / veneer / plastic / laminate / solid wood - Edge 0,5 - 3 mm - 1 glue spreading roller 10-60 mm thickness - Guillotine to cut bands up to 3 mm thickness - 2 tape feeding speed (3m/min or 7 m/min) - Tape plate d=520mm - Glue pot 1kg capacity Solid Phenolic table - Easy to clean - No transmission of heat - Plastic cups to raise the piece above the table. So the panel weight is not focused on the glued band. - Electronic temperature control - Foot pedal cutting system - CE standards Optional for an extra charge available - Vitap glue 2 kg - Vitap glue 10 kg

Contour edge bander Fabrikat: VITAP Type: BC91 EVO New machine Max. flexibility by means of a smart construction - For gluing chamfers on rectangular or formed workpieces - Tilting table 0°-45° - To glue pieces 10-60 mm thickness - Edge material: PVC, melamine, veneer, plastic, laminate, solid wood - Nr. 2 glue spreading rollers - Cutting guillotine up to 3 mm thickness - Glue pot (kg 3), with electronic adjustable heating system - Band length measuring by means of a digital electronic counter - Tape cut by foot pedal to edge just one piece and measuring edge length - Feeding speed adjustable from 7m to 20m per min. Solid Phenolic table - Easy to clean - With no transmission of heat - Plastic cups to raise the piece above the table - 2 kg vitap glue 280.00 for test - CE standards Optional: - Enlarged tape plate 800 mm - Semi-automatic end-c ...

Semi automatic edge bander Make: VITAP Type: FUSION 2.0 New machine Technical datas: - For straight and shaped pieces 10 - 60 mm - Edge thickness 1-3 mm - Tefloned gluing station with quick disassembly system - Glue and tape application on big and small shaped panels - Equipped with glue pot with 1 Kg capacity - 1 glueing roller - 2 rollers to copy the shape of the piece - 1 tilting support roller to enable the exit of the panel after banding - Glue application amount is adjusted via knob - Set up of the glue temperature - Automatic guillotine for coiled material up to 3 mm x 45 mm THREE KIND OF WORKS: - By Encoder - By Encoder + laser - By Pedal cut Panel materials - Solid wood - Chipboard (laminated or not) - Multilayer material - MDF or HDF (laminated or not) - Panel dimensions range: min 50x200mm max 1000x2000 mm - Shaped pieces Dimensions ran ...

Contour edge bander Fabrikat: VITAP Type: BC91 EVO Demonstration machine Technical data: - For straight and curved pieces (convex and concave) - To glue pieces thickness 10-60 mms., in PVC, melamine, veneer, plastic laminate and solid wood - 2 glue spreading rollers - Cutting guillotine up to 3 mm. thickness - Encoder for high precision cutting of the tape ( for shaped closed pieces) - Band length measuring by means of a digital electronic counter - Tape cut by foot pedal to edge just one piece - End switch tape cut (only for straight pieces) - Feeding speed adjustable from 3mt to 20mt per min. - Solid Phenolic table easy to clean and with no transmission of heat - Manual / Automatic band cutting device - Glue pot (kgs. 3), with electronic adjustable heating system -Tilting table 0°-45° - Standard accessories - CE standards

Contour edge banding & trimming machine Make: VITAP Type: SMART-3 New machine - With swivable trimming station - For straight and formed workpieces (convex and concave) - 1 glue spreading roller for 10-60 mm panel thickness - Guillotine to cut bands up to 3 mm thickness - edge 0,5-3mm 2 tape feeding speed (3 m/min or 7 m/min) -Glue pot 1kg capacity - Tape plate Ø=520mm Solid Phenolic table - Easy to clean - With no heat transmission - Electronic temperature control - Foot pedal command for the guillotine Tilting trimming unit - with 1 high frequency motor HP 0.75 (kw0,55) - 1 cutter Head with 2 knives r1mm/r2mm/r3mm - Support tape plate Ø 600 mm - Semi-automatic end-cutter with motor 0,5 kw and blade Ø=125 mm - Working table 400 x 300 mm. - CE standards. Optional available for an extra charge: - Cutter (without knives) - Set ...

Description: serial number: 590524 power supply 380 V, 3PH/ 50Hz serial number: 590,524, Approx. Onsite Dimension. (l x w x h): 3,100 x 1,400 x 1,500 mm, weight approx.: 1,500 kg

Description: Max. panel width 1300 mm No of Bottom Units 1 No of injectors 1 bottom vertical units horizontal units Max. panel width 1300 mm No. Top clamps 4 spindles for horizontal boring 2  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  ,  , motor power 0.55 KW r.p.m. 2700 RPM Item inserted yes wooden dowels wooden dowels 10X50 Safety standard CE mark  ,  ,  ,  ,  ,  ,  , , Approx. Onsite Dimension. (l x w x h): 3,250 x 1,900 x 1,800 mm, weight approx.: 1,500 kg

espessura máxima do painel 50 mm peso máximo do painel 80 kg dimensões máximas do painel X: ilimitado / Y: 1250 mm / Z: 50 mm dimensões mínimas do painel X: 270 mm / Y: 150 mm / Z: 3 mm velocidade de alimentação: 25 m/min 1,7 kW rotação do motor de perfuração: 3.600 rpm 12 berbequins verticais 8 brocas horizontais, 2 x 2 na direção X, 2 x 2 na direção Y grooving serra em X, diâmetro 100 mm 5 kW ISO 30 eixo principal rotação 12000/24000 rpm 4 posição opção de troca de ferramenta incluída: Lamello Clamex P

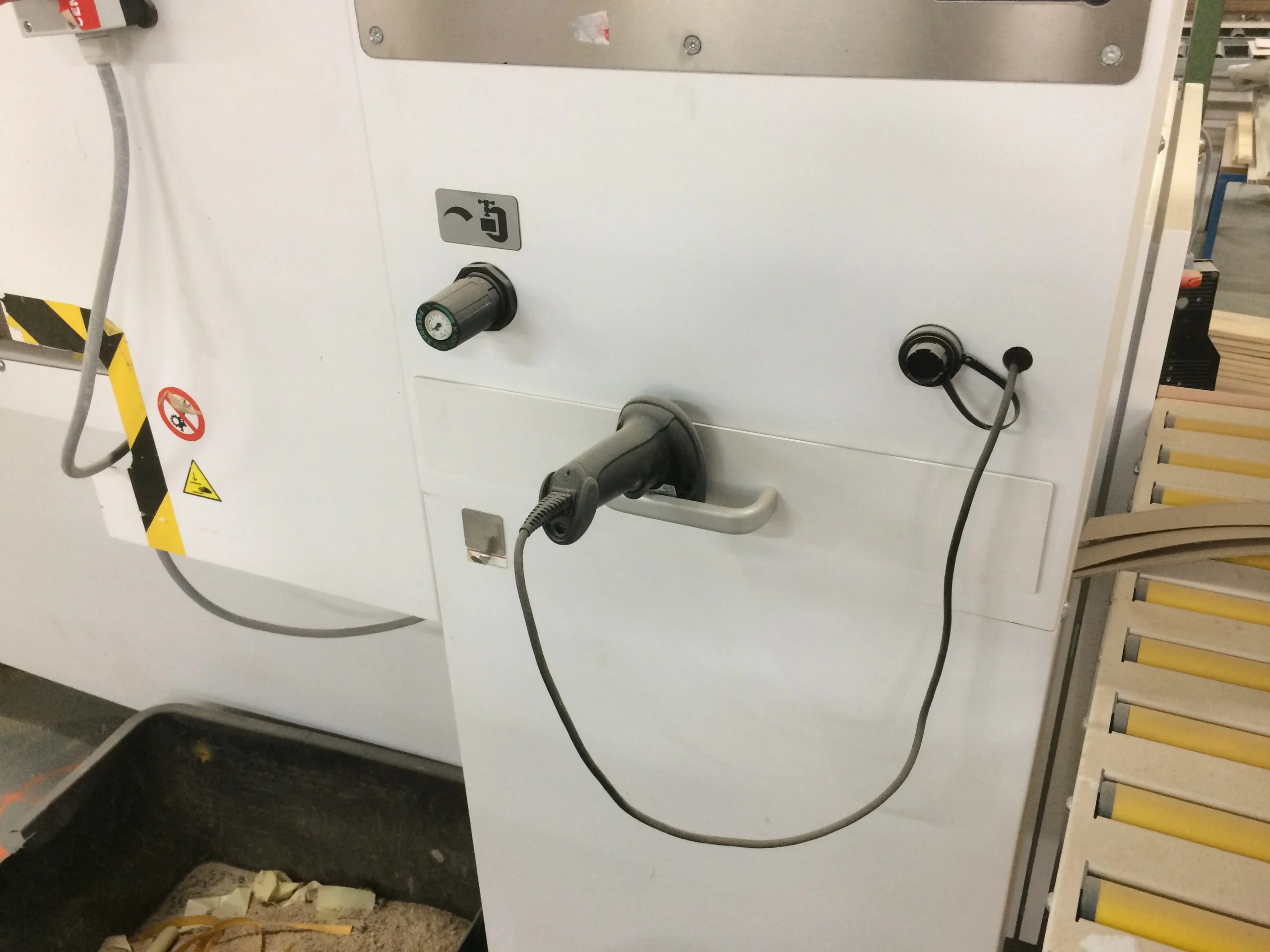

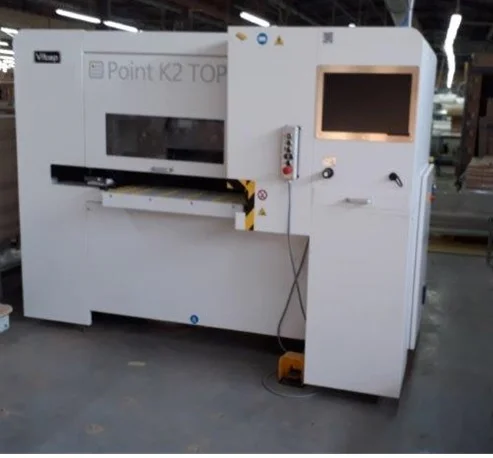

Manufacturer: Vitap, Type: Point K2, Year: 2018, Barcode scanner: yes, Machining stations: 1050, Work piece width min-max mm: 1010, Work piece length min-max mm: unendlich, Work piece thickness min-max mm: 50, 3 axis control: yes, Working range X: 270 - unendlich, Working range Y-axis: 185 - 1200, Working range Z: 4 - 50, Vertical drilling station from below: 9, Milling spindles horizontal: 1 vertikal, Power kW 1: 5,0, RPM min-max 1: 12.000 - 24.000, Milling spindles vertical: yes, Horizontal drills-X: 2 + 2, Drill horizontal Y: 1 + 1, Sawing unit: 100 mm, Lochraster: 32, Machining stations: 1050, Year :2018
