Swivel spindle milling machine Brand: Panhans type: 245/200 New machine Solid 880 kg machine with smart control system - Infinitely variable speed regulation 1500 - 10,000 rpm, - 7.5 kW motor with 11 kW frequency converter - Pushbutton with electronic soft start 7 touch control, optional use, top and bottom - Cutter zero point selectable in program, 3 reference points - Simple operating menu through innovative touch control (max. 2 levels) - Operating hours counter - Warning messages in case of operating errors - Remote maintenance via Internet (VPN tunnel) - USB interface for data backup and import of tools, programs and users - Tool database for 5 tools (20 programs are possible per tool) - 2-axis positioning control for height and swivel adjustment - Electronic position and speed displays Double-sided swiveling, fixed milling spindle for the swiveling range ...
CNC - Bearbeitungszentrum Fabrikat: COMEC Typ: MD TOP XL Die ideale Lösung für CNC - Bearbeitungen an schmalen, komplizierten Werkstücken COMEC macht´s Ihnen einfach Kopfkonfigurationen individuell konfigurierbar für: - Sägen mit 360 Grad - Achse - Fräsaggregate für horizontale und vertikale Bearbeitungen - Bohrköpfe mit einzeln abrufbaren Spindeln vertikal und horizontal - Mehrspindelreihenbohrköpfe einzeln abrufbar auch horizontal - Horizontalfräsaggregat mit 360 Grad C - Achse Speziell entwickelter Spanntisch, verfährt in X - Richtung automatisch programmgesteuert Individuelle Ausstattung möglich, zum Beispiel: Grundrahmen Schwerer Grundmaschinenständer, Elektroverschweißt. Maximale Werkstückgrößen: X-Achse 3350 mm (oder 1500 + 1500 mm in zwei Arbeitsfeldern) Y-Achse 200 mm Z-Achse 180 mm Verfahrbarer Aggregateträger 3 ...
CNC punching machine Brand: Vitap Type: MICRA New machine High-Performance CNC machine for the production of acoustic panels with Micro-Perforation - Every 4 seconds the punching of 1.000 up to 2.331 holes are possible (depending on the workpiece) 3 controlled axes: - X-axis: drive via 2 motors and planetary reduction gear, guidance via pinion and rack - Y-axis: drive via 1 motor and planetary reduction gear, guidance via pinion and rack - Z-axis: drive via central hydraulical unit Easy handling with TPA control - Virtual display of programmed punching holes in the CAD environment - Optimization software for the working process - LCD TFT Monitor 20 - USB port - Basic Version CAD TPA - Macro programming Processing head - 5mm grid in X- and Y-direction - Punch depth: 3mm - Changable punching tools The processing head can optionally be customized ...

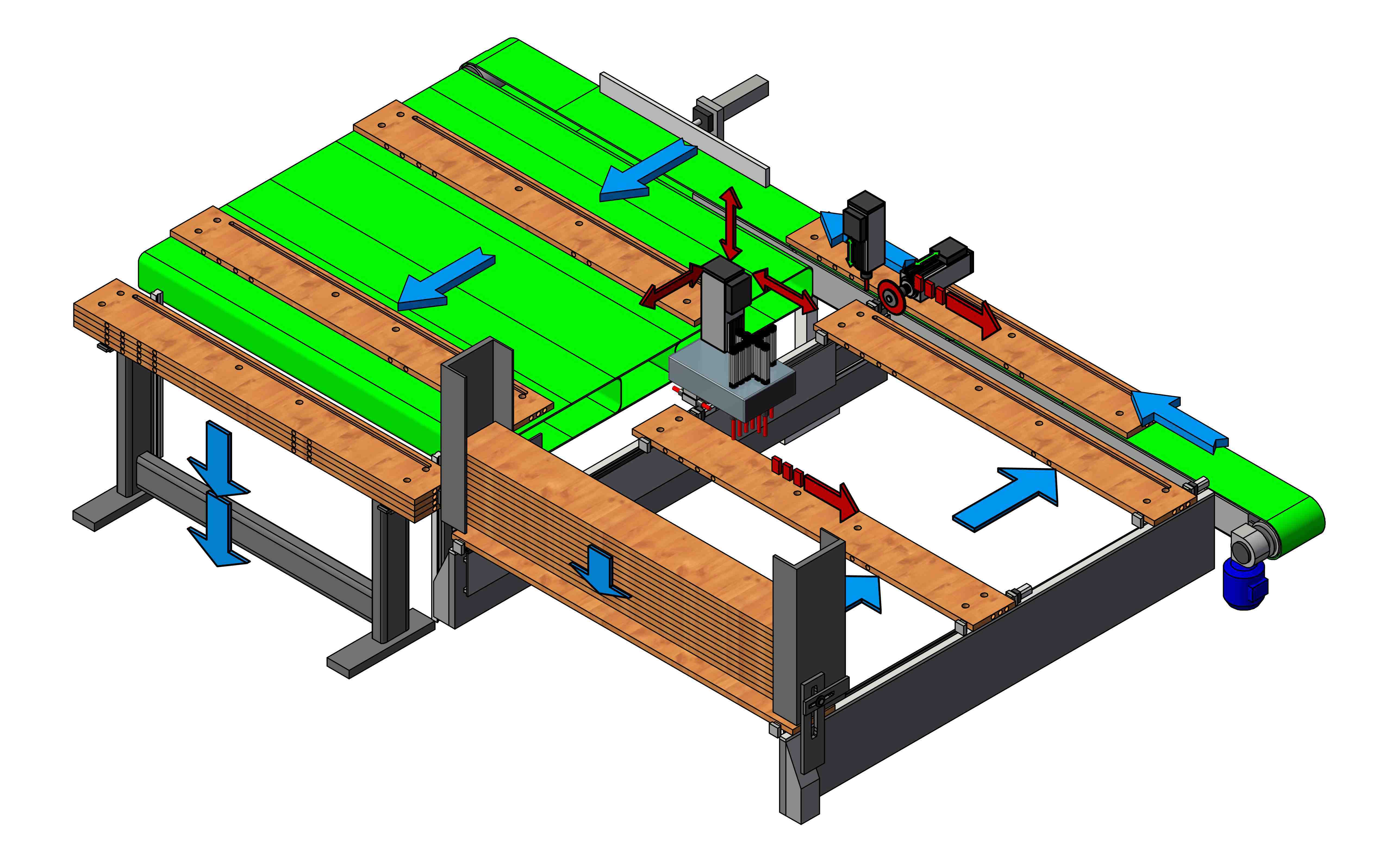

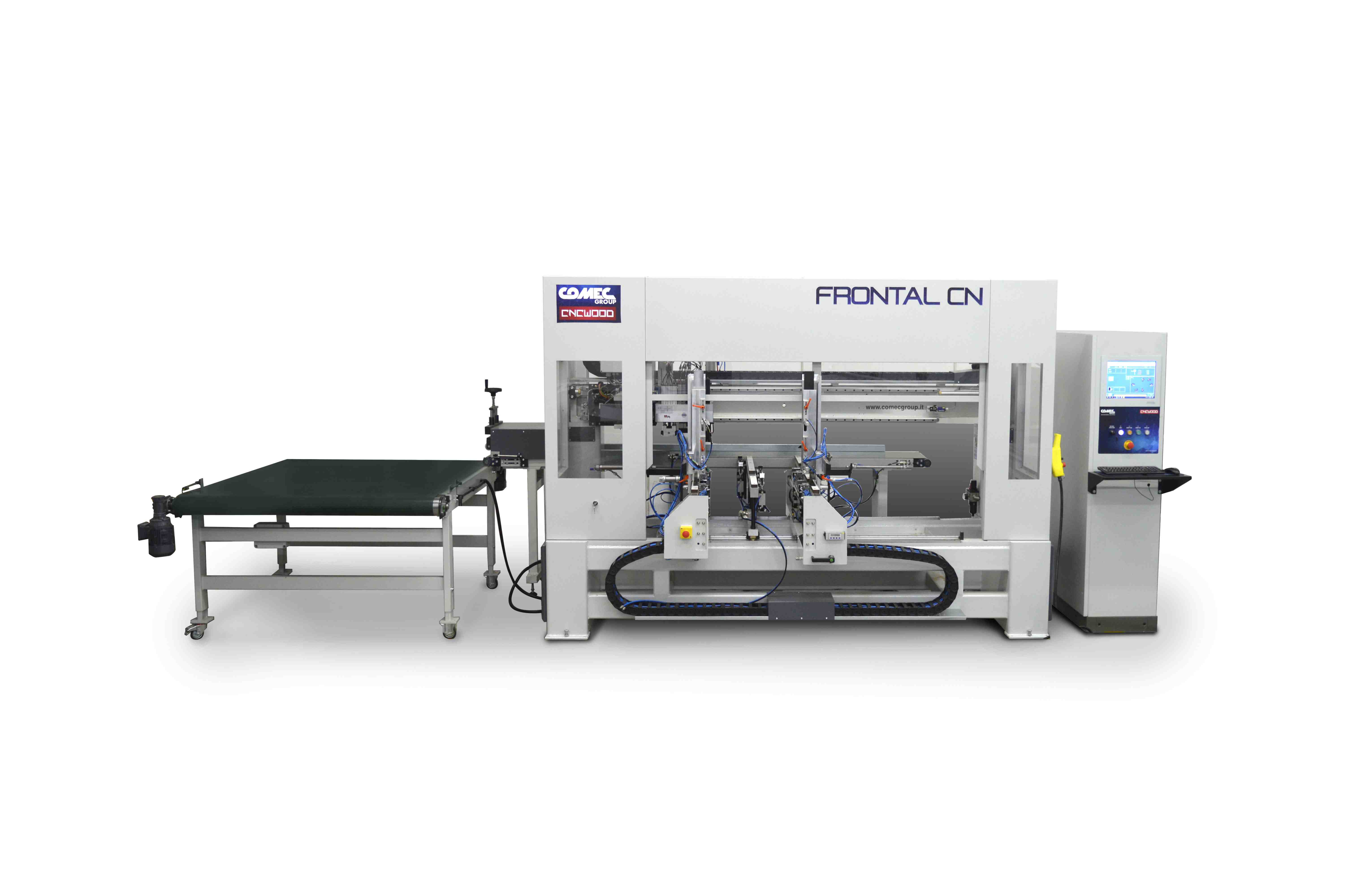

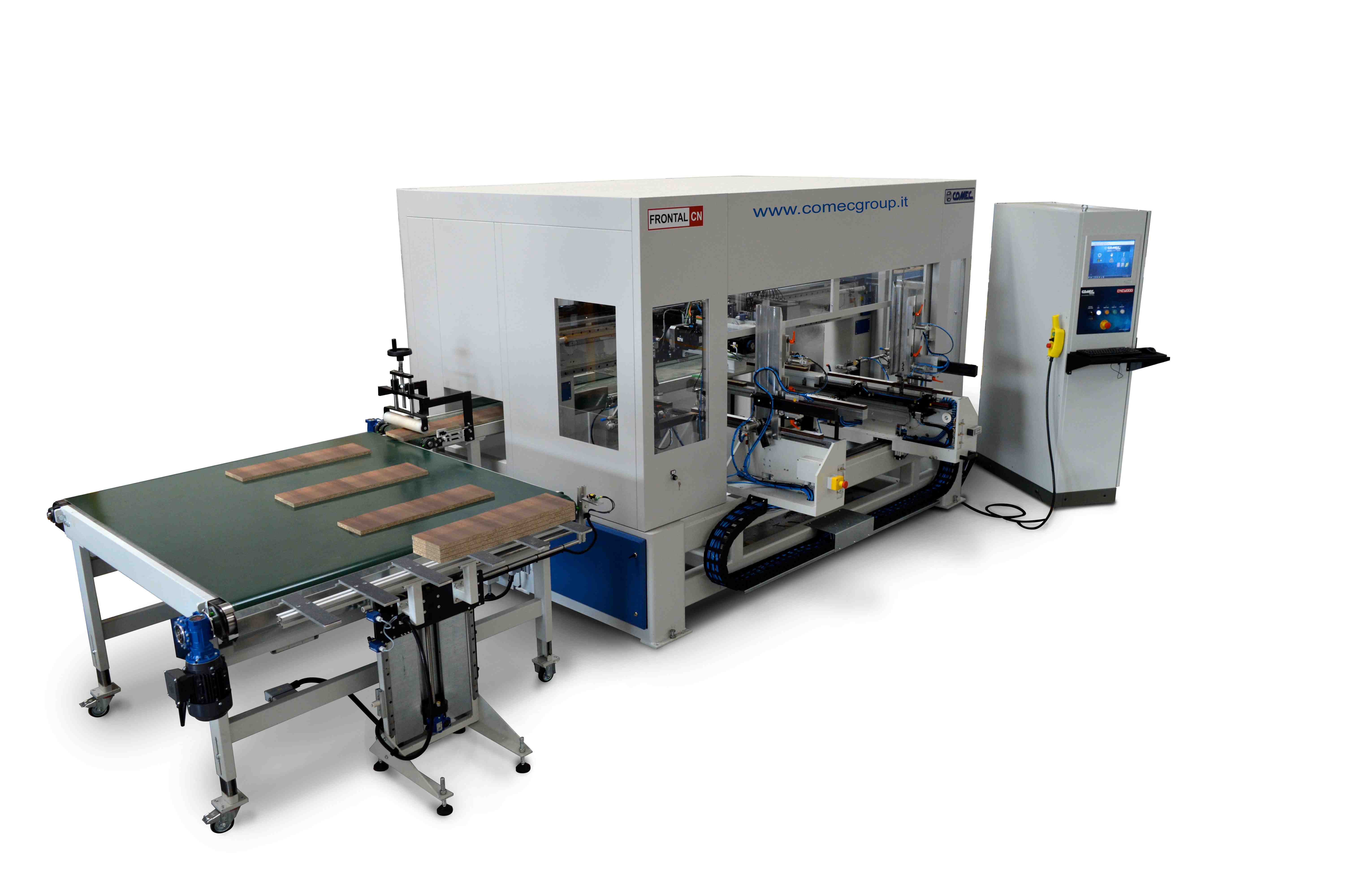

CNC Drawer fronts processing machine Brand: Comec Type: FRONTAL CN 1500 2S New machine for point to point drilling and milling, with automatic loader and pieces return to the operator Structure Frame of electro-welded steel sheet of heavy-duty construction Loading system 1 fix left shoulder and 1 mobile right shoulder on which are fixed the loader, magazine and locking system. Manual adjustment of the mobile shoulder on ball bearings slides with measure indication by digital display. Automatic loader with vertical adjustable magazine. Pieces advancement system step by step with 2 working stations, complete with locking cylinders on each station. Pieces return system Pieces return system composed with: 1 transversal motorized belt kW 0.37. 2 ejector cylinders. 1 longitudinal, lateral motorized belt kW 0.37. 1st Working station: vertical-horizontal Point to Poi ...
CNC working center Brand: Comec Type: Variax J new machine The highest level of progress for your door frame production: 6 controlled axes and a fast production process characterize the Variax J. Movable machining support - All axes move on ball bearing mounted BOSCH-REXROTH or comparable linear guides - Movement / positioning of the machining units max. 70 m/min. - Axis X = 2950 mm - Axis Y = 400 mm - Axis Z = 500 mm - Axis support for vertical rotation of the machining head. axis B from -135° to +135°, motor kW 0.45. - Axis support for horizontal rotation of the machining head. Axis C from -180° to +180°, motor kW 0.45. Machining head - electrospindle 1-2 - N°1+1 electrospindle fixed to the H support - N°1 electrospindle for milling, - with 2 spindle outputs, kW 7.0 / 12-18.000 rpm, adjustable by means of frequency converter Tool attachment wi ...

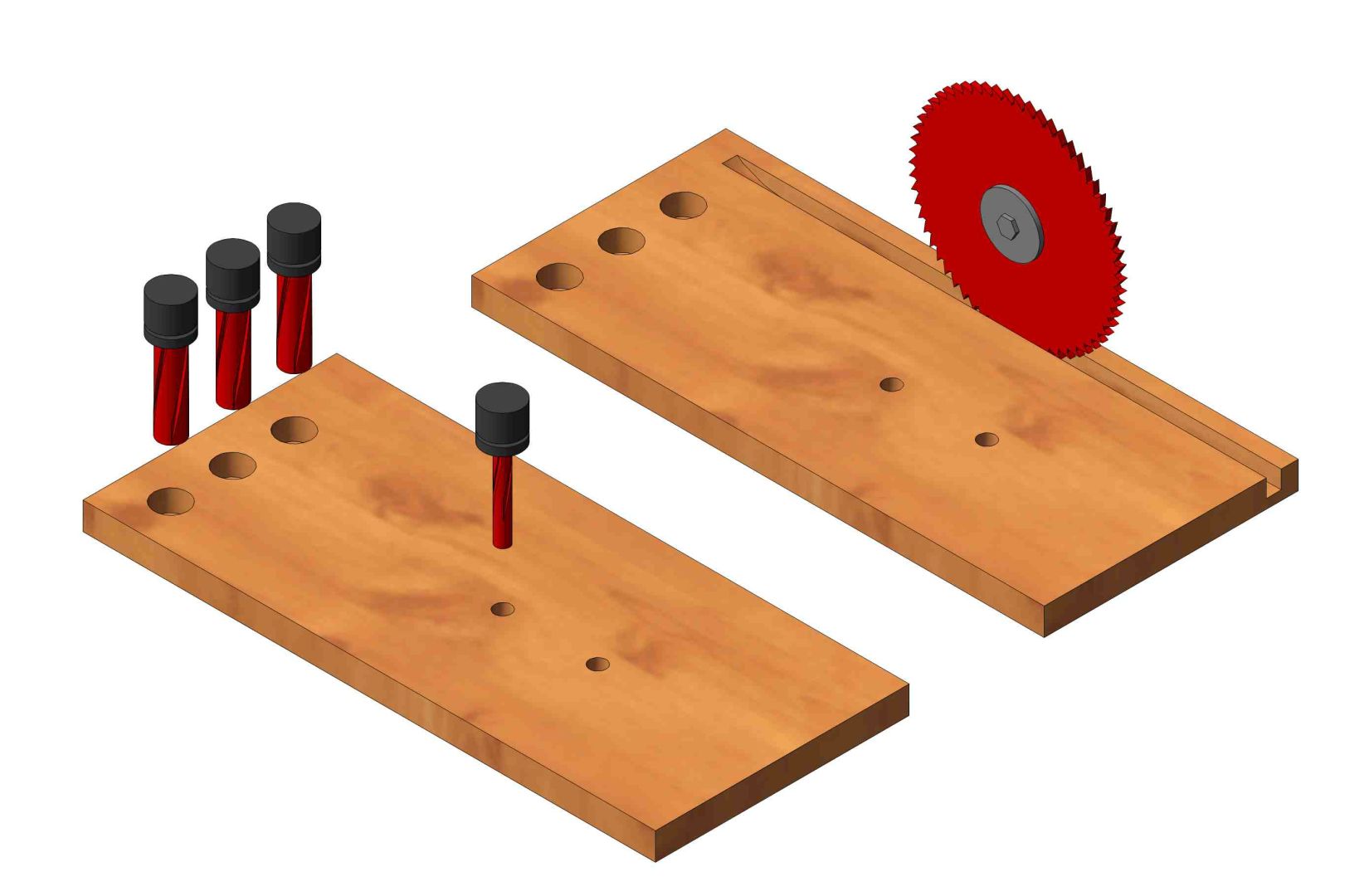

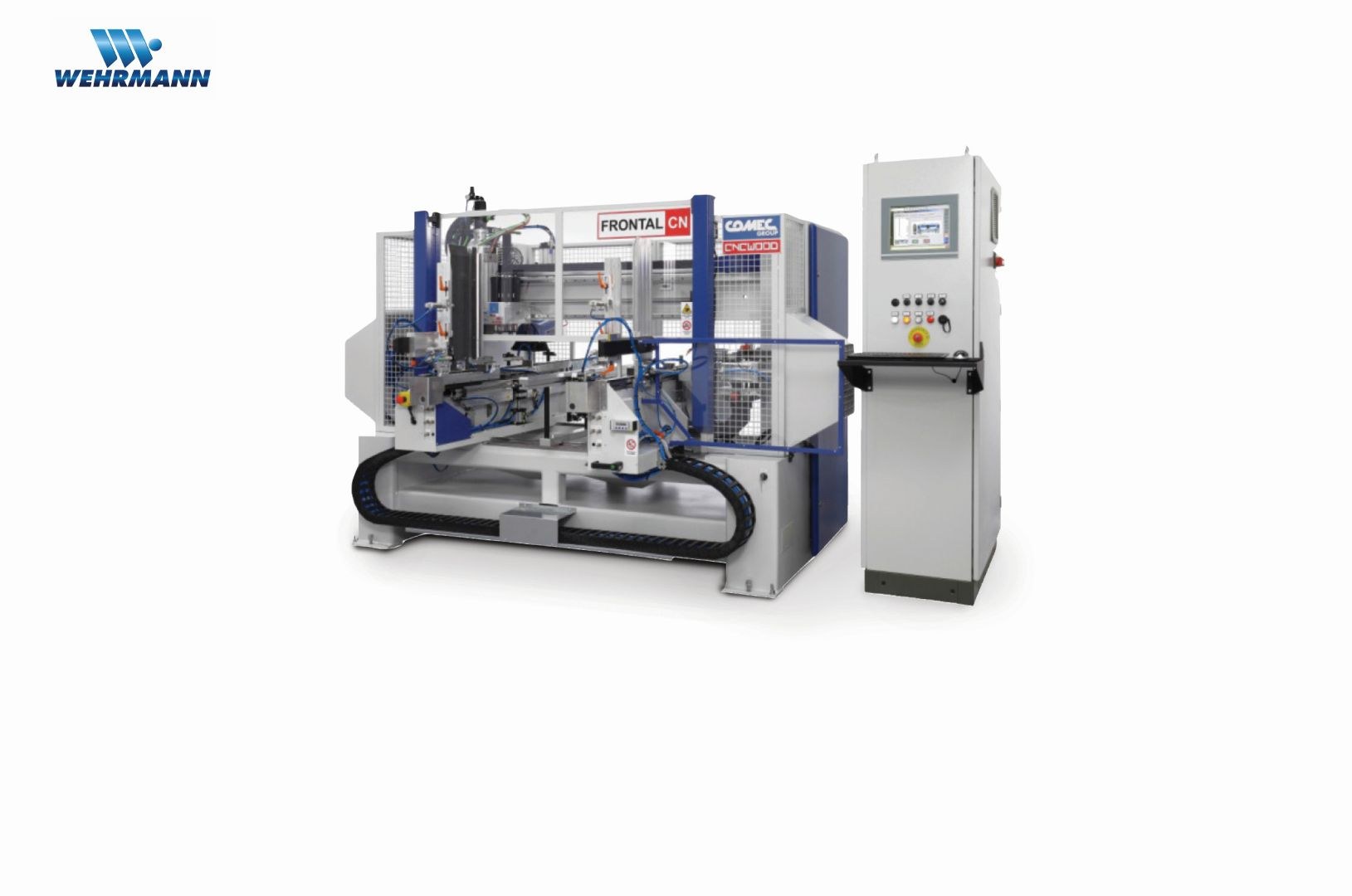

Drilling- cutting machine Brand: Comec Type: Frontal 2 CN New machine Drawer parts machining in compact design Fast set-up for the smallest possible batch sizes thanks to CNC technology - Perfect machining The FRONTAL CN is ideally equipped for the machining of drawer parts and can be optionally equipped with drilling units from above, but also laterally, e.g. for drawer side parts. The drilling units at the top are suspended at the front of the upper beam so that a grooving saw unit can be mounted at the rear, for example, for drawing in top grooves. The machines can be equipped either with manual feeding or with automatic feeding magazine, so that the machines can work in continuous operation. For larger batch sizes, the FRONTAL is also available as a BASIC machine with conventional control.
CNC unit for boring, routing and sawing Brand: Atemag Type: Ultra Line Duo With two tool interfaces, angle 90° Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M. Gear ratio i = 1:1,5 Turning direction left/right Torque max. 22 Nm Tool interfaces: ER 25, ER 32, saw blade flange 30 mm, dia. max. 300 mm We recommend with saw blade or for heavy duty rough milling a gear reduction: Type DUO, version R Max. drive speed 12,000 R.P.M. Max. tool spindle speed 8,000 R.P.M. Gear Ratio i = 1:0,676 Torque max. 22 Nm
CNC unit for boring, routing and sawing Brand: Atemag Type: Ultra Line Vario Viso Angle adjustment 2 x 0 - 100° on two sides adjustable Max. drive speed 13.760 R.P.M. Max. tool spindle speed 15,000 R.P.M. Gear ratio i = 1:1,09 Turning direction left/right Torque max. 22 Nm Tool interfaces: combination ER 25 and saw, saw blade flange 30 mm, Pitch circle 45mm and 52mm
CNC unit for moulding or saw blade package Brand: Atemag Type: Ultra Line Mega Cutter Position of tool spindle 90° Max. drive speed 12,000 R.P.M. Max. tool spindle speed 7.690 R.P.M. Gear ratio i = 1:0,641 Turning direction left/right Torque max. 22 Nm Tool interfaces: arbour with 30mm diameter, 120 clamping length, max. tool diameter 160mm - without tools -
CNC unit for corner notching in off-set design Brand: Atemag Type: Function Line Extra 2 Max drive speed 8,000 R.P.M. Max. tool spindle speed 12,000 R.P.M. Gear ratio i = 1:1,48 Turning direction left/right Torque max. 20 Nm Tool interface: Special Attention: price is just valid for standard version
CNC unit for boring and routing Brand: Atemag Type: Function Line Extra with two tool interfaces angle 90° Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M. Gear ratio i = 1:1,5 Turning direction left/right Torque max. 20 Nm Tool interfaces: ER 32 / ER 16 Spindle for omega router/ ER 16
CNC unit for boring, routing and sawing Brand: Atemag Type: Function Line Vario Viso With adjustable angle 0 - 100° Max. drive speed 15,000 R.P.M. Max. tool spindle speed 15,000 R.P.M. Gear ratio i = 1:1 Turning direction left/right Torque max. 15 Nm Tool interfaces: combination ER 25 and saw, saw blade flange 30 mm Version with one single clamping screw, locking with the lever
CNC unit for routing and boring Brand: Atemag Type: Function Line Soft Touch Pro With surface copying function with floating bell GX1 or GX2 or GX4 Max. drive speed 18,000 R.P.M Max. tool spindle speed 18,000 R.P.M. Gear ratio i = 1:1 Turning direction left/right Torque max. 20 Nm Tool interface: modular for ER 25, ER 32, saw flange, shrink- fit chuck
CNC unit with oscillating cutter head Brand: Atemag Type: Function Line Soft Cutter Pro Max. drive speed 6.000 R.P.M Max. tool spindle speed 9.000 R.P.M. (Frequency 150Hz) Gear ratio i = 1:1,48 Torque max. 8Nm Amplitude: 4mm
CNC unit for boring, routing and sawing Brand: Atemag Type: Ultra Line Mono With one tool interface, angle 90° Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M. Gear ratio i = 1:1,5 Turning direction left/right Torque max. 22 Nm Tool interfaces: ER 25, ER 32, saw blade flange 30 mm, dia. max. 300 mm We recommend with saw blade or for heavy duty rough milling a gear reduction: Type MONO, version R Max. drive speed 12,000 R.P.M. Max. tool spindle speed 8,000 R.P.M. Gear Ratio i = 1:0,676 Torque max. 22 Nm
CNC unit for boring, routing and sawing Brand: Atemag Type: Vario Classic With one tool interface, angle 90° Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M Gear ratio i = 1:1,5 Turning direction left/right Torque max. 20 Nm Tool interfaces: ER25, ER 32, saw blade flange 30 mm, sawblade dia. max. 180 mm or modular
New CNC Maschine Brand: Comec type: MD JAMB CNC machining center for complete machining of a wide range of door frames. 3 machining supports for cutting to length on miters, milling for corner connectors and door lock panels. A complete door frame element with decorative cladding and rebate cladding is machined in one set-up. A complete frame can thus be machined in approx. 2.5 - 3 min. Machining equipment can be individually adapted to the customers requirements.
Troughfeed boring machine Make: VITAP Type: ACOUSTIC For creation of acoustic panels for noise reduction Boring machine with through feed panel, boring from the bottom and automatic panel return to the operator. Three controlled axes: - X Axis - Panel movement by means of a strong pneumatic clamp - Y Axis - Boring head movement - Z Axis - Panel boring - Newly patented, high rigidity boring head movement on Y and Z axis. - Constant Side pusher: Side pusher with constant preload for perfect positioning of the panel on the machine zero point. - New frontal and more user friendly tool change system No limit in panel length High productivity and flexibility - The drilling head processes several holes at the same time - Different grids are possible also drilling grids with shift - Different drilling heads are optional available Easy TPA programming - Control: F ...
Trimming machine Make: VITAP Type: RC 92 New machine Technical data: - 2 high frequency motors HP.0,75 (Kw 0.55) each. 12000 RPM, in vertical opposite position with inverter; - 2 cutter heads with cutters one knife straight 15° the other radius 3mm; - CE standards Options (for a surcharge): - Couple of cutters (without knives) ? 274,00 - Set 8 knives 15 degrees angle and radius 2 mms. ? 122,00 - Set 8 knives 15 degrees angle and radius 3 mms. ? 122,00 - Pneumatic lifting of the upper motor ? 474,00 - Optional for panels max. high 120 mms ? 227,00
CNC unit for boring and routing Brand: Atemag Type: Function Line Quattro With four tool interfaces 2x boring / 2x routing Max. drive speed 10,000 R.P.M. Max. tool spindle speed 15,000 R.P.M Gear ratio i = 1:1,5 Turning direction left/right Torque max. 20 Nm Tool interfaces: ER 25, ER 32
CNC boring machine Brand: VITAP Type: POINT 2 New machine Vitaps smart solution for throughfeed drilling and grooving with autom. panel return to operator 3 controlled axis - Axe X Uninterrupted movement of the panel due to a ?New patented belt transport system?. - Axe Y Movement of the drilling head - Axe Z latest generation motor and ball screw. - No limit in panel length Perfect for batch 1: - Setup time = 0 - High productivity and flexibility Easy TPA programming - Monitor LCD TFT 19 5/4 Usb port for loading programs run on a station in each office - Cutting optimization Software - Graphics programming CAD TPA, base version - Saving all files with all data - Macro Programming - Import DXF files - Control: Full Parametric - Office programming software TPA Technical data: - 9 vertical independent spindles - 2+2 horizontal spindles on X ax ...
CNC - processing center Brand: COMEC Type: MD TOP The ideal CNC solution to process narrow and complicated work pieces EASY with COMEC processing length up to 2.000 mm Head configuration individually customizable for: - saw with 360° - axis - milling unit for horizontal and vertical processing - drilling head with separate jumping spindles vertical and horizontal - multiple spindle drilling heads separate jumping even horizontal - horizontal milling unit with 360° C - axis Special developed clamping table, moves automatically program controlled in X direction Furthermore, optionally available: - Automatic raw work piece feed with finished work piece return to the operator TPA control unit: CNC control with graphical user interface Parametric software with 3D modeling Necessary processing macros customized to you pre-installed
CNC frame processing machine Brand: COMEC DRIVER New machine - With this machine you can process assembled door frames in quantity-1, door by door. - 5-axis machining spindle with ingenious crosshead technology for fastest tool use and productivity. Automatische Positionierung der Auflagensupporte. - High-precision and program-controlled clamping system with O-reference on the surface. - Laser measurement of the surface contours for precisely fitting milled fittings. - Automatic discharge of the finished frame parts. - Possibility of connection to known door software systems. - The machine can be individually designed to meet your required machining needs. Give us your requirements and let us offer you your MD JAMB suitable. - This offer is valid for Germany. Wehrmann is the exclusive sales and service partner for COMEC in Germany.
Manufacturer: Haberkorn, Type: FZS-SD, Year: 1994, Work piece width min-max mm: oben, Min.-max. workpiece length in mm: 400, Min.-max. workpiece height in mm: 3, Trimming saw: 2800, Working hight mm: 252, Vertikal spindle: 40, Working range Z-axis mm: 220, Length lifting spindle mm: 1, Diameter of the spindle mm: 40, Trimming saw: 2800, Travels of spindle: 2, Milling spindle kW: +/- 65 °, Working length max mm: ca. 7,5 Fräswelle, Max. working depth in mm: 2000, Main engine kW: yes, Feeding speed max m/min: yes, Feeding - manually: 2 Druckluft-Spanner, Feeding speed continous adjustable: 1x100 + 1x 180, Mitre Window: 2225x1720x1835, Year :1994
