Key data: 4000 mm, 5000 mm
Características técnicas Control SIEMENS SINUMERIK 840 Dsl Dimensiones y recorridos principales Diámetro de la placa frontal 4.000 mm Diámetro circunferencial (máx.) 5.000 mm Altura de la pieza (máx.) 5.000 mm Altura total de la máquina 9.250 mm Peso máximo de la pieza de trabajo: 80.000 kg Base de mesa Y Desplazamiento horizontal de la mesa 2.500 mm Travesaño Ajuste vertical del travesaño 3.200 mm en 50 pasos Soporte de travesaño (derecha) Soporte de ajuste horizontal - 2740 + 2740 mm Desplazamiento vertical de la corredera de cincel 1.800 mm Sección transversal de la corredera de cincel 250x210 mm Soporte lateral (derecha) Soporte de ajuste vertical -25 + 2170 mm Desplazamiento horizontal de la corredera de cincel 1.000 mm Sección transversal de la corredera de cincel 250x210 mm Diámetro de torneado máx./min. 4.500/2.500 mm ...
Características técnicas Control Siemens Sinumerik 840 Dsl Dimensiones y recorridos principales Diámetro de la placa frontal: 3.500 mm Diámetro circunferencial (máx.) 4.000 mm Altura de la pieza (máx.) 3.000 mm Altura total de la máquina 7.250 mm Peso máximo de la pieza 50.000 kg Base de mesa Y Desplazamiento horizontal de la mesa 2.000 mm Travesaño Ajuste vertical del travesaño 1.500 mm en 50 pasos Soporte de travesaño (derecha) Soporte de ajuste horizontal -25 + 2170 mm Desplazamiento vertical de la corredera de cincel 1.800 mm Sección transversal de la corredera de cincel 250x210 mm Estaciones de herramientas Soporte de travesaño (izquierda) Soporte de ajuste horizontal -25 + 2170 mm Desplazamiento vertical de la corredera de cincel 1.800 mm Sección transversal de la corredera de cincel 250x210 mm Cambiador de herramientas ...
Datos técnicos de la mandrinadora Schiess Froriep usada: CNC: Siemens 840 D Recorrido transversal máximo eje X: 13.770 mm Recorrido vertical máximo eje Y: 5.000 mm Eje Z: 1.780 mm Eje W: 950 mm Plano de soporte giratorio del eje V: 2.000 mm Dimensiones de la mesa giratoria: 5.000 x 3.500 mm Dimensiones de la mesa fija: 7.500 x 4.300 mm Carga máxima admisible sobre la mesa: 120 toneladas Potencia del husillo: 100 kW Revoluciones por minuto del husillo: 710 rpm
Número de inventario 1210059 Tipo de máquina Mesa giratoria Hacer SCHIESS Tipo 25/30 Tipo de control Vía X (mm) 2.000 Dimensiones de la mesa (mm) 3.000 x 2.500 Mesa giratoria (grados) 360 Información Carga máx. de la mesa: 40 toneladas
diámetro de giro: 220 mm talla de giro: 200 mm control: Siemens Sinumerik queque de potencia total: kW peso de la máquina ca.: t dimensiones de la máquina ca.: m
longitud de la mesa: 3000 mm anchura de la mesa: 2500 mm carga útil: 40 t reque de potencia total: kW peso de la máquina ca.: t dimensiones de la máquina ca.: m Cuento de stock 1210059 Tipo de mesa giratoria Make SCHIESS Tipo 25/30 Tipo de control X-carrera (mm) 2.000 Tamaterias de la mesa (mm) 3.000 x 2.500 Roción de la tabla (grados) 360 Información adicional Máx. carga de la mesa 40 toneladas < /pequeño>
faceplate diameter:2500 mm swing diameter:2500 mm swing diameter:2500 mm turning height:2500 mm turning speed range - faceplate:1,8 - 140 U/min workpiece weight max.:15.000 kg feeds: 0,03 - 6,3 mm/U rapid speed:2 m/min cross rail adjustment:2150 mm max. ram stroke:1500 mm power capacity:55 kW weight of the machine ca.:32 t dimensions of the machine ca.:4,1 x 7,6 x 6,0 m 1 turret head 1 RAM head

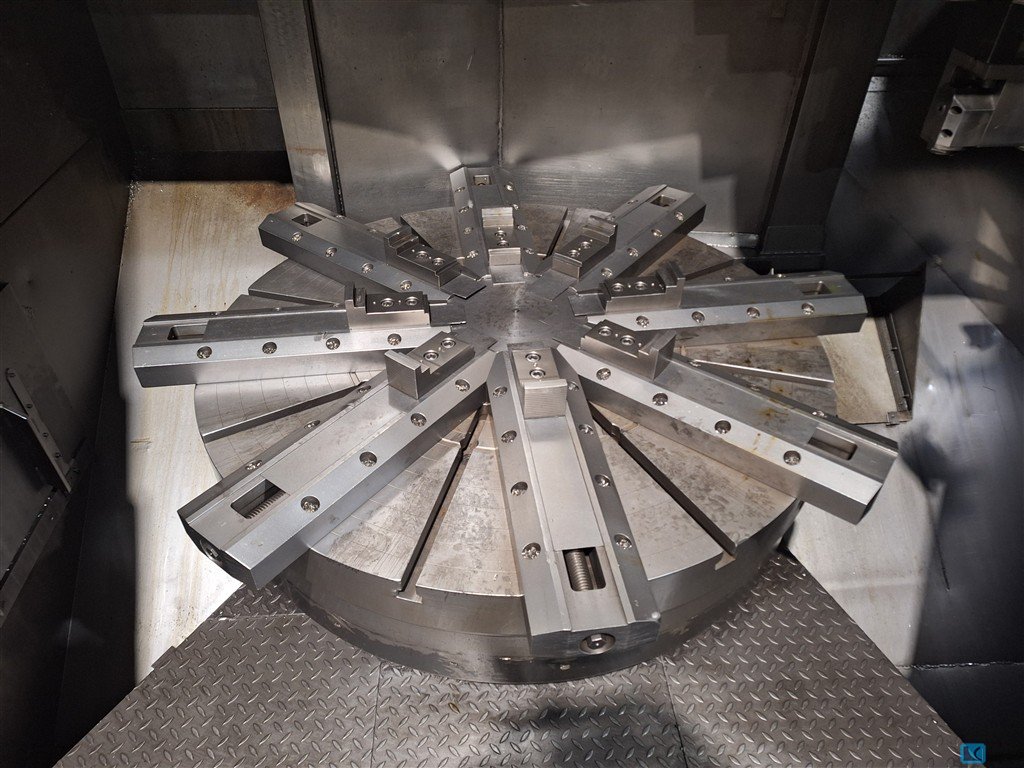

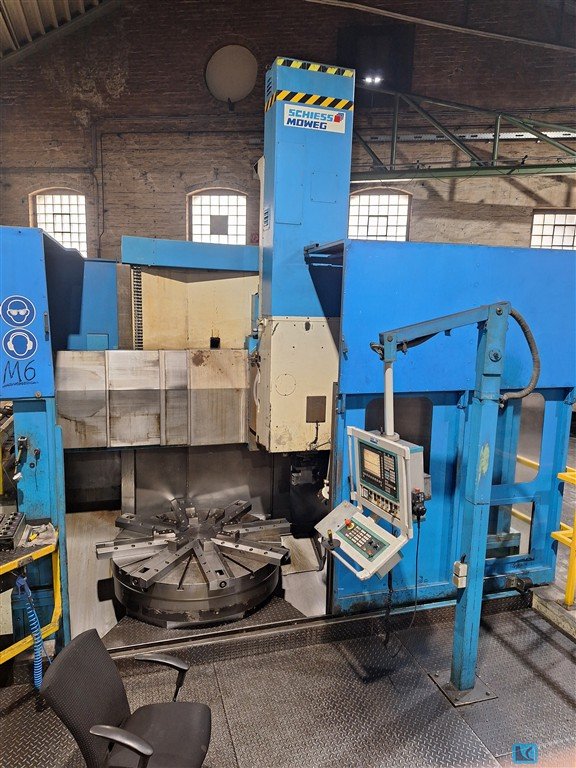

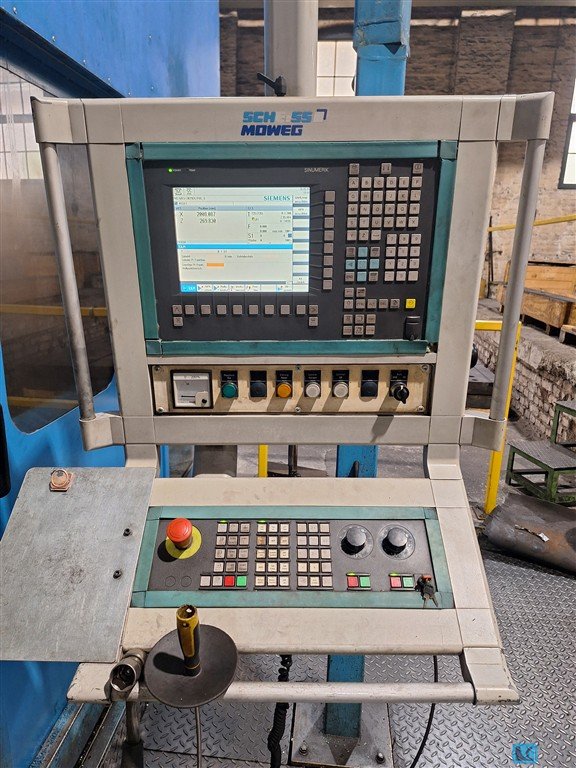

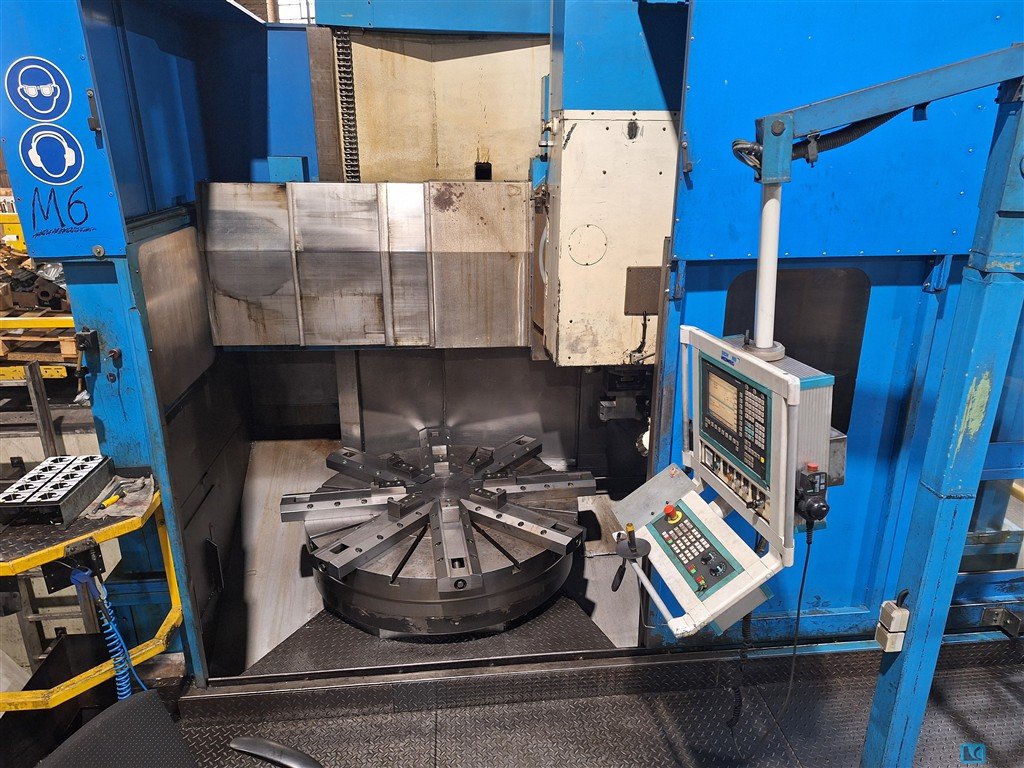

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

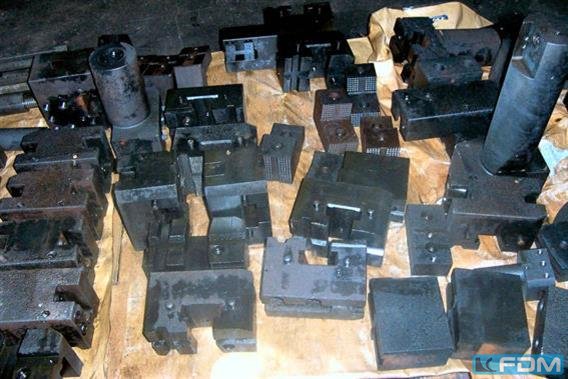

pitch taper:50 Aufnahme Detailed price on request depense on version and nos. ca. 500 - 1500 EUR + VAT /piece Diverse toolholders matching SCHIESS-VTL´s with SK 50 taper and T-slot clamping design! Diverse fixed boring bars in different dia. and length. Diverse boring bar adapter plates to adapt different boring bars. Diverse normal toolholders for toolshank 40 mm in version left or right
faceplate diameter: 2500 mm Thickness: 240 mm T-slot - distance: 175 mm total power requirement: . kW weight of the machine ca.: . kg dimensions of the machine ca.: . m Optional with 4 jaws €3750 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
faceplate diameter: 2500 mm Thickness: 240 mm T-slot - distance: 175 mm total power requirement: . kW weight of the machine ca.: . kg dimensions of the machine ca.: . m Optional with 4 jaws €3750 With bed from Schiess KZ 250 Optionally, a Schiess KZ 250 drive gear can be purchased for €9,500 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created ...
faceplate diameter: 2500 mm turning height: 1500 mm turning diameter over bed: 2700 mm turning speeds: 1,9 - 60 (16x) U/min voltage: 380 V total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
faceplate diameter: 2950 mm swing diameter: 3200 mm turning height: 3500 mm table load: 20 t feed range: 3000 mm/min main drive motor: 70 kW milling drive: 16,1 kW Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC-control FAGOR 8070 C-axis with 360,000 positions Milling head Inspection under power in the factory possible. Machine location is Spain. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Diámetro de la placa frontal: 5500 mm, diámetro de oscilación: 6000 mm, altura de giro: 4400 mm. Control: FAGOR 8055, ajuste de raíl: 3000 mmram: 1500 mm, peso de la pieza: 100 velocidades de la placa frontal: 1 - 25 U/min. Consumo total de potencia: kWweight de la máquina, aprox. dimensiones de la máquina, aprox. m Adaptación en 2015 con control CNC FAGOR 8055. Los datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.
spindle diameter: 160 mm x-travel: 10500 mm y-travel: 4000 mm spindle taper: ISO 50 z-travel: 950 mm turning speeds: 3,15-1000 U/min transmission ratio: 4 spindle power: 58 kW Support sleeve: 340x400 mm w-travel: 900 mm Feed: x 0,12-9600 mm/U Feed: y/z/w 0,1-5600 mm/U Plate area: 39,5 m² Plate: 5400x3500 mm Plate: 5900x3500 mm T-slot - distance: 365 mm T-slots: 35/75 mm Thickness of the plate: 360 Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or ...
Diámetro de la placa frontal: 5500 mmDiámetro de giro: 6000 mmAltura de torneado: 4400 mmVelocidades de giro: - U/minMotor de accionamiento principal: - kWControl: FAGOR 8055 Peso máximo de la pieza: 100 Carrera de desplazamiento a cada lado: 1500 mmCarril transversal - Ajuste: 3000 mmPotencia total requerida: - kWPeso de la máquina aprox.: - tDimensiones de la máquina aprox.: - mequipado con:- Control CNC 8055- 1ram en travesañoLos datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.
Control Siemens ... Sinumerik 840 D Diámetro máx. de la pieza de trabajo ... 3200 mm Diámetro de la plataforma giratoria ... 3000mm Carga máx. de la mesa... 14000kg Altura máx. de la pieza de trabajo ... 2200 mm Eje Z ... 1155 milímetros Peso máx. de la pieza de trabajo ... 14000 kg Potencia del motor principal ... 81 kW Superficie... DXŠXV 7200x6400x6600mm La máquina está en muy buen estado,
faceplate diameter: 1600 mm swing diameter: 1800 mm turning height: 1500 mm control: Siemens chip conveyor: Tool changer: type: 840 D mm workpiece weight: 10000 kg slide adjustment: 1000 mm ram head dimension: 240x240 mm turning speeds: 250 U/min main drive: 45 kW Accessories and cabinets can be purchased optionally The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data fo ...
faceplate diameter: 1600 mm swing diameter: 2000 mm turning height: 1600 mm Control: Siemens Sinumerik 805 turning speeds: 1-250 U/min Table load: 12000 kg Control system manufacturer Siemens type Sinumerik 805 Accessories and cabinets can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solu ...
Ref. -No.: 10361 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens, Heidenhain, Fanuc - Configurable as required Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Support sleeve diameter: 130 mm X-Travel: 3000 mm Y-Travel: 2000 mm Z-Travel: 1600 mm Spindle stroke: 800 mm B-Axis: 360 ° W-Axis: 800 mm Spindle Taper: SK50 Max. Tool Weight: 25 kg Clamping Area: 1250 x 1250 (or configurable as required) mm T - groove width: 22 mm T - slot spacing: 160 mm Swivelling: Configurable as required ° Numbers Of Tools In Magazin: 40, 60, 120, 200, 240 Spindle Speed: 2900 RPM Max. Torque: 2500 Nm Drive Capacity - Spindle Motor: 41 kW
Ref. -No.: 10362 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens - Heidenhain - Fanuc (configurable) Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Spindle Speed Max.: 3500 RPM Pallet diameter: 1600 mm Max. machining diameter: 2000 mm Number of claw boxes: 4 pc Clamping force per claw box: 55 kN Number of radial T-slots: 8 Max. speed for turning: 140 min-1 Max. speed for milling: 5 min-1 Max. torque for turning: 27000 Nm Max holding power: 36 kN positioning speed: 3000 mm Adjustment from center to right: 850 mm Shift from center to right (head and tool change): 2750 mm Adjustment from center to left: 850 mm Max feed rate: 2000 mm / min Max rapid traverse speed: 20000 mm / min Max. Feed force: 30 kN cross-section: 280 x 240 mm Max. cutting force when turning: 36 kN Max Spindle Torque: 1200 Nm Pressure: 6 bar Air requ ...
CNC TORNO SCHIESS STC 460 3 ejes con Fanuc OI TC Año 2005 Torreta 12 Posición VDI 30 Contrapunto Chipconveyer Oscilación máxima sobre la cama : 520 mm Longitud máxima de giro : 550 mm
Viaje Eje X 9.500 mm Eje Y 4.100 mm Eje Z 950 mm Eje W 900 mm Velocidades del husillo principal (infinitamente ajustables): 3.15 - 1000 rpm Potencia del motor del husillo 58 kW Velocidad de avance (infinitamente ajustable): Eje X 0,1 - 9600 mm/min Eje Y 0,1 - 5600 mm/min Eje Z 0,1 - 5600 mm/min Eje W 0,1 - 5600 mm/min Accesorios: Campo de placa: 6 x 4 m (eje B y V controladopor CNC) Mesa: 2 x 2 m (eje B y V controlados por CNC)
