usava
Altura central 110 mm Largura central 160 mm Furo do eixo 23 mm Potência do motor 1,7 kW . Velocidades : 700 - 1400 - 2800 rpm .
usava
Especificações: Comprimento máximo de viragem 90 mm Diâmetro de circulação sobre o leito 220 mm Diâmetro de circulação sobre suporte 110 mm Largura central 160 mm Diâmetro 23 mm 3 velocidades 350 / 700 / 1400 rpm
usava
Especificações: Altura central 110 mm Largura central 160 mm Furo do eixo 23 mm Potência do motor 1,7 kW em cada caso, a velocidade de rotação através do potenciómetro A definir a partir de aprox. 100 – 2.300 rpm 3 velocidades predefinidas ou 3 estágios de comutação
usava

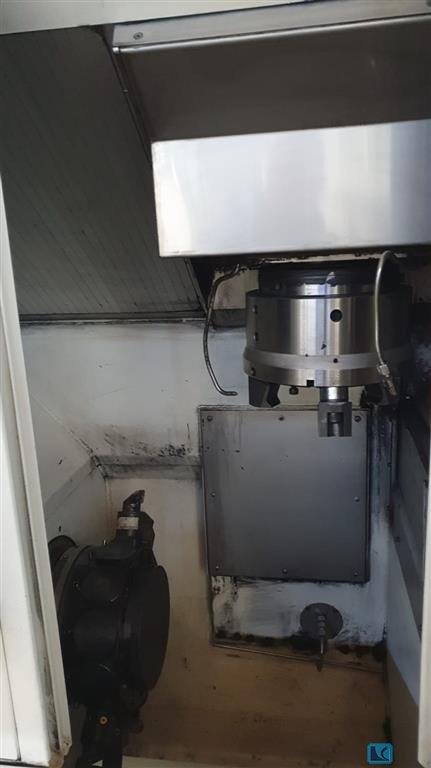

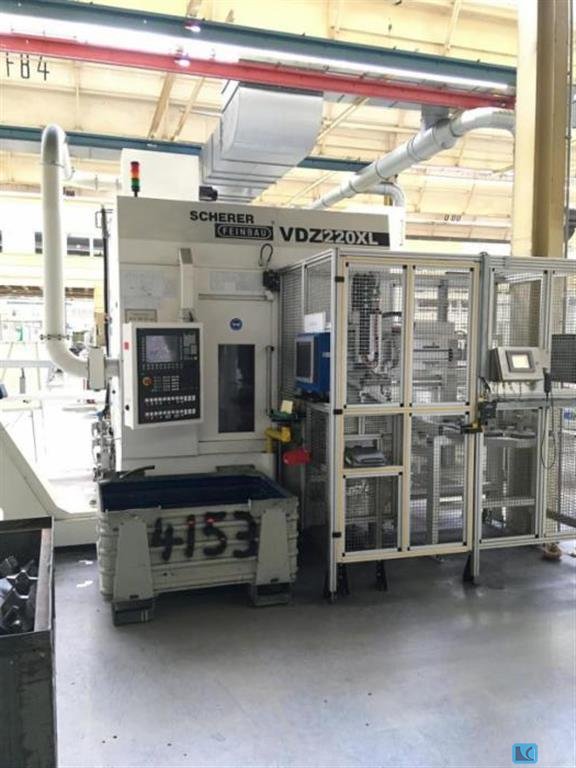

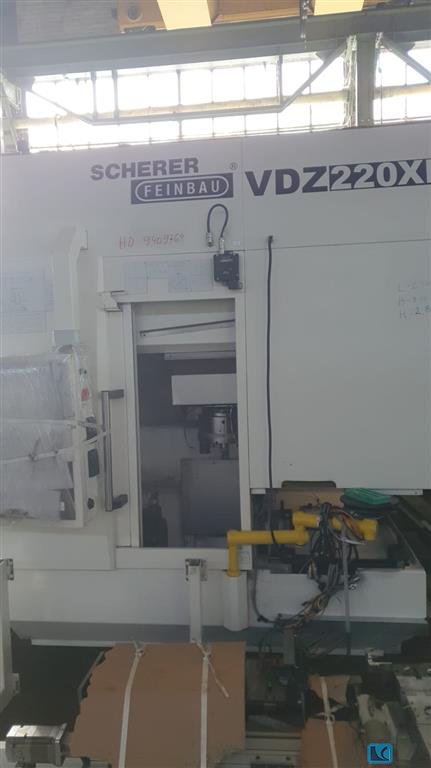

Description: SCHERER FEINBAU VDZ 220 XL DS Vertical lathe with Double spindle and Robot cell Serial number and Control Serial number: 68333 Control: SIEMENS Sinumerik 840D sl Working area Workpiece height max.: 200 mm Workpiece diameter max.: 250 mm Rotation diameter max.: 390 mm Spindle stop-turret distance max.: 580 mm Spindle stop-turret distance min.: 240 mm Spindles Spindle speed max.: 5500 rpm Spindle power per spindle: 37.7 kW Spindle torque per spindle max.: 300 Nm Spindle head with short taper (DIN 55026): A6 Axis travel X-axis axis travel (in the work area with closed cover): 365 mm Axis travel X-axis (total): 886 mm X-axis axis travel (via turret centre): -20 mm Axis travel Y-axis: +100/-80 Axis travel Z-axis: 250 mm 12-position disc turret VDI 40 All tool positions driven Max. speed (25% ED): 4000 rpm Max. power (25% ED): 10 kW Torque max. ...
usava
swing diameter:400 mm control:840 D SIEMENS turning speeds:3500 1/min z-axis:340 mm x-axis:1350 mm workpiece height:400 mm Torque:820 turret head:12 Pos. rapid traverse:Z 30 / X 60 m/min tool holder:VDI 50 spindle head:A8 DIN 55026 spindle motor:60 kW weight of the machine ca.:14,8 t dimensions of the machine ca.:6 x 3,3 x 3,4 m live tools, C-axis, workpiece storage left side, high pressure pump, chipconveyor,
usava
turning diameter: 235 mm turning length: 200 mm turning speeds: 6500 U/min control: Siemens 840D swing diameter: mm turning height: mm workpiece height max.: 100 mm spindle bearing diameter: 90 mm spindle head: A5 total power requirement: 41 kW weight of the machine ca.: 6500 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
usava
CNC lathe fais. SCHERER-FEINBAU tipo SNC 80Machine -No: 8079 Ano 1995Distance entre centros: 350 mmCircumference diâmetro sobre a cama: 320 mmCircumference diâmetro sobre suporte: 160 mmPath Z + X: 250 mmSpindle mount: DIN 55021 / A 3Speed range até: 6000 rpm. Alimentação infinitamente variável: 0.1 - 10000 mm /min. Travessia rápida: 10 m/min. Traçado de quila: 125 mmDrive potência: 7,0 kWWeight aprox: 2,0 tEstações de lado aproxá- 2100 x 1500 x 1900 mmCom- Siemens controle 810 T-power chuck- torre linear com 4 suportes de ferramentas- Dispositivo de arrefecimento indicado, em muito bom estado Depresotenção a pedido. Entrega: ex armazém ou caminhão de carregamento gratuito de localização. Pagamento: líquido na aquisição ou por marcação. Os dados técnicos não são vinculativos. Erros exceto. Ficaríamos satisfeitos se você gosta da nossa oferta e está sempre dis ...
