CNC nesting machine AES EXTREME 2132

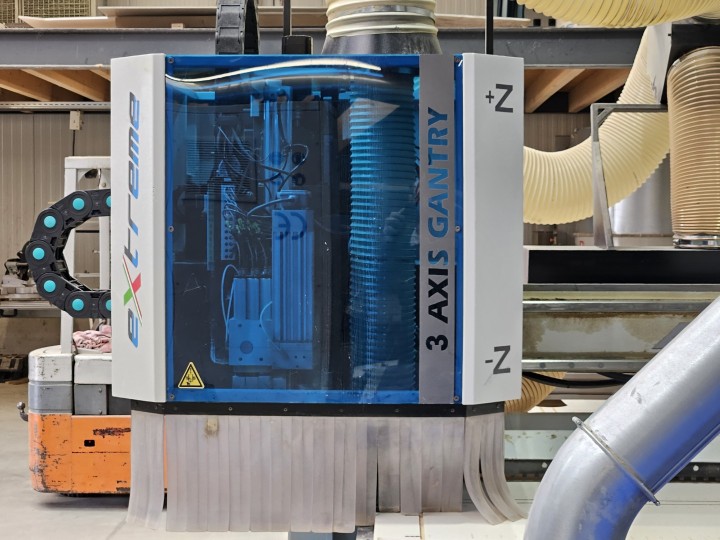

Gantry-type, 3-axis CNC machining centre
Working area (type 2132): approx. 3300 x 2100 mm
Vacuum table with multiple switchable zones
Input: AES lifting table for automatic sheet loading
Output: conveyor belt with label printer (labels are printed and applied manually)
Main spindle: HSD ES929, HSK-F63 mount, 7.5 kW (9 kW), speed up to 24,000 rpm, 800 Hz, 380 V
Main spindle overhauled in 2023

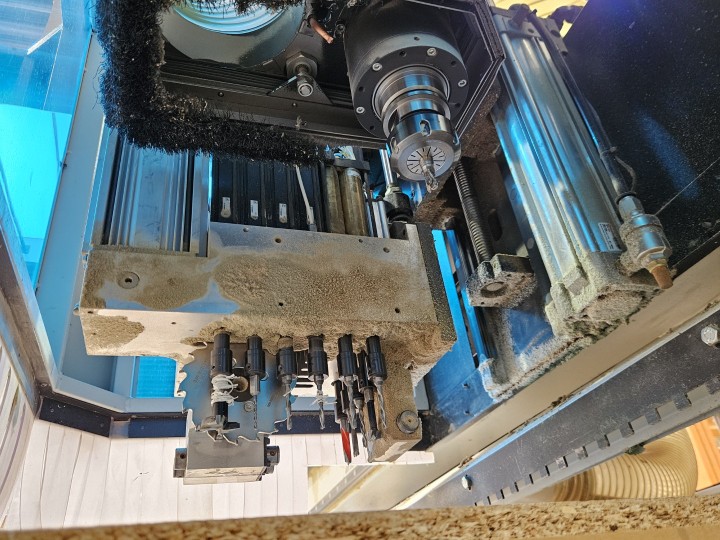

Drilling unit with 16 spindles: 6 vertical spindles in X, 4 vertical spindles in Y, 2 double horizontal spindles in X, 1 double horizontal spindle in Y
Slotting saw

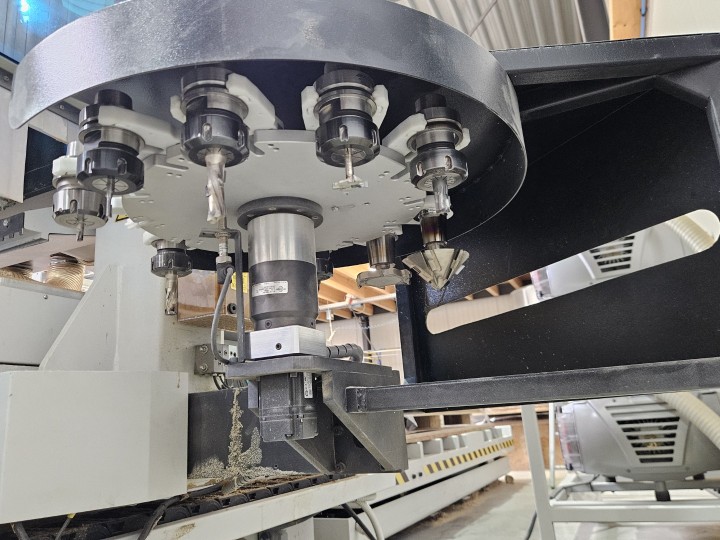

Tool changer with 12 positions

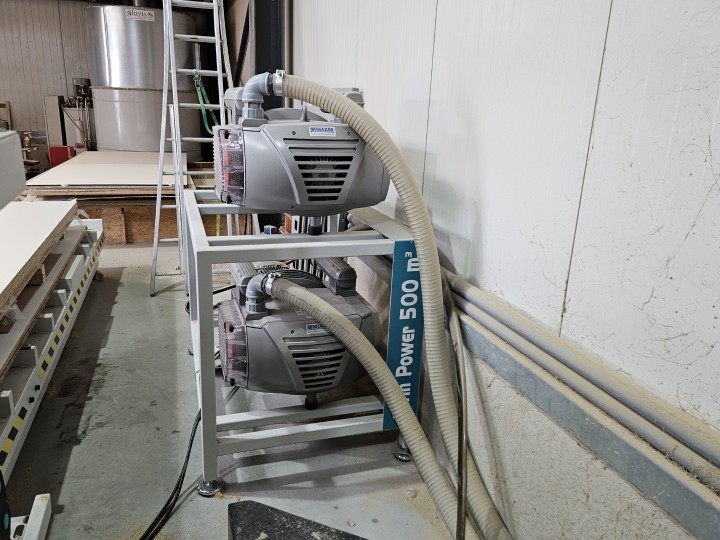

Vacuum: Becker vacuum pumps, system approx. 500 m³/h
Control: OSAI control system with AES ProcessController, operation via console with touchscreen and keyboard
Operating hours: approx. 2,100 h (machine life), main spindle overhauled at approx. 1,360 h
seller offer No. resale K-301-006395
