Máquina de prueba de engranajes REISHAUER AM
Amoladora de engranajes REISHAUER OZA con cambio de marchas.
Key data: 360 mm

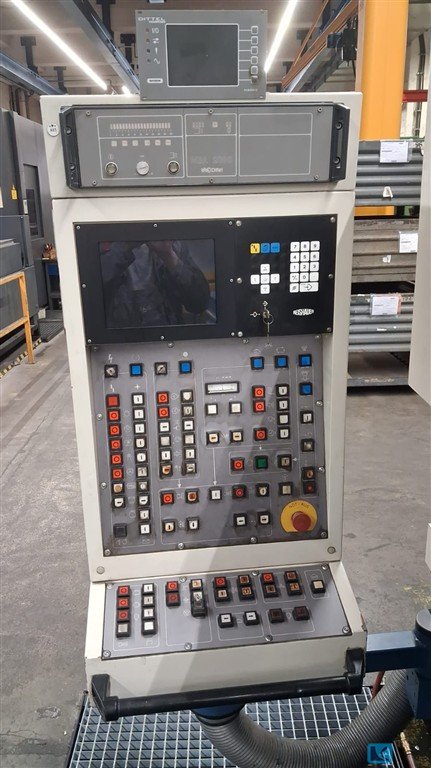

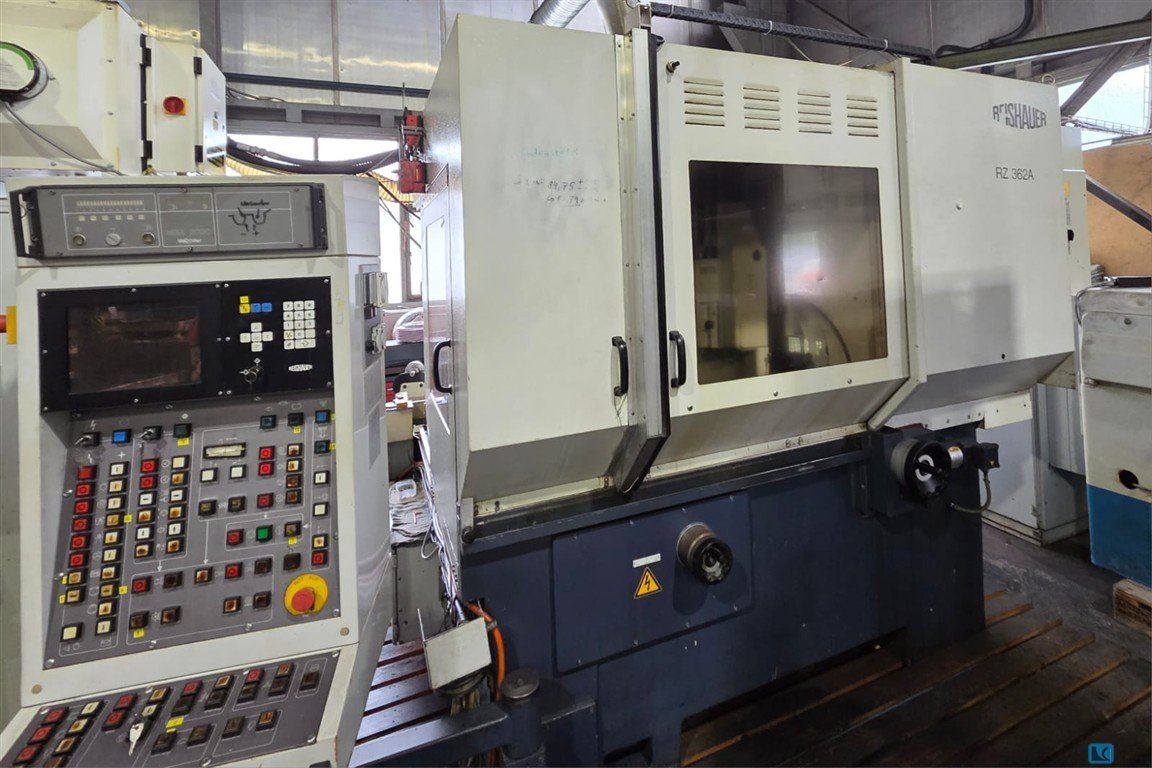

Rectificadora de engranajes CNC Reishauer modelo RZ362A Diámetro máximo de la rueda: 14.17" Módulo máximo: 0.275" Módulo mínimo: 0.0039" Carrera de deslizamiento: 6.88" Ángulo máximo de la hélice: ± 45 Número máximo de dientes: 600 Número mínimo de dientes: 6 Peso máximo de la pieza de trabajo: 132 lbs. Ancho de la muela abrasiva: 4.09" Diámetro de la muela abrasiva: 11.02" – 13.77" Velocidad del tornillo sin fin de molienda al moler: 1100 – 2330 U/min Velocidad del tornillo sin fin de molienda al perfilar: 50 – 95 U/min Avance por revolución de la pieza de trabajo: 0 – 0.133" Velocidad de alimentación del tornillo sin fin de molienda: hasta 99,9 mm/min / 3,93 IPM Peso aproximado: 14,553 lbs. EQUIPADO CON: Controles CNC Reishauer. Controlador de equilibrado MBA2000 Tittel. Colector de niebla Elbaron R12D. Generador de motor Kato. Unidad ...

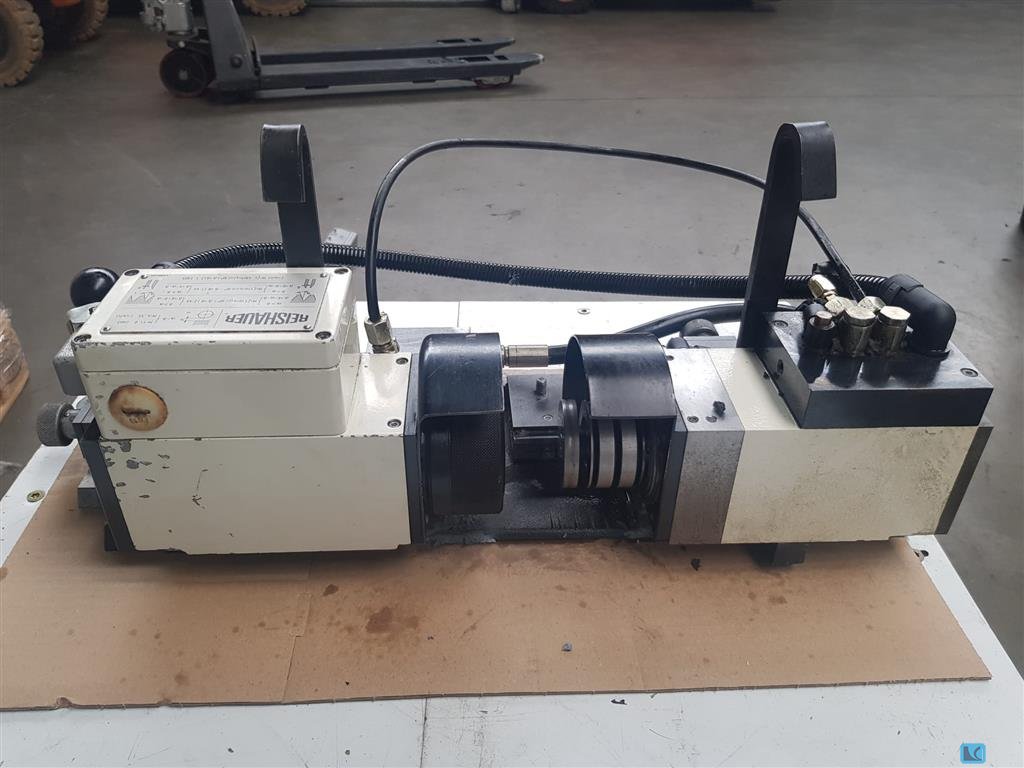

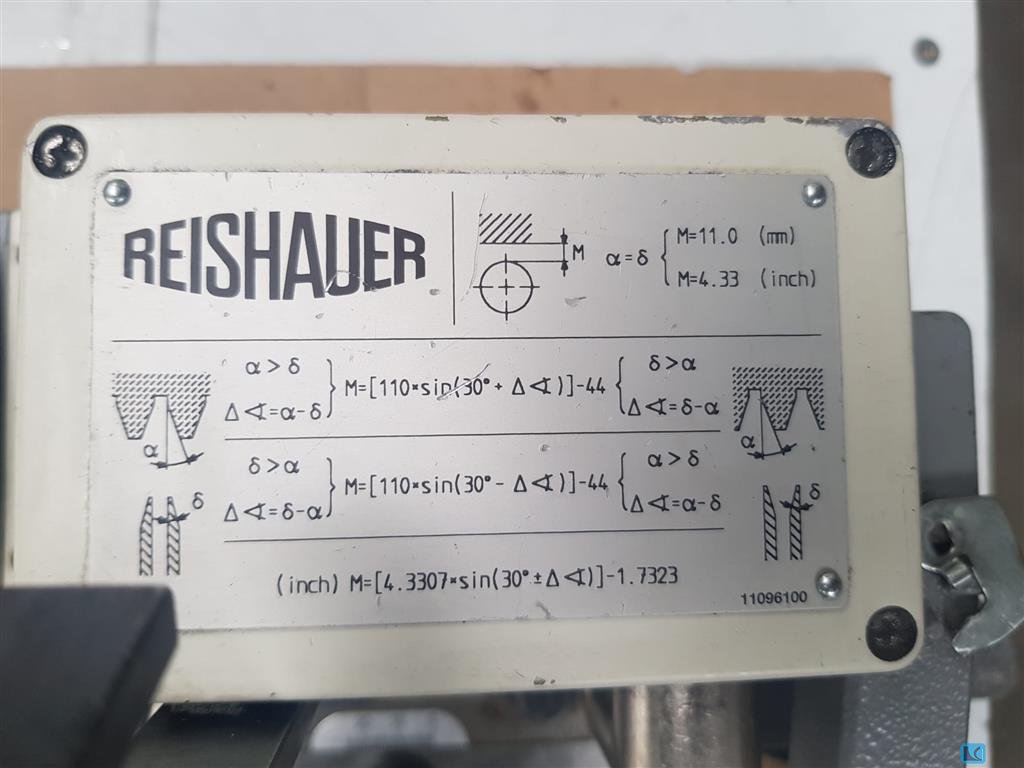

grinding wheel diameter:400 mm total power requirement:3 kW weight of the machine ca.:1,5 t dimensions of the machine ca.:1,5 x 1,4 x 1,3 m Dressing Grinder for gears REISHAUER AM max. width of grinding wheel 104 mm max. dia. of grinding wheel 400 mm max. module 7 min. module 0,5 pressure angle 10 - 30 ° grinding worm dia. 270 - 400 mm width of grinding worm 62/84/104 mm grinding worm turning speeds: at profiling 18/35/70 U/min electrics - voltage/frequency 380 / 50 V/Hz long. movement of crowning device 156 mm
Dressing diameter: Planing width: min. module: for Reishauer RZ150
max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter
total power requirement:36 kW Available from approximately week 15 of 2026 A well-maintained gear grinding machine including: Automation Promot, year of manufacture 2012 Filtration system Hoffmann YOM 2012
La Reishauer RZ 150 es una rectificadora CNC de alto rendimiento, ampliamente considerada como un estándar de la industria para la producción de engranajes automotrices y aeroespaciales de gran volumen. En 2011, este modelo ya estaba bien establecido por su tecnología de dos husos, que permite que una pieza se muera mientras la otra se carga o descarga, eliminando prácticamente el tiempo de inactividad. Especificaciones técnicas básicas - Diámetro máximo de la pieza: 150 mm - Alcance del módulo: 0,5 – 3,0 mm - Ancho máximo de engranaje: 100 mm - Ángulo máximo de la hélice: ± 40 - Número de dientes: 5 – 150 - Velocidad máxima. de molienda: 80 m/s - Velocidad del husillo (pieza de trabajo): 0 – 5.200
max. wheel diameter: 400 mm gear width: 250 mm max. module: 8 min. module: 0,2 dist. between centers: 640 mm spindle turning speed range: 4010 U/min number of teeth: 5 - 999 max.helical angle: +/- 45 ° root circle diameter: 10 mm slide stroke: Z-Achse 300 mm workpiece weight: 300 kg clamping length max.: 700 mm clamping length min.: 60 mm pressure angle: 14 - 30 ° Control: Siemens 840D spindle motor: 10 kW total power requirement: - kW weight of the machine ca.: 16 t dimensions of the machine ca.: 3,3 x 2,7 x 2,5 m Gear grinding machine designed for small and large series production with: - Siemens Sinumerik 840 D CNC control - Tailstock - Balancing device - Oil mist extraction - Complete cladding - Double Spindle Dresser - Hoffmann filter system, type HSF 150 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 360 mm gear width: 180 mm max. module: 7 min. module: 0,5 Control: Reishauer 0: max. 180 mm tooth width: max. 180 mm min. number of teeth: 10 max. number of teeth: 600 max.helical angle: 45 ° max. workpiece weight: 60,0 kg grinding wheel width: 84 / 104 mm grinding wheel diameter: 280 / 350 mm Spindle Speed: 1.100 - 1.900 min/-1 grinding spindle turning speeds at profiling: 52 - 95 min/-1 total power requirement: 24 kVA weight of the machine ca.: 5,0 t dimensions of the machine ca.: 5,0 x 8,0 x 3,0 m - CNC Control Reishauer - CNC Dressing Unit - Exhauster - Coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck -Manufacturer: Reishauer, wedge bar chuck Chuck size: Ø 165 mm -Recess mounting: Ø 268 mm -Bolt circle: Ø 140 mm -Through hole: Ø 40 mm -Dimension: Ø 165 x 120 mm -Weight: 11.7 kg
Wedge bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck -Mouth size: Ø 290 mm -Recess inlet: Ø 268 mm -Bolt circle: Ø 168 mm -Mounting hole: Ø 21/31 mm -Mounting hole spacing: 148 mm -Through hole: Ø 70 mm -Weight: 43.5 kg
Está disponible una rectificadora de rosca y sin fin, Reishauer AG. Longitud de rectificado: 450mm, longitud de sujeción: 700mm, diámetro máximo de rectificado: 200mm, plomo máximo: 80mm, peso máximo de la pieza: 100g, ángulo de avance máximo: +/-25, diámetro de la muela de rectificado: 275mm/350mm, velocidad: 1850rpm. Dimensiones de la máquina X/Y/Z: aprox. 2600mm/1800mm/1600mm, peso: aprox. 3400kg. Incluyendo centrífuga de aceite, campana, extracción de niebla de aceite y varios accesorios. Dokumentation vorhanden. Es posible realizar una inspección in situ.

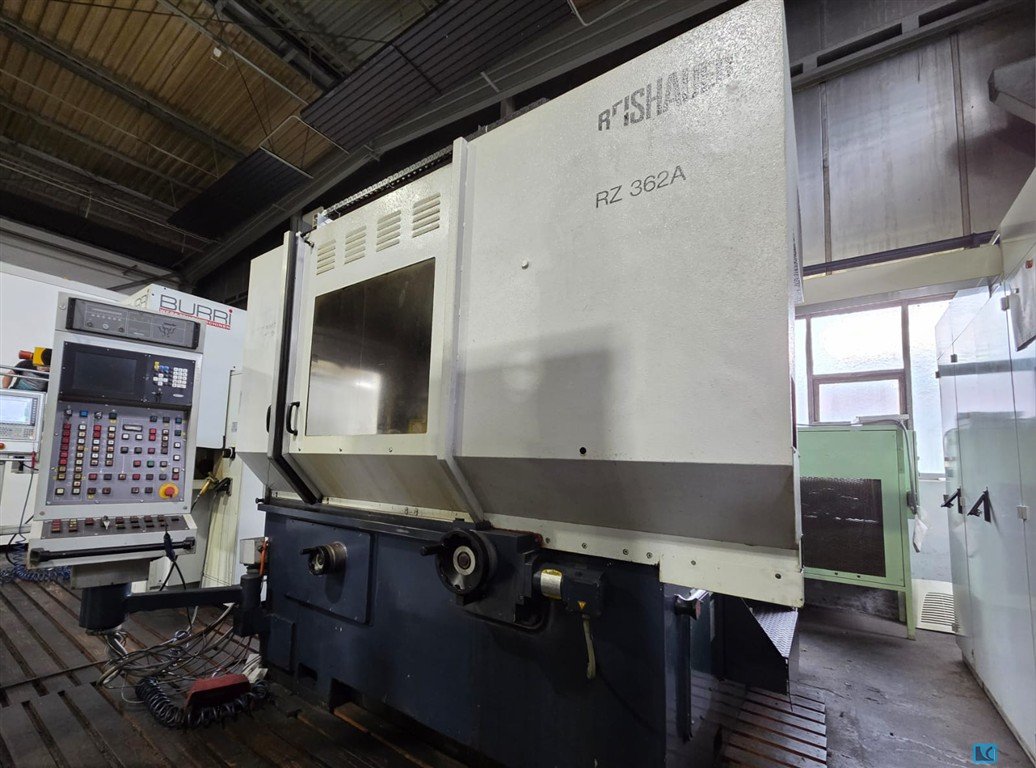

A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible.
Capacidad de litros: 120 lPresión de alimentación: 218 barCapacidad de refrigerante: - lElectricidad - Tensión/frecuencia: 380 / 50 V/Hzbomba de filtro: 150 kWPotencia total: 14 kVApeso de la máquina aprox.: 1,5 tAF-Filtro automático de precapa con enfriamiento por flujo de retorno del aceite de molienda y el fluido hidráulicoLos datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.
: Reishauer DS / zum läppen weight of the machine ca.: 200 kg : Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 330 mm gear width: 180 mm max. module: 7 min. module: 0,5 total power requirement: 12 kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
workpiece diameter: 240 mm centre distance: 0 mm honing length max.: 500 mm max. module: 5 total power requirement: 12 kW weight of the machine ca.: 5000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 0 mm gear width: 120 mm max. module: 3 min. module: 1 total power requirement: 20 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: m : : : : : : 5 machines in stock, YOM: between 1986 and 1990 Gear Æ, min./max. 55 / 120 mm Gear Æ for shaft-formed parts 80 mm Module (pitch 25.4 - 8.5) 1 - 3 No. of teeth, min./max. 13 / 80 Pressure angle 14 - 30 ° Helix angle, max. 40 ° Workpiece clamping length 145 - 420 mm Grinding worm Æ 300 - 400 mm Grinding worm width 25 - 40 mm Grinding worm speeds, infinitely variable (35 m/s) 1,650 rpm Feed range 0.4 - 4 mm/rev Total electrical load 20 kW - 380 V - 50 Hz Weight 7,500 kg Accessories / Special Features REISHAUE ...
workpiece diameter: 460 mm threading length: 900 mm thread pitch: 100 mm total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

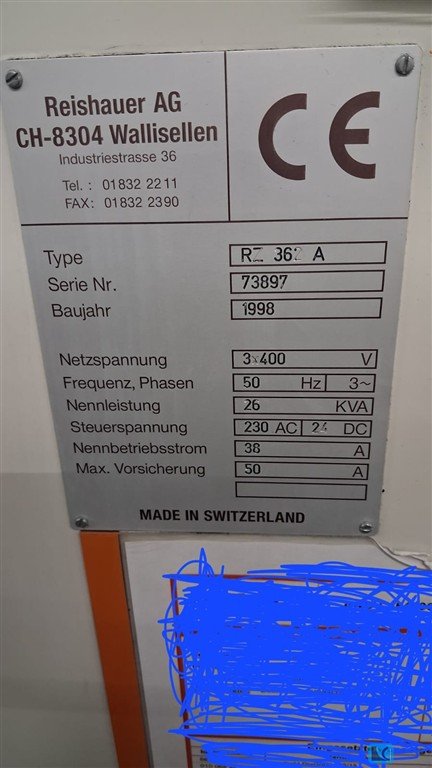

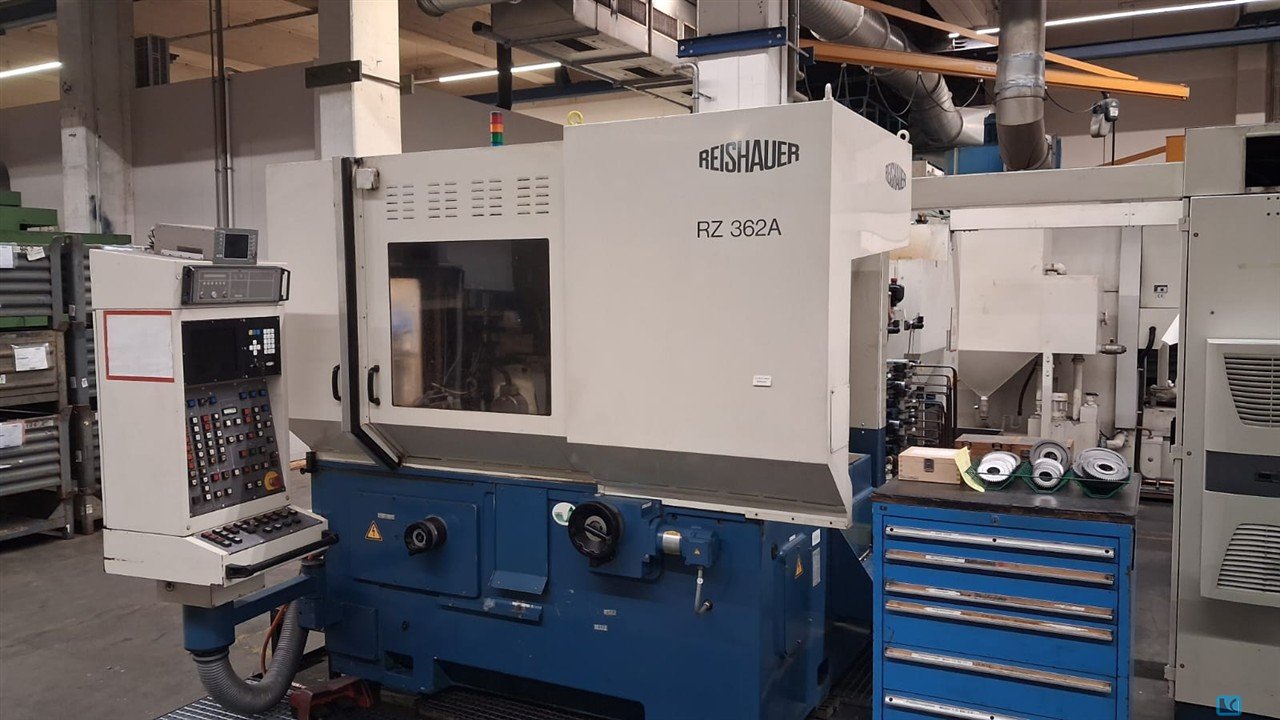

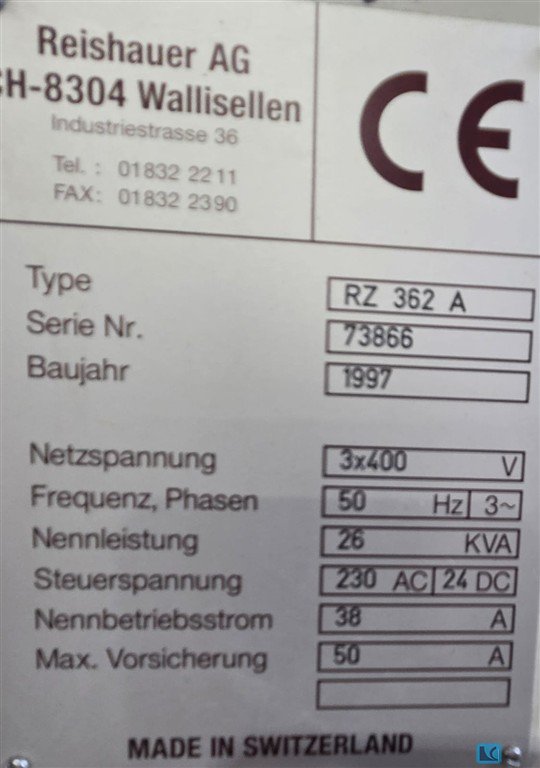

Reishauer RZ 362A Construido en 1999 Accesorios: 2x Dispositivo de vendaje Fässler Ruedas de diamante Piedras de afilar Turbo separador
Anchura máx. de la muela abrasiva: 125 mm diámetro / diámetro de la muela abrasiva: 275 / 300 mm Cono de la brida: Reishauer Brida del disco abrasivo para el tipo de máquina Reishauer RZ 362 A Para el montaje de discos cerámicos para el rectificado de flancos de dientes - 125 mm de ancho, dimensiones según el tipo de máquina Reishauer RZ 362 A 27 piezas disponibles, el precio es por pieza
Anchura máx. de la muela abrasiva: 125 mm Diámetro / Diámetro interior de la muela abrasiva: 275 / 300 mm Cono de la brida: Reishauer Brida del disco abrasivo para el tipo de máquina Reishauer RZ 301 S Para el montaje de discos cerámicos para el rectificado de flancos de dientes - 125 mm de ancho, dimensiones según el tipo de máquina Reishauer RZ 301 S 26 piezas disponibles, el precio es por pieza
Anchura máx. de la muela abrasiva: 195 mm diámetro / diámetro de la muela abrasiva: 75 mm Cono de la brida: Reishauer Brida del disco abrasivo para el tipo de máquina Reishauer RZ 400 Para el montaje de discos cerámicos para el rectificado de flancos de dientes - 125 mm de ancho, dimensiones según el tipo de máquina Reishauer RZ 400 16 piezas disponibles, el precio es por pieza
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4 EW20° 2GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M5,5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M6 EW20° 5GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4 EW20° 4GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4,5 EW21,5° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
