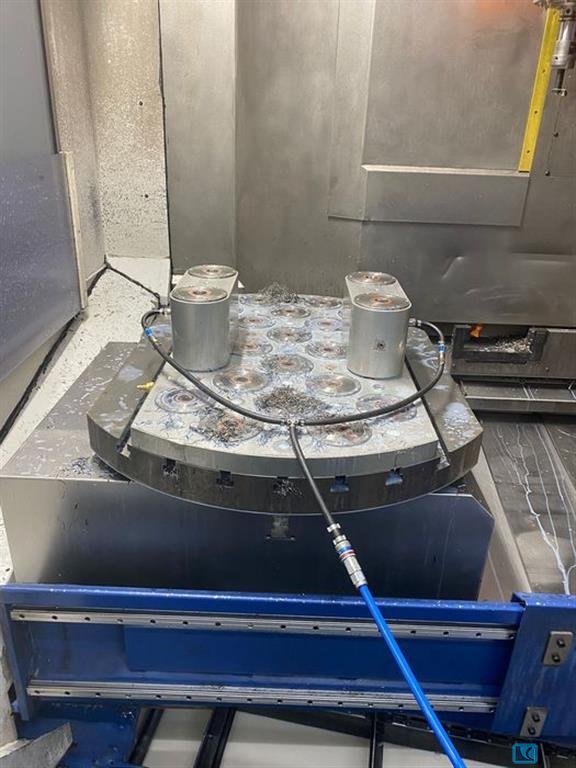

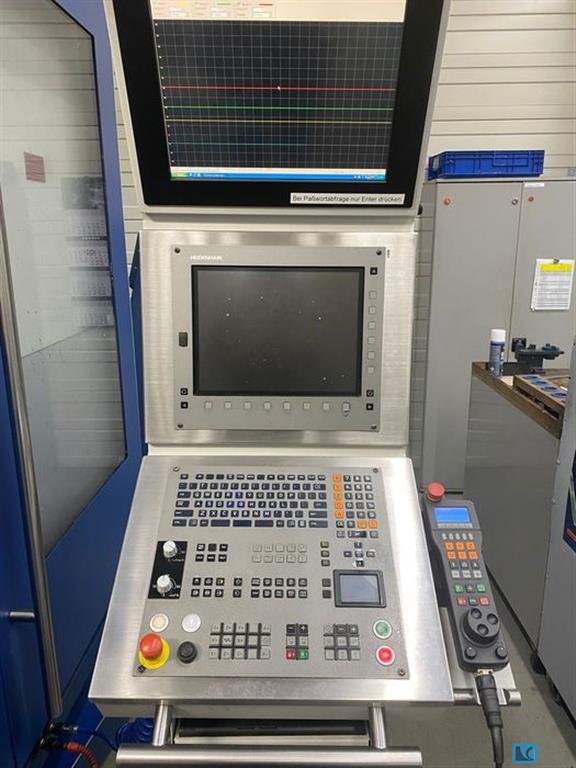

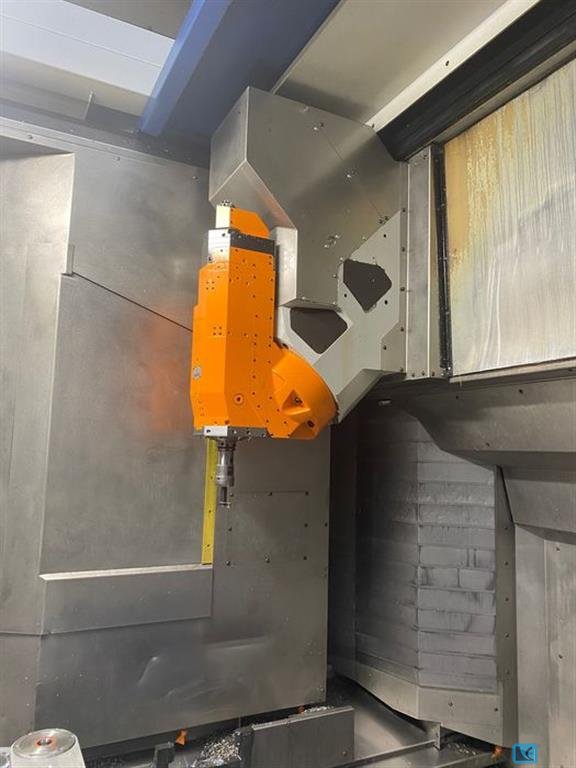

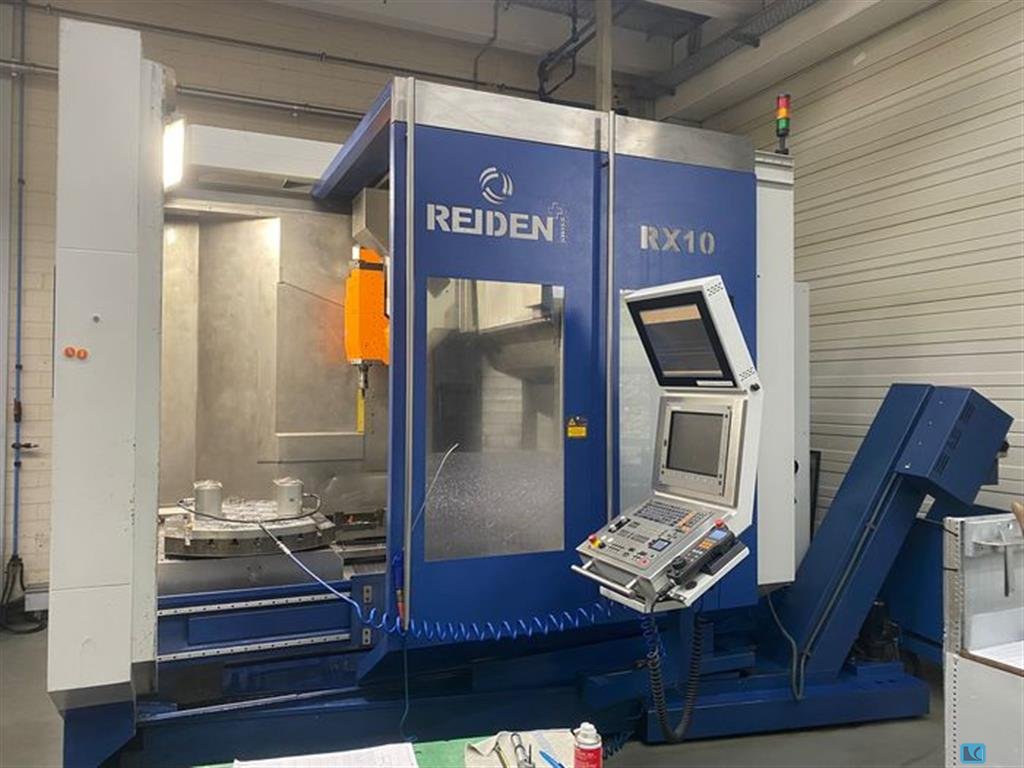

x-travel:1000 mm y-travel:1100 mm z-travel:810 mm control:iTNC 530 HEIDENHAIN turning speeds:18000 1/min tool taper:HSK 63 table surface area:1.000 x 800 mm max. swing dia.:1350 mm max. table load:1.000 kg tool magazin::273 Pos. rapid traverse:60 m/min total power requirement:86 kW weight of the machine ca.:18 t dimensions of the machine ca.:4,3 x 6 x 3,4 m 5-axis simultan universal machining center, NC-rotary-table (C-axis) and B-axis (milling head), DDT-spindle for high torque (HT - max. 3000 rpm - 291/226Nm) and high speed (HS max. 18.000 rpm - 83/63Nm ),- internal coolant supply 50bar with chipconveyor and paperfilter, el. handwheel, oilmist suction, DCM collision control, Hours on counter: approx. 45.000h "machine on", approx. ca. 2.000h " HT-spindle on", approx. ca. 12.000h " HS-spindle on" NEW SPINDLE IN 09/2025 !
x-travel: 2.000 mm y-travel: 1.000 mm z-travel: 1.200 mm control: TNC 430 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 5.000 min/-1 transmission ratio: 2 power capacity - main spindel: 30 (100%) / 45 (40%) kW Torque: 1.050 / 1.580 Nm tool taper: HSK 100 swivellable: B: +/- 180 ° indexing: B: 0,001 ° work table:: table surface area: 1.000 x 2.000 mm max. table load: 4.000 kg flute distance: 100 mm T-slots: 18 H7 number of T-slots: 10 tool magazin:: number of toolpositions: 40 pos. tool taper: HSK 100 tool changing time: 10 sec max. tool diameter: 250 mm max. tool length: 400 mm max. tool weight: 20 kg feeds:: feed speeds: X,Y,Z: 0 - 20.000 mm/min feed speeds: B: 10 1/min output: X,Z: 15,7 / Y: 8,5 kW output: B: 2,5 kW feed power: 22500 N total power requirement: kW weight of the machine ca.: 23 t dimensions of the machine ca.: 8,0 x 8,0 x 3,3 m Chip conveyor: ...
Fabricante: Reiden Modelo: BFSH Estado: usado Tipo de máquina: Fresadora de bancada horizontal Tamaño de la placa: 3200 × 1000 Tamaño de la mesa: 1000 × 1000 Sistema de control: Heidenhain TNC 1550 Buje del husillo: 350 × 350 Espacios del portaherramientas: 130 Recorrido (X, Y, Z): 3000 × 1000 × 800 Peso máximo: 5000 kg Más información aquí - / Póngase en contacto con nosotros en -
Frause vertical reiDEN VF350-3D, mesa 1750 / 400 mm, 1250 / 300 / 450 mm
turning diameter over bed: 425 mm centre height: 200 mm centre distance: 1500 mm turning diameter over slide rest: 235 mm turning dia. in gap: 470 mm spindle bore: 45 mm camlock: D6 lead of leadscrew: 6 mm tailstock quill taper MT: 4 diameter of quill: 55 mm quill stroke: 160 mm weight of the machine ca.: 1.5 t number of spindle speeds: 36-2240 Digital read-out Misc accessories More details on www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Año de construcción: 2009 Controlador CNC: Heidenhain iTNC 530 Ejes Desplazamiento en el eje X mm: 1500 Desplazamiento del eje Y mm: 800 Desplazamiento en el eje Z mm: 1000 Grados en el eje C: 360º (0.001º) Grados en el eje A: 0º/-90º Grados del eje B: ±90(0,001º) Recorrido rápido m/min: 30 Mesa de trabajo Número de paletes: 4 Dimensiones de la mesa mm: 1000x800 Peso máximo de la pieza kg de trabajo: 1000 Husillo Velocidad del husillo: 16000 rpm Potencia del motor del husillo: 28 (100% ED) Par motor del husillo Nm: 84/63 (40/100% ED) Sistema de herramientas Portaherramientas: HSK-A 63 Ranuras para revistas de herramientas: 208 Con plazas vecinas libres mm: 140 Con lugares vecinos ocupados mm: 80 Longitud máxima de la herramienta mm: 330 Peso máximo de la herramienta kg: 10 Tiempo chip a chip s: 7 Equipamiento Transportador de astillas Lámpara de ...
Key data: 800 mm, 510 mm, 550 mm
Centro de Mecanizado Universal Fabricante: Reiden Tipo BF1 Año de fabricación 1997 Control Heidenhain TNC 407 Travel X/Y/Z 800/510/550 Superficie de sujeción D 630mm Carga de mesa 800kg Velocidad máxima: 3100 rpm Cambiador de herramientas de 24 direcciones Portaherramientas SK40 Transportador de astillas Monitorear nuevo, lubricación central nueva, codificador rotatorio mesa giratoria nuevo, eje X a escala de vidrio nuevo. La máquina es 100% funcional, lista para uso inmediato. Para más información, siempre estoy disponible en 01778957069.
The REIDEN RX14 Machining Center, constructed in 2014 and installed in 2015, offers advanced manufacturing capabilities with the HEIDENHAIN TNC640 CNC controller. It features extensive axis travel (X: 1,800 mm, Y: 1,800 mm, Z: 1,210 mm, A: -15° to +105°) and a rapid traverse of 40 m/min. The spindle delivers 15,000 rpm with a power of 63/73 kW for efficient processing. The worktable, measuring ø1,400 x 1,200 mm, supports up to 5,000 kg. Equipped with a 92-slot HSK-A100 tool magazine, it includes numerous enhancements like an electronic handwheel, chip conveyor, and collision monitoring. Located with multiple advanced monitoring systems, this machine is streamlined for precision tasks, ensuring reliable performance for demanding applications.
x-travel: 1200 mm y-travel: 700 mm z-travel: 750 mm Control: Heidenhain type: TNC 151 table surface area: 1200x630 mm spindle taper ISO: 50 turning speeds: 20-2900 U/min milling-head swivable +/-: total power requirement: kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Carrera X: 1200 mm Carrera Y: 600 mm Carrera Z: 700 mm Control: HEIDENHAIN TNC 426 M Velocidades de giro: 20-6300 U/min Carga de la mesa: 800 kg : 1200x630 mm Cono de la herramienta: SK40 : 4 altura de la máquina: 2950 mm peso de la máquina aprox.: 8800 kg
x-travel: 1200 mm y-travel: 600 mm z-travel: 700 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m - CNC control Heidenhain TNC426 - swivable milling head (horizontal / vertical) - NC-rotary table (C-axis) - tool changer for 32 tools - chip conveyor - electronical hand wheel - coolant device (coolant through spindle device 20bar) Technische Daten / technical details: Verfahrweg X längs / X-Travel longitudinal 1200 mm Verfahrweg Y quer / Y-Travel cross 600 mm Verfahrweg Z vertikal / Z-Travel vertical 700 mm C-Achse Rundtisch / C-axis rotary table 360 ° Fräskopf / milling head +-90 ° Rundtischgröße / rotary table size 800 mm Werkzeugschaft / spindle taper SK40 Drehzahlbereich 2-stufig / spindle speed (2-steps) 20-6300 UpM /rpm Anzahl der Werkzeugplätze / tool places in ATC 32 fach Antriebsleistung Spindel 100%ED / drive c ...
