- largura máxima da correia – 250 mm - Espessura da folha - 0,2 – 5,0 mm (40 kp/mm2) - Diâmetro do rolo de endireitamento 18 mm - Número de rolos de nivelamento 19 peças - Dimensões mínimas da peça de trabalho na direção de fluxo 24 mm - Leitura de configuração automática - 0,01 mm - Comprimento da mesa de entrada 220 mm - Velocidade 3 - 36 m / min - ( 5 – 60 cm/ s ) - Guia Secção eficaz – 580 mm2 - Ajuste do moinho de rolos – MANUAL - Versão móvel - Potência de 1,6 / 3,2 kW - 750 / 1500 horas extra / min - Documentos originais BTTO – 550 kg
Key data: 75 t, 80 mm, 120 1/min
Pressão 75 t Taxa de curso 120-600 / min Largura da folha: 10-300 mm Tamanho da mesa: 1050 x 820 mm Superfície de fixação do empurrador 960x820 mm Tabela de distâncias - Êmbolo UK 380 mm Curso ajustável - máx. 80 mm Comprimento de alimentação 0-150 mm Potência total necessária 20 kW Peso da máquina aprox. 13 t Unidade de alimentação com velocidade máxima da correia 70 m/min Eixo excêntrico com rolamentos de 4 dobras 2 bielas Lubrificação central incluindo transportador de correia magnética - em utilização até 2020 -Instruções de utilização -Manual - Diagrama de circuito, etc.

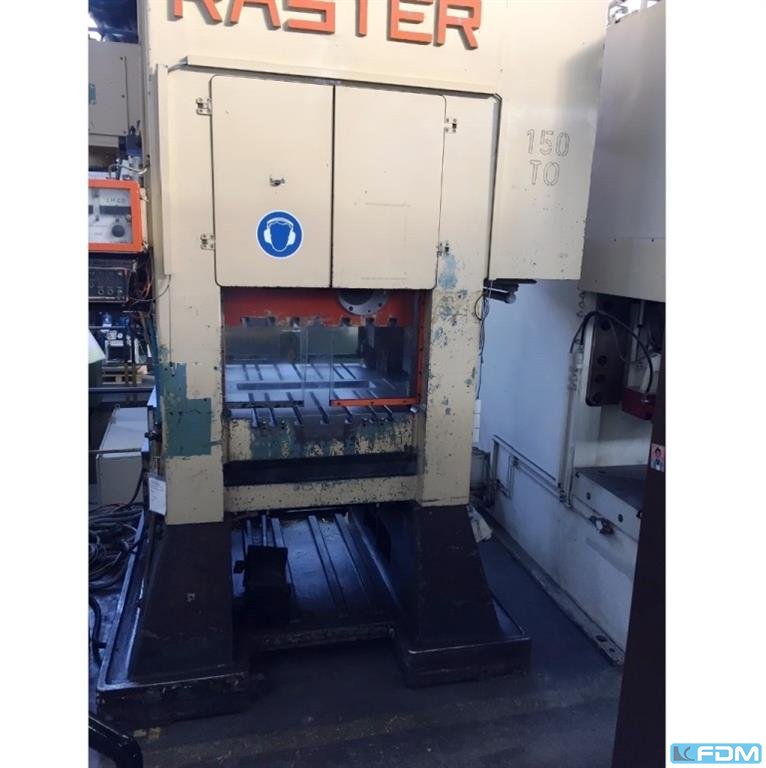

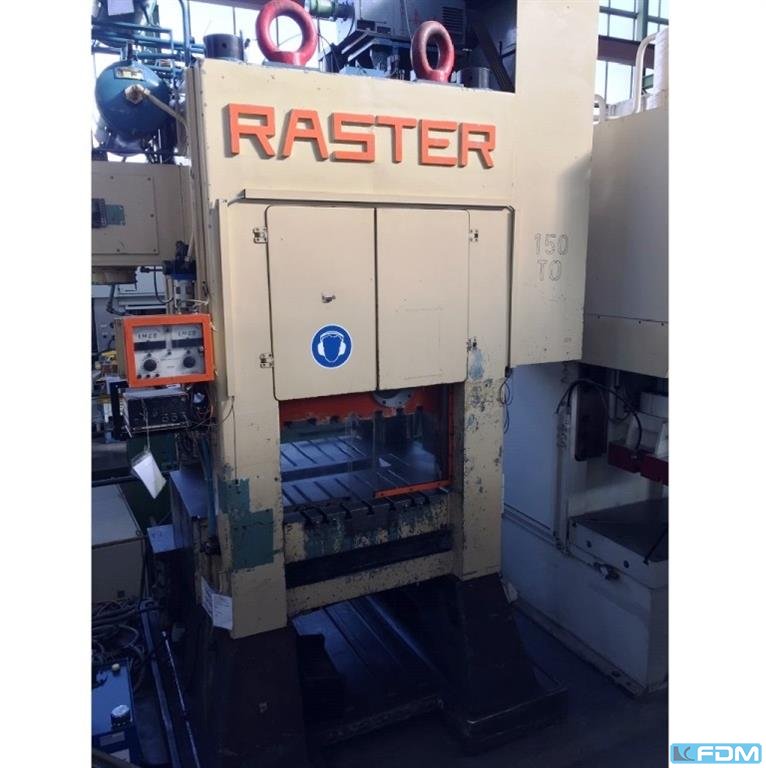

Pressure:150 t stroke:fix 80 mm no. of strokes:30 - 150 /min distance between columns:930 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:880x1300/1500x600 mm hole in the table:760 x 180 mm table height over floor:1270 mm column travel -side:650 mm ram surface:920x1000/1300x600 mm weight:27,5 t Dimensions (WxDxH):3,1 x 1,8 x 4,3 m WITHOUT feeder:can be offered optionally
pressure: 40 t stroke: . mm no. of strokes: . Hub/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Press capacity: 45 ton Ram stroke adjustable: 10 - 40 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 220 - 300 mm Free frontal opening L-R: 560 mm Table surface area : 550 x 450 mm Slide area: 550 x 360 mm Hole in table: 450 x 100 mm Number of strokes: 100 - 500 s.p.m. Required power: 7,5 kW Weight of machine approx.: 6,2 ton
Press capacity: 45 ton Ram stroke adjustable: 20 - 80 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 300 mm Free frontal opening L-R: 710 mm Table surface area : 700 x 450 mm Slide area: 700 x 360 mm Hole in table: 600 x 100 mm Number of strokes: 80 - 400 s.p.m. Required power: 10 kW Height over floor approx.: 2900 mm Weight of machine approx.: 7,2 ton Control: Siemens S7
CONTROLS electronic controls PRESS DESIGN number of suspensions: 2 opening in table: yes PRESS FORCES total force (nominal): 45 to PRESS TABLE table surface (left-right): 550 mm table surface (front-back): 450 mm SLIDE slide force: 45 to table surface (left-right): 550 mm table surface (front-back): 360 mm stroke: 50 mm stroke rate (max.): 400 /min SLIDE (MECHAN. PRESS) slide adjustment: 50 mm stroke min.: 10 mm stroke max.: 50 mm stroke rate (min.): 80 /min stroke rate (max.): 400 /min TOOL ASSEMBLY DIMENSIONS shut height (stroke down, adjustment up), BDC: 305 mm Grid 2016 Completely Overhauled
Gripper feed for eccentric press, single column press, punching machine, single column eccentric press, eccentric press, single column press -Manufacturer: Raster, collet feed from punching machine type HR 60 NL-4S -Stroke: mm -Dimensions: see photos -Transport dimensions: 900/640/H620 mm -Weight: 200 kg
