Useful width: 520 mmMax pass: 300 mm Motorised table rise and fallAnti-kick-back safety device4-knife cutterblockMotor 4 kW
Capacity: 180 x 100 mm.Spindles: 4Bottom with referencing 4kW, fence 3kW, near 3kW, top 4kWMotorised thickness adjustment4 cutterblocks Chaindrive 6 - 12 m/minInfeed table 1m70. long
Capacity: 260 x 130 mm.Spindles: 5Shaft diameter 40 mmBottom 4 kW, right/left 7,5 kW, top 5,5 kW, bottom 4 kWCardan shaft drivePneumatic pressuresFeed speed variable 5 - 24 m/min, motor 3 kWMotorised height adjustment of top presssure beamInfeed table 2200 mm lengthtools not included
Four-sided planerWorking height: 740-750 mmMax working width: 305 mmMin working width: 50 mmMax workpiece height on 2 sides: 310 mmMax workpiece height on 4 sides: 160 mmMin workpiece height: 17 mmFeed speed steplessly adjustable: 10-60 m/minmotors: bottom 11 kW, top 11 kW, right 7.5 kW, left 11 kWfeed motor: 7.5 kWmotor height adjustment: 1.5 kWspeed 5,500 rpmdriven top and bottom feed rollers
Capacity: 230 x 125 mm.Number of axes: 4Axis diameter 40 mmBottom 6.3 kW, right/left 7.5 kW, top 7.5 kWMobile axis for various widthsPneumatic pressersVariable feed speedMotorized height adjustment of the top barFeed table 2000 mm lengthKnife heads included
Short infeed table (700 mm) with 2 driven feedrollers above and 1 driven feedroller in the infeed tableIn the machine 4 driven feedrollersHardened table (with exception of the infeed table)Separate controll cabinet and electrical cabinetAutomatic bed lubricationPneumatic pressuresOutfeed table with height adjustment 0/0,5/1 mmSound enclosure with electromagnetic securityCapacity: width 20 - 230 mm x height 8 - 160 mm (with cutting circles resp. 140 and 163 mm)Feedspeed: 6 - 36 m/min, motor 7,5 kWNumber of spindles: 8Spindle diameter: 50 mmSpindle speed: 6000 rpmBottom 7,5 kW, outboard bearingFence 7,5 kWNear 11 kWFence 11 kWTop 15 kW, outboard bearing, straight jointerBottom 22 kW, table prepared to take wooden inserts in case of ripping (tool diameter up to 250 mm)Top 11 kW, table prepared to take wooden insertsBottom 11 kW, outboard bearing, straight jointer
Capacity: 230 x 120 mm.Spindles: 4bottom 4 kw fence and near 5,5kWtop 5,5 kw Spindle diameter 40 mm Cardan shaft drive, motor 2,2 kWVariable speed 5 - 22 m/minPneumatic pressuresInfeed table 2 m lengte Waxilitpump for bed lubrication, manual Safety hood
Capacity: 220 x 120 mm.Spindles: 5Bottom 4kW, fence 4kW, near 4kW, top 4kW, universal 4kWSpindle diameter: 40 mmMotorised thickness adjustment, motor 1,5 kW digital displayInfeed table1700 mm longSiko reading on the shaft positioningProtective hood with electrical contactExtension 5 x 140 mm

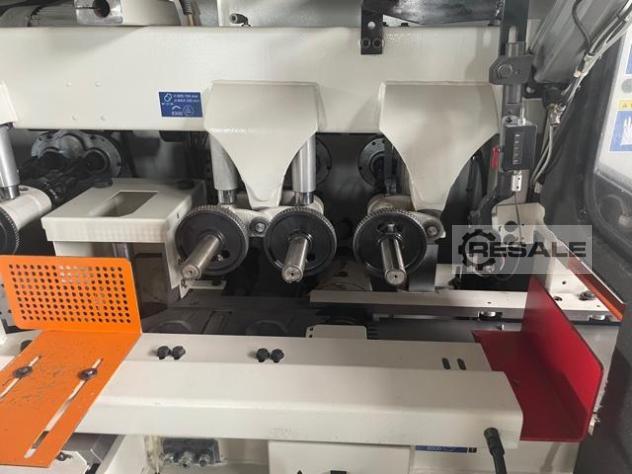

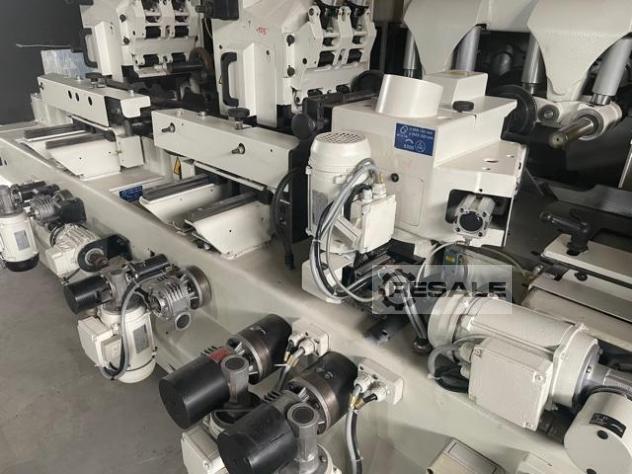

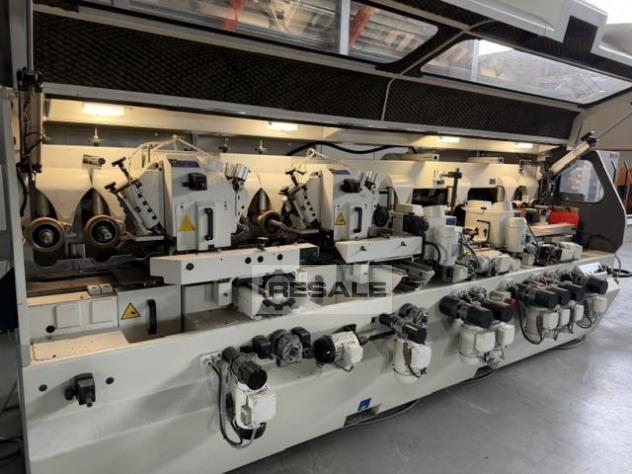

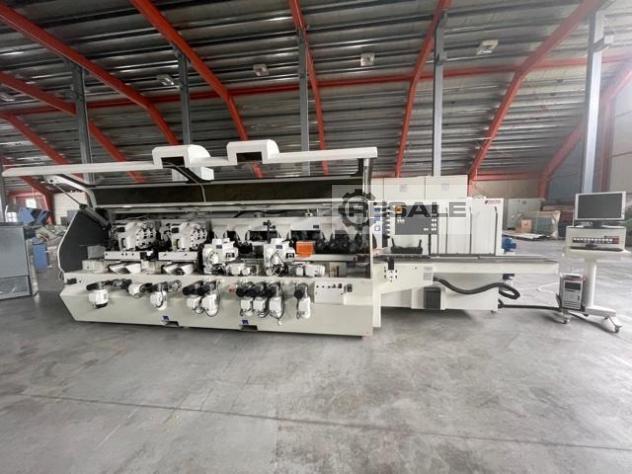

This 5s LEADERMAC Compact LMC-530C was manufactured in 2022. It features a working width of 15 – 300 mm and a working thickness of 10 – 150 mm, making it suitable for various woodworking applications. With multiple spindles and a Schneider 5.7” EASYSET touchscreen control, this machine offers advanced capabilities. Consider the opportunity to buy this LEADERMAC Compact LMC-530C wood planer. Contact us for further details.
This GRIGGIO G 240P/5U was manufactured in 2007. It features a maximum planing width of 240mm and height of 160mm, accommodating workpiece sizes up to 240 x 160mm. Equipped with five spindles, including a universal turning shaft, and spindle speeds up to 6000 rpm. The machine allows smooth feed adjustments up to 30m/min. Weighs 4100kg with dimensions of 440x220x180cm. Contact us for more information about this machine.
Second-hand Format 4 Type Plan 51 surface planer for planing timber workpieces. Technical data: Motor: 10 kW Blade shaft: Reversible blades Z4 Working width: 510 mm Condition: Gebraucht Location: Tauberbischofsheim, Germany
Weinig Unimat 23 E + Uniplan 23 planing line, including a return conveyor. An NC-controlled line for planing and profiling window scantlings, including glazing bead cutting or other planing tasks, with automatic return of the workpieces to the operator. Technical data: Spindles: 4 + 2 Working width: 230 mm Working height: 120 mm Spindle 1: 7.5 kW / 50 mm / 8,000 rpm Spindle 2: 11 kW / 50 mm / 8,000 rpm Spindle 3: Shared motor with spindle 2 / 50 mm / 8,000 rpm Spindle 4: 7.5 kW / 50 mm / 8,000 rpm Spindle 1 Uniplan: 5.5 kW / 50 mm / 7,200 rpm Spindle 2 Uniplan: 5.5 kW / 50 mm / 7,200 rpm Feed rate: 524 m/min Control: Nexus PC control system NC axes: Unimat 2 & 3, Uniplan 1 Condition: Gebraucht Location: Tauberbischofsheim, Germany
Weinig Profimat 23 automatic planing and moulding machine for four-sided planing and profiling of timber, with a mobile spindle. Technical data: Spindles: 5 Spindle 1: Bottom / 5.5 kW / 40 mm Spindle 2: Right / 5.5 kW / 40 mm Spindle 3: Left / shared motor with #2 / 40 mm Spindle 4: Top / 7.5 kW / 40 mm Spindle 5: Bottom / 4 kW / 40 mm Working width: 230 mm Working height: 120 mm Condition: Gebraucht Location: Tauberbischofsheim, Germany
SCM Profiset 60 EP four-sided planer, in as-new (second-hand) condition, for professional use in woodworking. The machine was only switched on once for a test run and has never been used since. Technical data: Spindle 1: Bottom / 4 kW / 40 mm Spindle 2: Right / 5.5 kW / 40 mm Spindle 3: Left / shared motor with #2 / 40 mm Spindle 4: Top / 4 kW / 40 mm Spindle 5: Universal / 4 kW / 40 mm Spindles: 5 Working width: 230 mm Working height: 120 mm Feed: 3 kW Planing table length: 2,000 mm Condition: Neuwertig Location: Tauberbischofsheim, Germany
Key data: 410 mm, 240 mm, 3 kW
GRIGGIO FS 410 - Ano de construção: 2001 - Disponível imediatamente
Key data: 4 , 220 mm, 120 mm
Plainer de quatro lados Guilliet Tipo KXR Construído em 1990 Largura de plaina máxima 220 mm Altura máxima de planeamento 120 mm Comprimento da tabela de entrada aproximadamente 2000 mm 4 cabeças de plaina, cabeças de plaina de alumínio Forças motoras aproximadas. Poço de ventilação 5 kW Onda direita e esquerda juntas 5 kW Eixo superior 5 kW Velocidade de avanço infinitamente variável 4,5 – 27 m/min. Motor de alimentação 1,5 kW Diâmetro do fuso 40 mm Diâmetro da cabeça de plaina: 120 mm Peso aprox. 1800 kg Dimensões aproximadas. 3400 mm x 2300 mm x H 1900 mm
Key data: 630 mm, 300 mm, 5 kW
T45 engrossado da Martin com cabo de faca Tersa Largura de plaina aproximadamente 630mm Altura de plaina de 2,8 a 300 mm eletricamente ajustável, leitura por ecrã digital com precisão de 1/10 mm com controlo de posicionamento No sistema de controlo existe também a possibilidade de ajuste incremental, ou seja, pode-se armazenar, por exemplo, 1 mm ali e depois alterar a altura do plano em 1 mm pressionando repetidamente o botão de arranque sem ter de definir uma nova altura absoluta a cada vez. Além disso, 99 valores fixos também podem ser guardados como programa. Motor motorizado de 5,5kW com travão automático Tersa com eixo de 4 facas e facas novas Velocidade de avanço 6 + 12m/min Rolo de alimentação borrachado Rolo extraível emborrachado Mesa de máquina plainada guiada por quatro fusos roscados e guias para uma estabilidade ótima Versão de baixo ruído com ...
Second-hand automatic planing and grooving machine, part of a Weinig Hydromat 2000 pre-planing line, with feed mechanism (tilting destacking). The machine has already been dismantled and is ready for loading. The images contain AI-generated sample images for illustrative purposes. The illustration may contain errors. Technical data: Spindles: 5 Spindle 1: Bottom / 11 kW / 50 mm / 6,000 rpm Spindle 2: Left / 11 kW / 50 mm / 6,000 rpm / Jointer Spindle 3: Top / 18.5 kW / 50 mm / 6,000 rpm / Jointer Spindle 4: Bottom / 11 kW / 50 mm / 6,000 rpm / Jointer Spindle 5: Right / 11 kW / 50 mm / 6,000 rpm Working width: 175 mm Working height: 80 mm Feed: 15 kW / 100 m/min Control: CNC memory system Max. workpiece length: ~ 6,000 mm Condition: Gebraucht Location: Prag, Tschechien
working width: 510 mm; cutter head: strip knive; number of blades: 2; surface table length: 2600 mm; adjustment table: hydraulic; Hollow and pointed joints adjustment: ja; read out table hight: Scala; read out Hollow and pointed joints: Scala; fence tilting: yes; motor power: 5,5 kW; motor brake: yes, automatic; machine length: 2600 mm; machine width: 1000mm; weight: 1050 kg;
planing width: 520 mm; planing shaft type: tersa; number of blades: 4; sourface table length: 3000 mm; table adjustment: electrically; read out table height: digital; sourface fence adjustable: yes; motor power: 7 kW; suction connection: 120 mm; machine length: 3005 mm; machine width: 1460 mm; weight: 870 kg; - Dressing tables made of gray cast iron- The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and - - the knife shaft remains the same in every adjustment position- Large precision aluminium dressing fence, slightly tiltable 90 - 45 °- The inclination of the stop is easily readable from the operator side- As standard with auxiliary stop for safe planing of even narrow workpieces- Large four-knife shaft, precision-mounted- Quiet running with precision aggregate and heavy cast iron execution- Powerfu ...
working width: 180 mm; working height: 120 mm; working spindles: 4; spindle following: down, right, left, up; motor power spindle down: 3,7 kW; motor power spindle right: 3,7 kW; motor power spindle left: 3,7 kW; motor power spindle up: 5,5 kW; adjustment spindle down: -; adjustment spindle right: -; adjustment spindle left: manual; adjustment spindle up: electric; cutter heads: turn cutter; feed speed: 2; feed pressure: feather; current consumption: 38 A; motor brake: automatisch; suction connection: machine length: machine width: weight:
working width: 630 mm; working height: 220 mm; cutter head: strip knife; number of blades: 4; height adjustment: manual; read out workpiece thickness: Scala; feed speed: variabel ; infeed roller: rubber; outfeed roller: rubber; table roller: no; motor power: 5,5 kW; suction connection: 160mm; machine length: 1200mm; machine width: 1200 mm; weight: 1000kg;
working width: 520 mm; working height: 250 mm; cutter head: strip-knive; number of blades: 4; height adjustment: electrically; read out workpiece thickness: scale; feed speed: 2 speeds; infeed roller: steel; outfeed roller: steel; table roller: yes; motor power: 5,5 kW; suction connection: 140mm; machine length: 1200 mm; machine width: 1400 mm; weight: ca. 900kg;
