Operating voltage: 380 VFrequency: 50 HzRated current: 12 AConnection: 4.8 kWSpindle speed: 25 – 2000 rpmCenter length: 700 mmCenter height above bed: 170 mmTurning diameter over bed: 340 mmCenter height over support: 130 mmTurning diameter over support: approx. 260 mmSpindle passage: 48 mmEquipment: tailstock, Multifix lathe steel holder, quick-release chuckIncl. collets and various accessoriesReference: Weitner

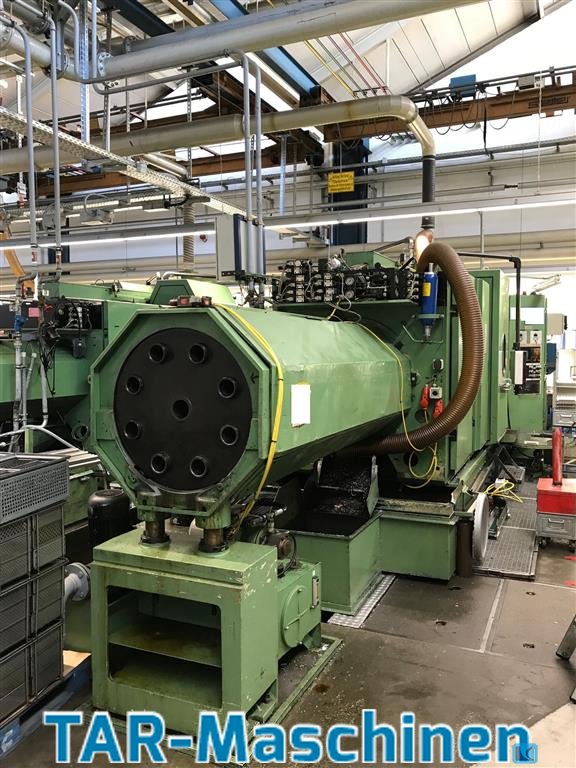

number of spindles:8 spindle passage:67 mmCam controlled multi spindle automatic lathe, used8 main spindlespick up in pos. 8threading attachmentCNC compound slide in pos. 5, also 2. speed in pos. 2Hydraulic spindle brake in pos. 4Incl. length measurement, incl. Brankamp cutting force monitoringtooling: could be different like picturesPlease, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com
Lathes with: - Digital display - Quick-release steel holder - 3-jaw chuck 200mm and 160mm - Chip tray - Centering tip Turning diameter over bed 460 mm Turning diameter over support 280 mm Turning length 1000 mm Center height 230 mm Circumferential diameter in offset 720 mm Spindle bore 53 mm Spindle speeds 28 - 1250 rpm Total power requirement 4.0 kW Machine weight approx. 1.8 t Dimensions approx. 2.4 x 1.4 x 1.75 mm
Manufacturer: Heidenreich & Harbeck (VDF), Hamburg , Type: 18 RO , Year of construction: 1960 , Working range: Center width: approx. 1,000 mm , Circulation over bed: approx. 360–380 mm , Circulation over support: approx. 200 mm , Speed range: 28 – 1,250 rpm , Multi-stage mechanical transmission , 3-jaw chuck Forkardt Ø200 mm , Operating voltage: 380 V ; Control current: 220 , frequency: 50 Hz I ; PhotosTotal current: approx. 4 A , Equipment: Multifix quick-change holder , Type B several rotary holders and drill holders ,Forkardt 3-jaw chuck Ø200 mm , extensive tool equipment , see photos for more details

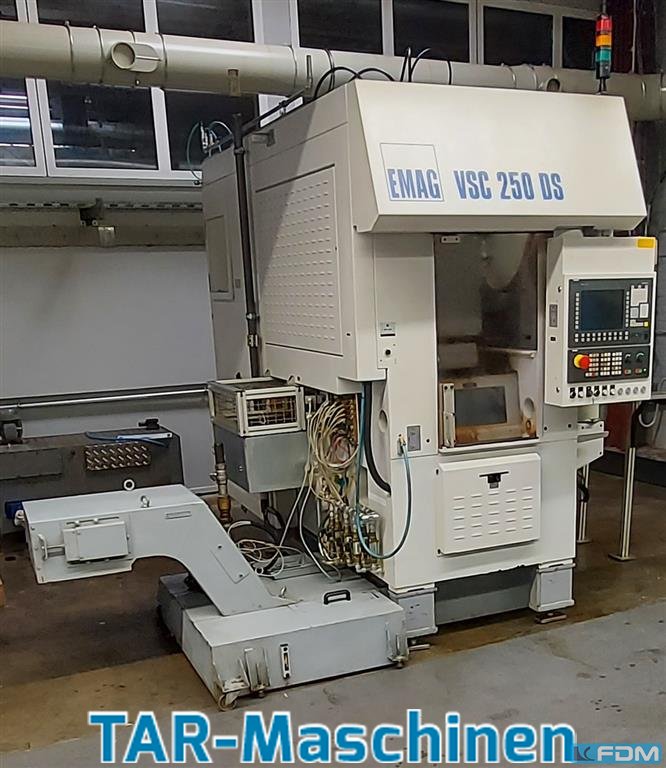

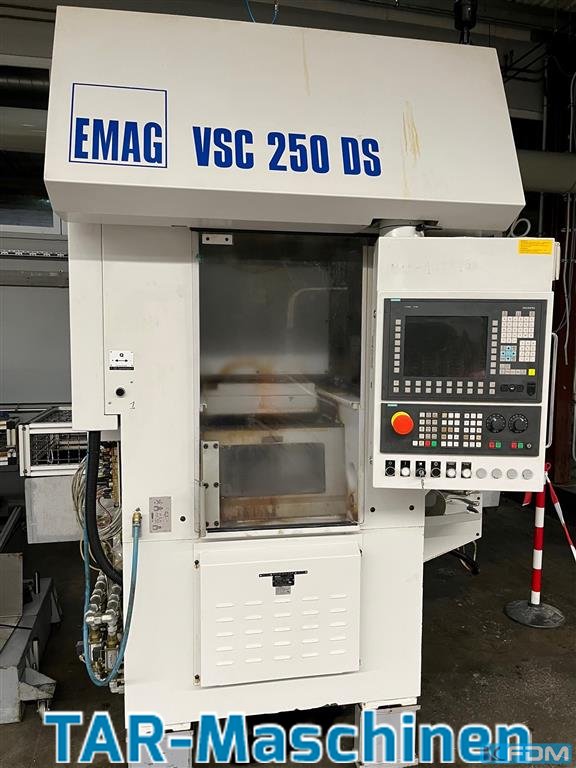

Article: Vertical turning and grinding centreManufacturer: EMAGType: VSC 250 DSYob: 2008Control: SIEMENS 840DGrinding spindle speed: 30,000 rpmRotation spindle speed: 3,000 rpmTool places turret: 12Cooler for spindle and machine bed coolingCooling lubricant - lifting station (no independent cooling lubricant supply)Chip conveyorParts handling Air through the spindleTwo clamping circuits through the spindle (air and oil)Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

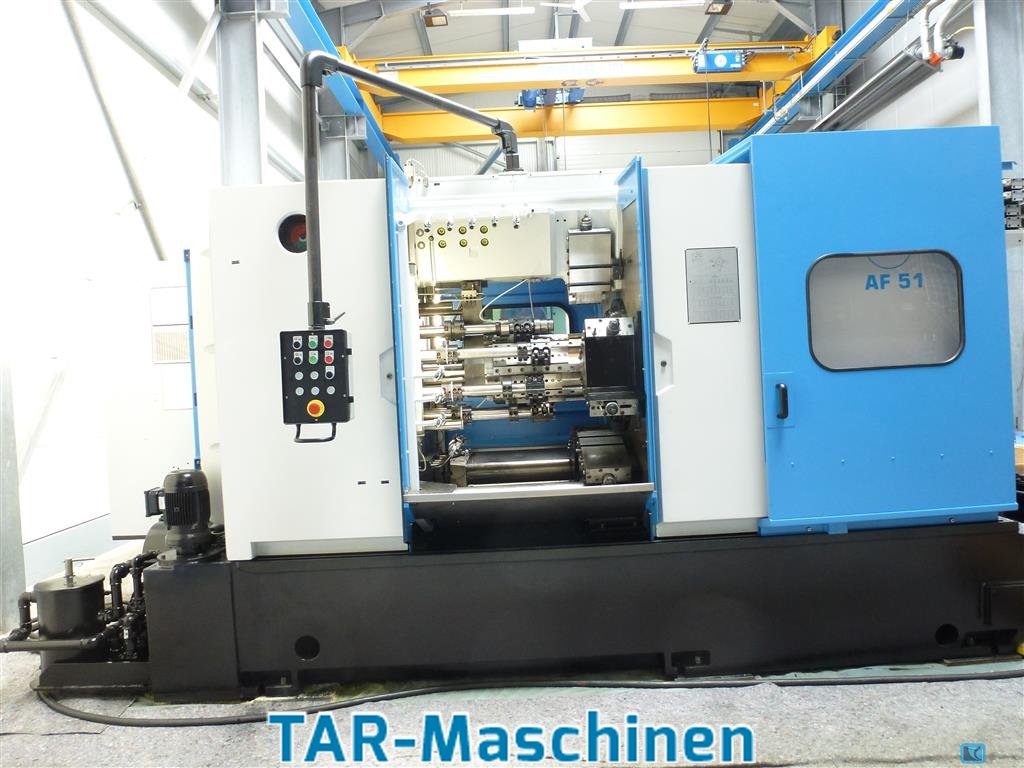

number of spindles:8 spindle passage:51 mmArticle: multi spindle automatic latheManufacturer: SchütteType: AF51Yob: 1987eight main spindlesmax. bar diameter D=51mmcontrol SIEMENS SIMATIC S5pick up in pos. 7, for rear machiningthread cutting driveindependent feed in positions 2/3electronical trip dog control ?Balluff?clear text display Wöhrlecoolant pumpmagnetic cartridge filteroil runningincl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type)Painting in light blue and light greyThe configuration of tooling will be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2016full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,3 x Y-axis,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot, manufacturer HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com
Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2019full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot make HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

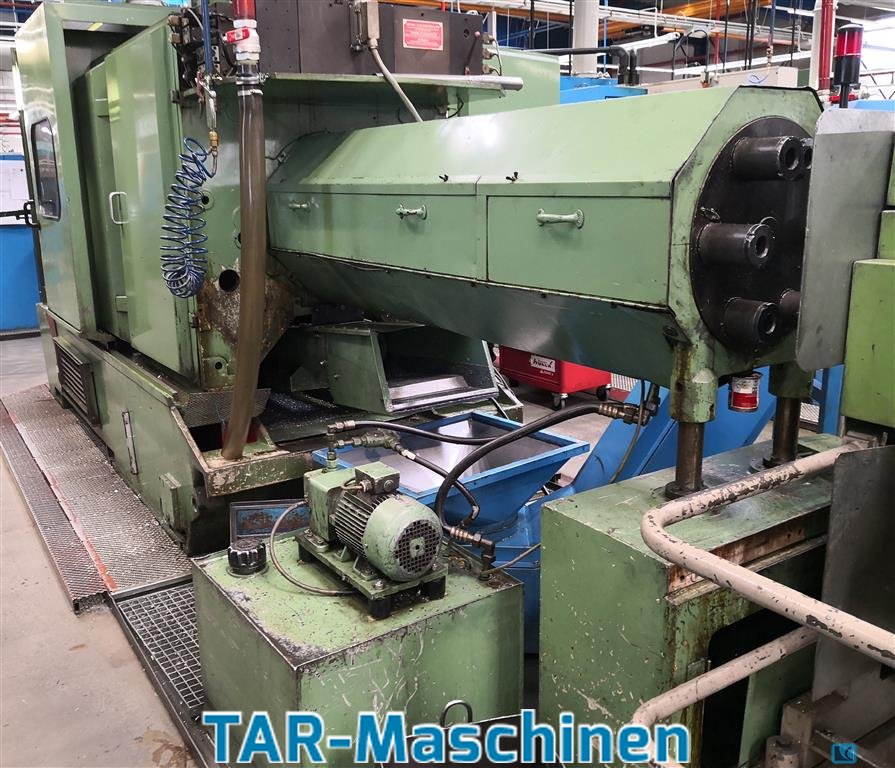

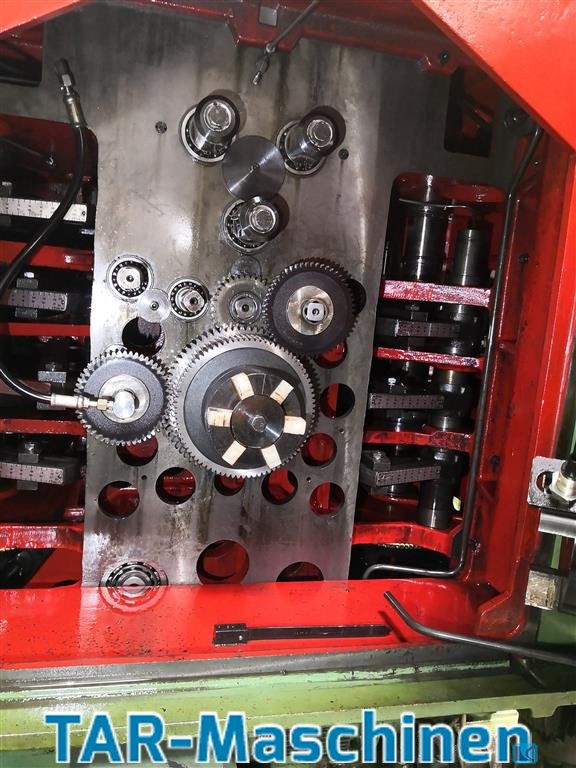

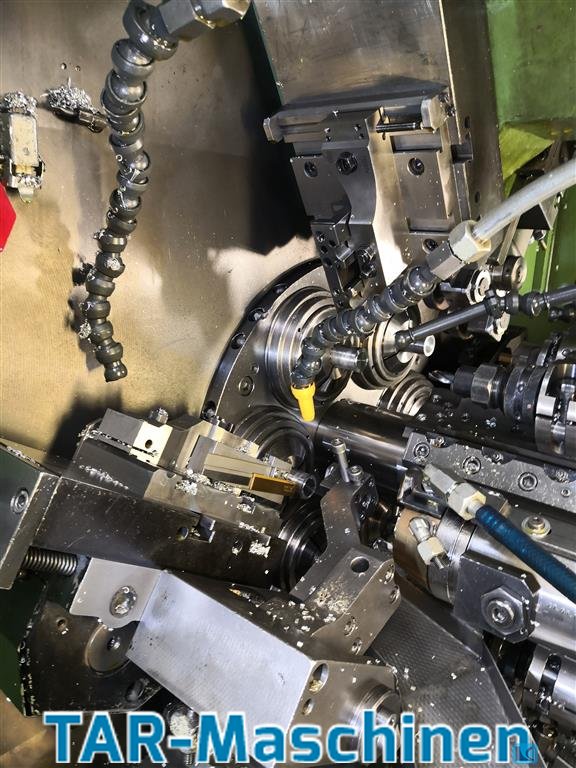

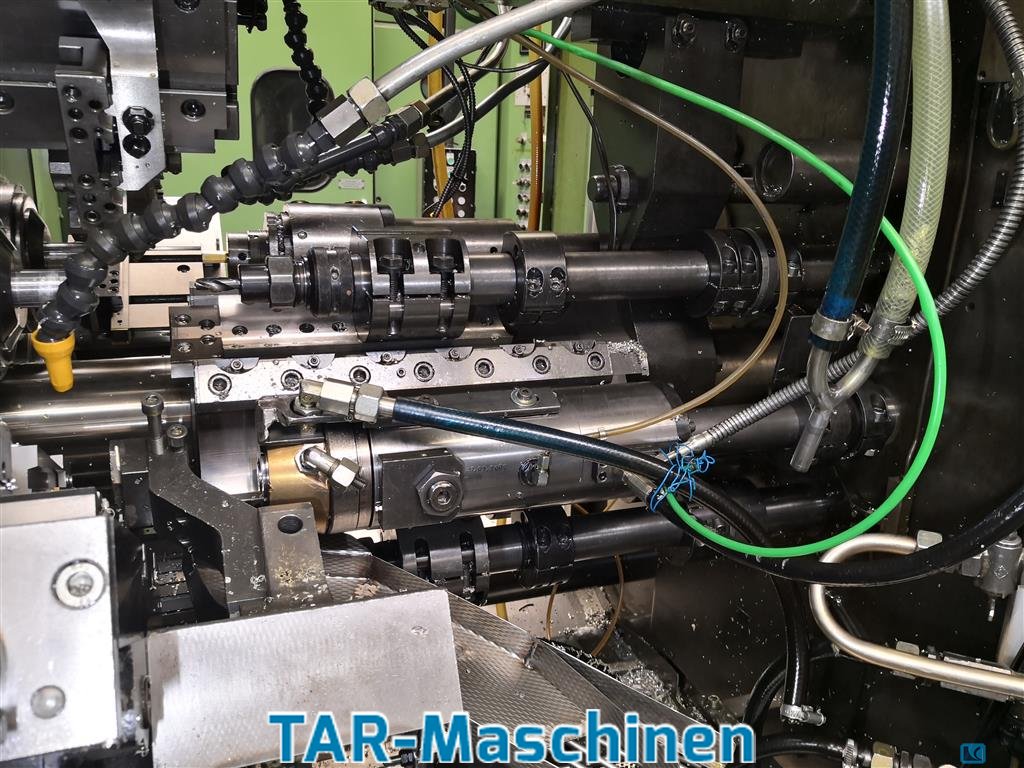

number of spindles:6 spindle passage:51 mmSchutte SF51 DNT, yob. 1987, our ID #61868Article: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF51 DNTYob: 1987Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter D=51mmelectronic cam control Balluffgripper in position 6 for backworking, sorting chuteindependent longitudinal feed layer 5screw chip conveyorTapping couplingsInterface for: Bar feeder IEMCA PRABar feeder IEMCA PRA40/33/FScope of delivery without the blue chip conveyorThe tooling will differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Article: Programme-controlled automatic latheManufacturer: TraubType: TF60 / 140Yob: 1978Bar automatPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: AF32 S DNTYob: 1994Eight-spindle automatic lathe with 8 main spindlesmax. nominal diameter D=32mmcontrol: Siemens SIMATIC S7electronic cam control Balluffgripper in position 8 for backworkingCNC cross slide position 6CNC cross slide position 7Workpiece beltCoolant cooling SchimpkeChip conveyor with magnetic separatorTapping couplingsThe tooling shown may differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

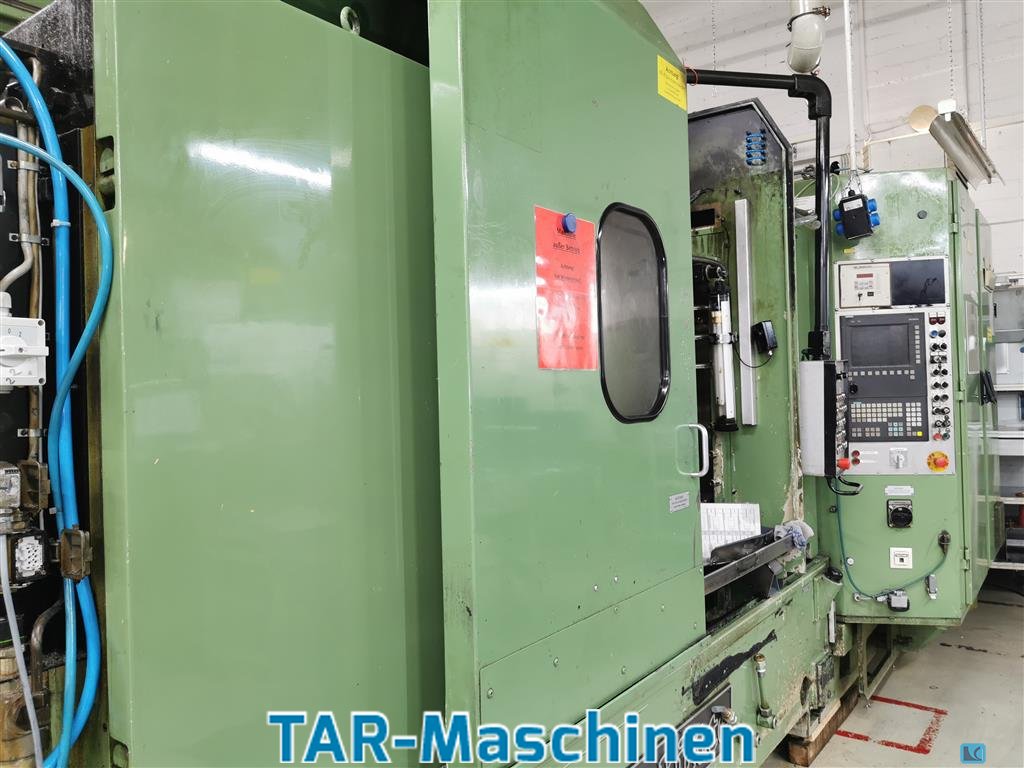

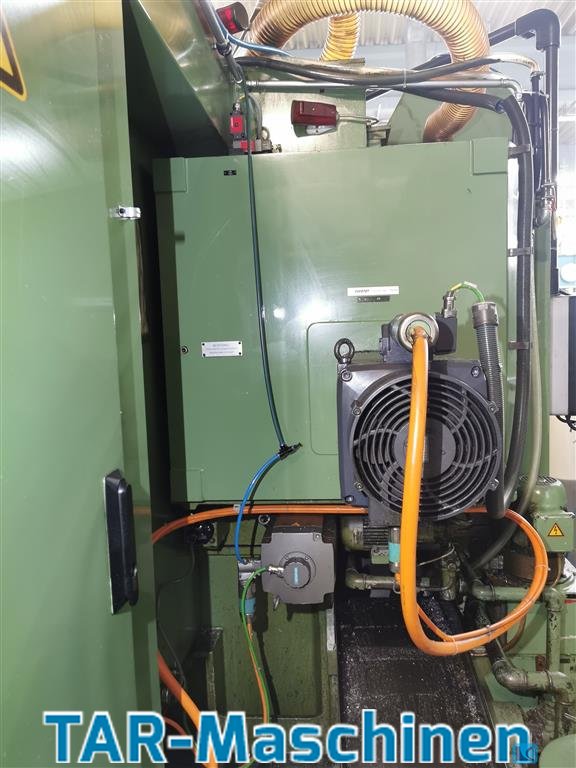

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AF32 DntYob: 1993eight-spindle automatic latheeight main spindlesfor bars up to D=32mmModernized control: Siemens SinumerikMotors: renewed modern motors suitable for modernized control systemElectronic trip dog control: BalluffCNC cross slide position 5 crossCNC cross slide position 6 crossPreparation for gripper in position 8 (gripper optional)Independent feedsThread cutting couplingsintegrated bar loader: Pietro CUCCHI; type: rack type magazineThe scope of delivery regarding the tooling equipment could be different like pictures.
Technical data Manufacturer: MATRA Type: MD 22 Machine type: Lead and pull spindle lathe Voltage: 380 V Frequency: 50 Hz Control voltage: 220 V Rated current: 17 A Fuse: 25 A Main motor: AEG AM 132 MR4 Motor speed: 1445 rpm Degree of protection: IP54 Speed range: approx. 100 – 2000 rpm Turning length: approx. 1500 mm Configuration 3-jaw chuck available Tailstock available Steel holder available Guide and pull spindle available Heidenhain digital displacement measuring system available Machine mounted on machine foot Used condition

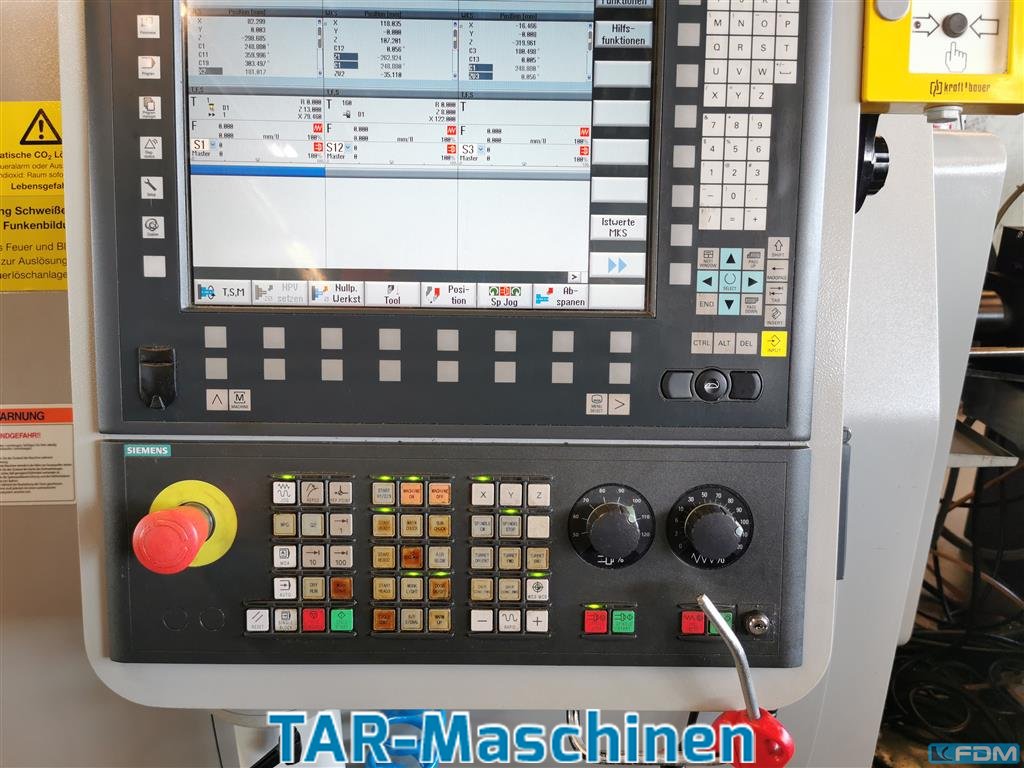

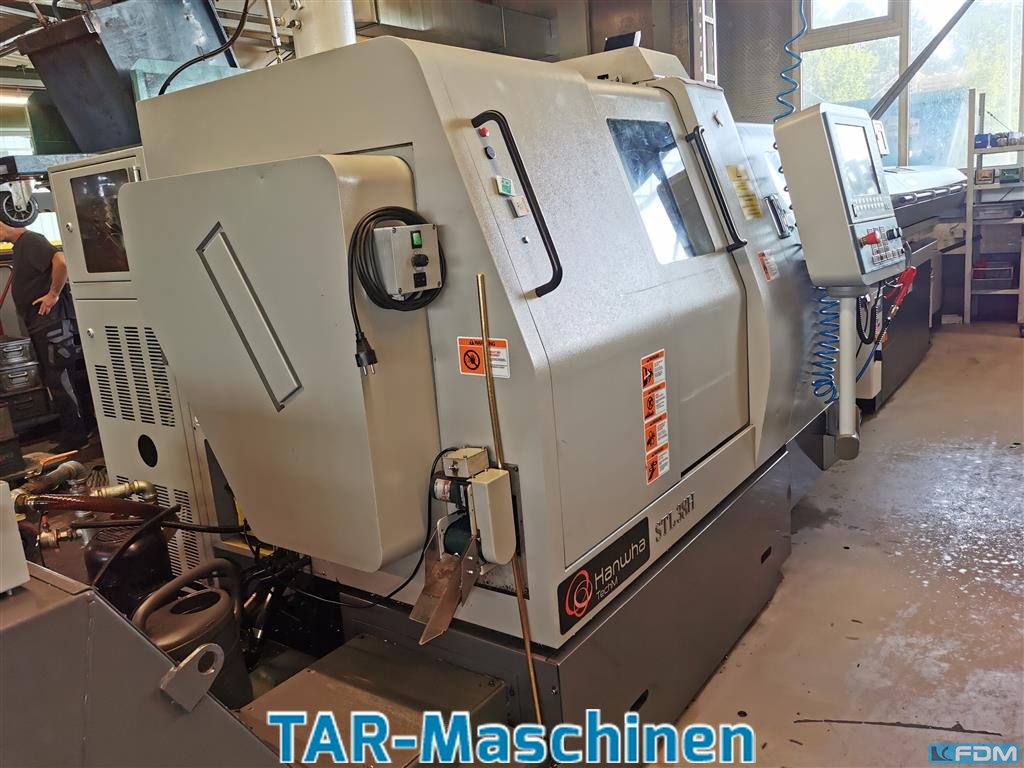

turning diameter:38 mmArticle: CNC latheManufacturer: HanwhaType: STL38HYear of construction: 2013Control: Siemens 840SL for 8 axesMain spindle:max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48Counter spindle:max. pick-up diameter: 38mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42Tool turret:n max. 6,000 rpmPower max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120Bar feeder FMB Turbo 5-55High-pressure station SFB-301 eco 150barPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
spindle passage:25 mmArticle: CNC sliding headstock automatic latheManufacturer: TornosType: Deco 2000/20Year of construction: 2001Control: Fanucspindle diameter: D25 mmmax. speed: 7000 rpmcomb: 2 (X,Z,Y-axis)Front attachment: 1 (X,Z,S-axis)Loading magazine: Tornos Robobar SSFChip conveyor: Hinged belt conveyorother: various accessories such as polygonal impact device, HF spindlePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

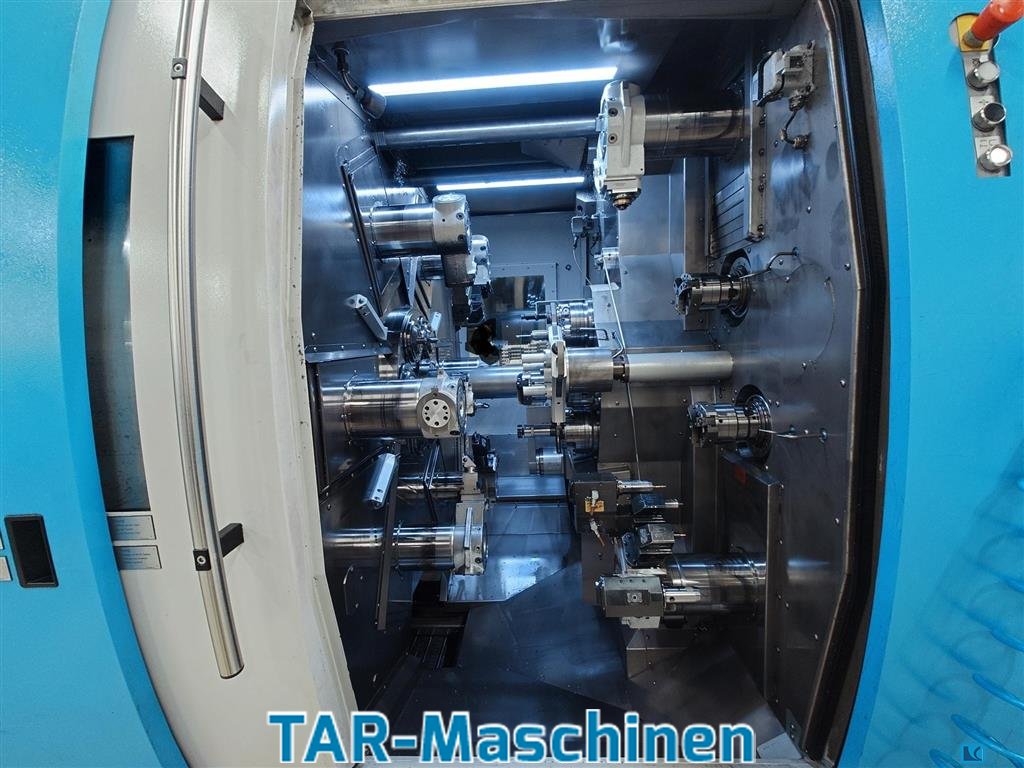

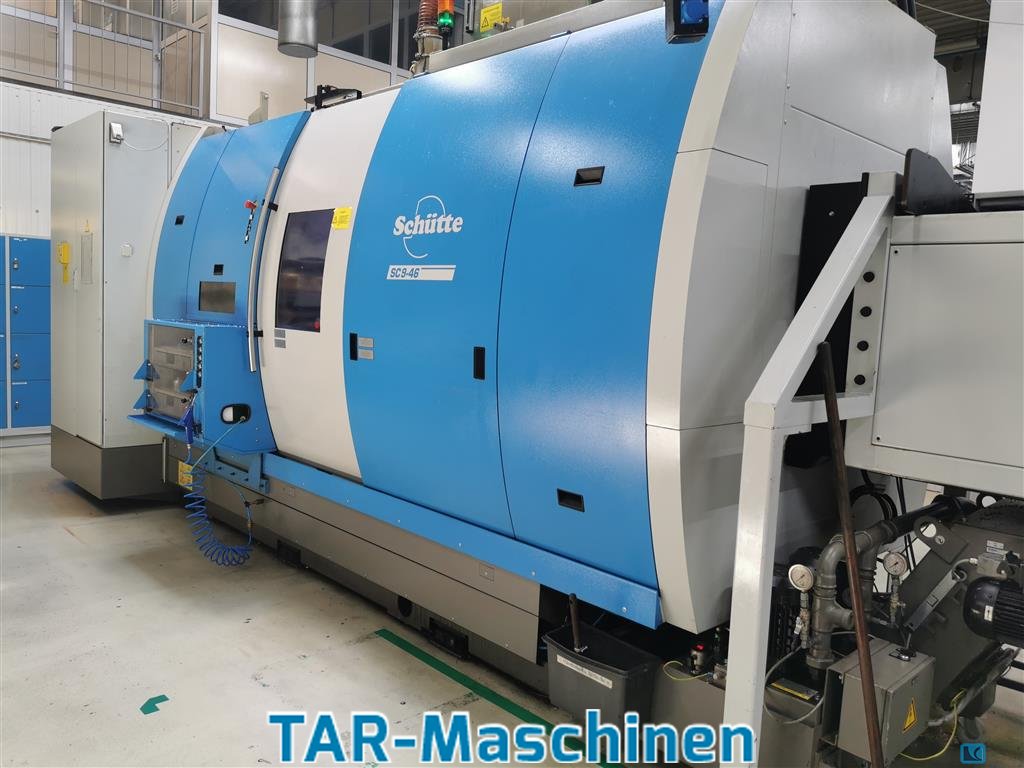

number of spindles:9 spindle passage:46 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: SC9-46Yob: 2016Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindlesMain spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 NmCross slide units, transverse: 6 units, in positions I to VI,Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V,Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpmCross slide units, transverse: 2 units, in positions VIII and IX,Control:Siemens SINUMERIK 840SL with double NCUSoftware: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted,Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion)Synchronous action package ?Level? 2, incl. cross-mode actions/ASUP (maximu ...

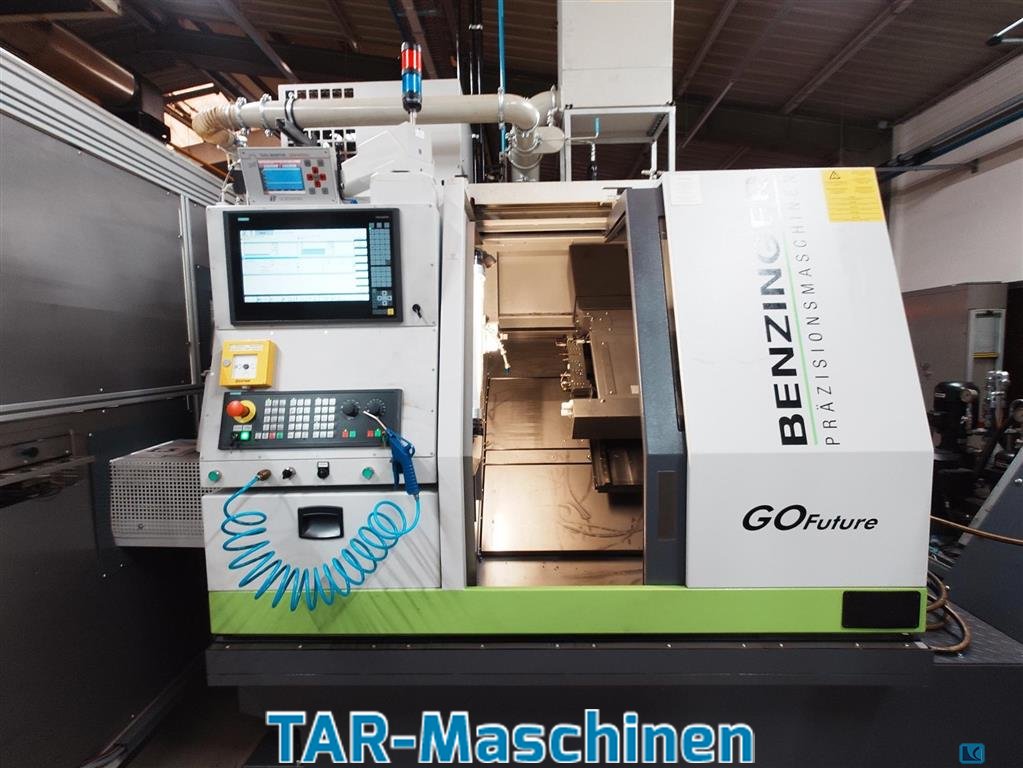

turning diameter:26 mmArticle: High-precision CNC lathe with linear cross slideManufacturer: BenzingerType: GOFuture B1Yob: 2016Machine was only used for reworking, i.e. only light machining work was carried out!Control: Siemens Sinumerik 840DslMain spindle: maintenance-free motor spindleBar capacity: D26mmLoading and unloading device type IBAdditional gripper system for placing the workpieces in the correct position on the unloading beltCoaxial valve for coolant to the linear tools (3 pieces)Internal clamping deviceC-axis main spindle for digital control incl. transmit functionAdjusting microscope 16x magnificationCoolant supply through the spindle clamping cylinder,Sealing air,Speed increase of the motor spindle to 8. 0000 rpmNordmann tool monitoringProfibus master interfaceHinged belt conveyor KnollCompact coolant device KnollMBE interfaceSmall fire extinguishing system Kraft & BauerN ...

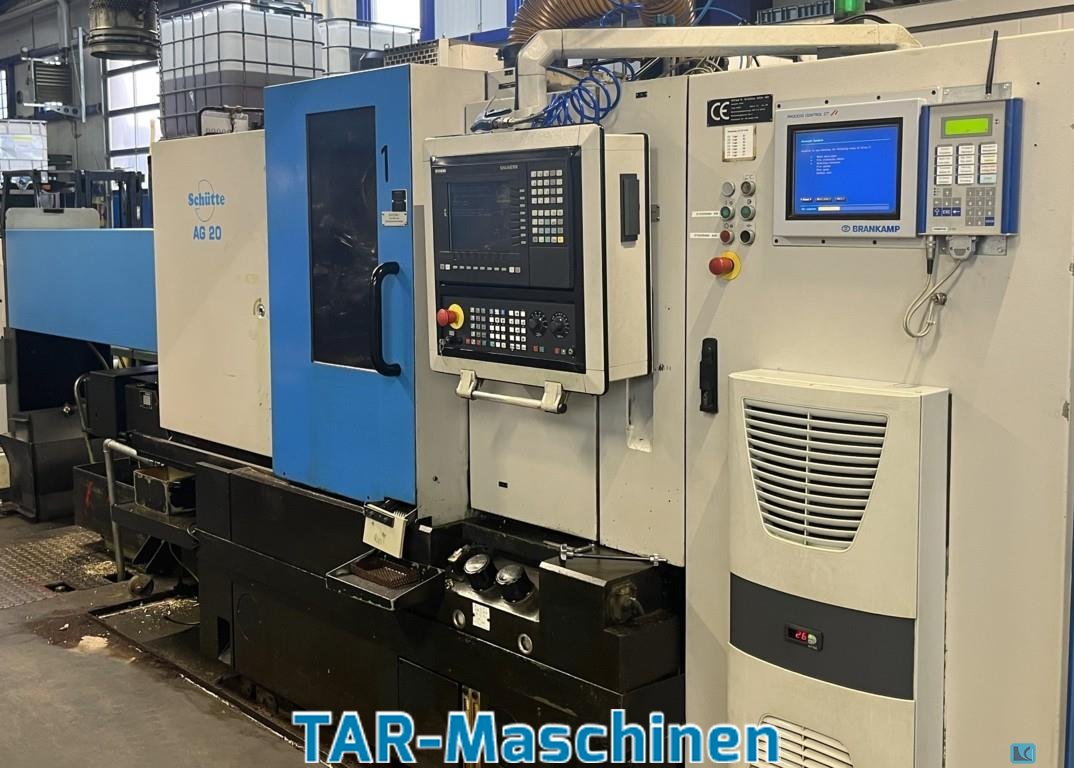

number of spindles:8 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AG20Yob: 2002eight-spindle automatic lathe8 main spindlesfor bars up to D=20mmcontrol: Siemens 840D1x polygonal turning/thread milling device (new 2011)1x polygonal turning/thread milling device for long turning (new 2011)1x thread cutting/quick drilling spindle (new 2011)1x pick-up device incl. various pick-up collets 4 cnc-cross slidesDouble cross slide in position 7Loading magazine PRA 52/P type 33 (bar length 3m), year 2004High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004Tool monitoring BrankampAir conditioning unit Rittal in the front switch cabinetincl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slidesThe machine has been run with oil and has processed brassPlease, contact us for getting ...
Professional Industrial Machine Digital display 3-jaw chuck 200 mm. 4-jaw chuck Face Plate Fixed bezel Steady bezel Multifix steel holder. Machine Light Foot brake Chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine feet Machine Tool Turning diameter over bed 400 mm Turning diameter over support 260 mm Turning length 1500 mm Turning diameter in the offset 570 mm Speed 45 - 1800 rpm Tip height 210 mm Spindle bore 52 mm Tailstock quill holder MK 4 Connection voltage 400 V Total power requirement 3.5 kW Machine weight approx. 1.5 t Dimensions approx. 2.6 x 1.1 x 1.7 m

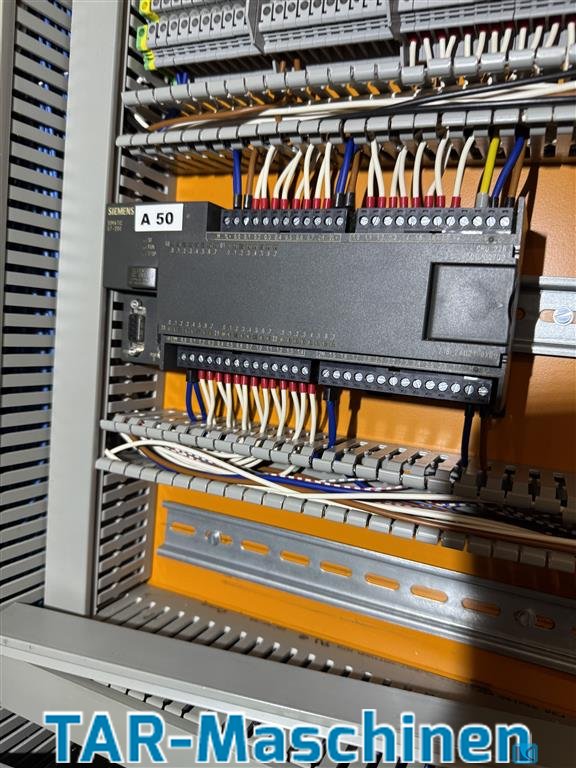

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SFH130Yob: 1995six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCDnt driveloading and disloading in position 6additional cooling pump with magnetic spark plug filterPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

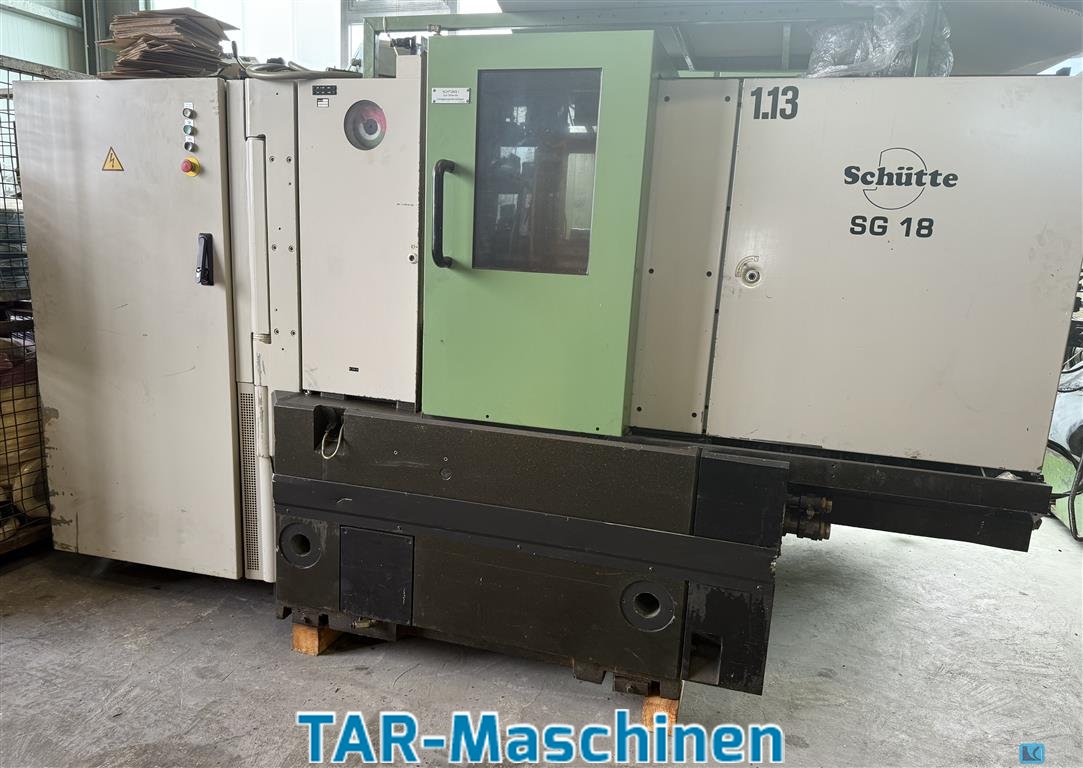

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SG18Yob: 1999six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCloading and disloading in position 6spindle brakePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:6 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF20 S DntYob: 1999Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=20mmSpindle drum hirth coupled,CNC cross slide in positions 4,CNC cross slide in positions 5,pick up in position 6, sorting chute, 1x independent feed,thread cutting couplings,workpiece belt,Coolant tank with hinged belt chip conveyor Ruez,Oil/steel operation,PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611,The scope of delivery regarding the tooling equipment could be different like pictures.Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)
3-axis digital display 3-jaw chuck 200 mm. 4-jaw chuck 200 mm. Face Plate 320mm Fixed bezel Steady bezel 4-fold steel holder. Halogen Machine Light Machine Light Foot brake Removable chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine Tools Turning diameter over bed 400 mm Turning diameter over support 264 mm Turning length 1000 mm Turning diameter in the offset 550 mm Speed 44 - 2000 rpm Center height 200 mm Spindle bore 52 mm Tailstock quill holder MK 4 MK Connection voltage 400 V Total power requirement 1.5 / 2.4 kW Machine weight approx. 0.9 t Dimensions approx. 1.9 x 0.8 x 1.56 m Condition: never used / new (5)

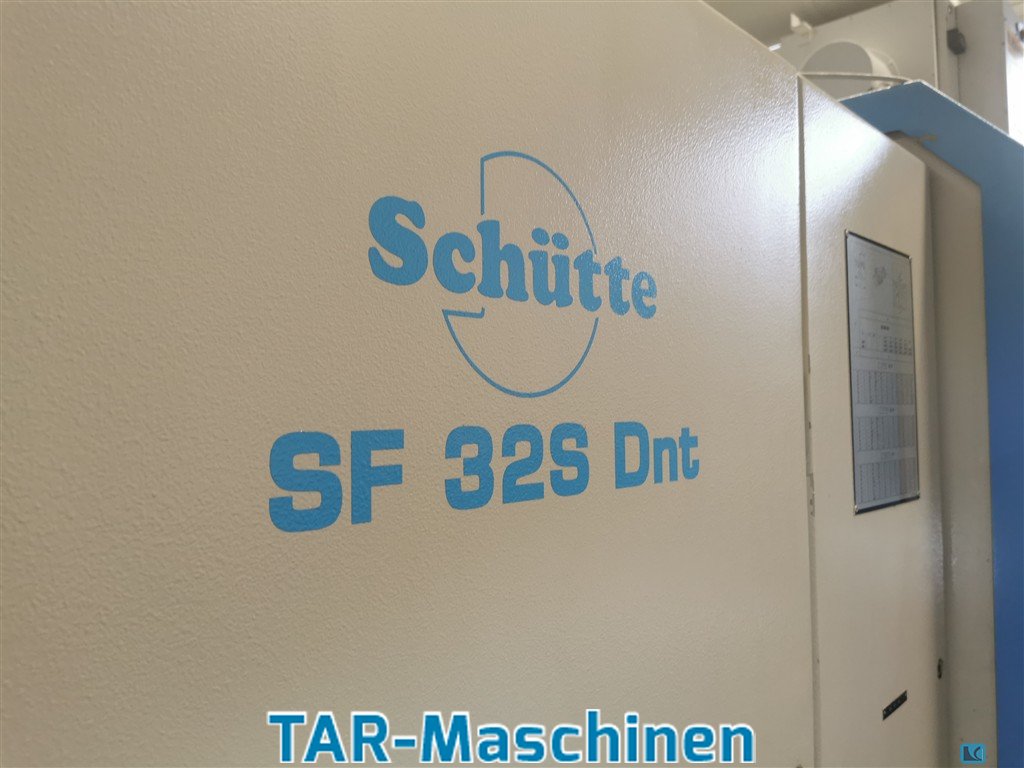

number of spindles:6 spindle passage:36 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2003Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=36mm!Spindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the images;various collets are included in delivery up to D36mmPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:6 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2001Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=32mmSpindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
OPTIMUM TH 4610 Centre Lathe (2018) Serial Number: J0517120461 Tip width: 1060 mm Tip height: 230 mm Circulation over bed: 460 mm Circulation over slide: 270 mm Turning length: 240 mm Bore main spindle: 58 mm Max. workpiece weight: 300 kg Morse taper of main spindle: MK6 Spindle speed range: 25 – 2000 rpm Facing slide travel 285 mm Upper slide travel: 125 mm Quill diameter: 60 mm Quill path 130 mm Cone in the quill: MK4 Diameter of three-jaw chuck: approx. 200 mm Feel free to take a look at the videos about this machine

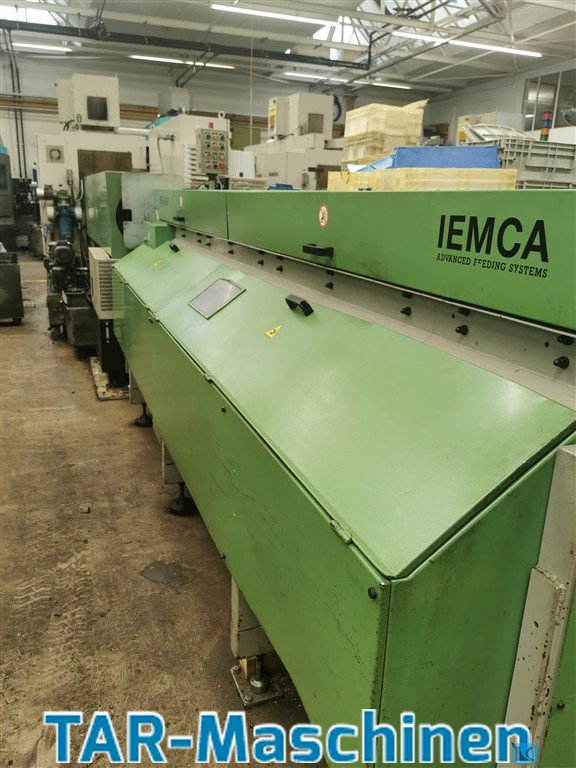

Package of 3 Schütte S32PCArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchutteType: S32PCYob: 1998One machine is operational; the other two can be used for spare partsIncludes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader)Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader)Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine)tooling included in delivery may differ from the picturesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Demonstration machine Speed in 6 steps 125 - 2000rpm. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. (Independent) Fixed bezel. Rotating bezel. 4-fold steel holder. Scout tub. Back wall. Spindle protection. Hardened bed rails. Longitudinal feed with left/right shift. Set of interchangeable wheels. Related tools. Turning diameter over bed 250 mm Turning diameter over support 140 mm Turning length 550 mm Speed 125 - 2000 rpm Tip height 125 mm Spindle bore 26 mm Tailstock quill holder MK 2 MK Tailstock quill stroke 65 mm Connection voltage 230 V Total power requirement 0.8 kW Machine weight approx. 0.135 t Space requirement approx. 1.25 x 0.6 x 0.6 m Condition: never used / new (5)
Technical data Manufacturer: Colchester Model: MASCOT (Electronic Mascot) Machine Type: CNC Lathe Control: GE Fanuc Series 20-T Spindle speed: approx. 20 – 1600 rpm Spindle bore: approx. 74 – 76 mm Turning diameter over bed: approx. 430 mm Turning diameter over slide: approx. 260 – 270 mm Center width: approx. 1200 – 2500 mm Spindle motor power: up to approx. 11 kW Weight: approx. 2.2 – 3.0 t Configuration CNC control Fanuc 20-T Tool holder / turret (typical) Tailstock available Coolant Setup Closed machine enclosure Note The technical data was researched on the basis of publicly available information on the Colchester Mascot series. Original machine documentation was not available. Deviations are possible.
Professional Metal Lathe,Gear Cutting Machine - 3-jaw chuck - 4-jaw chuck - Hardened bed sheets - Clamping plate - 4-way chisel holder - Feed protection - Standing and moving bezel - Splash protection wall - Machine light Turning diameter over bed 280 mm Turning diameter over support 158 mm Turning length 600 mm Speed 45 - 2000 rpm Center height 140 mm Spindle bore 26 mm Tailstock quill holder MK 2 Tailstock quill stroke 60 mm Metric threads 0.25 - 2.5 mm Thread - Inch 6 - 96 TPI Connection voltage 230 V Total power requirement 0.75 kW Machine weight approx. 0.16 t Space requirement approx. 1.26 x 0.58 x 0.60 m Condition: never used / new (5)
