Brocas especiais (93)

Refrigerant with oil clamps square tubes present Auction-ID: A3-46152-19018

Auction-ID: A7-49302-48

230V - 1200W - 5A Different speeds possible. In good working condition. Auction-ID: A3-46152-6137

230V - 1200W - 5A Different speeds possible. Working condition. Auction-ID: A3-46152-6136

According to photos, weight estimated Auction-ID: A1-48554-143

Machine number: 6233-5Speed: up to 2800 rpmDrilling diameter: up to 40 mmProjection: approx. 907 mmwith two tablesTable dimensions: 780 x 600 mm - with four grooves, as well as a three-jaw chuck, diameter: 400 mmTable 2: 1000 x 540 mm, with four grooves and two vices, one jaw width: 125 mm and 100 mma four-jaw chuck, manufacturer RÖHm, diameter: 200 mm as well as a four-jaw chuck, diameter: 150 mmand a dividing head from the manufacturer HOFMANN, type: VTS 160 with a three-jaw chuck, diameter: 200 mmalso various clamping systems, including KOHN clamping system, jaw width: 120 mm Auction-ID: A7-49089-208

Machine number: 33905Operating voltage: 400 VFrequency: 50 HzRated current: 5 ASpindle speed: from 120 to 2200 rpmDrilling depth: 160 mmTable dimensions: 400 x 300 mmwith two grooves and a vice, jaw width: 70 mm Auction-ID: A7-49089-268

Technical details Manufacturer: Csepel Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Geared spindle drive - Manual and power spindle feed - Drill chuck installed - Large T-slotted box table - T-slotted base plate - Speed and feed selector gearbox - Mechanical control system Application: - Drilling - Boring - Tapping - Reaming - Machining of large steel workpieces Construction: - Heavy-duty cast-iron frame - Conventional mechanical operation Estimated drilling capacity: Approx. 75 mm in steel Estimated arm reach: Approx. 1750–2000 mm Dimensions: - Length: Approx. 2500 mm - Width: Approx. 1200 mm - Height: Approx. 2900 mm Weight: Approx. 4500 kg Condition: Used Observed condition: - Machine appears substantially complete - Original gearbox and controls installed - Drill chuck fitted - Large cast T-slotted ta ...

Drilling/milling machine with: • Tapping device • Cross table with adjustable guides • Drill quill feed • Manual transmission • SK 40 mount Drilling capacity in steel 40 mm Projection 275 mm Drilling stroke 120 mm Spindle Holder MK 4 Speed range 75 - 3200 rpm Table adjustment transverse 190 mm Table adjustment longitudinal 490 mm Table clamping area 700 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1/1.5 kW Condition: never used / new (5) Auction-ID: A7-49782-404

Gear Drilling Machine Tapping device Left / Right Run Tilt work table. Lighting. 2 electr. Speed levels. Depth stop . Gears run in oil. Packaging Dimensions: 2100 x 400 x 710mm Weight 260Kg Drilling capacity in steel 30 mm Projection 250 mm Drilling stroke 130 mm Spindle mount MK 3 MK Table: 380 x 380 mm Column diameter 98 mm Speed 75 - 3200 rpm Feeds mm/U Total power requirement 1.1 kW Machine weight approx. 220 kg. Dimensions L-W-H 0.5 x 0.6 x 2.05 mm Condition: never used / new (5) Auction-ID: A7-49782-425

RADIAL DRILL SASS mod. TRL 1600 Max. working diameter 90/110 mm Max. spindle/column centre distance 3,020 mm Min. drilling radius 695 mm Max. drilling radius 3.345 mm Min. spindle nose-to-base distance 540 mm Max. distance between spindle nose and base 2.250 mm Spindle - CM 6 110 mm Spindle stroke 550 mm Spindle speed - 24 from 19 to 1.540 RPM Spindle motor power 20 HP Column diameter 650 mm Total weight 15.700 kg Complete with: - Worktop (cube) Auction-ID: A1-48745-25

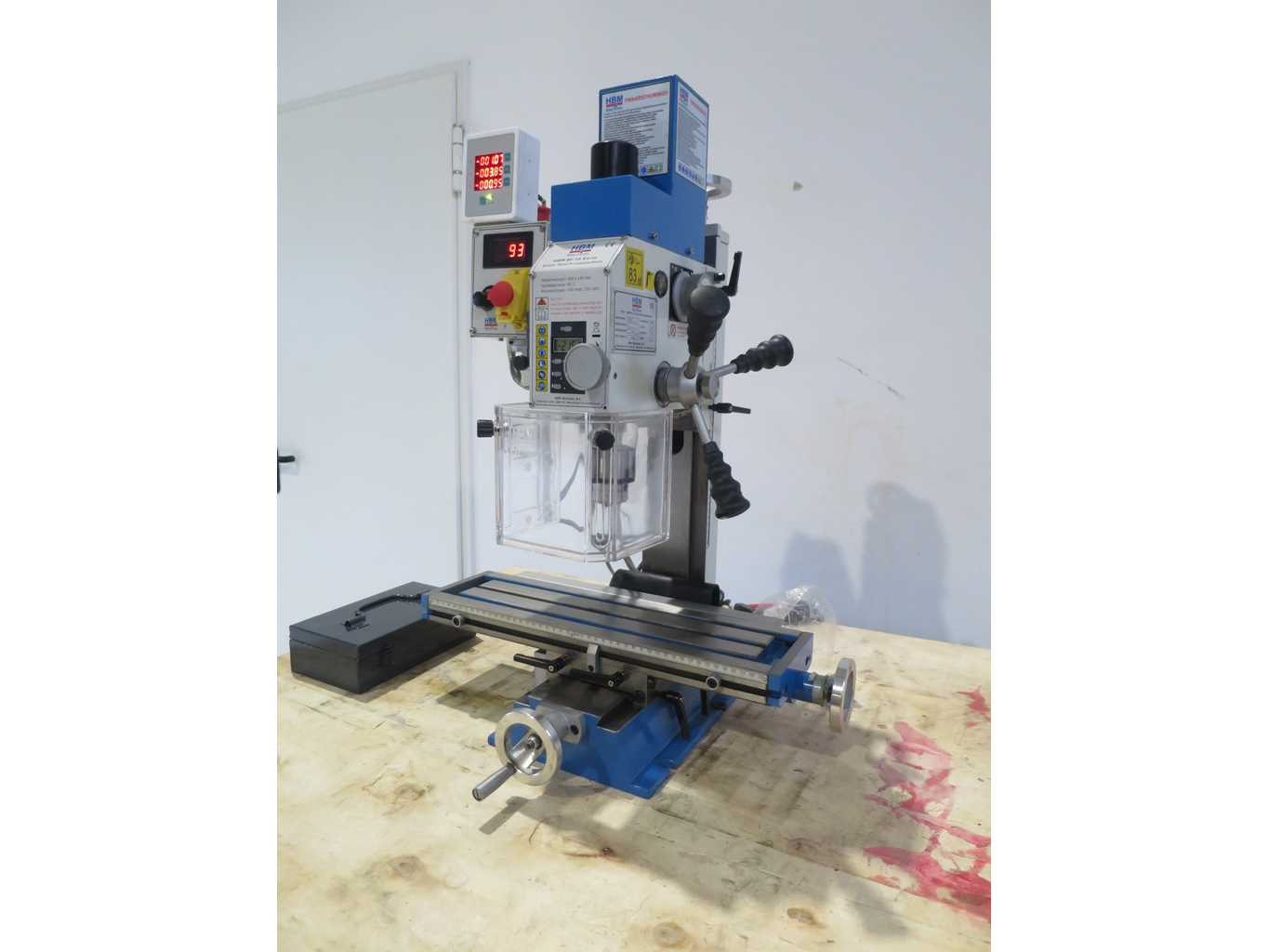

Drilling and milling machines: digital depth and speed display, 2 gear stages with fine adjustment and variable speed, Includes left-right switch Left and right swivel head Comes with associated tools Drilling capacity in steel 25 mm Projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 16 mm Spindle Holder MK 2 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 280 mm Table adjustment longitudinal 155 mm Table clamping area 500 x 180 mm Connection voltage 230 V max. distance between work table and spindle nose max. 320 mm Total power requirement 0.8 kW Machine weight approx. 150 kg Dimensions approx. 670 x 550 x 910 m Condition: never used / new (5) Auction-ID: A7-49782-414

Quick radials with: - Feed - Tapping device Drilling capacity in steel 32 mm Projection 1230 mm Table surface 1200 x 500 mm Drilling stroke 180 mm Feed - automatic 0.10 - 0.15 - 0.20 mm Speed 45 - 1370 rpm Recording MK 4 Total power requirement 2.7 kW Machine weight approx. 1.8 t Dimensions approx. 2.2 x 1.8 x 2.3 m Auction-ID: A7-49782-405

Fast radials with - Tapping device - Table vertical 750 x 620mm - Horizontal table 1200 x 510mm - Emergency stop facility - Documentation Machine No. 445 Drilling capacity in steel 32 mm Projection 950 mm Speed range 51 - 1000 rpm Speed levels 12 Drill spindle Morse taper MK 4 Quill stroke 160 mm Feed range 0.075 x 0.3 mm/min Table surface 1200 x 510 mm Total power requirement 2 kW Machine weight approx. 1.9 t Space requirement approx. 1.8 x 1.2 x 2.25 m Auction-ID: A7-49782-423

Table dimensions: 1100 x 400 mmwith three grooves Throat: approx. 907 mmSpeed: from 35 to 1800 rpm Auction-ID: A7-49089-393

Machine number: 48305083Operating voltage: 400 VFrequency: 50 HzRated current: 3.2 AConnection: 0.9/1.45 kWTable dimensions: 350 x 260 mmSpeed: from 80 to 4000 rpm Auction-ID: A7-49089-480

Column drill with: Tapping function. Digital depth display Coolant system 2 Stage Motor Spindle protection Swivel table Swivel drill head LED lighting Packaging Dimensions: 730 x 760 x 188mm Weight 340Kg Drilling capacity in steel 40 mm Projection 300 mm Drilling stroke 120 mm Spindle mount MK 4 MK Table: 500 x 460 mm Column diameter 115 mm Speed 75- 3200 rpm Feeds 0.1 - 0.18 - 0.26 mm/rev Total power requirement 1.5 kW Machine weight approx. 350 kg Dimensions L-W-H 2.2 x 0.8 x 0.7 mm Condition: never used / new (5) Auction-ID: A7-49782-430

Technical data Manufacturer: GILLARDON Model: GT 16 Configuration Column drill with height-adjustable work table and T-slots. Manual quill delivery. Drilling depth scale available. Speed adjustment available; Machine note: Speeds can only be adjusted while running. Tool holder / drill chuck mounted. Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Auction-ID: A7-49302-160

Demonstration machine! Pneumatically driven tapping machine for M3 - M12 threads with: - Stable and flexible working arm. - 6 quick-change chuck with slipper clutch. Documentation in English Thread diameter M3 - M12 mm Speed infinitely variable 400 rpm. Torque 25 Nm Air pressure 6 - 8 bar Working range radius 1000 mm Machine weight approx. 12 kg suitable clamping table Lot 224, 254 or 265. Condition: never used / new (5) Auction-ID: A7-49782-410

Machine number: 1863Operating voltage: 3 x 400 VFrequency: 50 HzNominal current: 14 AThroat: approx. 500 mmSpeed: from 25 to 3000 rpmTable dimensions: 560 x 480 mm, with three grooves and a three-jaw chuck, diameter: 210 mm Auction-ID: A7-49089-266

RADIAL DRILL SASS mod. TRL 1600 Drilling/tapping in steel diameter mm 50 Quill taper CM 5 Vertical quill travel mm 400 Sliding quill travel mm 85 16 rotation speed values rpm 32 ÷ 1945 Max. reach (column center to spindle axis) mm 1.600 Head movement along arm mm 1.295 Vertical arm movement mm 810 Min. max. height (spindle nose to base plate) mm 390 - 1.600 Column diameter mm 380 Approximate net weight Kg 4.500 Complete with: - Hub Auction-ID: A1-48745-26

Table Ø 450mm, including drill bit Auction-ID: A1-49000-30

Auction-ID: A7-49302-37

Auction-ID: A1-41279-401

Technical details Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Manual and power spindle feed - Large T-slotted box table - T-slotted base table - Mechanical feed gearbox - Coolant and lubrication system - Electrical control panel Application: - Drilling - Boring - Tapping - Reaming - Countersinking - Machining of large workpieces Construction: - Heavy-duty cast-iron machine frame - Conventional mechanical operation - Industrial radial drilling machine Dimensions: - Length: Approx. 3200 mm - Width: Approx. 1400 mm - Height: Approx. 3400 mm Weight: Approx. 7000 kg Condition: Used Observed condition: - Machine appears substantially complete - Radial arm and drilling head installed - Large T-slotted worktable and base table present - Mechanical controls intact - Cosmetic wear and surface oxidation visible - Ope ...

Digital depth stop, Laser function, LED work light, Chuck 20 mm, Drill pin, Extension pin, Protective cap (CE), Emergency stop (CE), Supplied in original box Auction-ID: A1-48552-140

equipped with SCHNEIDER electricity, tap function, digital depth stop, LED work light, CE plug, tool holder MK4-B16, drill chuck 1-13 mm, reducing sleeve MK4-3 and MK3-2, expulsion pin, 2 pieces T-bolts M10x55, manual with complete parts list, delivered in original packaging Auction-ID: A1-48552-83

Taps up to M10, including tap set, Röhm drill head, SCHOTT KL1500 cold light source Auction-ID: A1-48552-111

digital depth stop, CE protective cover, laser function, led lighting, drill chuck, delivered in original packaging Auction-ID: A1-48552-70

automatic spindle feed, tapping function, drilling table motorized in height, digital depth stop, LED lighting, CE plug, tool holder MK4-B16, drill chuck, reducing sleeve MK4-3 and MK3-2, mechanical drill ejector, manual with parts list Auction-ID: A1-48552-123

equipped with SCHNEIDER electricity, tap capacity M12, max. Distance spindle nose/drilling table 810 mm, max. distance spindle nose/foot 1210 mm, foot 535 × 360 mm, column diameter Ø 100 mm, equipped with tap function, CE protective cover, LED lighting, drill chuck, drill chuck holder, reducing sleeve 3/2, drill ejector, CE plug, anchoring bolts, toolbox, manual, delivered in original packaging Auction-ID: A1-48552-172

Auction-ID: A1-48824-68

Machine Type Radial Drilling Machine Manufacturer MAS Kovosvit Model VO50 Origin Czech Republic (Sezimovo Ústí) Serial Number 1123 Machine Type Heavy-duty industrial radial drill Working Capacity Item Specification Max Drilling Capacity (Steel) Ø50 mm Max Tapping Capacity approx. M42 Spindle Taper Morse Taper MT5 Spindle Stroke (Quill Travel) approx. 250 – 315 mm Machine Geometry Item Specification Column Diameter approx. 350 – 400 mm Arm Length (Column to Spindle) approx. 1000 – 1600 mm Max Spindle to Base Distance approx. 1600 mm Min Spindle to Base Distance approx. 300 mm Spindle & Feeds Item Specification Spindle Speed Range approx. 25 – 2000 rpm Number of Speeds 12 – 18 gearbox speeds Feed Rates Mechanical automatic feeds Feed Steps Multiple (gearbox controlled) Movements Axis Specification Arm Vertical Movement Motorized Arm Rotation 360° around column Head Trave ...

BREDA R 915 L 30-40 Radial Drilling Machine Type: Radial drilling machine Manufacturer: Breda Model: R 915 L 30-40 Drilling capacity: 30–40 mm Throat depth / arm length: approx. 1000 mm Spindle taper: MT3 / MT4 depending on version Spindle stroke: 180 mm Spindle speed range: approx. 40–1350 rpm or 60–2000 rpm, depending on version Condition: Used This item is delivered loaded on truck or container . Dismantling and loading costs are specified as additional costs. Auction-ID: A1-49190-21

Machine number: 32250Throat: approx. 1300 mmSpeed: up to 1800 rpmTable dimensions: 1570 x 440 mmwith one grooveincl. matching accessories and documentation as well as gripper arm Auction-ID: A7-49089-373

Auction-ID: A7-49302-82

Technical details Manufacturer: Csepel Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Geared spindle drive - Manual and power spindle feed - Large T-slotted box table - T-slotted base plate - Speed and feed selector gearbox - Integrated work light - Coolant system Application: - Drilling - Boring - Tapping - Reaming - Countersinking - Machining of large steel workpieces Construction: - Heavy-duty cast-iron frame - Conventional mechanical operation - Industrial radial drilling machine Estimated drilling capacity: Approx. 60–75 mm in steel Estimated arm reach: Approx. 1600–2000 mm Dimensions: - Length: Approx. 3000 mm - Width: Approx. 1300 mm - Height: Approx. 3300 mm Weight: Approx. 6500 kg Condition: Used Observed condition: - Machine appears substantially complete - Original gearbox and controls installe ...

Machine number: 30629Projection: approx. 1000 mmTable dimensions: 1400 x 1000 mm with 5 grooves Auction-ID: A7-49089-357

Speed: from 190 to 1500 rpmTable dimensions: 450 x 360 mmwith two grooves Auction-ID: A7-49089-371

5 adjustable drilling speeds by rerouting the v-belt. Drill chuck 13 mm with key. Auction-ID: A1-48994-38

Complete and in working order Auction-ID: A3-46156-16483

Stored in working condition Auction-ID: A3-46156-17119

With clamping block Auction-ID: A1-48648-197
