: 5 weight: 5 t : . The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
punching pressure: 28.0 t punching cross-cut in cmm: 31 in 7.0 mm ST throat: 250 mm dayligth: 223 mm no. of strokes: 10 - 30 Hub/min oil volume: 32.0 ltr. work height max.: 1033 mm total power requirement: 3.0 kW weight of the machine ca.: 553 kg dimensions of the machine ca.: 730 x 540 x 1530 m Furnishing: - Punch quick-change device up to Ø 31 mm - green series - installed: round punch no. 5 Ø 25.0 mm and round die no. 3 Ø 25.7 mm - Free: LED lighting in the punching area - Swiveling scraper (plates exchangeable) - Various material support tables are available separately - Brace - 2-step foot switch, with double press for grain search function - electrical controls - Stroke length and stroke position continuously adjustable - integrated hydraulic unit with oil filling - Performance specifications apply to a material strength of 450 N/mm² - Main connection cable and plug for 16 amp ...
round bar steel: 63 mm square edge steel: 55 mm flat steel: 100 x 25 mm : engine: 380 V, 6,3 kW weight: ca. 2.450 kg Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
punching pressure: 60.0 t punching cross-cut in cmm: 31 in 15 mm square edge steel: 40.0 mm L-beam: 160 x 80 mm flat steel: 400 x 16 mm throat: 400 mm round bar steel: 40.0 mm total power requirement: 5.5 kW weight of the machine ca.: 1.950 kg dimensions of the machine ca.: 1700 x 1050 x 1980 mm good / well-maintained condition () Features: - Stop / support table at the punching station - Support table at the notching station - Flat steel blade, 375 mm long, with four cutting edges, - also for cutting angle iron at 45° - Material support table with stop bar on the flat steel shears - Section steel blade for cutting 90° angle steel as well as round and square steel - Scraper, swiveling - Square notching device with stop table - 2 foot switches and electrical controls - Connector for external engagement - Integrated hydraulic power unit - Three-phase motor, 400 volts, 50 Hz - Various ...
round bar steel: 45 mm square edge steel: 40 mm L-beam: 120 x 13 mm flat steel: 500 x 12 mm punching pressure: 60 t throat: 510 mm : 500 x 12 oder 400 x 16 mm punch diameter: 27 in 17 mm punch diameter: 39 in 12 mm oil volume: 80 l total power requirement: 7,5 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: 1,8 x 0,9 x 1,8 m Hydraulic machine with 5 stations so punching, notching, shearing flat iron, angle iron, solid material, punching with hand lever, profile steel side with foot switch. Punching discharge: 510 mm! All performance data refer to a material strength of 450 N / mm². Electric 380 volt The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
round bar steel: 50 mm square edge steel: 45 mm L-beam: 150 x 14 mm total power requirement: 4 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,3 x 1 x 2,1 m No. 3418 5-fold combined profile steel shears with flat steel shears PEDDINGHAUS 210 Super 16 pressure capacity 80 to Round steel 50 mm Square steel 45 mm angle steel 150 x 14 mm Punching up to 90 mm diameter 5.5 HP Space requirement 2.30 x 1.0 x 2.1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
round bar steel: 50 mm square edge steel: 45 mm L-beam: 150 x 14 mm total power requirement: 4 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,3 x 1 x 2,1 m No. 3418 5-fold combined profile steel shears with flat steel shears PEDDINGHAUS 210 Super 16 pressure capacity 80 to Round steel 50 mm Square steel 45 mm angle steel 150 x 14 mm Punching up to 90 mm diameter 5.5 HP Space requirement 2.30 x 1.0 x 2.1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
volt: 380 V weight: 1,4 t : The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
plate thickness:4 mm blade length:180 mm weight of the machine ca.:21 kg dimensions of the machine ca.:400 x 100 x 1500 mm
round bar steel: 32 mm square edge steel: 60 x 6 mm L-beam: mm pressure: 50 t stroke: 10 - 28 mm total power requirement: 4 kW weight of the machine ca.: 1 t dimensions of the machine ca.: 0,65 x 1, 2 x 1, 67 m Maximum pressing force 50 t FLAT STEEL SHEAR PERFORMANCE Flat steel: 150 x 15 mm or: 180 x 18 mm PERFORMANCE OF PROFILE STEEL SHEARS Steel 90°: 80 x 8 mm 45°: 50 x 6 mm Angle steel 90°: 100 x 10 mm 45°: 50 x 6 mm PERFORMANCE OF BAR STEEL SHEARS Round steel: 32 mm Square steel: 30 x 30 mm PERFORMANCE SQUARE NOTCHER: 60 x 6 mm Sheet metal up to: 10 mm Notch width: 42 mm: Notch depth: 55 mm PERFORMANCE HOLE PUNCH Punching force: 50 t Stroke: 10 - 28 mm Punches: 27 in 14 mm Projection: 155 mm GENERAL DATA Drive power: 4.0 kW Oil capacity: 40 lDimensions L x W x H: 650 x 1200 x 1670 mm Weight approx.: 840 kg Translated with DeepL.com (free version) The data for this ad was creat ...
serial number: 4412956673057 : 95 to. ca. engine output: 7,5 kW weight of the machine ca.: ca 5 t dimensions of the machine ca.: 2,2 × 1,0 × 2,3 m Technical specifications (from the label)Angle steel (L-profile):150 × 15 mm at 90°100 × 14 mm at 45°Flat steel:up to approx. 150 × 16 mmlarger cross-sections up to 340 × 16 mm (depending on function)Beam profiles:U-profiles (UPN): 220I-sections (IPN) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
punching force max.: 50 t throat: 510 mm stroke: 32 mm stroke - stepless adjustable: 10 - 32 mm no. of strokes: 35 bei 10 mm Hub/min Working height: 1070 mm daylight: 350 mm table width: 255 mm dimensions: ca. 1080 x 650 x 1680 mm material layer: 630 X 535 weight: ca. 1400 kg Scraper, height-adjustable and removable, with interchangeable plate Hydraulic low-pressure finder for foot switch operation Two-stage foot switch and electrical controls Integrated hydraulic unit With punching saddle for dies no. 3 and 4, up to Ø 39.5 mm Quick-change device for punches 3 and 6 up to Ø 39.5 mm Peddinghaus blue series with material support table no. 513, dimensions 630 x 535 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
round bar steel: 34 mm square edge steel: 30 x 30 mm L-beam: 100 x 10 mm flat steel: 100 x 14...160 x 11 mm blade length: 175 mm T-beam: 100 x 10 mm notching: l + T material: 10 mm hole punhing press: pressure: 45 t throat: 305 mm total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 1,4 x 0,8 x 1,5 m 5-fold combinated profile steel shear incl. flat steel shear profile steel shear bar steel shear notcher hole punch 2 foot switches contact limit stop various punching saddles The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
working pressure: 300 bar total power requirement: / kW weight of the machine ca.: 1 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
blade length: oben 211/unten 180 mm plate thickness: max. 6 mm round bar steel: max. 13 mm weight: ca. 19 kg Sturdy shears body of quenched and tempered steel. Moving blade guides free of play (with low friction losses), blades of special tool steel, specially hardened and ground. Lever arm with counterweight spring for protection in the event of accidents, all pivot pins adjustable, all models with steplessly adjustable clamping arm. With compound action. Cuts sheet metals and round steel bar. Colour: Red-brown The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

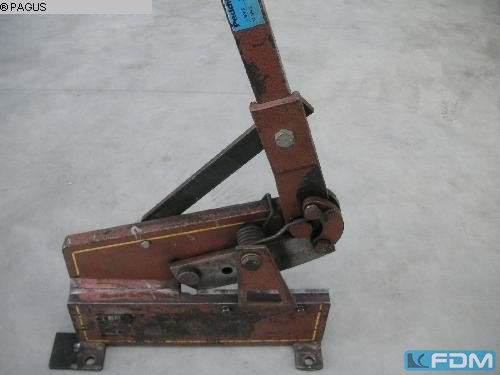

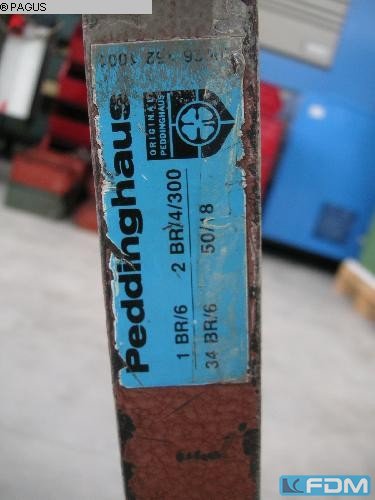

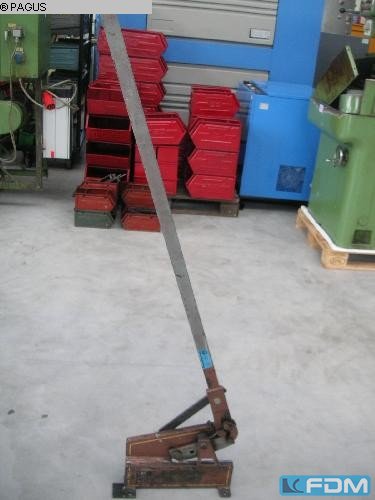

Tesoura de alavanca manual Pagus 1 BR/6 Espessura da folha: 4 mm Comprimento da faca: 180 mm Dimensões: 400x100x1500 Ano de construção 1995
Manufacturer: Peddinghaus Model: FDB 600 Type of Machine: Flat steel drilling and burning machine Find more here - / Contact us at -
Peddinghaus 960 cold saw and Peddinghaus TDK 1000/3 spindle beam drilling line 18M infeed and outfeed, 5M drag system infeed and outfeed, Hard stamper system, Fagor software operator system 1 Saw and drill and measuring system, nobody would buy these unless sold as one unit 2 Feed and transfer system 3 Hard stamper Find more here - / Contact us at -
Tesoura para reforçar aço ou barras no máximo 32mm
Keeldiepte: 405 mm slag: 21 mm 55 slagen per minuut Punching pressure: 45 ton Max punching dia: Ø 27 in 13 mm / Ø 39 in 9 mm Power needed: 2,2 kW Length: 1300 mm Depth: 800 mm Height: 2050 mm Weight: 1000 kg
• Número da máquina: 4221875989007 • Força de perfuração máxima: 800kN • Espessura máxima do material: 25 mm • Puncionador máx.: Ø 90 mm • Acessórios de acordo com fotos (vendidos separadamente a pedido)
Número : 8405 Tipo: Peddimax No 1 Produtor: Peddinghaus Criado: 2019 Parâmetros: Horário de funcionamento: 150 h Resistência: 140 t Pressão: 300 bar Equipamento: Retalhos
round bar steel: - mm square edge steel: - mm L-beam: - mm total power requirement: 7,5 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: 2,212,35 m div. punches and dies Foot switch Spare blade The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
round bar steel: - mm square edge steel: - mm L-beam: - mm total power requirement: 7,5 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: 2,212,35 m div. punches and dies Foot switch Spare blade The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Die holder, separating tool, punching tool, punch, punch die, punch stamp, gill forming tool, die holder -Stamping tool: die holder -Hole: Ø 45 mm -Bore: Ø 33 mm -Hole spacing: 180 x Ø20 mm -Dimensions: 240/85/H120 mm -Weight: 7.3 kg
Cutting blades, replacement blades for guillotine shears, replacement cutting edges, cutting knives, shear blades, flat steel blades for profile steel shears, lever shears, sheet metal knives -Manufacturer: Peddinghaus, 2 cutting blades for profile steel shears 210/16 -Cutting length: 229 mm -Hole spacing: 140 mm / M18 see photos -Submission/Price: complete -Dimensions: 260/18/H70 mm -Weight: 2.4 kg
Stop, depth stop, length stop for press brake, bending machine, guillotine shear..., electric stop for profile steel shear, contact length stop -Manufacturer: Peddinghaus, electric stop contact length stop for profile steel shears flat steel shears -Stop head, tiltable, swiveling -Hole: Ø 50 mm -Transport dimensions: 440/270/H155 mm -Weight: 6.4 kg
Punch holder, die holder, notching tool, punching tool, punch, punch die, punching die, for eccentric press, hydraulic press, quick-change punch holder -Stamp holder: Stamp holder -Hole: Ø 30 mm -Hole spacing: 94x63 mm / Ø13 mm, see photos -Dimensions: 120/90/H135 mm -Weight: 4.2 kg
