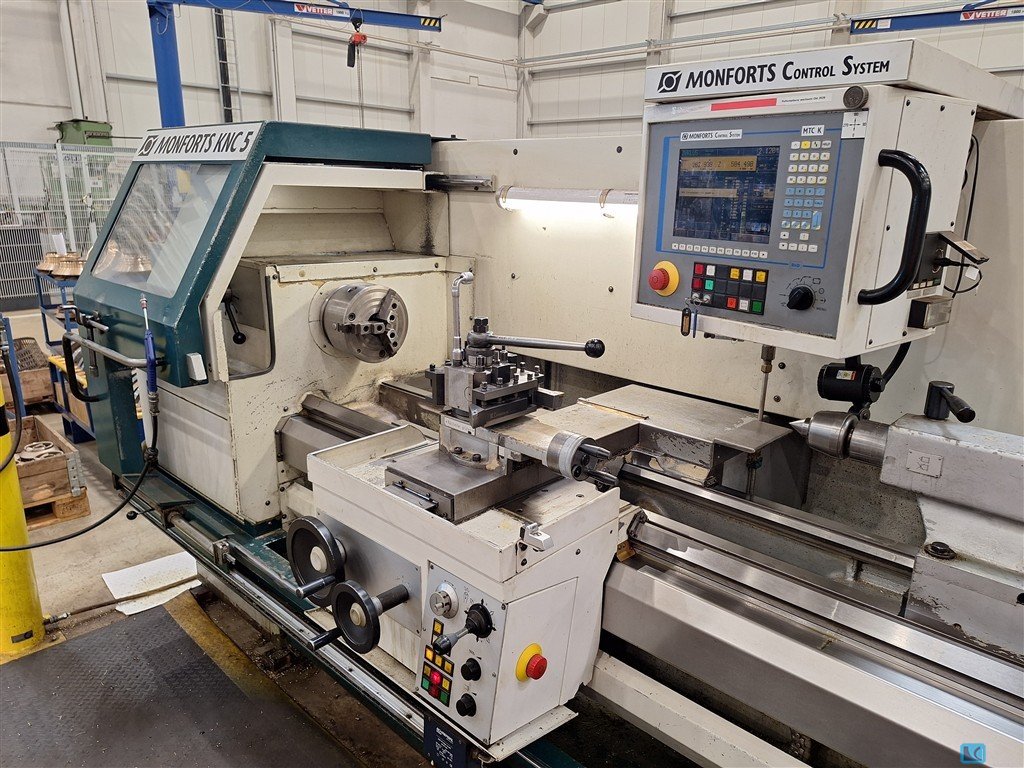

turning diameter: 500 mm turning length: 1000 mm control: MONFORTS CONTROL control: SYSTEM EURO TURN turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,1 t Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.
turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m
turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment
turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment
turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor
turning length: 2000 mm greates pass round over bed: 630 mm swing diameter over slide rest: 350 mm control: Monforts Control System K bed width: 550 mm turning speed range: 2 - 1800 U/min spindle diameter in front bearing: 120 mm spindle head DIN 55027 - Size: 8 tool taper: RD2 PARAT quill stroke: 210 mm spindle bore: 71 mm total power requirement: 30 kW weight of the machine ca.: 5 t dimensions of the machine ca.: 4,90 x 2,10 x 2,00 m Three-jaw chuck / key bar / Ø250mm Four-jaw chuck 3-jaw chuck for tailstock 4-station tool post head PARAT Fixed steady rest, Ø small Fixed steady rest, Ø large Various chuck jaws, live centers, live centers, tool holders Chip conveyor with coolant pump The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
swing diameter: 530 mm turning diameter: 150 mm spindle passage: 65 mm control: SIEMENS 840 C travel x1: 175 mm travel y1: +/- 70 mm travel z1: 433 mm travel x2: 175 mm travel y2: +/- 70 mm travel z2: 433 mm spindle turning speed range: 38 - 4000 U/min C-axis: 2 x tool turret: 2 x 12 Pos. number of driven tool stations: 2 x 12 tool shaft (cylinder shaft DIN 69880): VDI 30 total power requirement: 33 kW dimensions of machine L x W x H: 3,95 x 2,49 x 2,6 m Accessories: collet fixtures on main spindle and sub spindle, one collet for main spindle and one for sub spindle, various tool holders (for driven tools as well), various spindle reductions, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 555 mm turning length: 3000 mm control: Monforts Control System type: MTC-K CCUO turning diameter over slide rest: 290 mm cross movement: . mm spindle passage: . mm turning speeds: 1600 U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw chuck: Rotha-S Plus 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are ...
Manufacturer: Monforts Model: RNC 500 Multi Year of Manufacture: 2007 Type of Machine: CNC Lathe MultiTurn (with driven tools) Tailstock: No Chuck: SMW / KNCS-N-315-91 Control system: 840D sl Bar capacity: max. 500mm Tool holder: Turret VDI 40 (12 pieces) Spindle operating time: approx. 18,000 hours Find more here - / Contact us at -
Manufacturer: Monforts Model: RNC 500 Single Year of Manufacture: 2008 Type of Machine: CNC Lathe SingleTurn (without driven tools) Tailstock: No Chuck: SMW / KNCS-N-315-91 Control: 840D sl Bar capacity: max. 500 mm Tool holder: Disc turret VDI 40 (12 positions) Spindle run time: approx. 18,000 hours Find more here - / Contact us at -
Monforts DNC5 CNC Lathe for sale. control unit: Siemens 810D Find more here - / Contact us at -
turning diameter:500 mm turning length:1500 mm Technical Specifications: ·Turning diameter over cross slide: 290 mm ·Spindle bore: 71 mm ·Speed range: 3?2,800 rpm ·Rapid traverse speed: 10 / 5 m/min ·Feed rate: 1?2,000 mm/min ·Total power requirement: 22 kW ·Machine weight: approx. 3.2 t ·Space requirement: approx. 3.0 × 1.6 × 2.0 m
turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t
Horizontal turning machine manufactured in 2000. This Monforts RNC 400 AC features a turning length of 600 mm and a swing over bed of 410 mm. It is equipped with a 12-station disc turret and a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the Monforts RNC 400 AC machine we have for sale. Contact us for further details.
Horizontal turning machine manufactured in 2001. This Monforts RNC 400 A features a swing over bed of 410 mm and a turning length of 600 mm. It is equipped with a 12-position disc turret and a powerful three-phase induction motor with a speed range of 30-4000 rpm. If you are looking to get high-quality turning capabilities, consider the Monforts RNC 400 A machine we have for sale. Contact us for further details.
Key data: 500 mm, 1000 mm
Diâmetro circunferencial sobre a cama 500 mm, sobre suporte 290 mm Largura central 1000 mm Intervalo de velocidade 1-3000 1/min, baioneta de nariz de eixo Gr 8 Diâmetro do eixo 70 mm Cauda do contraponto MK 5 / curso 160 mm Incl. Controlo MTC K, Placa Facial Moldura fixa com cabeças rolantes Sistema de cabeça de suporte em aço Multifix C com 1 cassete Configuração do Líquido de Arrefecimento
Heavy-duty lathe, cycle-controlled lathe, lathe, center- and feed-screw lathe, center- and feed-screw lathe, CNC lathe -Control: Monforts Control System MTC K -Machine bed: hardened -Turning length: 1100 mm -Turning Ø over bed: 560 mm -Turning Ø over support: 300 mm -Spindle bore: Ø 60 mm -Spindle speeds: 2 - 2800 rpm -Key bar chuck: Schunk Ø 250 mm -Tailstock mount: MK5 -Drive: 16 kW -Accessories: Multifix tool holder, tools see photos -Dimensions: 1600/2860/H1830 mm -Weight: 3300 kg
Lathe Monforts RNC4 1988 e 1995 Lathe Monforts RNC 5 BJ 1992 Tornos Monforts RNC7 BJ 1992 e 1993
Nominal width: 3000mm, Working width range: 600mm-2800mm, Layers: 1, Number of chambers: 6, Heating system: Gas, Air supply: top/bottom, Max. working speed: 100m/min, Chain arrangement: horizontal, Cooling cylinders: 2, Padder: twin cylinder Matex 6000, Exhaust fan: 1, Documentation available, On site inspection is possible.
This MONFORTS RNC 200A lathe was manufactured in 2000. It features a maximum orbital diameter of 300mm and a turning length of 250mm. The main spindle supports a speed range of 50-6000 rpm, with a material passage of 42mm. Equipped with 12 driven stations and rapid traverse rates of 24m/min on the X/Z-axis, this machine ensures efficient and precise turning operations. The MONFORTS RNC 200A machine we have for sale is ready to meet your production needs. Delivery scope does not include a bar feeder. Contact us for more information.
This Monforts TNC 300 SingleTurn was manufactured in 2009. A robust horizontal turning machine featuring a Fanuc 0i-TC control system, 10 tool stations, and a three-jaw power chuck Kitagawa 8. It includes a hydraulic hollow clamping device and a chip conveyor. Ideal for high-quality turning capabilities. Contact us for more information about this machine.
This Monforts KNC 6 S was manufactured in 1999. A robust horizontal turning machine featuring a maximum turning diameter over bed of 650mm and a maximum turning length of 2,000mm. It includes an R&D control unit, enhancing its operational capabilities. If you are looking to get high-quality turning capabilities, consider the Monforts KNC 6 S machine we have for sale. Contact us for more information.
weight of the machine ca.: 6,6 t control: monforts control : 2 centre distance: 3010 mm centre height: 310 mm tail stock: ja cooling: ja dimensions of the machine ca.: 5000-1600 mmxmmxmm spindle bore: 70 mm : : The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
diâmetro de giro: 800 mm comprimento de giro: 2700 mm controle: Monforts MTC K
centre height: 255 mm centre distance: 1080 mm turning diameter over bed: 500 mm turning diameter over slide: 290 mm turning length: 1000 mm spindle taper: KK 8 DIN 55027 control: Sinumerik 810 D SIEMENS bed width: 360 mm spindle bore: 70 mm turning speed range: 2 - 2800 U/min rapid travel - longitudinal/face: 10 / 5 m/min quick change toolholder: MULTIFIX Typ B / CAPTO drive capacity - spindle motor: 11,0 kW taper in tailstock-quill: MK 5 dia. of quill: 80 mm quill stroke: 160 mm coolant: voltage: 400 V total power requirement: 16,0 kVA weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,85 x 1,60 x 1,80 m chip conveyor: 4,00 x 0,40 x 1,50 m - Serial-No.: 346 / 03 - control: SIEMENS Sinumerik 810 D - quick change tool holder MULTIFIX - coolant equipment - machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 500 mm turning length: 1500 mm control: MONFORTS CONTROL control: SYSTEM EURO TURN turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,3 t dimensions of machine L x W x H: 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 450 mm turning length: 1000 mm control: Fanuc Monforts Control F turning speeds: 45-4000 U/min chip conveyor: Tool turret 12 positions: VDI 40 swing diameter: 600 mm spindle passage: 85 mm power requirement: 37 kW total power requirement: 55 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 800 mm turning length: 2000 mm control: Monfort R&D turning diameter over slide: 520 mm spindle hollow: 88 mm total power requirement: 53 kW weight of the machine ca.: t dimensions of the machine ca.: 4,2x2,2x1,9 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Referência: 10374 Fabricante: MONFORTS Ano construção: 2000 Tipo de controlo: Zyklen gesteuert Controlo: MONFORTS Control Local de armazenamento: Halberstadt País de origem: Alemanha
