Control: SIEMENS / MTC K Longitud máxima de giro: 1000 mm Diámetro máximo de oscilación sobre la cama: 500 mm Postes de herramientas de cambio rápido:1 Tanque de refrigerante:100l Fabricado en Alemania
turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment
turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment

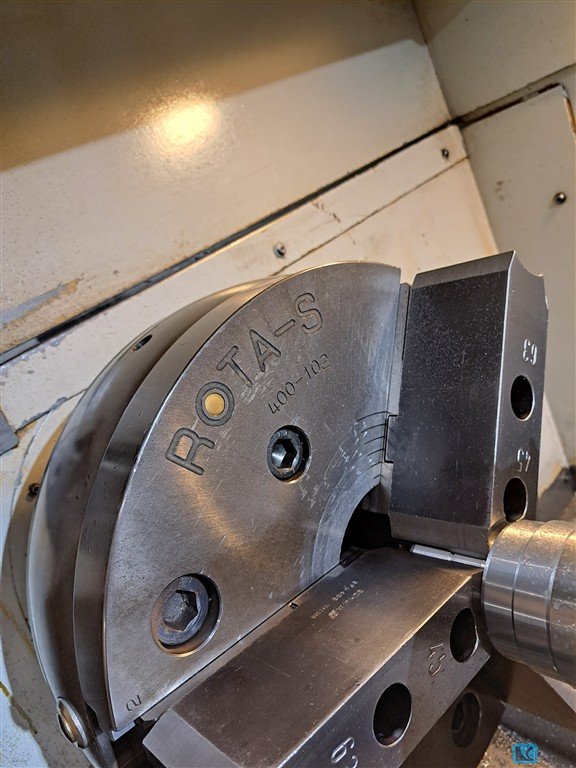

turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

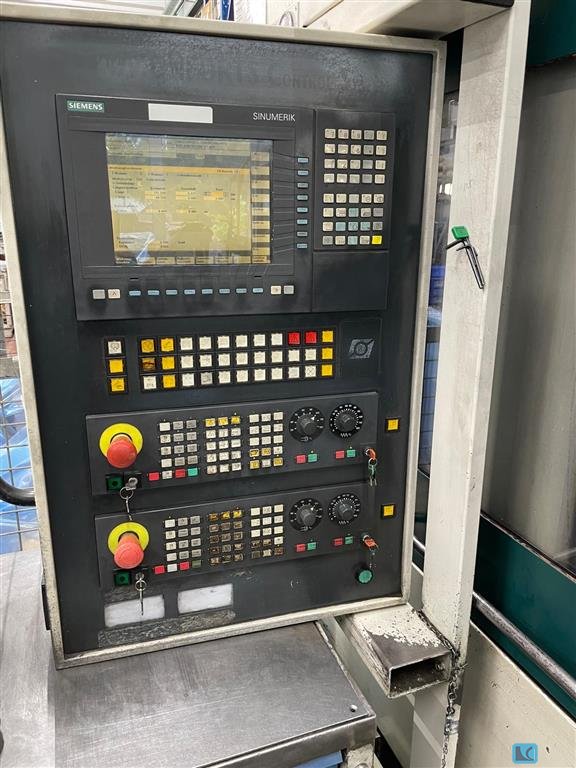

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

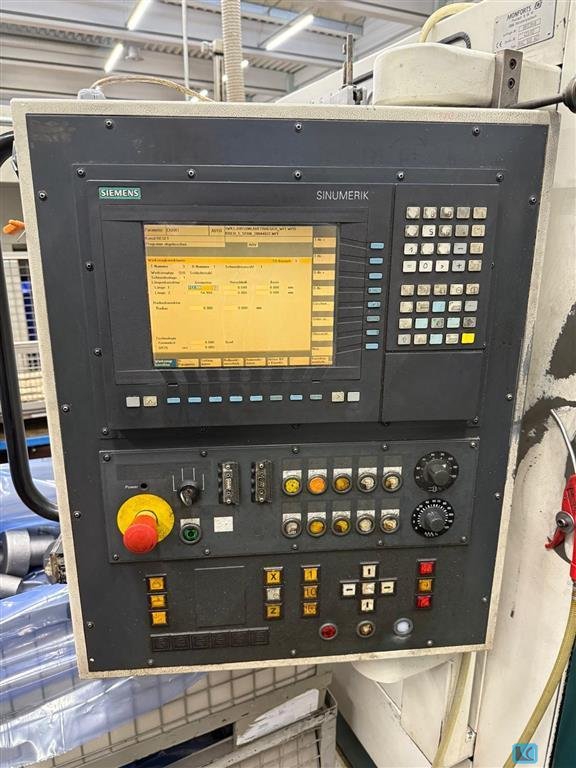

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m
turning diameter:500 mm turning length:1500 mm Technical Specifications: ·Turning diameter over cross slide: 290 mm ·Spindle bore: 71 mm ·Speed range: 3?2,800 rpm ·Rapid traverse speed: 10 / 5 m/min ·Feed rate: 1?2,000 mm/min ·Total power requirement: 22 kW ·Machine weight: approx. 3.2 t ·Space requirement: approx. 3.0 × 1.6 × 2.0 m
turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t
turning diameter: 800 mm turning length: 2000 mm control: Monfort R&D turning diameter over slide: 520 mm spindle hollow: 88 mm total power requirement: 53 kW weight of the machine ca.: t dimensions of the machine ca.: 4,2x2,2x1,9 m - Standard chuck diameter: 315/400/500 mm Work spindle drive: - Siemens Three-phase servo drives with mechanical safety clutch - Maximum Z-axis feed force: 23.9 kN - Maximum X-axis feed force: 11.3 kN - Rapid traverse speed Z-axis: 6.8 m/min - Rapid traverse speed X-axis: 4 m/min Tool setup: - Multifix quick-change tool post Tailstock: - Outer quill diameter: 120 mm - Maximum quill stroke: 210 mm - Internal taper: MK6 Capacities: - Hydraulic oil tank approx.: 15 l - Additional lubricating oil tank approx.: 6 l - Coolant tank approx.: 120 l - Coolant tank for chip conveyor approx.: 260 l The tech. Data are manufacturer or operator information and therefore non ...
turning diameter: 450 mm turning length: 1000 mm control: Fanuc Monforts Control F turning speeds: 45-4000 U/min chip conveyor: Tool turret 12 positions: VDI 40 swing diameter: 600 mm spindle passage: 85 mm power requirement: 37 kW total power requirement: 55 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team ...
turning diameter: 302 mm turning length: 600 mm control: Siemens type: 810 T tail stock: Tool changer: 12 Pos. tool taper: VDI 30 chip conveyor: 3-jaw-chuck diameter: 200 mm swing diameter: 400 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m • 12-station tool changer • Includes tool holder • Tool holder Ø30 • Max. turning length = 600 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appo ...
turning diameter: 555 mm turning length: 4000 mm control: Monforts Control System type: MTC-K CCUO turning diameter over slide rest: 290 mm cross movement: . mm spindle passage: . mm turning speeds: 1600 U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw chuck: Rotha-S Plus 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are ...
turning diameter: 650 mm turning length: 2000 mm control: MTC K turning diameter over slide rest: 360 mm turning speeds: 1800 U/min 3-jaw chuck: 315 mm Holder Multifix: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solutio ...
centre height: 255 mm centre distance: 1080 mm turning diameter over bed: 500 mm turning diameter over slide: 290 mm turning length: 1000 mm spindle taper: KK 8 DIN 55027 control: Sinumerik 810 D SIEMENS bed width: 360 mm spindle bore: 70 mm turning speed range: 2 - 2800 U/min rapid travel - longitudinal/face: 10 / 5 m/min quick change toolholder: MULTIFIX Typ B / CAPTO drive capacity - spindle motor: 11,0 kW taper in tailstock-quill: MK 5 dia. of quill: 80 mm quill stroke: 160 mm coolant: voltage: 400 V total power requirement: 16,0 kVA weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,85 x 1,60 x 1,80 m chip conveyor: 4,00 x 0,40 x 1,50 m - Serial-No.: 346 / 03 - control: SIEMENS Sinumerik 810 D - quick change tool holder MULTIFIX - coolant equipment - machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 420 mm turning length: 1000 mm control: Fanuc 10 T Monforts Control F spindle passage: 65 mm turning speeds: 4000 U/min chip conveyor: Tool turret 12 positions: total power requirement: 22 kW weight of the machine ca.: 4 t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the ...
turning diameter: 555 mm turning length: 1500 mm turning diameter over slide: 290 mm 3-jaw-chuck diameter: 315 mm make: Röhn control: Monforts MTCK quick change tool holder: Multifix C steady: turning speeds: 2-2800 U/min transmission ratio: 3 face slide travel: 235 mm spindle passage: 70 mm tailstock quill taper MT: 5 total power requirement: kW weight of the machine ca.: 3 t dimensions of the machine ca.: 2,9x1,6x1,8 m Extensive accessories can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please c ...
turning diameter: 500 mm turning length: 1000 mm control: MONFORTS CONTROL control: SYSTEM EURO TURN turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,1 t Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning length: 2000 mm greates pass round over bed: 630 mm swing diameter over slide rest: 350 mm control: Monforts Control System K bed width: 550 mm turning speed range: 2 - 1800 U/min spindle diameter in front bearing: 120 mm spindle head DIN 55027 - Size: 8 tool taper: RD2 PARAT quill stroke: 210 mm spindle bore: 71 mm total power requirement: 30 kW weight of the machine ca.: 5 t dimensions of the machine ca.: 4,90 x 2,10 x 2,00 m Three-jaw chuck / key bar / Ø250mm Four-jaw chuck 3-jaw chuck for tailstock 4-station tool post head PARAT Fixed steady rest, Ø small Fixed steady rest, Ø large Various chuck jaws, live centers, live centers, tool holders Chip conveyor with coolant pump The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
swing diameter: 530 mm turning diameter: 150 mm spindle passage: 65 mm control: SIEMENS 840 C travel x1: 175 mm travel y1: +/- 70 mm travel z1: 433 mm travel x2: 175 mm travel y2: +/- 70 mm travel z2: 433 mm spindle turning speed range: 38 - 4000 U/min C-axis: 2 x tool turret: 2 x 12 Pos. number of driven tool stations: 2 x 12 tool shaft (cylinder shaft DIN 69880): VDI 30 total power requirement: 33 kW dimensions of machine L x W x H: 3,95 x 2,49 x 2,6 m Accessories: collet fixtures on main spindle and sub spindle, one collet for main spindle and one for sub spindle, various tool holders (for driven tools as well), various spindle reductions, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

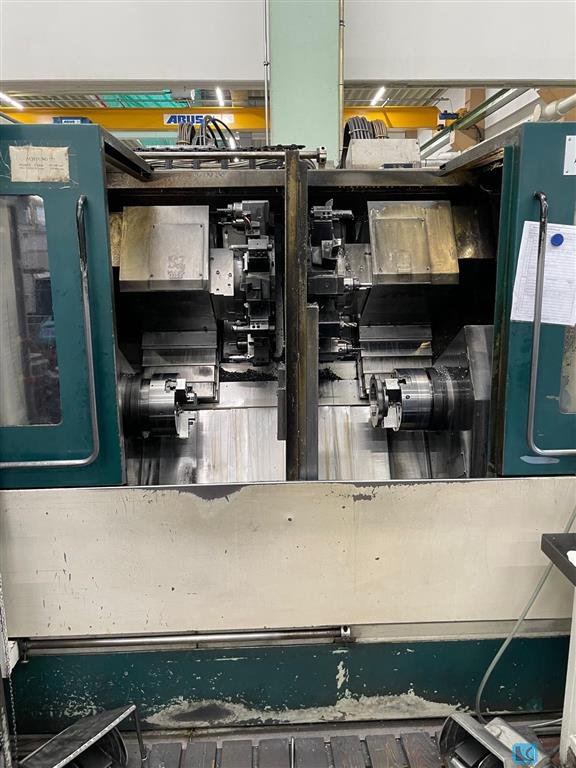

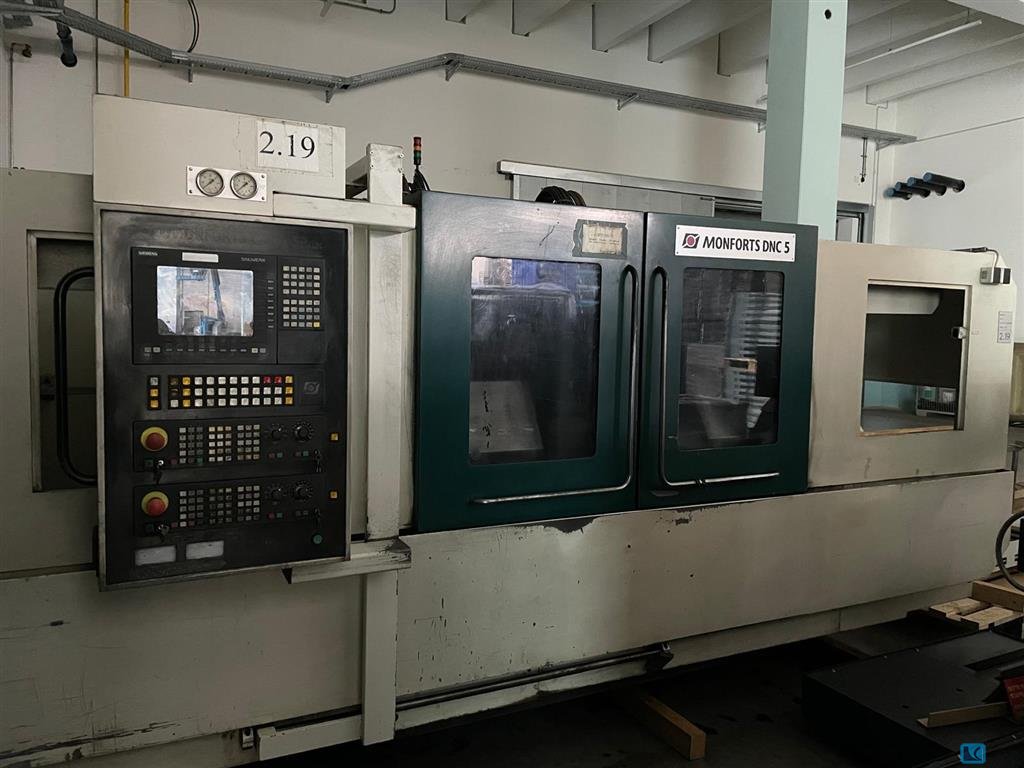

Torno CNC Monforts DNC5 a la venta. unidad de control: Siemens 810D Más información aquí - / Póngase en contacto con nosotros en -

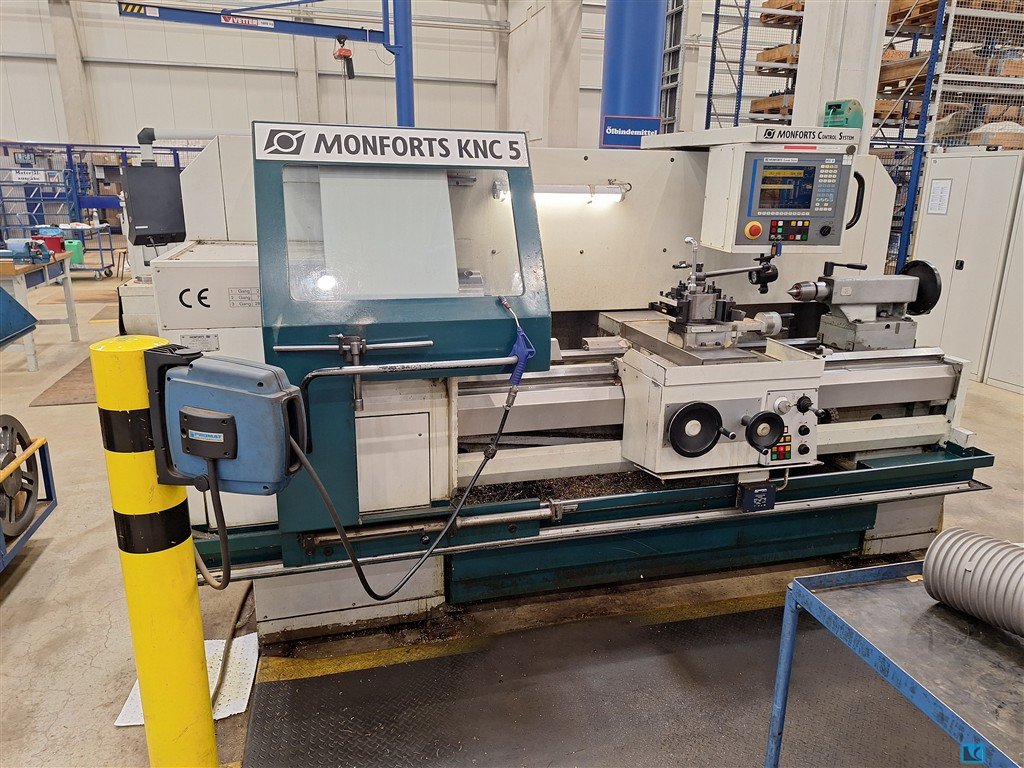

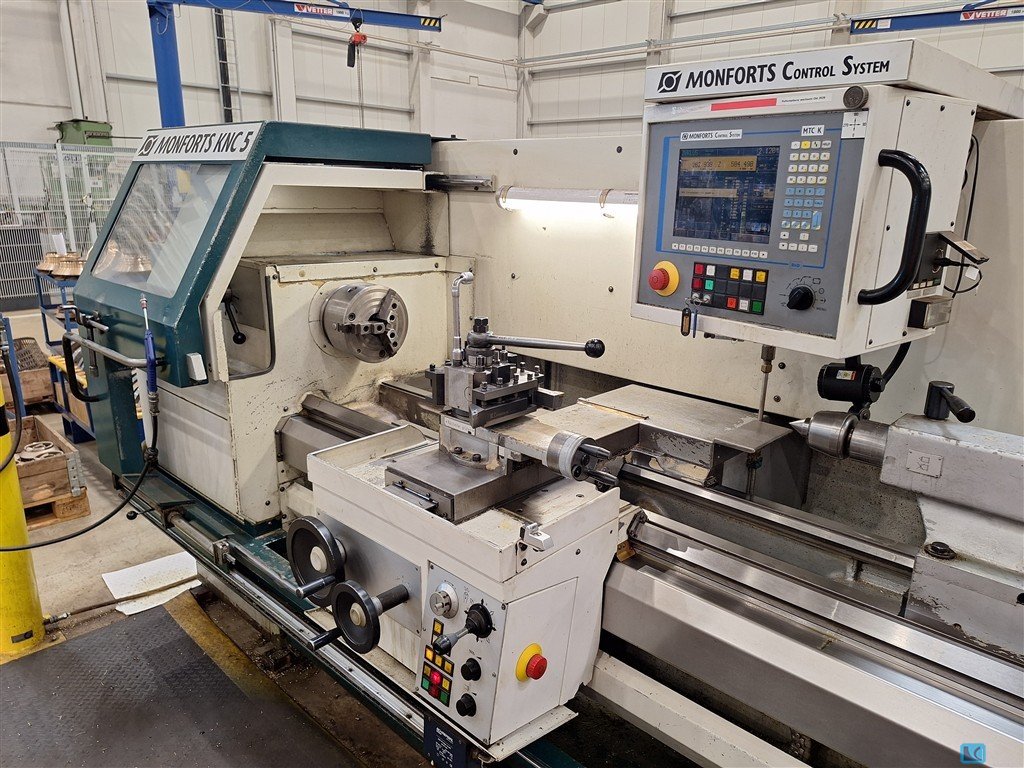

MONFORTS KNC 5 1500 ist eine CNC-Drehmaschine (Zyklendrehmaschine) für Präzision, hohe Genauigkeit und Zuverlässigkeit. Kapazitäten: Spitzenhöhe 250 mm, Spitzenweite 1500 mm, Dreh-Ø über Planschlitten 290 mm, über Bett 500 mm, Planweg (X) 265 mm, Pinolenhub 160 mm (Ø 80 mm). Technische Daten: Spindel 3 Stufen 3–2800 t/min, Eilgang X 5 m/min Z 10 m/min, Spindelmotor 16,5 kW, Anschluss 3x 400 V 50 Hz, Gesamtleistung 16 kVA, Gewicht ca. 3000 kg. Zubehör: 3-Backenfutter ROTA-S Ø 250 mm, 4-Backenfutter Ø 250 mm, weiche/harte Backen, mitlaufende Lünette, Reitstock, Kühlmitteleinrichtung, RS232, Späneförderer, Satz Stahlhalter, Werkzeughalter. Erreicht enge Toleranzen; geeignet für Automotive, Luftfahrt, Medizintechnik, Feinmechanik und Werkzeugbau. Technische Daten ohne Gewähr

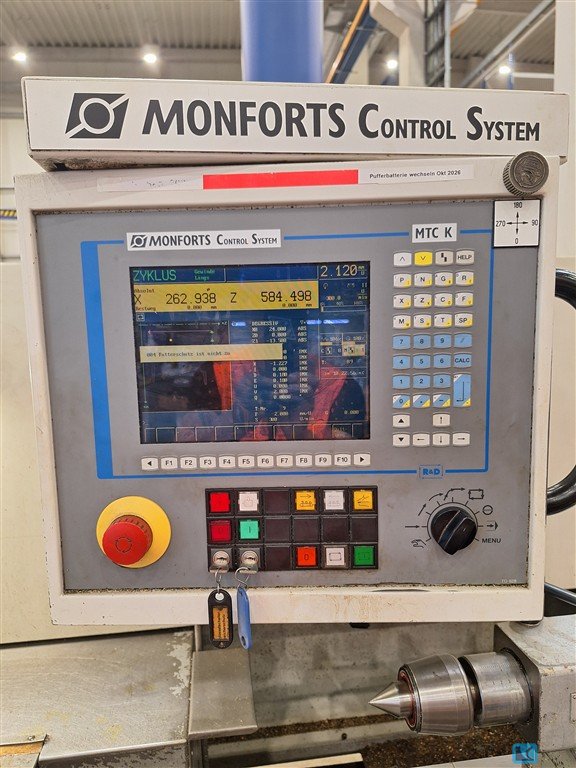

CONTROLES CNC Teach In Controles MONFORTS MTC-K RANGO DE TRABAJO TORNEADO Diámetro del giro (máximo): 500 mm Diámetro de giro (máximo): 290 mm longitud máxima de la pieza de trabajo: 1500 mm REVOLUCIONES DEL HUSILLO PRINCIPAL (MIN): 3 /min revoluciones del husillo (máximo): 2800 /minDIMENSIONES / PESOS requisitos de espacio -izquierda/derecha-: 3325 mm requisitos de espacio -delantero/trasero-: 1550 mm altura total: 1740 mmACCESORIOS (TORNEADO) REVERSA: SÍ Normas europeas CE: Sí
Monforts DNC 3Year of manuf. : 2000 Control : Siemens 840D - Powerline Turning diam. : 150 mm____________Description:Mainspindle:Speed:5.000 rpmPower (max.):25 kWTorque (max.):263 NmBarcapacity:65 mmSubspindle:Speed:5.000 rpmPower (max.):25 kWTorque (max.):263 NmToolcarrier I (X/Z):Technology:Turret with 12 stationsTaper:VDI 30Tooldrive:4.500 rpmMovement in X/Z:170/445 mmRapid travers in X/Z:24/30 m/minToolcarrier II (X/Z):Technology:Turret with 12 stationsTaper:VDI 30Tooldrive:4.500 rpmMovement in X/Z:170/445 mmRapid travers in X/Z:24/30 m/minEquipment/Accessory:Chipmanagement:Chip conveyorCoolingmanagement:Coolant pumpsRawmaterialfeed:Interface Barloader:Attention:Displayed Clamping devices and tools are NOT included in our offer!
Key data: 500 mm, 1000 mm
Diámetro circunferencial sobre la cama 500 mm, sobre soporte 290 mm Ancho central 1000 mm Rango de velocidad 1-3000 1/min, bayoneta de nariz de husillo Gr 8 Diámetro del husillo 70 mm Quill de la pala MK 5 / carrera 160 mm Incl. Control MTC K, placa frontal Bisel fijo con cabezas enrollables Sistema de cabeza de soporte de acero Multifix C con 1 casete Configuración del refrigerante
Heavy-duty lathe, cycle-controlled lathe, lathe, center- and feed-screw lathe, center- and feed-screw lathe, CNC lathe -Control: Monforts Control System MTC K -Machine bed: hardened -Turning length: 1100 mm -Turning Ø over bed: 560 mm -Turning Ø over support: 300 mm -Spindle bore: Ø 60 mm -Spindle speeds: 2 - 2800 rpm -Key bar chuck: Schunk Ø 250 mm -Tailstock mount: MK5 -Drive: 16 kW -Accessories: Multifix tool holder, tools see photos -Dimensions: 1600/2860/H1830 mm -Weight: 3300 kg
Lathe Monforts RNC4 1988 y 1995 Lathe Monforts RNC 5 BJ 1992 Tornos Monforts RNC7 BJ 1992 y 1993
Ancho nominal: 3000mm, Rango de ancho de trabajo: 600mm-2800mm, Capas: 1, Número de cámaras: 6, Sistema de calefacción: Gas, suministro de aire: arriba/abajo, Máximo. Velocidad de trabajo: 100m/min, Disposición de cadenas: horizontal, Cilindros de refrigeración: 2, Padder: doble cilindro Matex 6000, Ventilador de escape: 1, Documentación disponible, Inspección in situ.
Este torno MONFORTS RNC 200A fue fabricado en el año 2000. Cuenta con un diámetro orbital máximo de 300 mm y una longitud de giro de 250 mm. El eje principal soporta un rango de velocidades de 50-6000 rpm, con un paso material de 42 mm. Equipada con 12 estaciones accionadas y rápidas velocidades de giro de 24 m/min en el eje X/Z, esta máquina garantiza operaciones de giro eficientes y precisas. La máquina MONFORTS RNC 200A que tenemos a la venta está lista para cubrir tus necesidades de producción. El ámbito de entrega no incluye un alimentador de barras. Contacta con nosotros para más información.
Peso de la máquina aprox.: 6,6 tControl: Monforts Control : 2 Distancia entre ejes: 3010 mmAltura central: 310 mmContrapunto: JA Refrigeración: JA Dimensiones de la máquina aprox.: 5000-1600 mmxmmxmmDiámetro interior del husillo: 70 mm: : Los datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.
turning diameter: 500 mm turning length: 1500 mm control: MONFORTS CONTROL control: SYSTEM EURO TURN turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,3 t dimensions of machine L x W x H: 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
