Torreta doble y husillo doble Controlador fanuc 31iA Diámetro del orificio del husillo principal 51 mm Longitud máxima de corte 125 mm Nariz del husillo A2-6 Velocidad del husillo 5000rpm Recorrido del eje B 635 mm Recorrido del eje X 190 mm Recorrido del eje X2 175 mm Recorrido del eje Y +/-40 mm Recorrido del eje Z 500 mm Recorrido del eje Z2 500 mm
usado
TORNO DE BARRA MIYANO BNJ 42S :::CARACTERÍSTICAS TÉCNICAS::: Modelo CNC: Fanuc - Versión CNC: 18iT - Potencia del husillo principal: 11Kw - Espacio libre de la barra del husillo principal: 42 mm Número de revoluciones del husillo principal: 5000 - Número de portaherramientas: 2 - Número de posiciones de la herramienta de la primera torreta: 8 - Número de unidades motorizadas de la primera torreta: 8 Recorrido del eje X de la primera torreta: 142 mm Recorrido del eje Z de la primera torreta: 250 mm Número de ranuras para herramientas de la segunda torreta: 3 Número de posiciones fijas de la herramienta para la segunda torreta: 3 Subhusillo: sí Velocidad del subhusillo: 5000 Potencia contra husillo: 5.5Kw Espacio libre de la barra: 42 mm Contrahusillo de carrera Z: 250 mm Modelo y marca del alimentador de barras: LNS Hydrobar Mini Sprint Tr ...
usado
12 estaciones torreta principal (6 son conducidas) - 6 estaciones sub torreta - LNS sprint 552 barfeed nuevo en 2010 - Fanuc 21TB Control.
usado
Número de stock: 3782 Torno CNC Fabricante: MIYANO, Tipo: BNE-51S Máquina No. 98BX510077, Año de fabricación: 1998 Características técnicas: Diámetro máx. oscilación 51 mm de diámetro. Potencia del motor principal 11/7.5 kw Rango de velocidad del husillo principal 4000 rpm Diámetro a través del tubo de trefilado de 51 mm de diámetro. Movimiento del eje X 150 mm X2 Movimiento de ceniza 115 mm Movimiento de ceniza Z 380 mm Movimiento Z de 2 ejes 125 mm Torreta de herramientas 1 con 12 estaciones Estaciones motoras torreta 1 6 piezas. Torreta de herramientas 2 con 10 estaciones Estaciones motorizadas torreta 2 5 piezas Contrahusillo Contrahusillo de potencia del motor 5.5/3.7 Kw Subhusillo de pinza máx. 41 mm/diámetro Control FANUC 18T Fabr. Accesorios: Cargador Kama B4265 fabr. largo: 2600 mm + cargadores, altura ...
usado
Lns Sprint S2 barfeed - Fanuc 18-T Control
usado
This MIYANO BNE 51S Lathe was manufactured in the year 1999 and has 16102 production hours. It is equipped with a Fanuc 18T control unit and has 7 axis. The machine has a spindle speed of 54 - 4000 rpm.
usado

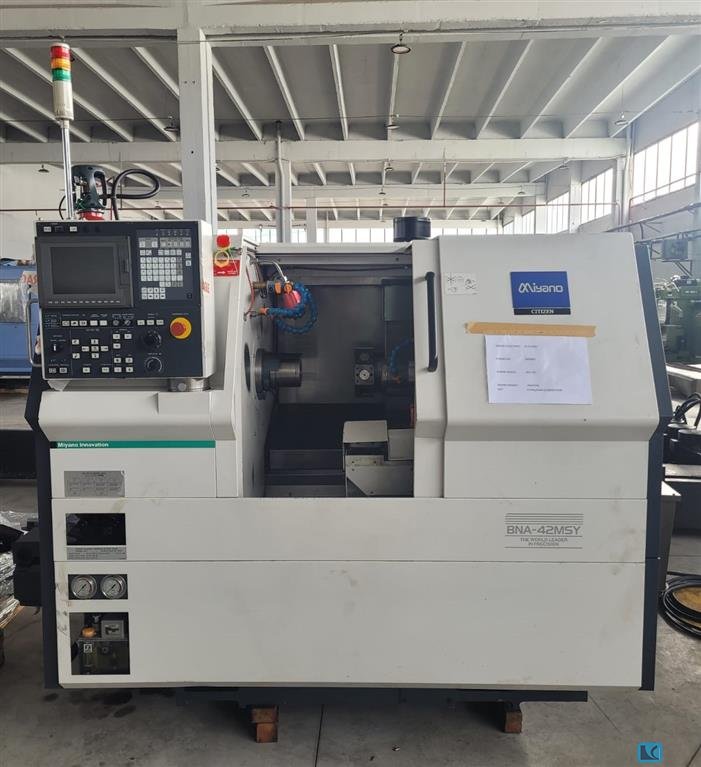

This Miyano BNA-42MSY2 Lathe was manufactured in the year 2017. It is equipped with a Mitsubishi M730VS control unit. The machine has a spindle speed of 6000 rpm.
usado
Miyano cnc lathe. Lathe with 2 spindles and motorized tools. Year-1995 Main spindle bar pitch diameter- 42 Sub-spindle collet (35 max) Revolutions -5000rpm Motorized collet -Max 12 Max. turning diameter- 114 S INCLUDES - Coolant tank: 160-Pieces collector-Pieces conveyor belt-LNS bar loader -I also delivered a new servo amplifier that I had for safety (A06b-6089-H206) valued at more than 1500 -And the Encoder of the main spindle bought new (more than 700) The price can be negotiated a little
usado
Máquina de alta precisión
usado
Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0 Positions APC: 0 CNC Brand: 0 CNC Model: 0 Control: YASNAC Operating hours: 1270 Technical data Number of axis total: 5 Table length: 610 mm Table width: 380 mm Longitudinal travel (X-axis): 350 mm Transversal travel (y axis): 300 mm Vertical travel (z axis): 250 mm Tool magazine number of tools: 15 Spindle nose: BT: 30 Distance spindle nose to table: 250 - 500 mm Spindle speeds: stepless from: 100 rpm up to: 16000 rpm Voltage 50 Hz 3x: 380 Volt Spindle power: 5.5 kW Total power required: 14 kW Machine´s weight about: 2000 kg Overall dimensions machine: Length: 1950 mm Width: 1500 mm Height: 2050 mm Various accessories: Dividing attachment 4th and 5th axis: NIKKEN Oil mist extractor: ELBARON Interface serial port RS 232
usado
Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0 Positions APC: 0 CNC Brand: 0 CNC Model: 0 Control: YASNAC Operating hours: 1446 Technical data Number of axis total: 5 Table length: 610 mm Table width: 380 mm Longitudinal travel (X-axis): 350 mm Transversal travel (y axis): 300 mm Vertical travel (z axis): 250 mm Tool magazine number of tools: 15 Spindle nose: BT: 30 Distance spindle nose to table: 250 - 500 mm Spindle speeds: stepless from: 100 rpm up to: 16000 rpm Voltage 50 Hz 3x: 380 Volt Spindle power: 5.5 kW Total power required: 14 kW Machine´s weight about: 2000 kg Overall dimensions machine: Length: 1950 mm Width: 1500 mm Height: 2050 mm Various accessories: Tool setter Dividing attachment 4th and 5th axis: NIKKEN Oil mist extractor: ELBARON Interface serial port RS 232
