Modelo
(Fabricante: MAYFRAN)
liter capacity: 980 l Pressure of pump: 8 / 20 / 80 bar control: Schütze / Contactors total power requirement: - kW weight of the machine ca.: 765 kg dimensions of the machine ca.: 2,3 x 2,0 x 1,8 m Coolant System MAYFRAM - DPF400-V980 SKD (BFU 980 /S/20+/8) - NEW, unused - universally applicable - can be controlled via contactors - incl. paper band filter - Number of pumps: 3 - Pump capacity: 4.0 kW, 2,917 rpm, 5.8 m³/h, 96.6 l/min, pressure 25 bar, max. temp. 90°C 3.0 kW, 3,514 rpm, 20.5 m³/h, 341.66 l/min, pressure 25 bar, max. temp. 90°C -.- kW, 2,864 rpm, 2.0 m³/h, 33.3 l/min, pressure 25 bar, max. temp. 90°C The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
liter capacity: 980 l Pressure of pump: 8 / 20 bar control: Schütze / Contactors total power requirement: - kW weight of the machine ca.: 560 kg dimensions of the machine ca.: 2,3 x 2,0 x 1,8 m Coolant System MAYFRAN - BFU 980 /S/20+/8 - NEW, unused - universally applicable - can be controlled via contactors - incl. paper band filter - Number of pumps: 2 - Pump capacity: 4.0 kW, 2,917 rpm, 5.8 m³, 96.6 l/min, pressure 25 bar, max. temperature 90°C -.- kW, 2,864 rpm, 2.0 m³/h, 33.3 l/min, pressure 25 bar, max. temperature 90°C The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used on a CNC vertical turning lathe | WEIGHT AND DIMENSIONS | Loading magazine dimensions: approx. 2200 x 710 x 1100 mm | Weight of loading magazine: approx. 250 kg | The machine can be viewed by appointment. | We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

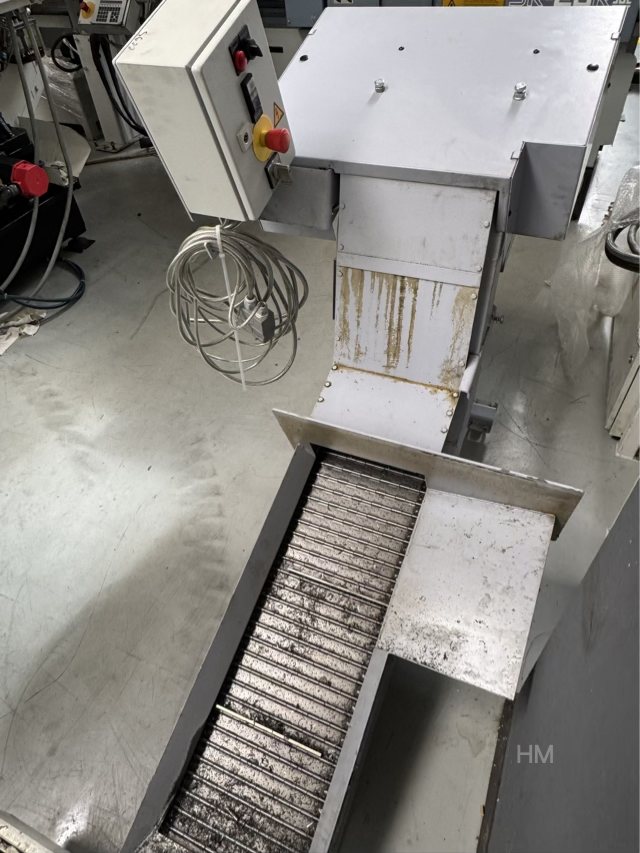

Transportador de cavacos de correia articulada Mayfran com tanque de refrigerante ampliado Estado: NOVO Comprimento total: 4,00 m Largura da dobradiça: 0,50 m Altura de elevação: 1.10m Largura total: 1.20m Tanque de refrigerante L: / W: / H: 3,20 x 1,20 x 0,25 m Chuveiro de mão Bomba para máquinas Bomba com tubagem
Transport length: 4700 mm band width: 450 mm dayligth: 500 mm width: 600 mm 0: 900 mm total power requirement: kW weight of the machine ca.: 2 t dimensions of the machine ca.: 6,7x0,6x1,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
