x-travel:850 mm y-travel:500 mm z-travel:610 mm rotary table::400 mm spindle turning speed range:12.000 1/min drive capacity - spindle motor:17/10 kW control:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 t total power requirement:28,5 kW dimensions of the machine ca.:3 x 2.70 x 3,2 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 400mm, 3D infrared touchprobe, el. handwheel, chipconveyor, airblast through spindle, internal coolant supply 40bar, flushgun, direct measuring system, approx. 38.000h "machine on", approx. 14.500h "spindle on"
travel -x axis:1000 mm travel -y axis:500 mm travel -z axis:610 mm turning speed range:8000 1/min weight:5,5 to. control:HEIDENHAIN iTNC 530 tool change unit:24 Pos. Tool bore:SK 40 table-size:1.200 x 500 mm max. table load:850 kg total connected load:37 kW space requirements approx. LxWxH:2,65 x 2,1 x 2,9 m vertical machining center, internal coolant supply, direct measuring system, prepared for 3D-touchprobe (without touchprobe), chioconveyor approx. 21.200h "machine on", approx. 1.300h "spindle on"
x-travel: 600 mm y-travel: 400 mm z-travel: 510 mm table-size: 800 x 400 mm Control: HEIDENHAIN iTNC 530 spindle turning speed - stepless: 12.000 U/min feed speeds - directly programable: 30.000 mm/min tool taper: ISO40 tool magazin:: 20 total power requirement: 25 kW weight of the machine ca.: 4,2 t dimensions of the machine ca.: LTH 3,5 x 2,1 x 2,95 m Control unit operating time: 32,790 hours. Spindle operating time: 10,310 hours. Includes Heidenhain electric handwheel. Includes electric touch probe. Includes internal coolant supply. Includes chip conveyor. Includes Gressel Gripos machine vise. Includes USB port. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 600 mm y-travel: 350 mm z-travel: 140 mm table surface area: 700 x 300 mm spindle taper ISO: 40 spindle turning speed range: 100 - 4000 U/min distance spindle center to column: 395 mm distance spindle nose and table: min. 170 -max. 550 mm control: TNC 407 milling feeds: 3 + 2000 mm/min rapid traverse: 5000 mm/min spindle drive: 5,5 kW total power requirement: 9 kW weight of the machine ca.: 1,9 t dimensions of the machine ca.: 2,5 x 1,8 x 2,2 m • control HEIDENHAIN TNC 407, The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

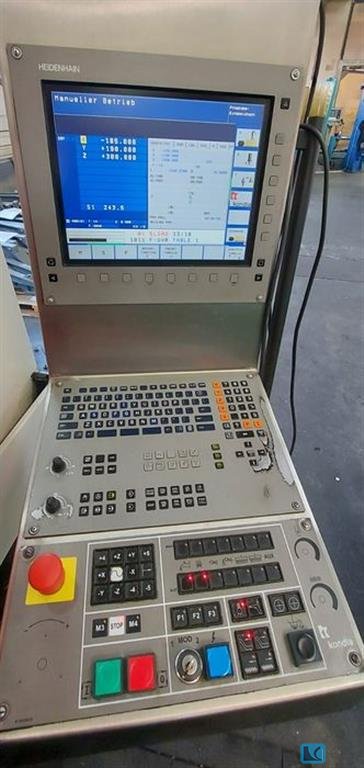

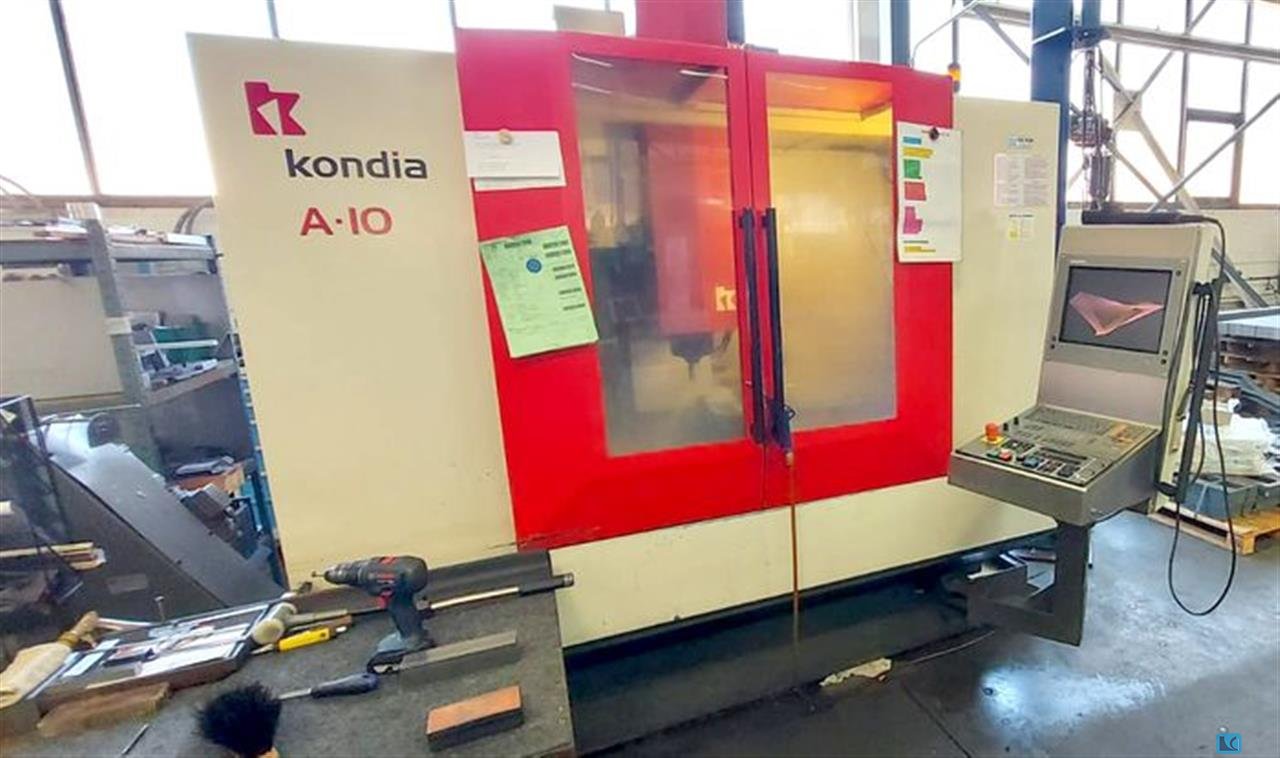

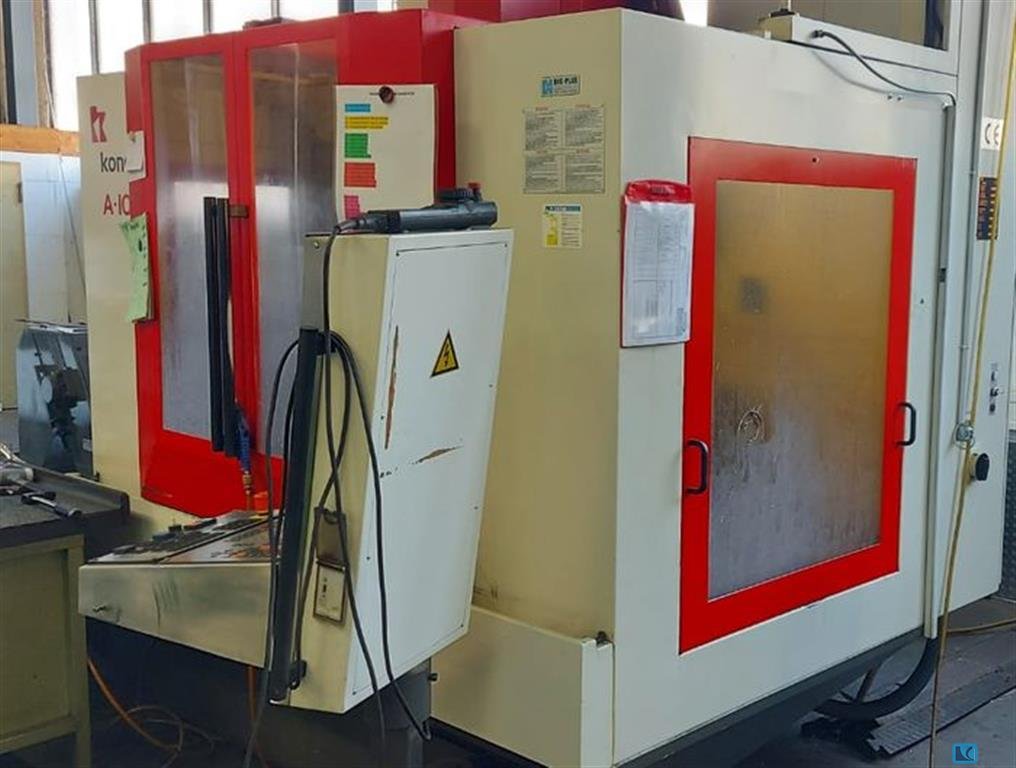

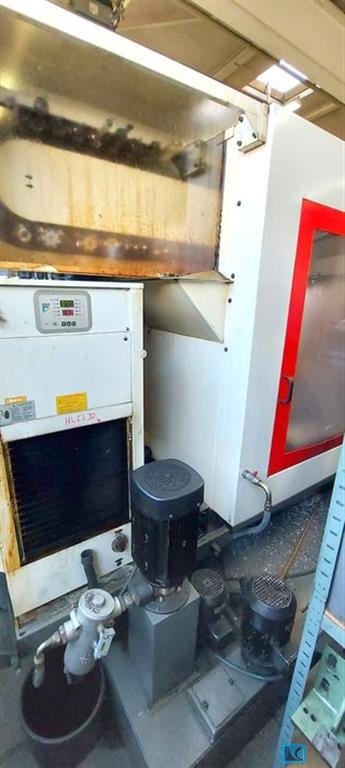

Fabricante KONDIA Modelo A-10 Año 2008 CNC HEIDENHAIN TNC 530 Mesa Superficie mesa 1.200 x 500 mm. Ranuras en T (nº, anchura, distancia) 5, 18, 100 mm. Distancia mesa -suelo 885 mm. Distancia mesa – nariz husillo (min/max) 140 / 750 mm. Peso máximo permitido sobre mesa 850 kg. Recorridos y avances Recorrido longitudinal (X) 1.000 mm. Recorrido transversal (Y) 500 mm. Recorrido vertical (Z) 610 mm. Avance rápido ejes X/Y/Z 30.000 mm./min. Cabezal Cono husillo ISO 40 DIN 69871 Velocidad máxima husillo 8.000 rpm Potencia Husillo 22/28 kW Cargador automático herramientas Tipo Cadena Cambio Ramdom Posiciones almacén 40 Anchura máxima de la herramienta con posiciones adyacentes libres 150 mm. Anchura máxima de la herramienta sin posiciones adyacentes libres 75 mm. Longitud máxima herramienta 300 mm. Peso máximo herramienta 6,5 kg Equipamiento Refrig ...
