Fixed side at the left
Feedspeed 18 - 25 m/min
Working width
min 60mm for panel thickness 22mm, 105mm for panel thickness
40mm
Panel overhang 30mm
Panel thickness 8 - 60 mm in stead of
12 - 40 mm (with limitations)
Coil edge thickness: 0,3 - 3 mm,
strips 0,4 - 20 mm
Coil diameter 830
mm
Equipment:
Sprayers release agent
Squaring device with
2 motors each 3 kW
Edge heating

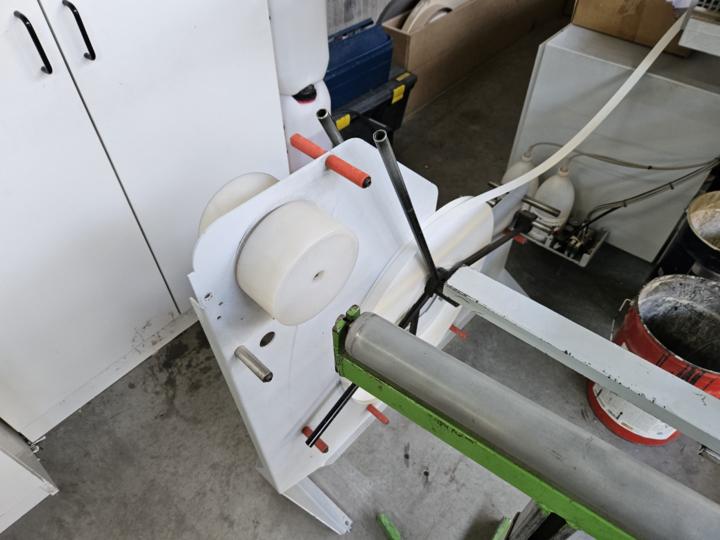

Edge magazine for 2 coils,
guillotine for edges up to 3 mm
Glueing part A20 with quickmelt
application
Lateral pressure zone K, 1 driven and 6 after pressing
rollers
End trims HL84, 2 motors each 0,8kW
Rough trimming, 2
motors 1,5kW
Contour trimming, 2 exchange units
Profile
scraping PN10
Flat scrapers FA11
Sprayers cleaning
agent
Buffing
Automation package
straight/chamfer:
-Automatic adjustment infeed
fence
-Automatic setting of pressure rollers
-Pneumatic
setting of end trims
-Pneumatic setting of rough
trims
-Automatic setting of chamfer/radius on the contour
trims
-Pneumatic setting of profile and flat scraping
units
-Electronic height positioning
ZHR 05/L/085
(construction year 2001)
Return conveyor for panels coming
out of a single sided shaping or edge banding machine with fence at
the left and with a length of approx. 8,5 m.
Max. panelsizes:
2000 x 800 mm., min. 300 x 150 mm.
At the machine outfeed, a
tilting air flotation table brings the panels on the return conveyor
belt
Long panels pass a fence roller which turns them lengthwise
on the return belt
