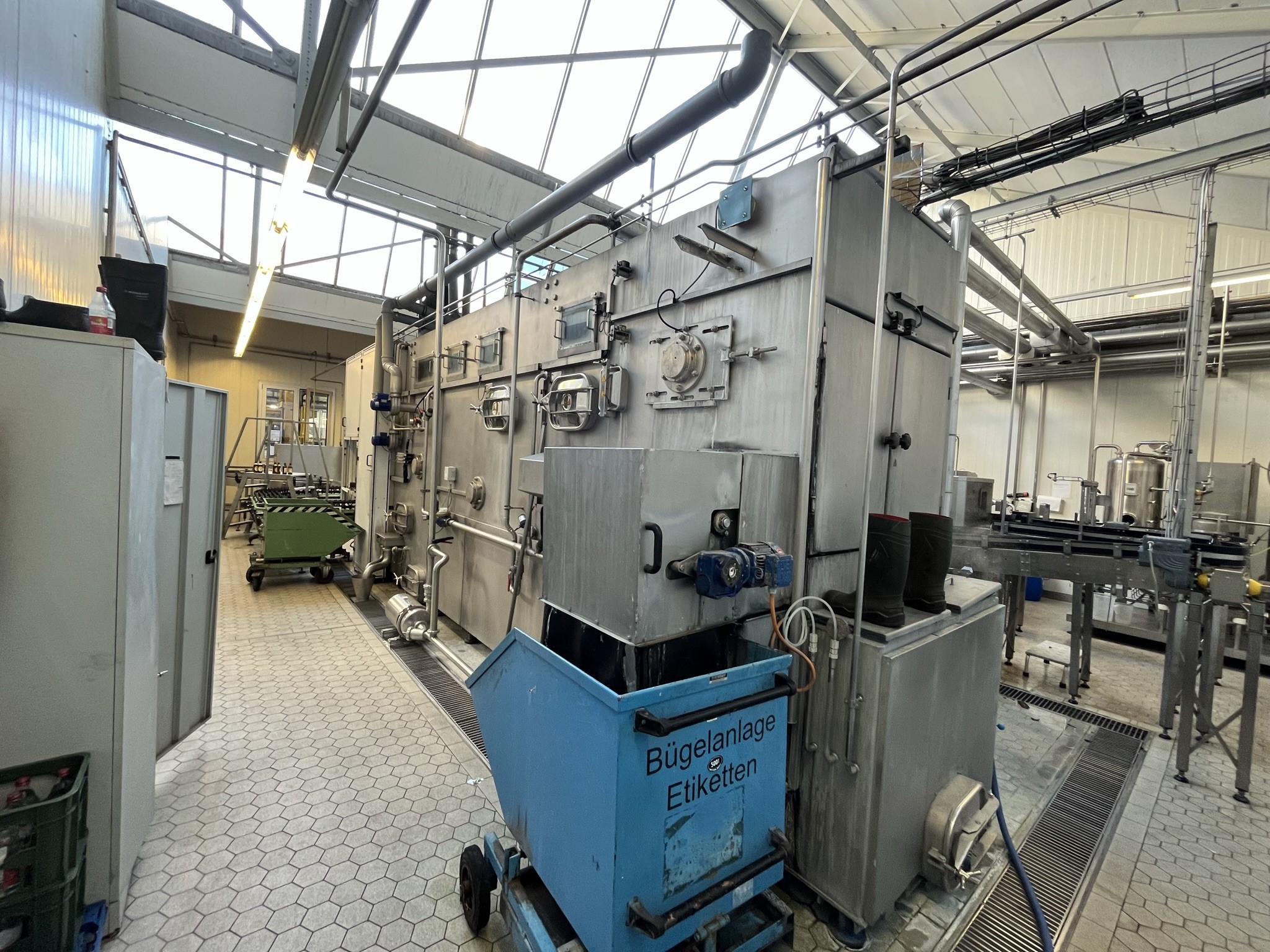

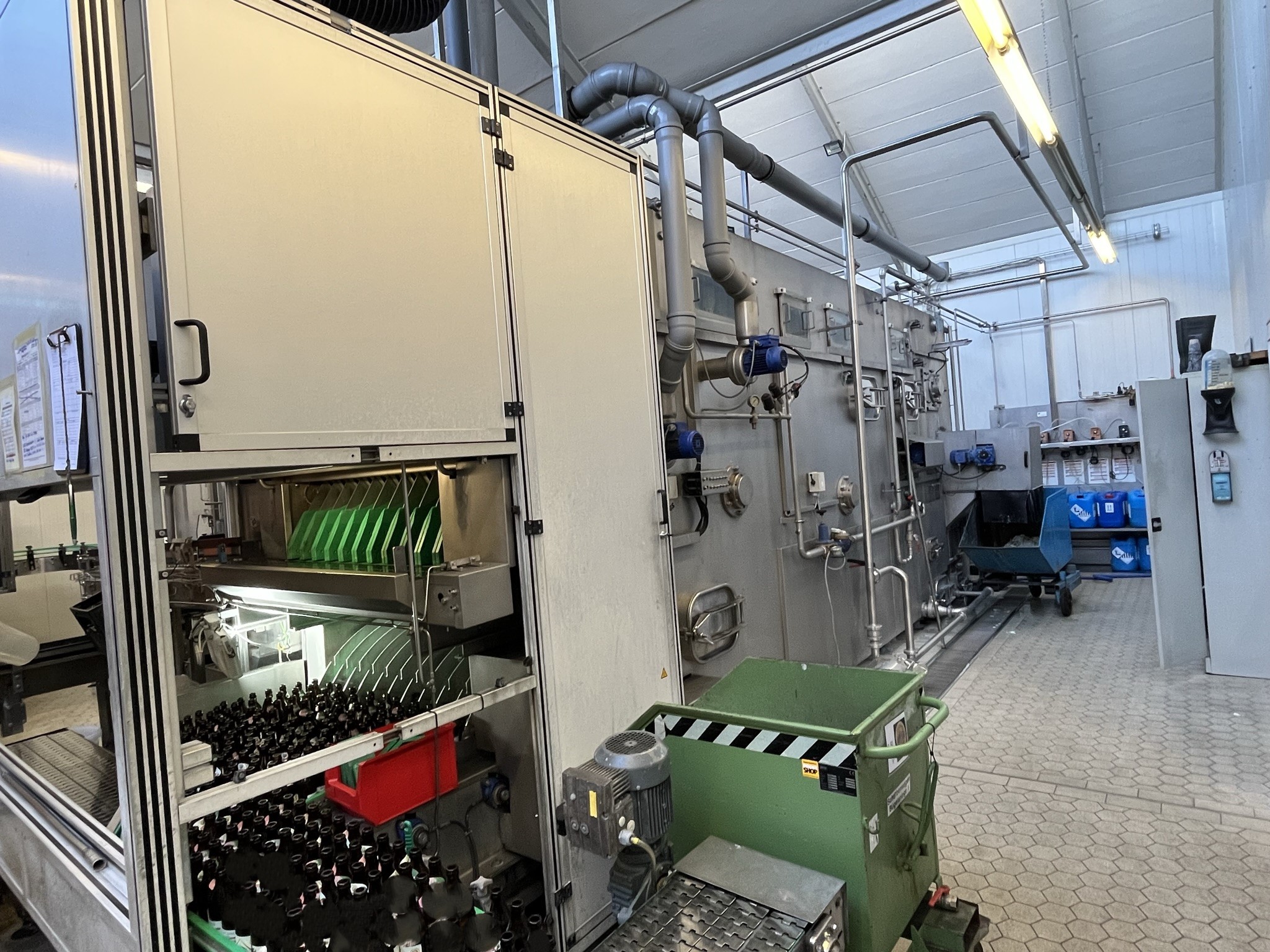

Overview This ARCADE GEL 6 bottle washer was built in 2010 by the German manufacturer GM Gera. The machine is still in operation and can be inspected in person at any time. The ARCADE GEL 6 is fully functional and must be replaced due to an increase in performance. Technical details Nominal output: 33,000 bph Control range: 13,200 - 36,300 bph Chain pitch: 169 mm Cell pitch: 110 mm Bottle cells per row: 30 pieces Total bottle cells: 7,860 pieces Bottle cells, loaded: 7,680 pieces Consumption Compressed air: 1m³ Steam (operation): 489 kg/ h Steam (heating): 4,430 kg/ h Electrical power: 48.4 kW Water: 7.35 m³/ h Bath volume Pre-soak: 2,263 l Pre-caustic: 7,240 l Caustic 1: 31,755 l Caustic 2: 350 l Hot water 1: 350 l Hot water 2: 350 l Cold water: 350 l
Overview The bottle washer was previously used in a brewery. Due to the low number of operating hours, the machine is in very good condition, like new. It was replaced, as the previous owner wanted to run bottle formats, which did not fit this machine. All basins and the machine body are made of stainless steel. The machine is already disassembled and dry stored, so that it can be easily loaded and transported. The machine comes with 12months warrantee. Tech Specs: Capacity: 9,500 bph Cell Pitch: 95 mm Bottles per row: 25 Dimensions + Weights: Housing: 7,162 x 2,740 x 2,500 mm / 18,806 kg Ready for operation with attachments: 7,162 x 3,540 x 2,730 mm / 31,563 kg YOM 2024 Formats: 0,25l 0,33l 0,5l 0,75l The Machine in Detail / Equipment Features: Heated by steam Pre Cleaning and removal of residual liquids by pulsed rinsing prior to washing CE certified Chemical Dosing Pumps Machin ...
Dostępny jest system czyszczenia butelek GM Gera. Wydajność z butelkami PET 1l: 13000 butelek/h, kuwety butelkowe: 3240 sztuk, komórki w rzędzie koszy: 18, rozstaw ogniw: 110mm, podziałka łańcucha: 169mm, całkowity czas obróbki: ok. 15min, całkowity czas zanurzenia: ok. 7,5min, materiał obudowy: stal nierdzewna (SST). Wymiary systemu X/Y/Z: ok. 8900mm/4200mm/3350mm, waga: ok. 23650kg, godziny pracy (09.2025): ok. 14300h. Dostępna dokumentacja. Możliwa jest wizja lokalna. Oczekuje się, że będzie dostępny od połowy marca 2026 r.
