max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm

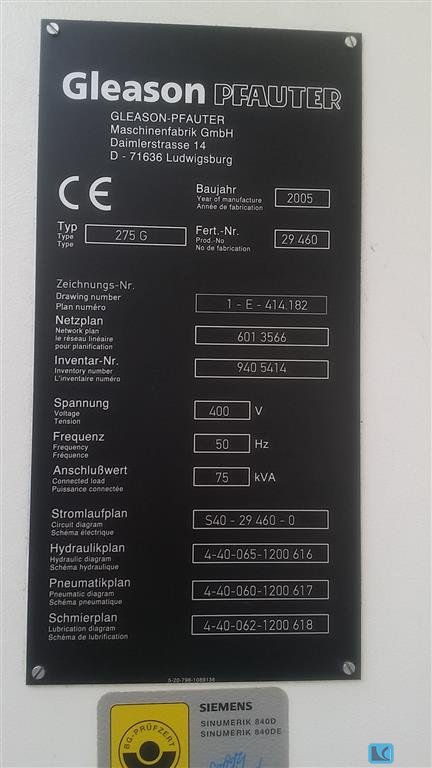

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5
max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

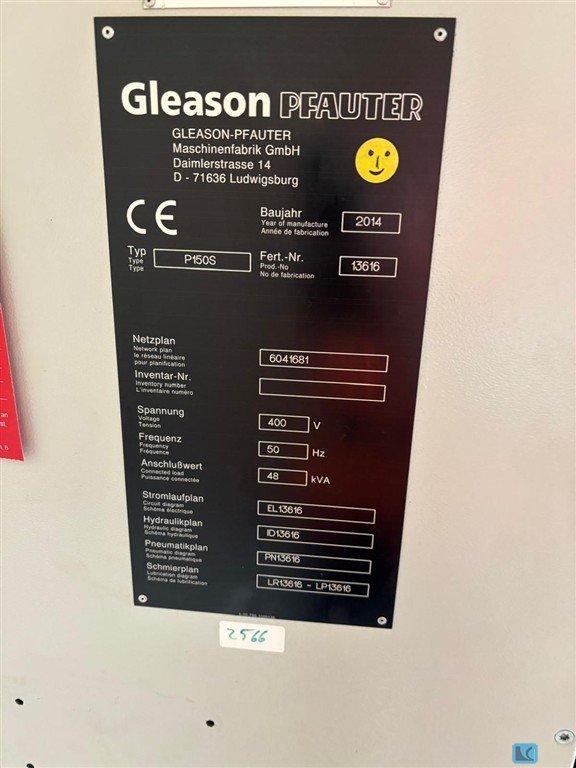

max. wheel diameter:130 mm gear width:170 mm max. module:3 min. module:0,5 total power requirement:48 kVA weight of the machine ca.:9 t dimensions of the machine ca.:7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed
max. wheel diameter:200 mm gear width:50 mm max. module:6 table diameter:168,14 mm boring diameter:65,532 mm weight of the machine ca.:11 t table turning speeds:0-1.000 U/min length of stroke min./max.:0-70 mm no. of strokes:180-1.800 Stück

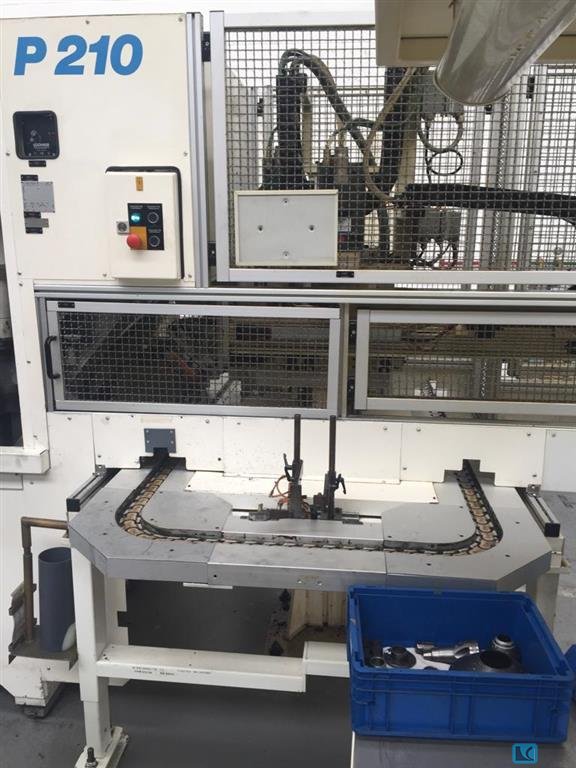

Infeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.
cone distance min./max.: 0-108 mm Pitch angle min/max: 5°/84° Control: GE Fanuc Series 0-GC Pitch diameter (1:1 ratio): 152 mm pitch diameter (10:1 ratio): 216 mm Diametral pitch (finest/coarsest): 1.3/8.5 Mod. Face width gear wheel max.: 35 mm Knife spindle - Speed range: 41-121 U/min working spindle speed range: 0-33.33 U/min weight: 9025 kg dimensions of the machine ca.: 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
This 5-axis Gleason PFAUTER G320 CNC + Promot Automation was manufactured in 2001. It features a Siemens 840 control unit, a maximum workpiece diameter of 380 mm, and a module range of 0.5-7.0. The system includes Promot Automation handling, a robotics system, and a cooling belt system. If you are looking to get high-quality gear grinding capabilities consider the Gleason PFAUTER G320 CNC machine we have for sale. Contact us for more information about this machine.
max. wheel diameter: 2800 mm gear width: - mm max. module: 20/30 min. module: Control: Siemens 840 D total power requirement: 40 kW weight of the machine ca.: 50 t The machine has only a few working hours and is like new. With internal milling head. Note: If you require an external milling head, we can offer it separately. - The price of the new machine of this caliber is 2.3 million Euro. - With minimal operating hours, the machine is essentially new. - It is one of Gleasons largest machines - It has the possibility of dry or wet milling, and internal and external gearing. - The machine underwent a comprehensive manufacturers inspection in July 2023 and is in impeccable working order. - Machine is currently partially assembled to allow potential buyers to verify all functionalities. If you wish to see the machine in operation, we have two identical machines running in our produc ...
max. wheel diameter: 130 mm gear width: 25 mm max. module: 4 min. module: 0,5 Control: Siemens 840 D strokes - infinitely variable: 500-2500 Hub/min stroke: 30 mm work-spindle diameter: 85 mm total power requirement: 49 kW weight of the machine ca.: 11,5 t dimensions of the machine ca.: 6,4x4,5x4,4 m Counterhold without center hydraulically operated counter arm and Linear guides. For automatic ring loader, with 4 stations The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Máquina de moagem Máquina de moagem Gleason Pfauter G320 CNC + Promot Automation Hersteller [fabricante]: Gleason Pfauter G320 + com unidade de manuseio Promot Automation Tipo [ tipo]: G 320 Unidade de controle: Siemens 840 Painel de controlo Baujahr[ano de construção]: 10/2001 Módulo [ ]: 0.5-7.0 Diâmetro mínimo da peça [ ]: 10 mm Diâmetro máximo da peça [ ]: 380 mm Número de dentes [ ]: 10-600 Curso vertical do carro "Z" [ ]: 200mm Curso de carro horizontal "X" [ ]: 230mm Curso tangencial da carruagem (SHIFTING) "Y" [ ]: 135mm Cabeça de fixação angular giratória "A" [ ]: +-45 Curso da ponta da cauda [ ]: 125mm traço deslizante tangencial – curativo [ ]: "V" 180mm curso de carruagem radial – curativo [ ]: "U" 110mm Velocidade de rotação – rebolo em curso [ ]: 3000rpm max - infinitamente variável Velocidade do ovo - eixos lineares [ ]: 1000 ...
max. wheel diameter: 3000 mm gear width: 1200 mm max. module: 30/40 min. module: 2 table diameter: 2500 mm table load capacity: 400 kN hob dia. - max.: 450 x 500 mm milling spindle speeds: 10 - 165 U/min hob length max.: 500 mm tip circle diameter: 2050 mm tooth helical angle min/max: 0 - 45 ° center distance betw. workpiece-tool min/max.: 150 - 1750 mm milling slide swivelling: 50 Grad distance table / counter stay: 1050 - 2050 mm shifting: 300 mm workpiece weight: 40 t table bore diameter: 800 mm depth of hole: 1100 mm main drive motor: 37 kW min. workpiece diameter: 290 mm min. number of teeth: Wälzfräsen 20 min. number of teeth: Formfräsen 2 taper: MK 100 feeds axial: 1 - 1800 mm/min radial feed: 1 - 500 mm/min feed: Tangential 1 - 450 mm/min rapid traverse: 1875 / 530 / 470 mm/min electrics - voltage/frequency: 380 / 50 V/Hz control: Siemens Sinumerik 3M total power requirement: ...
