168 GILDEMEISTER máquina utilizada para venda

DMG GMX 300 linear year 2008. GMX 300 LINEAR with turning length 1585 mm (tailstock 1500mm) control: Siemens 840D Powerline Hours in picture The DMG GMX 300 Linear is a high-performance machine tool designed for complex turning and milling tasks, often used in industries such as aerospace, automotive, and precision engineering. Here are the key features and specifications for a 2008 model: Key Features: - Type: The GMX 300 Linear is a turn-mill machine, which combines both turning and milling operations in one setup, improving efficiency and reducing setup times. - Linear Motors: Equipped with linear motors for high-speed movements, which provide increased precision, dynamic performance, and reduced wear compared to traditional ball screw systems. - Axes: It usually offers multiple axes (up to 9), enabling simultaneous multi-axis machining for producing complex parts in a single se ...

This Gildemeister Sprint 20-8 was manufactured in 2010. It features a cooling system with a 600l capacity and 50µm filter, alongside a high-pressure pump option of 8 or 20 bar. The machine includes a Bristol B270/E oil mist separator and an IEMCA Boss 332E bar loader for 3m bars. With a chip discharge height of 1,250mm, its designed for efficient operation. Contact us for more information about this machine.

CONTROLS   CNC controls FANUC 160 I BASIC FUNCTIONS   number of spindles: 2   number of c-axes: 2 WORKING RANGE TURNING   swing diameter (max): 42 mm   turning diameter (max): 42 mm   bar diameter (max): 42 mm MAIN SPINDLE   spindle revolutions (max): 6500 /min COUNTER SPINDLE   spindle revolutions (max): 6500 /min X/Z SLIDE   X-axis travel: 65 mm   Y-axis travel: 350 mm   rapid traverse Z: 30000 mm/min   rapid traverse X: 30000 mm/min   rapid traverse Y: 30000 mm/min X/Z SLIDE   Z-axis travel: 320 mm   X-axis travel: 265 mm   Y-axis travel: 326 mm   rapid traverse Y: 30000 mm/min ELECTRICAL SPECIFICATIONS   mains power supply: 54 kVA   mains voltage: 400 V   mains frequency: 50 Hz DIMENS ...

CONTROLS   conventional BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   turning diameter (max): 20 mm   bar diameter (max): 20 mm   worpiece length max.: 100 mm MAIN SPINDLE   spindle revolutions (min): 214 /min   spindle revolutions (max): 5168 /min   number of gears: 81   drive power: 11 kW DIMENSIONS / WEIGHTS   space requirements -left/right-: 6000 mm   space requirements -front/back-: 2000 mm   total weight approx.: 5600 kg Technical Data - Max. diameter of hexagonal rods: 17 mm - Max. diameter of square rods: 14 mm - Max. stroke of sidecars: 42 mm - Forward and backward movement of sidecars: +/- 8 mm - Max. stroke of axial carriages: 50 mm - Forward and backward offset of axial ca

CONTROLS   conventional BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 20 mm   turning diameter (max): 20 mm   bar diameter (max): 20 mm MAIN SPINDLE   spindle revolutions (max): 5168 /min ELECTRICAL SPECIFICATIONS   total power consumption: 11 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5680 mm   space requirements -front/back-: 1400 mm   total weight approx.: 5000 kg tech. details: - max diameter hexagonal bars 17 mm - max diameter square bars 14 mm - max advancement bars 100 mm - max stroke axial carriages 50 mm - Offset of axial carriages forwards and backwards +/- 8 mm - Max stroke tool holder spindles 86 mm - Offset of tool spindles forward and backward +/- 11  ...

CONTROLS   PLC SIEMENS BASIC FUNCTIONS   number of spindles: 6

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 48 mm   turning diameter (max): 48 mm   bar diameter (max): 48 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 180 /min   spindle revolutions (max): 2120 /min ELECTRICAL SPECIFICATIONS   total power consumption: 17.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6130 mm   space requirements -front/back-: 1400 mm   total weight approx.: 10200 kg ATTACHMENTS (TURNING)   - bar diameter (max): 48 mm - max diameter hexagonal bars 42 mm - max diameter square bars 34 mm - max advancement bars 225 mm - Trigger thread head up to approx. ...

CONTROLS   conventional BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   turning diameter (max): 20 mm   bar diameter (max): 20 mm   worpiece length max.: 100 mm MAIN SPINDLE   spindle revolutions (min): 214 /min   spindle revolutions (max): 5168 /min   number of gears: 81   drive power: 11 kW X/Z SLIDE   number of tool positions (total): 12 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6000 mm   space requirements -front/back-: 2000 mm   total weight approx.: 5600 kg Technical Data - Max. diameter of hexagonal rods: 17 mm - Max. diameter of square rods: 14 mm - Max. stroke of sidecars: 42 mm - Forward and backward movement of sidecars: + ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 48 mm   turning diameter (max): 48 mm   bar diameter (max): 48 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 180 /min   spindle revolutions (max): 2120 /min   number of gears: 2   continuous speed variation: no ELECTRICAL SPECIFICATIONS   total power consumption: 17.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6130 mm   space requirements -front/back-: 1400 mm   total weight approx.: 10200 kg Technical Data - Maximum diameter of hexagonal bars: 42 mm - Maximum diameter of square bars: 34 mm - Maximum feed rate: ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 48 mm   turning diameter (max): 48 mm   bar diameter (max): 48 mm MAIN SPINDLE   spindle revolutions (min): 180 /min   spindle revolutions (max): 2120 /min ELECTRICAL SPECIFICATIONS   total power consumption: 17.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6130 mm   space requirements -front/back-: 1400 mm   total weight approx.: 10200 kg tech. Details - max diameter hexagonal bars 42 mm - max diameter square bars 34 mm - max advancement bars 225 mm - max length shooting 125 mm - max stroke longitudinal carriages 150 mm - Trigger thread head up to approx. M27 - Number of  ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   turning diameter (max): 32 mm   bar diameter (max): 32 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 260 /min   spindle revolutions (max): 3080 /min   number of gears: 2 ELECTRICAL SPECIFICATIONS   total power consumption: 14 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5750 mm   space requirements -front/back-: 1300 mm   total weight approx.: 8200 kg Machine completely overhauled and NEW (still in packaging) Technical Data - Max. hexagonal bar diameter: 28 mm - Max. square bar diameter: 22 mm - Max. longitudinal slide stroke: 125 mm - Extraction thread u ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 32 mm   turning diameter (max): 32 mm   bar diameter (max): 32 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 260 /min   spindle revolutions (max): 3080 /min ELECTRICAL SPECIFICATIONS   total power consumption: 14 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5750 mm   space requirements -front/back-: 1300 mm   total weight approx.: 8200 kg tech. details: - max. diameter hexagonal bars 28 mm - max. diameter square bars 22 mm - max advancement bars 175 mm - max length shooting 100 mm - max stroke longitudinal carriages 125 mm - Trigger t ...

diâmetro de giro: 200 mm comprimento de giro: 635 mm controle: SIEMENS 840D Powerline grandes passar em volta sobre a cama: 250 mm eixo faixa de velocidade de giro: 20-7000 U/min cabeça da torre: 2x 12 peso da máquina ca.: 10 t Eixos Y- & B- Acessórios diversos Mais detalhes sobre

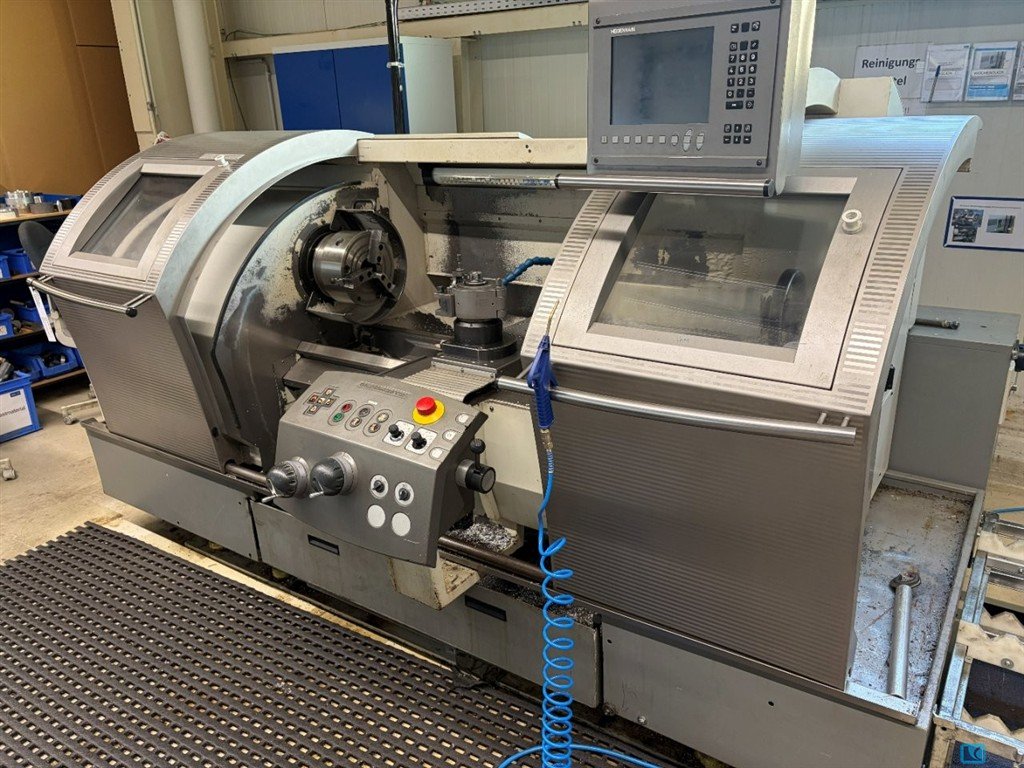

diâmetro de giro: 212 mm comprimento de giro: 750 mm controle: HEIDENHAIN Manual Plus velocidade de giro do eixo - stepless: 10-4000 U/min cabeça da torre: 8 Peso estacionário da máquina ca.: 2 t dimensões da máquina ca.: 2,85 x 1,65 x 1,80 m

N.º : 8637 Tipo: MF SPRINT 65 Produtor: Gildemeister Criado: 1999 Parâmetros: Sistema de controle: Siemens Diâmetro máximo de giro: 200 mm

Controlo Fanuc Diâmetro de giro ... 380 milímetros Eixo X ... 151 milímetros Eixo Z ... 339 milímetros Diâmetro circunferencial via suporte ... 290 milímetros Velocidade do eixo ... 20-6000 rpm. Peso da máquina ... 4200kg Potência do motor principal ... 7,5 kW L x W x H ... 2885/3865x1720x1670milímetro A máquina está em boas condições, é possível testar sob potência.

N.º : 8232 Tipo: Twin 42 Produtor: Gildemeister Criado: 2002 Parâmetros: Sistema de controle: Siemens Sinumerik Horas de ligação: 80654 h Horário: 33758 h Comprimento máximo de giro: 650 mm Diâmetro máximo de giro sobre a cama: 250 mm Diâmetro máximo de giro sobre o suporte: 120 mm Comprimento máximo do curso no eixo X: 300 mm Comprimento máximo do curso do eixo Z: 650 mm Velocidade máxima do eixo: 7000 1/min Comprimento: 4770 mm Largura: 2220 mm Altura: 1950 mm Peso: 5500 kg Equipamento: Ferramentas motorizadas Alimentador de barras

Controle Siemens ... Sinumerik 840 D Diâmetro de giro ... 365 milímetros Comprimento de rotação ... 450 milímetros Cama inclinada Furo de fuso ... 52 milímetros Torreta de ferramentas ... 12/6 Velocidade do eixo ... 0-6000/min. Potência do motor principal ... 12/16kW Eixo C ... 360° Diâmetro máximo da haste ... 60 milímetros L x W x H ... 4000 x 1640 x 1730 milímetros Peso da máquina ... 3500kg A máquina está em boas condições, possível de testar sob eletricidade.

Gildemeister Twin 65 Y - RG2Year of manuf. : 2007 Control : Siemens 840 D Turning diam. : 250 mmTurning length : 650 mm____________Description:In General:Year of construction:2007Control:Siemens 840 DBar capacity:65 mmTurning diameter:350 mmTurning length:650 mmMain spindle:Technology:Motor spindleSpeed:5,000 rpmPower max.:35 kWTorque max.:370 NmC-axis:0.001Bar capacity:65 mmChuck:Hainbuch Spanntop size 65Clamping cylinder:Hollow clamping cylinderSub spindle:Technology:Motor spindleSpeed:5,000 rpmPower:26 kWTorque:290 NmC-axis:0.001Chuck:Hainbuch Spanntop size 65Clamping cylinder:Partial hollow clamping cylinderZ-axis:670 mmX-axis:175 mmTool carrier i (X/Y/Z):Technology:Tool turret, 12 stationsTool holder:VDI 30Tool drive:4,000 rpm, 11 kW, 28 NmX-axis:300Y-axis:80 mm ( +/- 40 mm)Z-axis:650 mmTool carrier II (X/Z):Technology:Tool turret, 12 stationsTool holder:VDI 30Tool drive:4,000 ...

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t

turning diameter:500 mm turning diameter over bed:500 mm turning dia. over base-slide:290 mm centre distance:1000 mm centre height:250 mm z-travel:1350 mm speeds:10 - 3000 U/min

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) An independent feed is installed at position 1 A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Torno CNC Fabricante: Gildemeister Gêmeo tipo 42 Ano de fabrico 2005 Controlo Siemens 840D Comprimento de torneio 210mm Torre de 2 x 12 dobras, todos os locais são alimentados Locomotiva A 83700 Fuso A 50809 A máquina tem um defeito no eixo do captador, provavelmente um rolamento Com o carregador de barra Breuning Profimat
