60 GEA máquina utilizada para venda

GEA Tuchenhagen Laugetank Isolado Conteúdo: 21.490 litros usado- em muito bom estado UNI-DACH Dimensões e peso: O Ges. Altura: 5600 mm O Zyl. Altura: 4200 mm Diâmetro: fora de 2800 mm, com flange 2900 mm Peso: kg Superfície: 2B=IIIC Solo principal: - Com a central da tampa do cone - Com Mannloch DN 500 - Com manga 1/2" para detetor de nível - Com 2 ilhões de guindaste - Com tubo de encaixe DN 50 - Com bocal de inlet DN 150 - Com bocal central DN 50 Fundo do cilindro: - Com 10 cm de isolamento - Com ligação flange de 200 mm, 8 parafusos Corpo inferior: - Com saída residual DN 65 - Com manga 1/2" - Com 4 pés de calotte

Pacote de enchimento GEA Planta de degaseamento de água de vácuo / planta de degassing. Capacidade 30.000 litros/hora Teor residual de oxigénio de 0,5ppm O2/l com um teor de oxigénio de entrada de 10-12mg O2/ltr e uma temperatura da água de 10-12C, Dimensões 260 x 220 x 290 cm

Aquecimento com água quente e permutador de calor. Filtros de ar e caixas de distribuição. Tipo 0720.25.20 I. Máquina número 918005

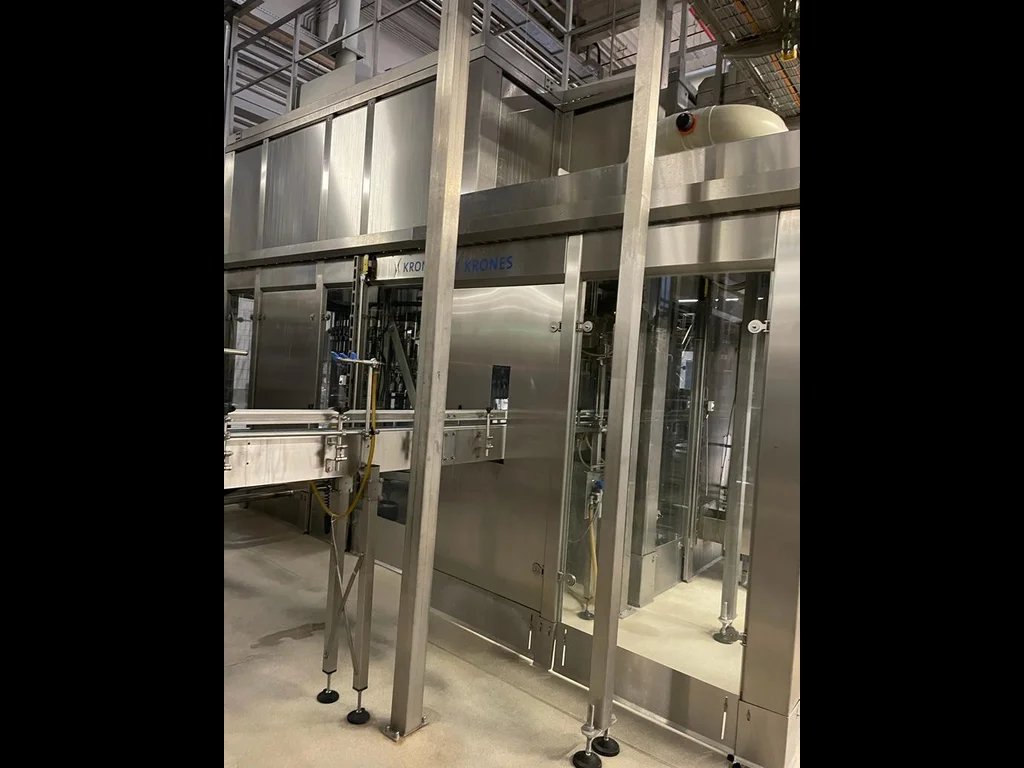

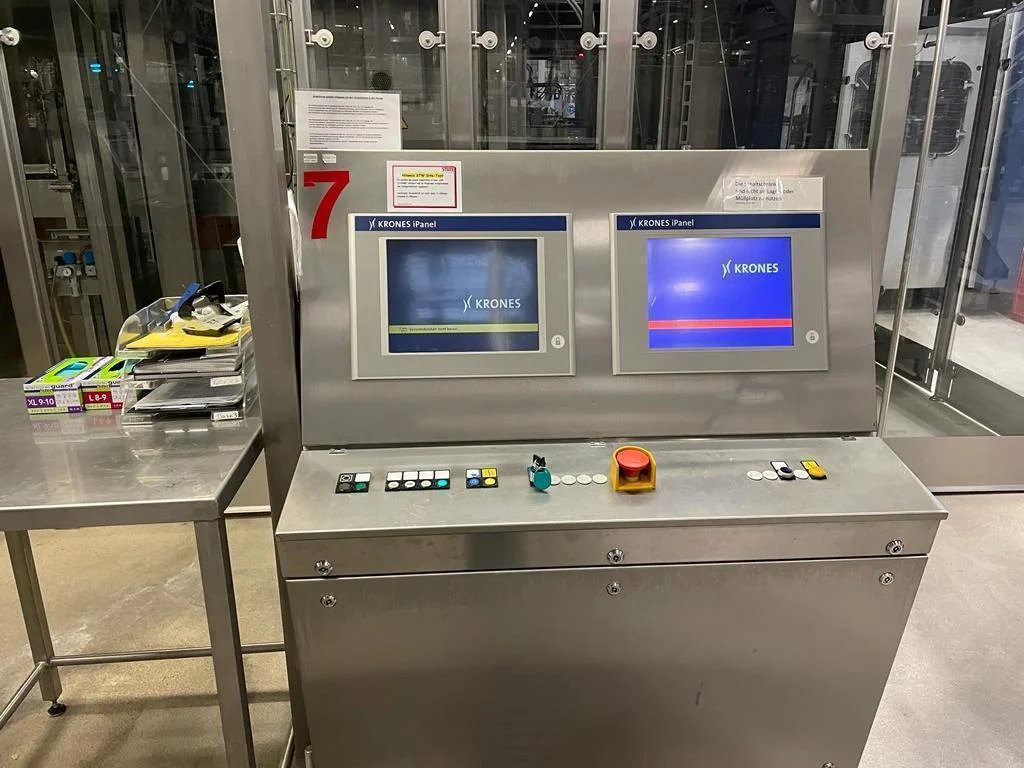

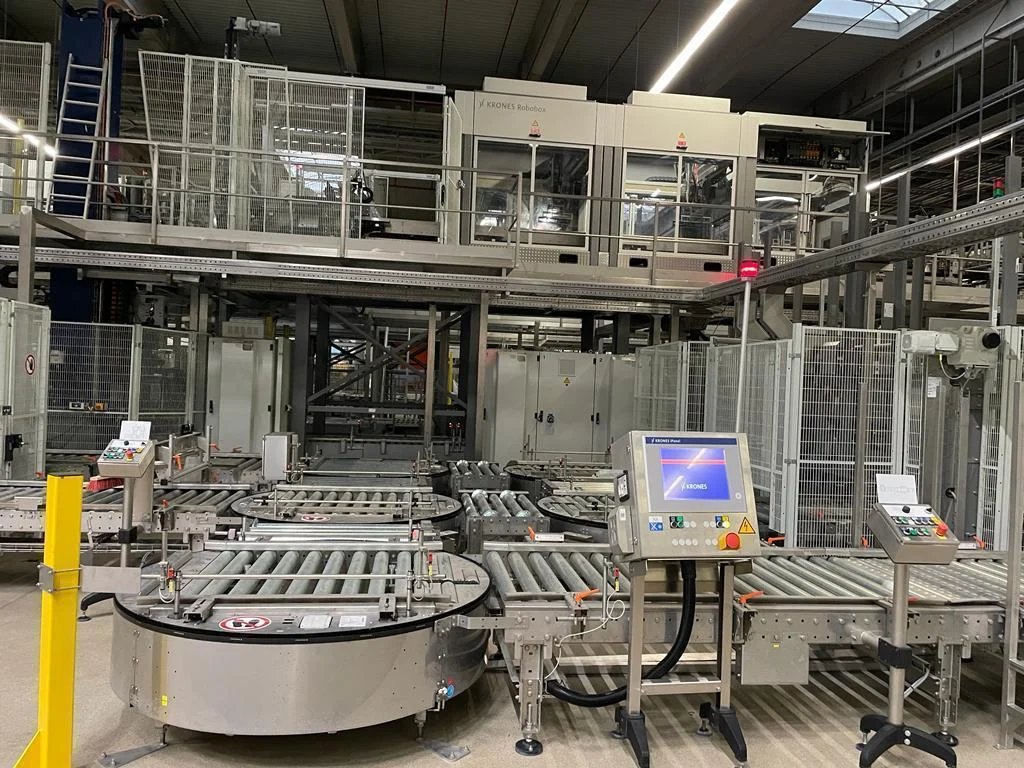

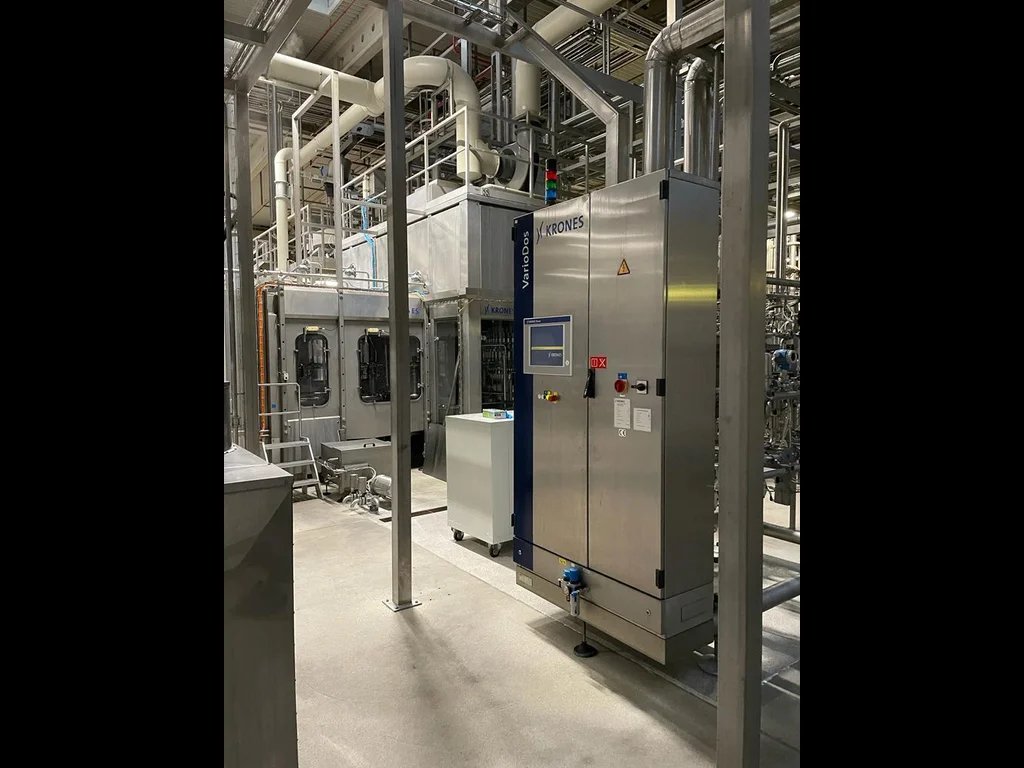

Used Complete Krones PET Bottling Line – 22,000 BPH – OverviewUsed Complete Krones PET Bottling Line – 22,000 BPH – Overview This second hand, ultra-clean Krones PET bottling line is a complete, high-efficiency solution for beverage production and industrial packaging across cider, sparkling water, still water and CO2-mixed juices. Built by Krones and GEA in 2010 and kept in production with OEM service, the line delivers up to 22,000 bottles per hour (0.5 L) and 18,000 bph (1.5 L), combining a Contiform S12M blow molder directly coupled to an ultra-clean isobaric filler-capper bloc. It is a market-ready used bottling line designed for reliability, hygiene, and quick format changeovers in PET.Technical Specifications & Performance DataManufacturer: Krones and GEAYear of manufacture: 2010Working hours: approx. 47,000Nominal capacity: 22,000 bph (0.5 L) | 18,000 bph (1.5 ...

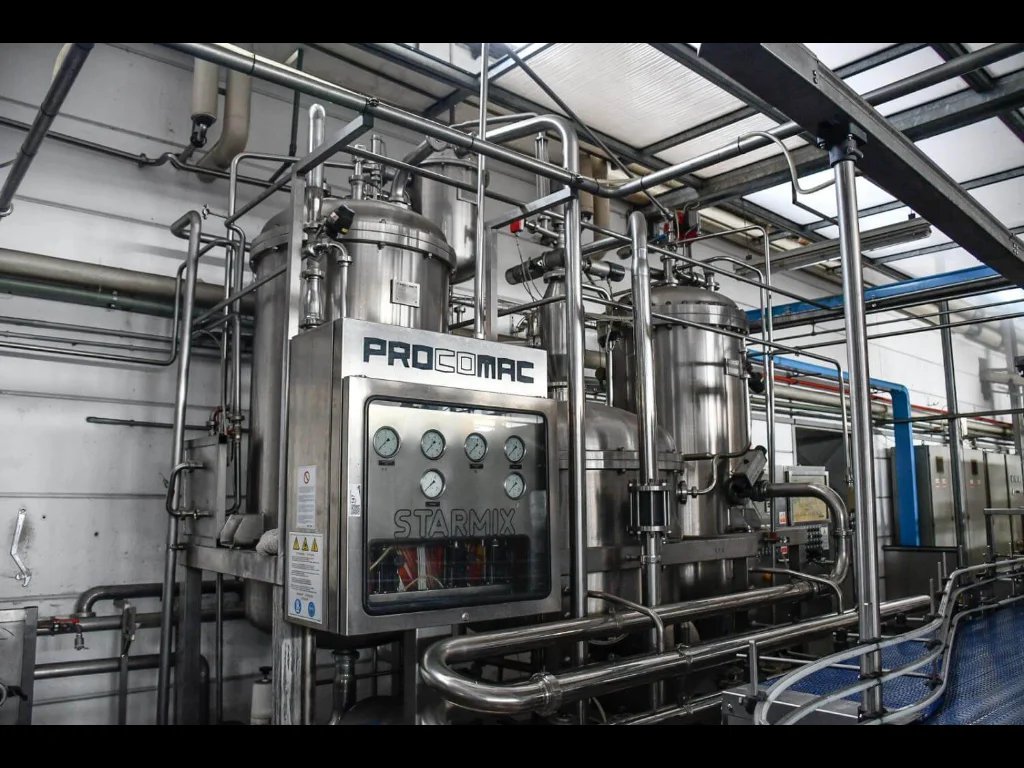

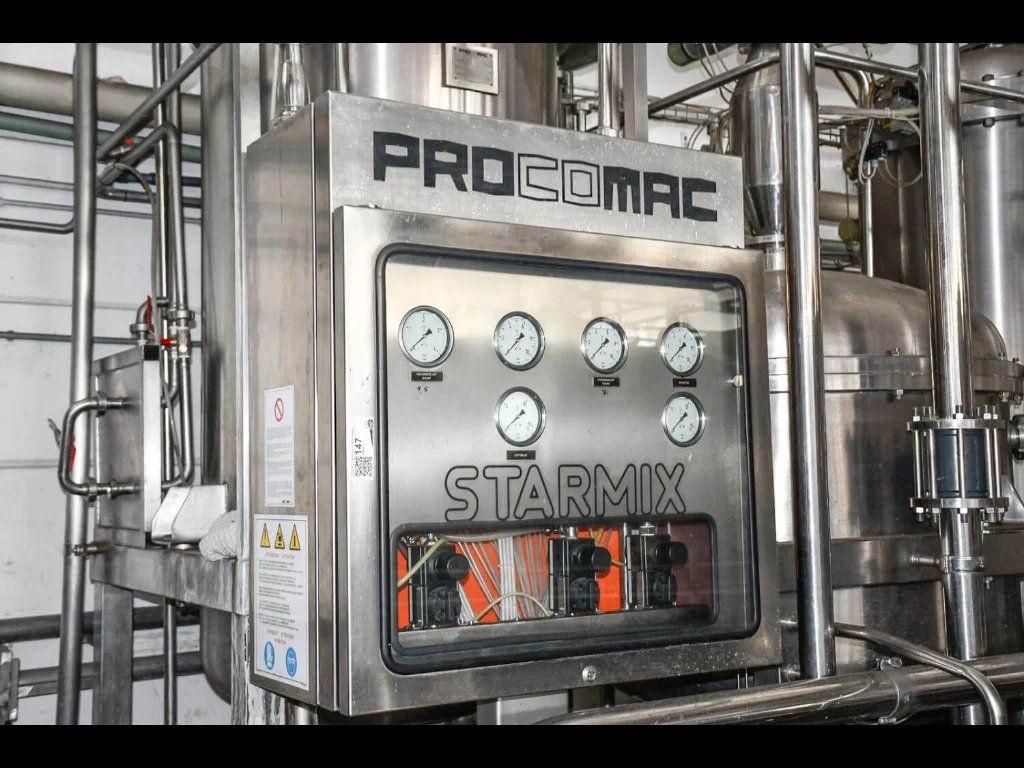

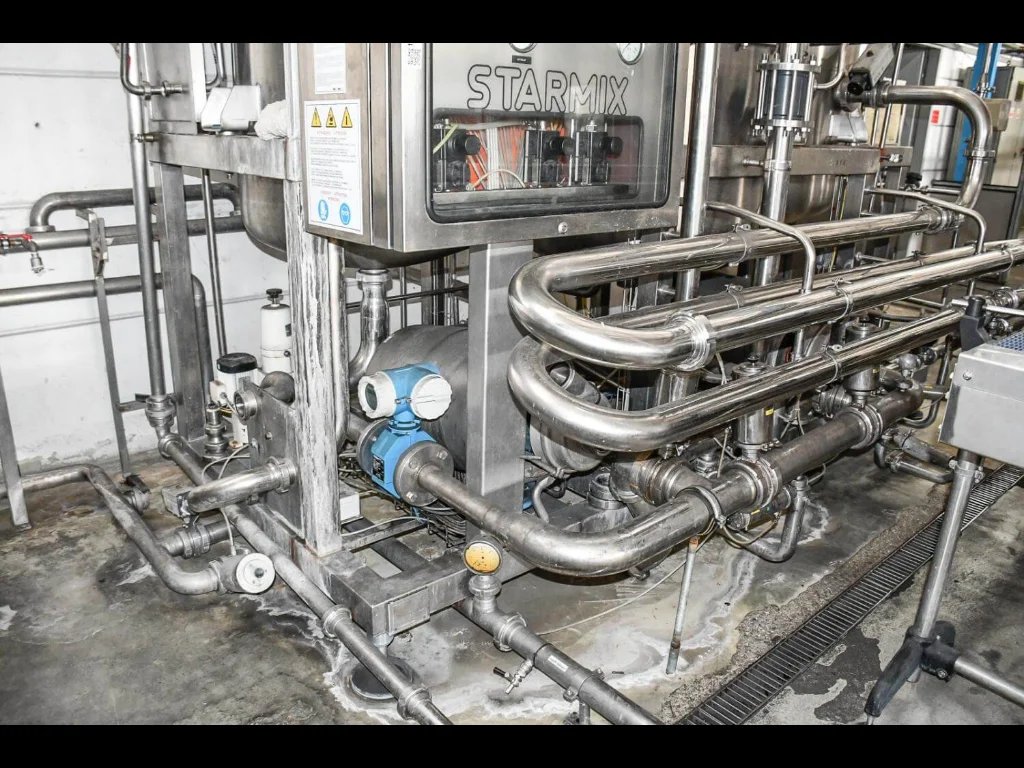

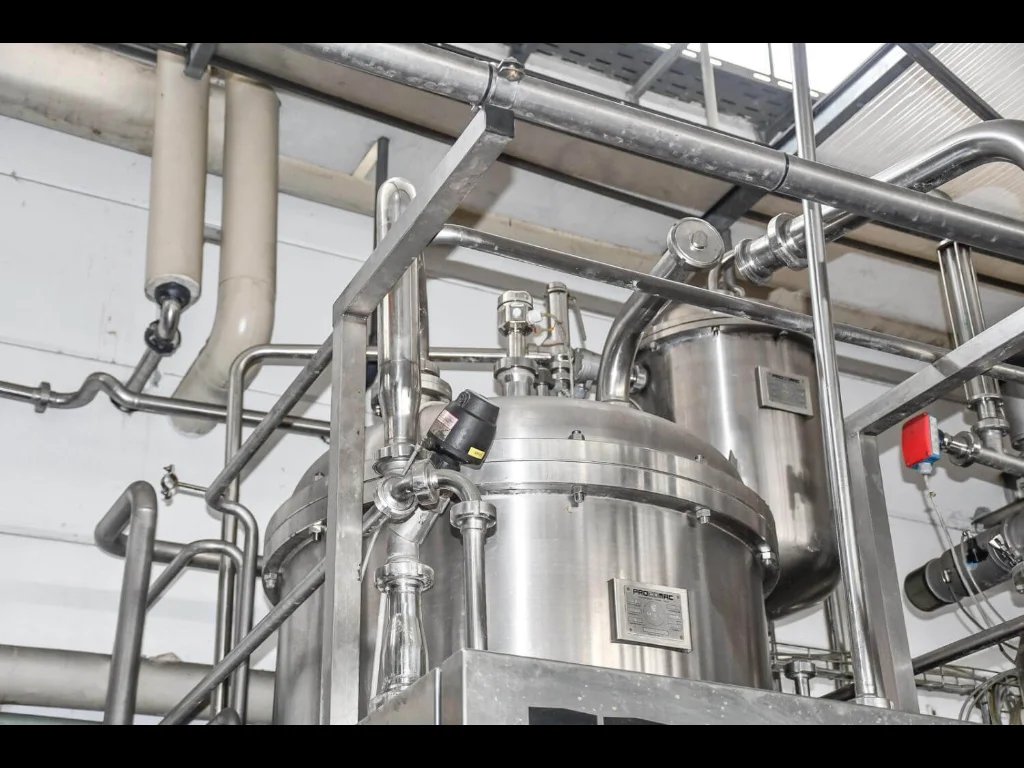

Used Premix Procomac Starmix - 8000 LPH Technical Specifications & Performance DataThe Procomac Premix Starmix 15000 is a robust premixing unit engineered for beverage production environments within a used bottling line or as part of a second hand industrial packaging setup. Designed to prepare still and carbonated beverages prior to filling, it delivers consistent mixing quality and stable carbonation control for water and soft drink applications. Built for reliability, this unit integrates seamlessly into modern bottling equipment and packaging machinery workflows.Manufacturer: ProcomacModel: Starmix 15000Year of manufacture: 1993Maximum output: 8000 (dependent on product and configuration)Containers: Designed for PET and Glass bottle handlingProcessed products: Still water, sparkling water, soft drinksWorking pressure: 6 barDimensions (L x W x H): 2400 x 4100 x 4000 mmWeight: 2000 kgE ...

With Packo FP/66-32/064 centrifugal pump, Belt width: 400 mm, Pitch: 100 x 15 mm, Infeed height: 900 mm, Outfeed height: 1250 mm, Power: 3 x 400V, 50Hz, 0.8kW, Dimensions: 1900 x 1250 x 1550 mm

Including:, GEA PlatForm, Serial number: E010990205326, Year of construction: 2021, Platform height: 1000 mm, Dimensions: 2000 x 750 x 2100 mm, Machine on weighing cells and including tool trolley, Hopper: +/- 1250 litres, Screw diameter: 225 mm, Infeed height: 2200 mm, Outfeed height: 925 mm, Weighing cells: Flintec SB4-20kN C3, Indicator: Flintec FT-111-W, Power: 3 x 400V, 50Hz, 11kW, Weight: 950 kg

In combination with Multiformer400, Only been used as a demo model, Belt width: 400 mm, Belt length: 1200 mm, Paper dimensions: 140 x 140 mm

Platform height: 600 mm, Steps: 2 pieces, Dimensions: 2100 x 750 x 1700 mm

Belt width: 600 mm, Power: 3 x 400V, 50Hz, 3kW, Dimensions: 1800 x 1350 x 1450 mm, Weight: 456 kg

Belt width: 650 mm, Product height: max 50 mm, Filling: min 40 L, Infeed conveyor length: 600 mm, Outfeed conveyor length: 950 mm, Power: 3 x 400V, 50Hz, 1.8kW, Dimensions: 3850 x 1400 x 1350 mm, Weight: 850 kg

Width: 650 mm, Length: 1650 mm, Infeed height: 1070 mm, Slit: 2 mm, Power: 3 x 400V, 50Hz, 16A, Dimensions: 1800 x 1250 x 1200 mm, Weight: 1000 kg

Width: 450 mm, Length: 1800 mm, Infeed height: 1350 mm, Slit: 2 mm, Power: 3 x 400V, 50Hz, 16A, Dimensions: 1900 x 1100 x 1450 mm, Weight: 860 kg

Belt width: 650 mm, Flip-over: 90 - 200 mm, Power: 3 x 400V, 50Hz, 0.5kW, Dimensions: 2100 x 1300 x 1450 mm

Including:, GEA OptiAir cyclone, Type: OPA, Serial number: 515, Year of construction: 2011, Power: 3 x 400V, 50Hz, 4kW, Dimensions: 1350 x 950 x 1800 mm, Weight: 450 kg, Belt width: 600 mm, Power: 3 x 400V, 50Hz, 5.3kW, Dimensions: 2750 x 1650 x 2300 mm, Weight: 1025 kg

Platform height: 1350 mm, Steps: 7 pcs, Dimensions: 2300 x 750 x 2450 mm

Height=1.79 m, Overall length= 2.96 m, Overall width= 3.35 m, Net weight= 7000 kg,

Height=1.36 m, Overall length= 1.71 m, Overall width= 1.02 m, Net weight= 757 kg,

General SKU352X910 MakeGea Niro Soavi LocationBarneveld CEcheck TypeAriete NS2006HS Pressure Working pressure100 Bar Main Features Capacity500 Ltr./Hr. Motor4 KW Pressure100 Bar Specified Features - Piston homogeniser MaterialStainless steel Piston homogenisercheck Capacity500 dm3/h Twin stagecheck Number of pistons:2 Piston stroke40 mm InletDN25 OutletDN25 Motor4 kW, 400 volt, 975 rpm With variable speed drivecheck With frequence controllercheck With pumpcheck Capacity0,55 M3/h Motor4 kW, 2900 rpm Information No.14073 Year of construction2018 Mounted on framecheck Mounted on wheelscheck With switchgearcheck Floorspace1,30x2,0 m Total height1,87 m Weight515 kg Extra SpecificationsWith Siemens touchscreen control, type Simatic HMIPiston homogenisersGEAMills > Piston homogenisersBrand > GEA What you can expect from Foeth: -- Machine is in working condit ...

Height=2.31 m, Overall length= 3.62 m, Overall width= 0.82 m, Net weight= 504 kg,

Height=1.8 m, Overall length= 1.9 m, Overall width= 0.85 m, Net weight= 640 kg,

Height=1.68 m, Overall length= 2.52 m, Overall width= 0.69 m, Net weight= 220 kg,

Height=2.1 m, Overall length= 1.45 m, Overall width= 3.25 m, Net weight= 300 kg,

Height=2.2 m, Overall length= 1.15 m, Overall width= 2.05 m, Net weight= 1535 kg,

Utilizei homogeneizador de pistão do tipo GEA Ariete NS 3075. Pressão máxima de trabalho 20 MPa. Capacidade 10.000 litros/h. Controlo.

Usei microfiltração CMF fabricada pela GEA. Novo: 2013. Instalação de membrana CMF. Membranas cerâmicas: 1,2 microns. Capacidade 22.000 litros/hora.

Marca: GEA Capacidade de arrefecimento: 350 kW Circuito refrigerante: 1 pcs. Tipo de refrigerante: R717 Ano de fabrico: 2005 Compressores: 1 pcs. REcíproca GRASSO Permutador de calor: Concha e tubo Dimensões: 3,60 x 1,20 x 2,00 m Peso: 1930 kg Condição: Bom

TIPO GEA 200023512 Intercooler Ladeluftkühler MTU Einwandfreier Zustand condição perfeita de um motor MTU4000 que está em funcionamento há 25.000 horas von einem MTU4000-Motor, der seit 25000h em Betrieb ist

Pasteurizador de placa usado feito por Gea, tipo 161. Novo 1986. Máx. pressão 4 Bar, máx. temperatura de trabalho 100 °C, volume 209 L, extensão 881-938 mm. Capacidade 7550 kg/h.

Esterilizador de placas GEA 4 secções pressão máxima de trabalho: 16 bar temperatura máxima de trabalho: 140 St C
