FRYMA KORUMA maquina usada para la venta

Planta de homogeneización al vacío Fabricante: Fryma Koruma Tipo: MaxxD1300 Tolva 1300 litros Capacidad 250 - 1100 litros/lote Homogeneizador máx. 3000 rpm, 37 kW Mezcla máx. 32 rpm Vapor de calefacción, máx. 6 bar Limpieza CIP 6 bar, 15 m³/h Bomba de vacío SIHI Sterling 82 m³/h anillo líquido Aire comprimido 8 - 10 bar Potencia 3 x 400 V, 50 Hz, 51 kW Dimensiones: 3250 x 2000 x 3250 mm Peso 2900 kg Mezcla, dispersión y homogeneización al vacío Con doble chaqueta y raspador/agitador Bomba de diafragma Wilden Introduzca XPS15 Pro-Flo Entrada/salida de líquido 76 mm Capacidad máx. 900 l/min. Aire comprimido máx. 8,6 bar Dimensiones: 900 x 500 x 900 mm

Molino coloidal Fryma Koruma usado, modelo MZ130. Tamaño de la cabeza: 130mm Rotor: amplio espacio entre dientes Estator: amplio espaciamiento de los dientes Equipo instalado: impulsor de bomba para un mejor rendimiento de la bomba Eyector: disco centrífugo Ajuste axial continuo del espacio de molienda Ajuste manual del estator, instrumento de medición analógico Carcasa de la máquina: posibilidad de calefacción con una doble camisa Conexiones: 3/8 Clase de protección (básica): IP 55 Voltaje de funcionamiento: 400 voltios, 3 fases, neutro, PE Frecuencia: 50Hz Calidad del sello: EPDM Sindicatos: sindicatos lácteos DIN 11851

FRYMA-KORUMA model MZM/VK7 laboratory/product development scale vacuum mixer/homogeniser. The Fryma Koruma MZM/VK7 is designed for liquid/solid phase mixing/blending of creams, ointment, gels etc. Integrated unit constructed in 316 grade stainless steel, supplied new in 2004. The MZM/VK7 is mounted onto a stainless steel support frame with stainless steel control panel. 11 litre conical upper chamber with jacket section. Detachable clamped top cover with top mounted mixer, vessel light/viewing window with wiper, vacuum connection to vacuum pump, indicator gauge. The MZM/VK7 has a high speed 100mm dia homogenising workheadhead, under driven from an 11.58kw 400v 50hz motor. Two additive ports with direct feed to homogeniser. Product discharge system can be set to discharge via a valve controlled recirculation system for multiple pass cycling of product. Vessel rated at -1 bar & 100 C, jack ...

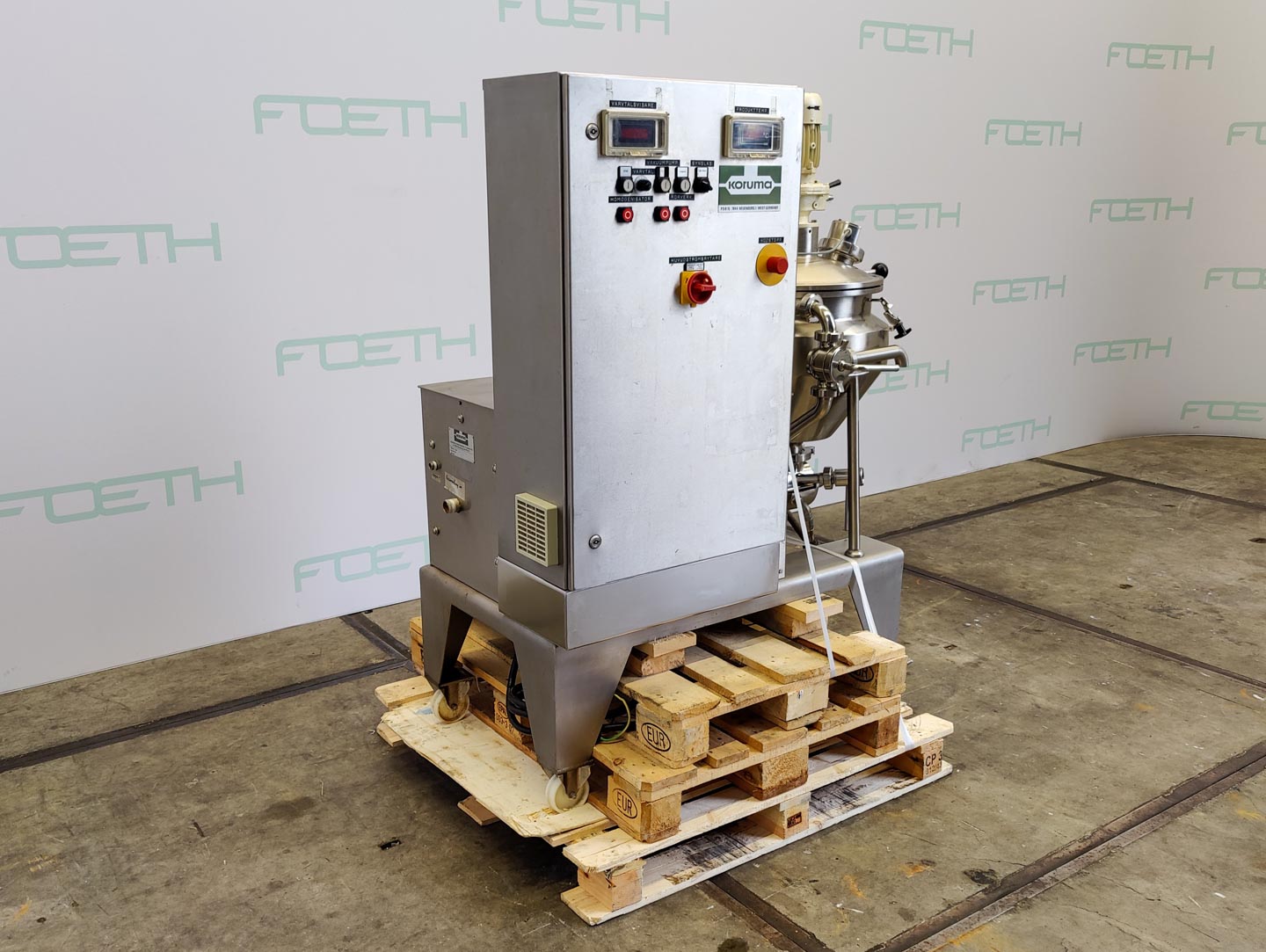

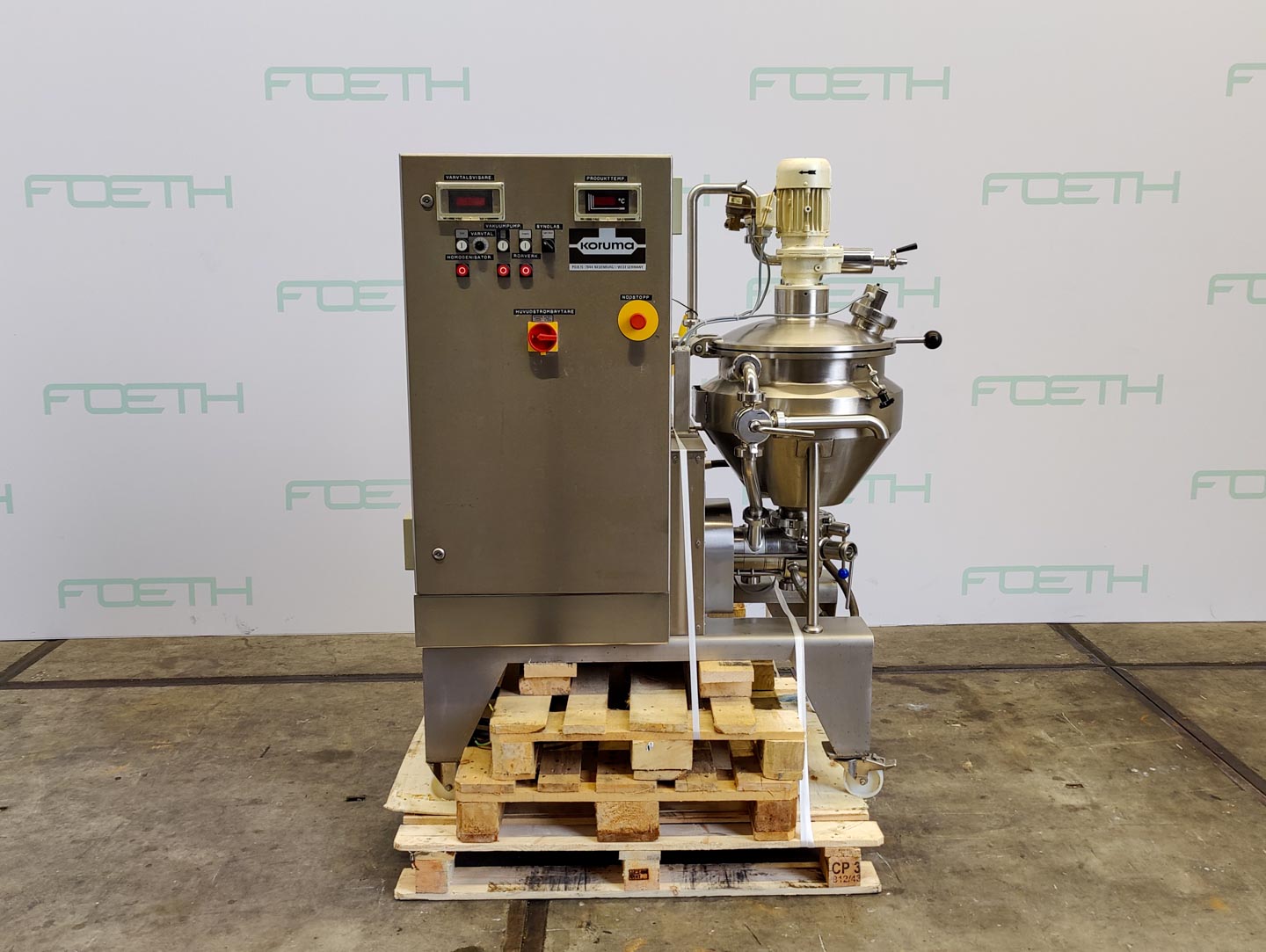

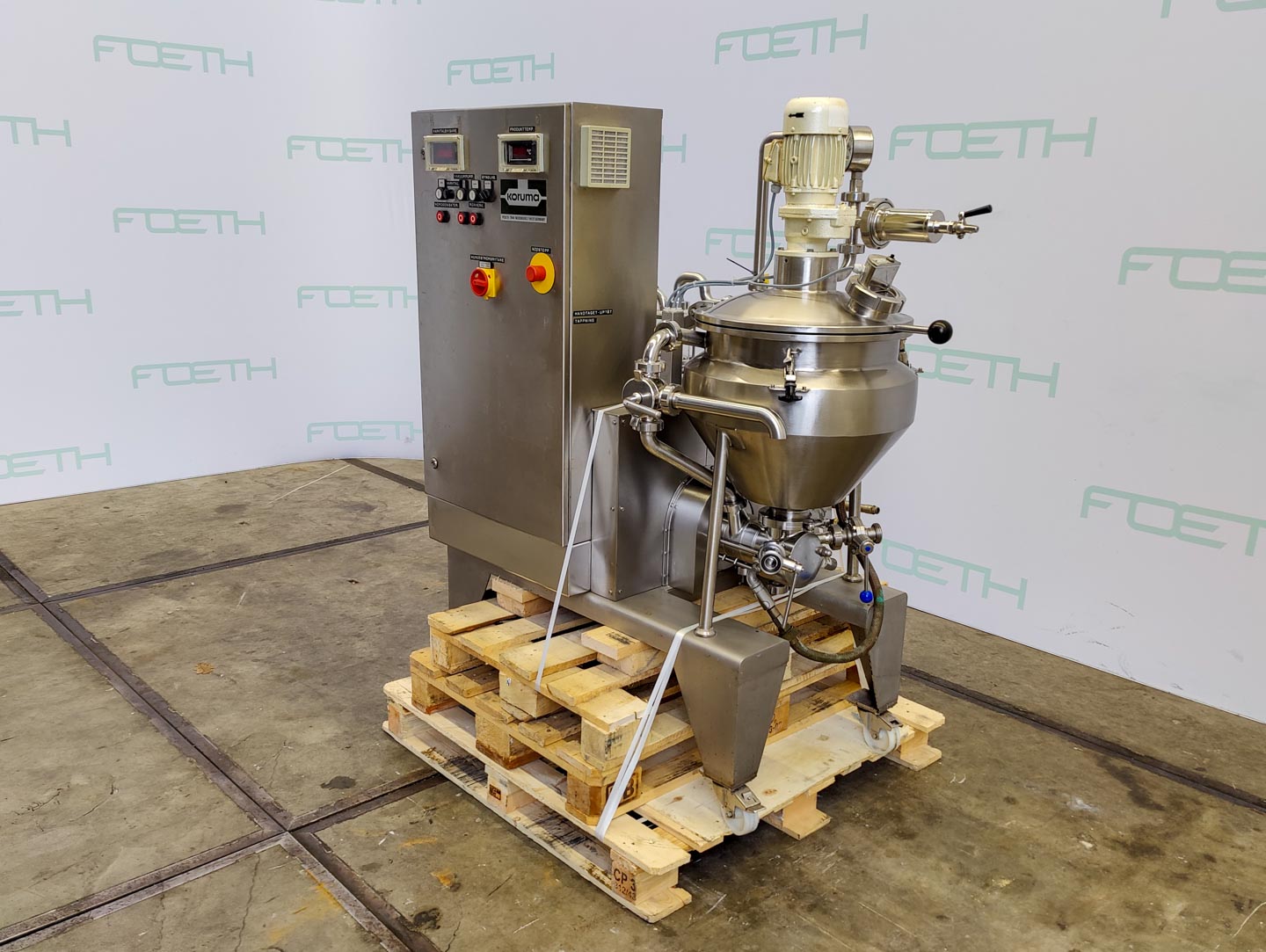

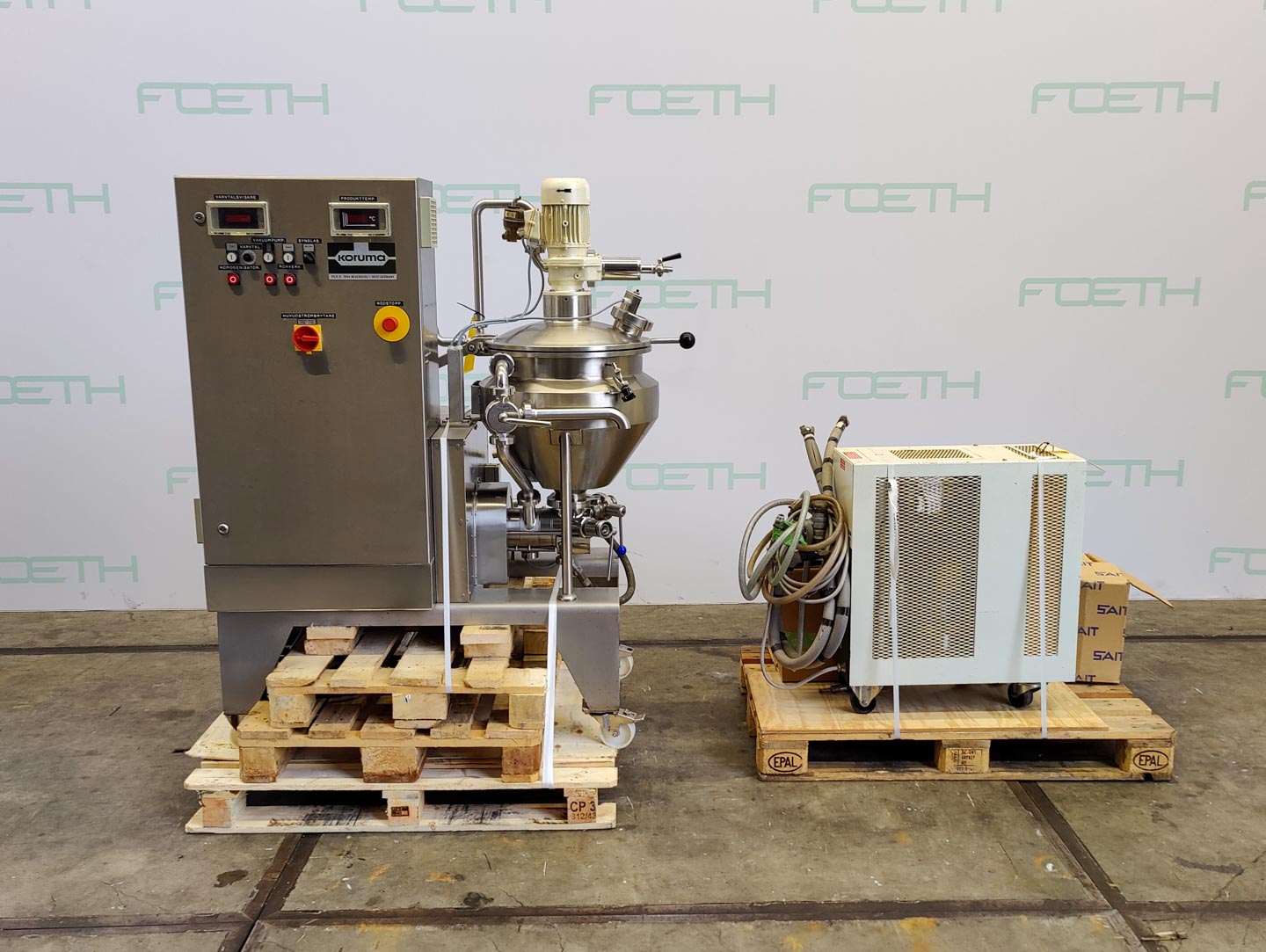

General SKU412U1294 LocationBarneveld MakeFryma Koruma Disho TypeV100/45 No.4.027 Year of construction1998 Pressure Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume45 Ltr. Motor5.5 KW Specified Features - Processing vessel Closed stirring vesselcheck Capacity45 ltr Vessel sizesDia. 500x420mm ( polished inside) Conical bottomcheck Dished top sidecheck With covercheckDia 500mm Top connectionsInlet dia. 325mm ( with hopper) OutletDia. 30mm With jacketcheck Volume 5,2 ltr, pressure 6 bar, allowable temp 180°C Max. temperature180°C With anchor stirrercheck with scraper Motor0.25kW, 220/380Volt, 1380rpm With homogenisercheck Dia. 100mm, 0-5000rpm Motor5,5kW, 0-270Volt, 0/5000rpm MaterialStainless steel 1.4571 (316Ti) Information Mounted on legscheck With switchgearcheck Weight520kg Floorspace1,4x1,35 m Total he ...

General SKU422S1021 LocationBarneveld MakeFryma TypeVME-400 / C No.F 93368 / M 15102 Year of construction1992 Pressure Working pressure2.5 Bar Vacuum possiblecheck Working pressure jacket3 Bar Main Features MaterialStainless steel Volume400 Ltr. Motor20 KW Specified Features - Processing vessel MaterialStainless steel 1.4301 (304), Stainless steel 1.4401 (316), Stainless steel 1.4435 (316L) Closed stirring vesselcheck Capacity60 Ltr. - 400 Ltr. Vessel sizesdia. 1120x950 mm Dished bottomcheck With covercheck OutletDN25, DN40 With jacket49 Ltr. Max. temperature150 °C With anchor stirrercheck Motor3/4 kW 380 Volt (EX) Speed mixing shaft13/26 rpm. With homogenisercheck Motor20 kW: 968 rpm. Information Total height4,3 m Weight3800 kg CEcheck Floorspace2,9x1,5 m ATEX compatiblecheckProcessing vesselsFryma KorumaProcessing vessels > Processing vesselsBrand > ...

General SKU365U988 LocationBarneveld MakeFryma AG Rheinfelden TypeVME-20 No.F70.4795 Year of construction1980 Pressure Working pressure2.5 Bar Working pressure jacket3 Bar Main Features MaterialStainless steel Volume20 Ltr. Motor1.1 KW Specified Features - Processing vessel MaterialStainless steel 1.4401 (316) Closed stirring vesselvacuum processing vessel Capacity20 Ltr. (max. 38 Ltr.) Vessel sizesdia. 365x370 mm Flat top sidecheck With covercheck Top connectionsdia. 33 mm, dia. 34,5 mm Outletdia. 39 mm With jacketcheck With anchor stirrercheck (stirrer with scrapers: motor: 0,18 kW) With dissolver stirrercheck (motor: ± 1,1 kW: ± 2840 rpm) With homogenisercheck Motor1,1 kW: 2840 rpm Information Mounted on legscheck With switchcheck Weight410 kg Floorspace1,1x0,6 m Total height1,9 m Extra Specificationswith vacuum pumpProcessing vesselsFryma KorumaPr ...

General SKU421U1324 LocationBarneveld MakeFryma Koruma TypeVME-700 No.100234 Year of construction2003 Pressure Working pressure2.5 Bar Vacuum possiblecheck Working pressure jacket3 Bar Main Features MaterialStainless steel Volume700 Ltr. Motor30 KW Specified Features - Processing vessel MaterialStainless steel 1.4404 (316L) Closed stirring vesselcheck CapacityNetto 700Ltr (bruto 820Ltr) Vessel sizesDia.1200x1200 mm Dished bottomcheck Dished top sidecheck With covercheck Top connectionsDia. 35 mm OutletDia. 70 mm With jacketcheck Volume 80 ltr, pressure 3 bar, allowable temp 130°C Max. temperature130°C With propellor stirrerScraper stirrer With anchor stirrercheck with scrapers, 3kW, 230/400Volt, 21rpm With dissolver stirrercheck 7,5kW, 400/690Volt, 965rpm With homogenisercheck toothed colloid mill Motor15kW, 400/690Volt, 2940rpm. Information With switc ...

General SKU212P152 LocationBarneveld MakeFRYMA KORUMA TypeMZ 100/R No.F186 1063 Year of construction1981 Material Housing materialStainless steel 1.4401 (316) Rotor materialStainless steel 1.4401 (316) Main Features MaterialStainless steel Motor5.5 KW Inlet diameter37 mm Specified Features - Colloid mill Colloid mill in linecheck Rotor sizesdia.90mm Inletdia. 37mm Outletdia.37mm With mechanical sealcheck Motor5.5 KW, 380 Volt Speed2940 Rpm MaterialStainless steel Information Mounted on wheelscheck With switchgearcheck Floorspace0.7X0.7 M Total height2.1 M Weight140 KGColloid millsFryma KorumaMills > Colloid millsBrand > Fryma Koruma What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. P ...

General SKU290N374 LocationBarneveld MakeKoruma Maschinenbau Hauser kg TypeDH VI/180 EX No.3383 Year of construction1984 Main Features MaterialStainless steel Motor28 KW Inlet diameter90 mm Specified Features - Colloid mill MaterialStainless steel Colloid mill in linecheck Rotor sizesdia.180mm Without hoppercheck Inletdia.90mm Outletdia.100mm Motor28 KW, 380/660 Volt Ex Information Mounted on framecheck Floorspace1,8x0,7 M Total height0,6 M Weight540 KG ATEX compatiblecheckColloid millsFryma KorumaMills > Colloid millsBrand > Fryma Koruma What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!

General SKU035F151 LocationBarneveld MakeKoruma Maschinenbau KG Neuenburg TypeDisho V.100/45 Pharma No.2996 Year of construction1982 Pressure Vacuum possiblecheck Main Features MaterialStainless steel Volume45 Ltr. Motor6 KW Specified Features - Processing vessel MaterialStainless steel Closed stirring vesselcheck Capacity45 Ltr. With jacketcheck With gate type stirrercheck Motor0,26 kW, 230/400 Volt Speed mixing shaft± 28 Rpm With homogeniserdia. 100mm Motorhomogeniser ± 4,9/6,0 kW Information Mounted on legscheck Mounted on wheelscheck With switchcheck Floorspace1,5x0,7 m Total height1,7 m Extra Specificationswith vacuum pump, :± 0,75 kW Mixing, dispersing and homogenising unit, Dia: 100mm Processing vesselsFryma KorumaProcessing vessels > Processing vesselsBrand > Fryma Koruma What you can expect from Foeth: -- Machine is in working condition -- At a  ...
