tours machines d'occasion à vendre (3,075)

faceplate diameter:5000 mmswing diameter:6100 mmturning height:2400 mmram stroke each side:1490 mmram head dimension:340 x 340 mmmax. workpiece weight:100.000 kgtotal power requirement:100 kWweight of the machine ca.:155 tfaceplate turning speed range:0,4 - 50 U/minwith 2 axes CNC SIEMENS 840 D

turning diameter:445 mmturning length:2000 mmturning diameter over bed slide:660 spindle bore:65 mmspindle speeds::16 - 3150 U/min.rapid motion - x-axis:10 mm/minrapid traverse Z-axis:15 m/mintotal power requirement:34 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:6 x 2,5 x 2,2 mwith CNC Control TX 8 DC-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mmtailstock, steady as NC-axisdiverse driven toolholdersdiverse turning toolholderschip conveyor and coolant attachment

turning diameter over bed:3800 mmturning diameter over slide rest:3200 mmturning length:12000 mmfaceplate turning speed range -stepless-:2 - 200 U/minmax. workpiece weight:90.000 kgbed width:4000 mm2 steadies

turning diameter over bed:1450 mmturning diameter over slide rest:1000 mmturning length:8000 mmspindle bore:160 mmturning speed range:2,8 - 560 U/minbed width:850 mmfaceplate diameter max.:1400 mmturning diameter in the gap:1800 mmlength of gap:600 mmdimensions of the machine ca.:12 x 2 x 2,5 mwith Digital Readout2 fixed steadies dia 1070 mmchip conveyor

turning diameter over bed:400 mmturning diameter over slide rest:250 mmturning length:1000 mmmax swing over gap:520 mmHeight of centres:200 mmcrossed path:230 mmbed width:218 mmmain spindle bore:52 mmspindle size:MK 6 speeds::55-2000 U/minturning angle of tool post:90 gradtail stock:50 mmtaper in tailstock:MK 4 threading metric:0,4-7 mmthreading WHITWORTH:4-60 TPI total power requirement:2,2 kWdimensions of the machine ca.:1940 x 820 x 1545 mmweight of the machine ca.:750 kgtailstock quill:110 mmtapping modul:0,4-3 mmtapping diametral:8-84 Gang/Zoll

turning diameter:200 mmswing diameter:260 mmturning height:200 mmTool table:1054 x 400 mmDimensions (L/W/H):2200 x 2300 x 2300 mmweight:3300 kgslide travel radial ( X-axis ):520 mmslide travel axial ( Z-axis ):200 mmno pallet circulating belt, no C-axis, no driven tools

turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5 Documents:vorhanden

turning length:800 mmtotal power requirement:380 Vweight of the machine ca.:1400 kgdimensions of the machine ca.:2200 x 1200 x 1300 mcentre height:160 mmchucking diameter:150 mm

turning diameter over bed:240 mmturning length:450 mmtotal power requirement:0,5 kWweight of the machine ca.:120 kgdimensions of the machine ca.:1500 x 600 x 1200 mmcentre height:120 mmspindle bore:21 mmrevolutions per minute: 75 - 2980 U/min

turning diameter:480 mmturning length:1250 mmcontrol:H 645 weight of the machine ca.:8 tdimensions of the machine ca.:5 x 2 x 2 mcentre distance:1580 mmswing over bed:495 mmswing diameter:üb.Querschlitten ca.350 mmworking area:1600 mmcontrol:H645 connected load:50 kW

control: Numeriksteuerung CNC 700 K total power requirement:28 KVAweight of the machine ca.:7,8 tdimensions of the machine ca.:6610 x 2280 x 2235 mmwork height max.:1060 mmgreates pass round over bed:305 mmspindle bore:82 mmDocuments:vorhanden

turning length:630 mmtotal power requirement:16 kWweight of the machine ca.:5 tdimensions of the machine ca.:3400 x 1500 x 1600 mmswing diameter over slide rest:Hinterdrehschlitten 250 mmcentre height:über Hinterdrehschlitten 150 mmcenter height over bed:300 mmturning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mmaccessories::2 Schränke Wechselräder

turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5

turning diameter:570 mmturning length:1000 mmdimensions of the machine ca.:3,25 x 2,03 x 1,95 mTool disc turret for 8 tools with VDI 30.Not for power toolsmachine manual, technical documentation;Accessories: 3-jaw chuck, various tool holdersVideo is available

turning length:2000 mmcontrol:- total power requirement:25 kWweight of the machine ca.:3 tdimensions of the machine ca.:3800 x 1800 x 1850 mmswing over bed:500 mmswing diameter over face slide:280 mmcontrol:Zyklen-Steuerung Heidenhain bed width:350 mmDocuments:vorhanden

turning diameter over slide rest:280 mmturning length:4000 mmtotal power requirement:7,8 kWweight of the machine ca.:6 tdimensions of the machine ca.:5,9 x 1,9 x 1,40 m

turning length:140 mmdimensions of the machine ca.:4 x 2 x 1,9 m

swing diameter:200 mmweight of the machine ca.:15 tDistance between tips:832,5 mmturning length:380 mmwith chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers

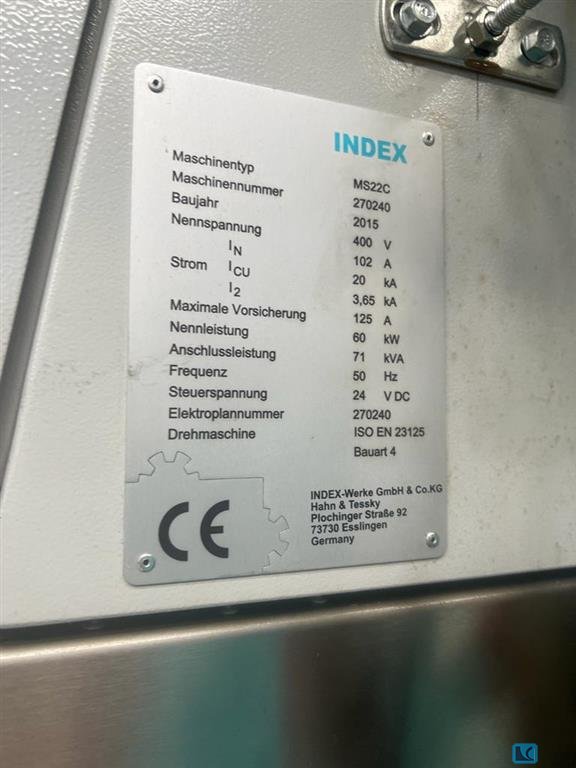

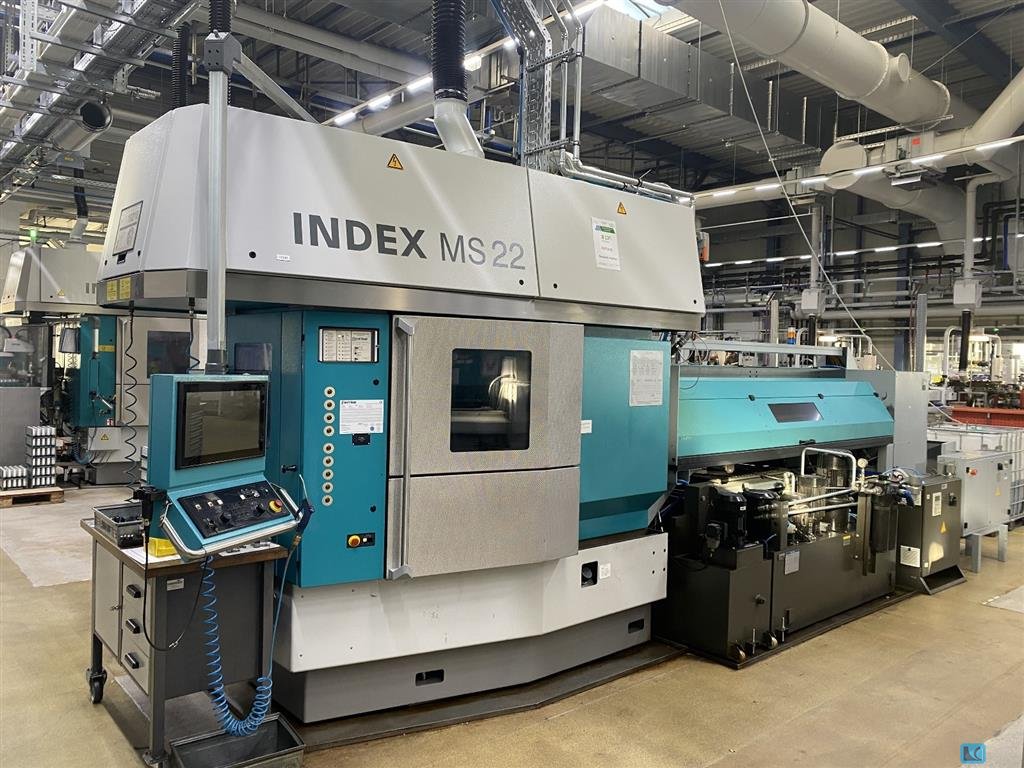

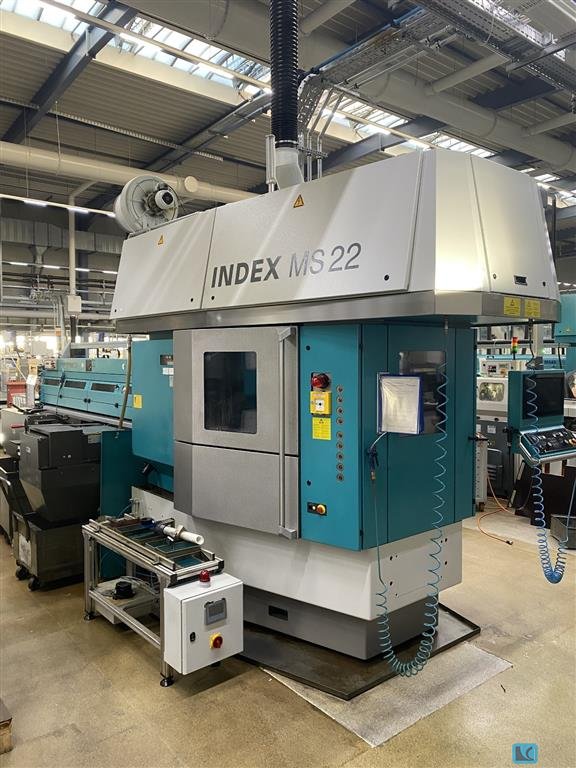

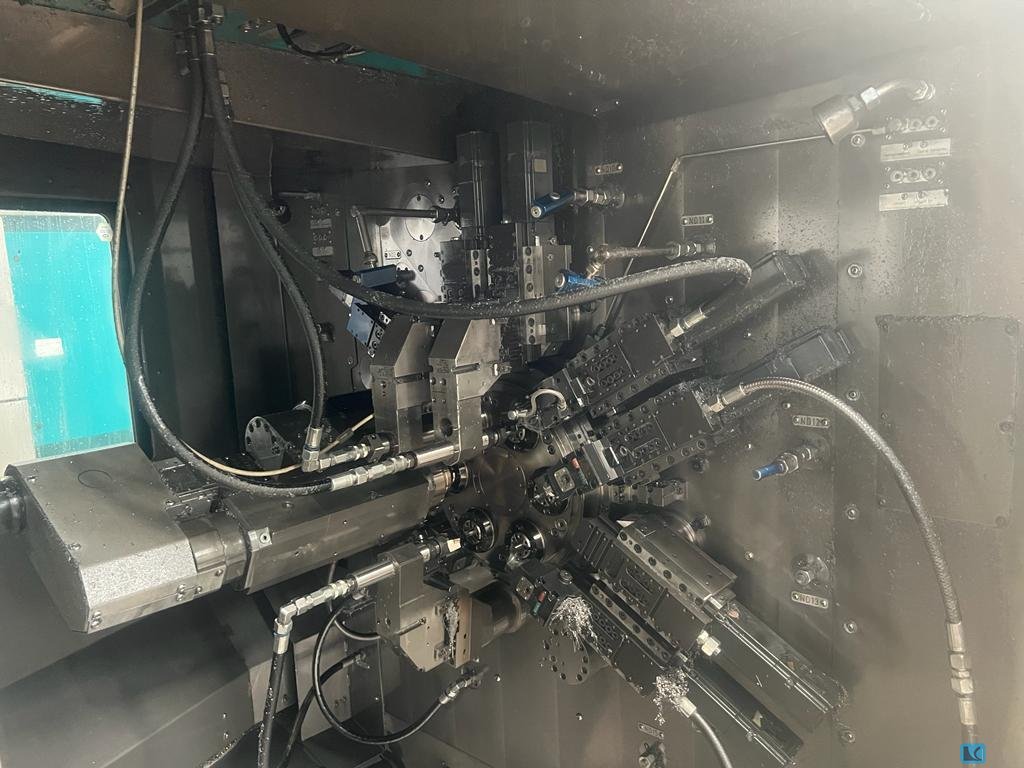

number of spindles:6 spindle passage:22 mm?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU.The complete energy supply of all 6 main spindles was replaced in April 25.No socket for powered tools!

number of spindles:8

Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW

turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024

turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-AxisTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser ...

faceplate diameter:800 mmpower requirement:110 kWweight of the machine ca.:37.000 / total 52.000 ttransport measurements machine:5,07 x 2,98 x 3,90 mclamping diameter:800 mm:Ø 800 x 720 mmTool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis
