x-travel:3500 mm
y-travel:2500 mm
z-travel:1250
mm
w-axis:800 mm
bore spindle speeds:2500 U/min
table
load:12 t
dia. of rotary table:1800 x 2200 mm
numbers of
positions in the tool changer:60
? Overhauled in 2025 and
2026
? The spindle was relubricated and new spindle bearings
fitted in 2025 by technicians from TOS Varnsdorf
? 12-month
warranty and guarantee on geometric accuracy
Scope of repairs
to the X, Z and B axes
1. Complete dismantling and cleaning of
the machine bed for the X and Z axes as well as the B axis
2.
Regrinding of X and Z axis guide ways at Czech manufacturer of CNC
horizontal boring machines

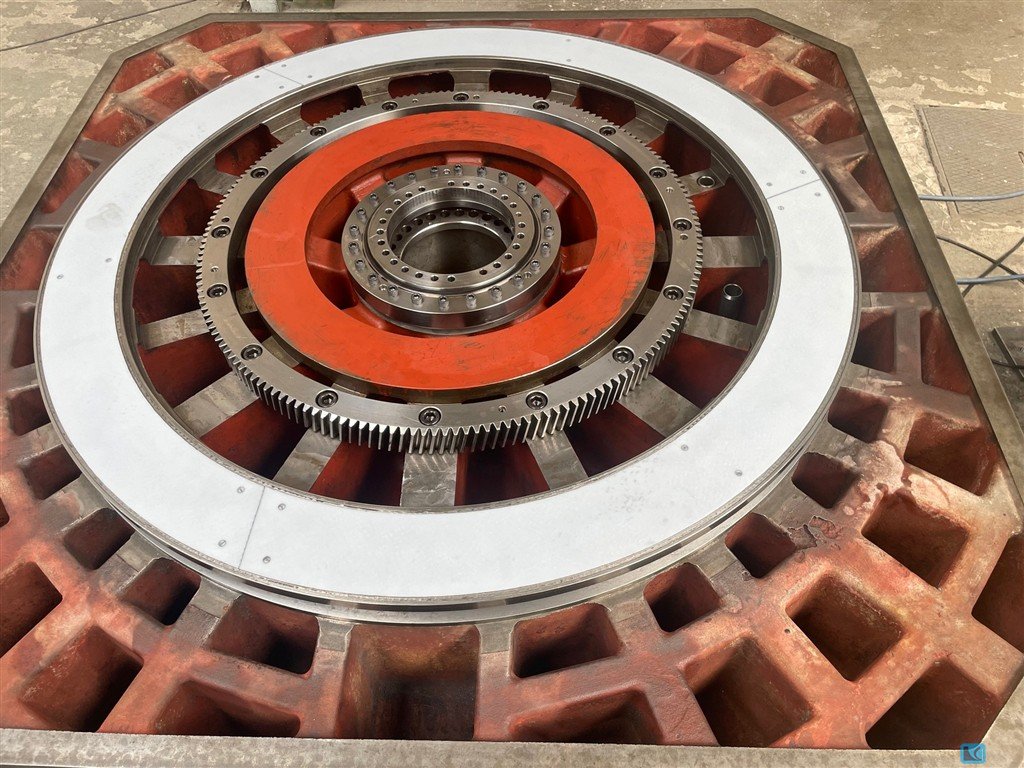

3. Removal of the old lining from the
X- and Z-axis slides and the B-axis
4. Anchoring of re-grinded X
and Z axis machine bed
5. New, hand-scraped lining made from
Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the
B-axis
6. Installation of ball screws, linear scales and other
components of the X- and Z-axes
7. Cleaning and, where necessary,
replacement of clogged central lubrication lines
8. Inspection
of all lubrication points using an external lubrication unit
9.
Inspection of geometric accuracy using a hand-held electric drill
attached to the end of the ball screw
10. New oil grooves in the
Biplast V lining
11. New guide wipers on the guideways
12.
Guarantee of the geometric accuracy of the X, Z and B axes in
accordance with the accuracy of a brand-new TOS Varnsdorf
WHN(Q)13
13. The anchored and levelled X and Z machine beds have
been documented as accepted. Measurement is carried out using a Weller
digital spirit level. The feed movements of the X and Z-axis slides
are performed using an electric hand drill attached to the end of the
ball screw.
Lifting platform for operators
External tool
cooling
Spindle clamping bracket
Lifting operator
platform
External tool cooling
Spindle clamping support
