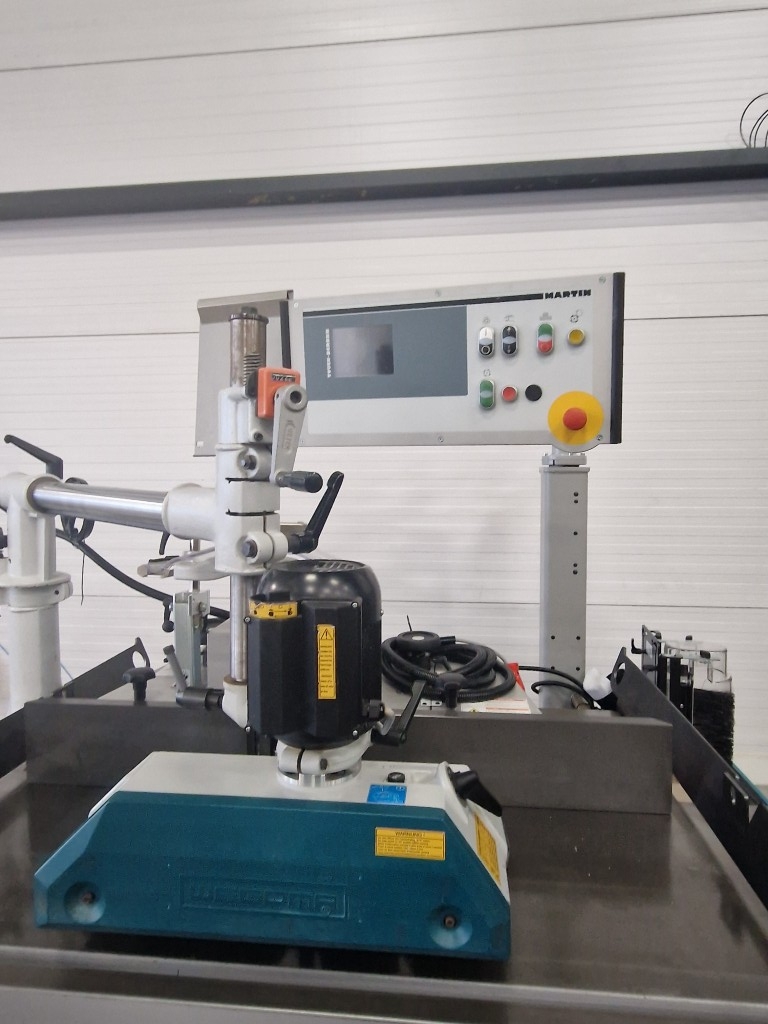

MARTIN T27 FLEX tilting table spindle mouder: +/- 46º plus 2 CNC
controlled axes
Brand: Martin
Type: T27Flex
M-Nr.: V528804
Year: 2014
Specifications:
Frame: Composite structure: Steel outer walls filled with a
steel-concrete composite structure providing the best stability,
stiffness ande high vibration absorption capabillities
Weight: ca. 1.450 kg
Table dimensions: 1255 x 900 x 95 mm., cast-iron
Working height: 900 mm
Tool opening-table: 255/205/161/106/74 mm. diam.
Tools with max diam. Ø 250 mm (max. 150 mm. when tilted 45º) under
table level elevation
RPM: 3.000, 4.000, 5.000, 6.000, 8.000, 10.000 rpm
RPM-adjustement: Frequency controlled

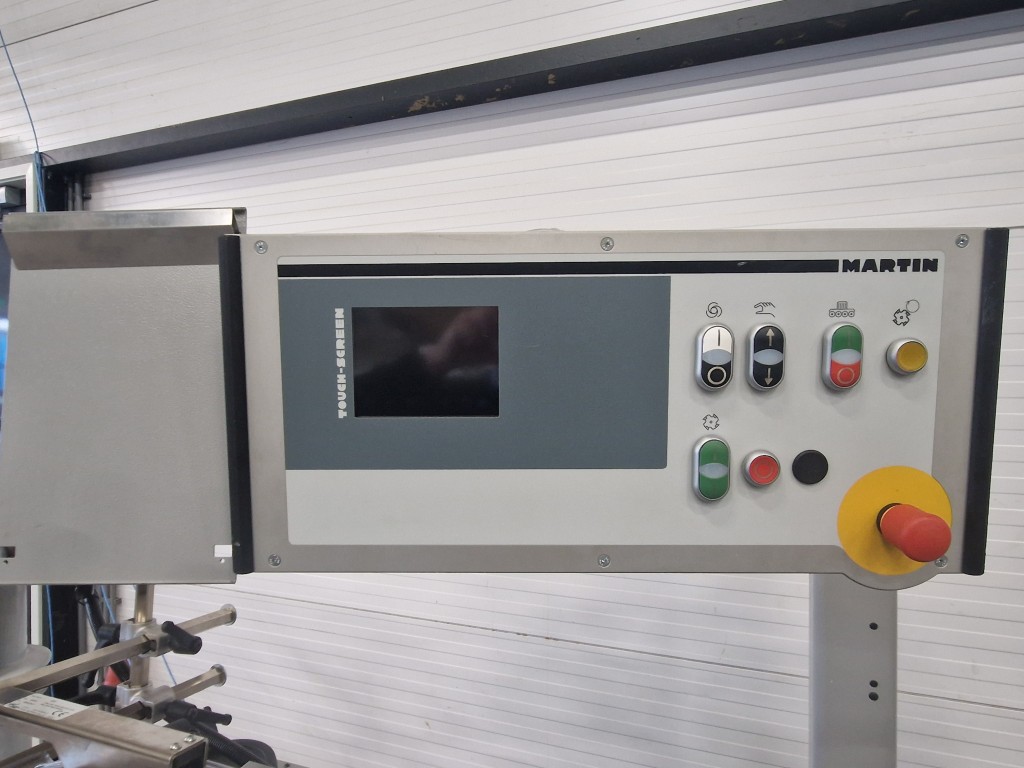

Control panel at eye level, turning for highest operator comfort
Control: PowerPC-controll industrial controll, equipped with Linux TFT
Touchscreen
Controll panel with 216 colours), CAN-controlled servo-motoric driven
axes for highest repeatability/accuracy
USB-connection for data import/export/storage and programm updating
Quick change system Dornfix, incl. SK40 Torque spanner
2 axes-control: Spindle height and – swiveling CNC controlled,
automatic height adaption when swiveling
Spindle heigth: 150 mm (125 mm when 7.5/9.5 KW. Mmotor) with
repeatabillity ± 0,025 mm;
Spindle tilting: +46° upto -46°with repeatabillity: ± 0,005°;
automatic height correction
Spindle: SK40 ø30 mm160 mm
Guidance fences: Liniaire guide rails – high precession
positioning
Simple and accurate mounting and dismounting of fences
Positioning of infeed fence via handwheel (standard feature)
Aluminium hard coated fences fitted with vertical grooves for
meteoor” product guidiance strips insertion (standard feature)
Guidance fences positioning –6 upto +125 mm, infeed fence position
vs. outfeed fence -10 upto +10 mm
Tooldiameter: Max. ø250 mm tooldiameter in combination with
dust-extraction cover and lowering under table, Max. diameter ø350 mm
with tenoning cover over table level
Dust extraction: Minimale capacity14 m³/min. over 500-800 Pa.
Central greasing – manually operated oilpump
Electric: Automatic star-delta switch and electric breaking
Elektrc features: Feeder wall-socket with automatic on-off switch in
acc. with Health & sagfety regulations
5 pole wall-socket with pot. free signal to switch on-off the dust
extraction
2 Emergency switches; mainswitch with lock function, underpower
security
Motor safety switch and oevreheating safety
Emmissions: 11202 WZ 125 mm. Z=2, 6000 rpm.
Noise emission in acc. DIN en ISO: 78,0 dB(A)
Free running (without dust extraction): 84,6 dB(A)
Working conditions (with dust extraction): 33893 (mg/m³)
Dust emmissions DIN: Infeed max. 0,34 – outfeed max. 0,28
Control panel: Screen surface 5,7″ (145 mm.), colours TFT (8
pigments)
Touch-Screen: Electronic control, tilting +/- 46º, fully integrated
with height compensation when tilted
T27 Flex Freesspil neigen: Tilting control and program memory,
repeatability acuracy +/- 0,005 º
Integrated positioning of the fence
Ax- control: 1. Spindelelevation
2. Spindel tilting
Clear posisioning with optical dsiplay of functions
Calculation and compensation of toolpositions in relation table and
fence
Table and fences, based on sacved tool data.
Tool libarary: 500 gereedschappen, ieder gereedschap op 3
referentiepunten op te slaan.
Program positions: 100 gereedschapsposities van alle digitaal
aangeduide assen.
Tool + program selction: Alpha-nummeric
Referencing: Automatic referencing elevation and -tilting
Controlled and/or manual setting
Spindel turning direction: Left or right turning with indication
Indication-tools: Revelations conter, tool name, spil and rpm
Calculator function: Integrtated with specific memory per ax,
production hours, etc.
Diagnose & help functions: User friendly with specific help functions
pop-up
Software key: Switch/password security for 2 user levels
USB: External data storage of tols and programs plus updates
RPM-control: In relation to tool settings
Collission prevention: After tool installation and program selection,
the machine will test settings at low rpm to prevent a crash and
dangerous situations
When automatic positioning of controlled axes the spindel will start
running at 100 rpm and low torque
In case of collission-danger, the operator will be warned via central
control
T27FX/1-a: MARTIN T27 FLEX tilting table spindle mouder CE- conformity
with 7.5 KW/10 BHP and servo drive
T2703-a: Frequency controlled 7,5 kW. (10 BHP) toerentallen 1.000 –
12.000 tpm., incl. bots herkenningssysteem.
T2731-a: Table extension Left and Right, extendable front support bar,
approx. 3.000 mm – front extension 700 mm fitted with emergency
stop
T2760-a: Spindle SK 40, Ø30 mm, working length 140 mm
T2790-a: Console feeder support arm
T1291-a: Comfort feeder support ø581050 mm

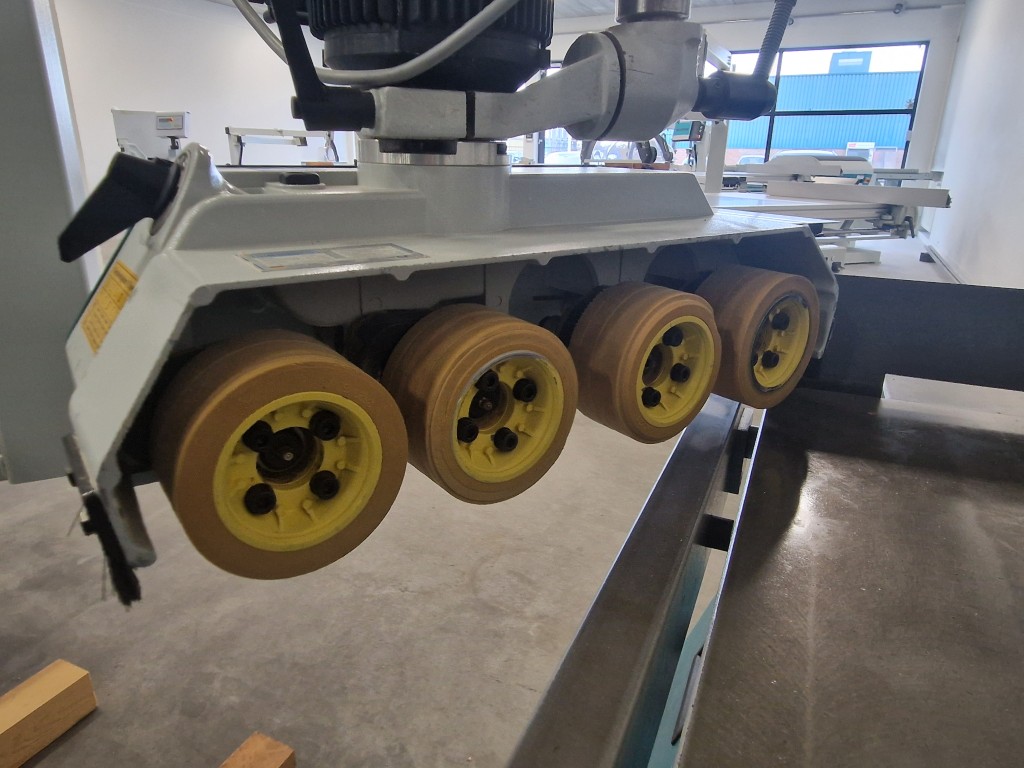

T2723_400-a: 4N feeder
