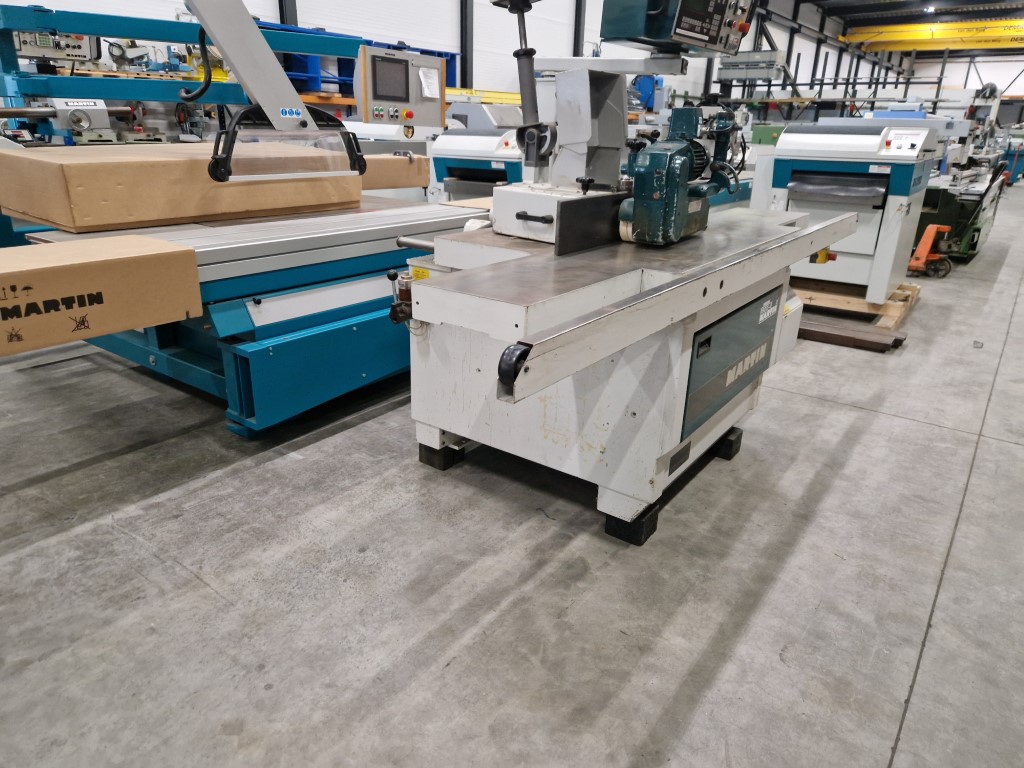

Martin T26 tilting table spindle moulder with CNC 4-ax control
Manufacturer: Martin
Type: T26 CNC
Year: 2002
Control: 4-ax CNC Control
Control panel: eye-level
Remark: Special paint Martin 75 Years Ral 7035& 6004

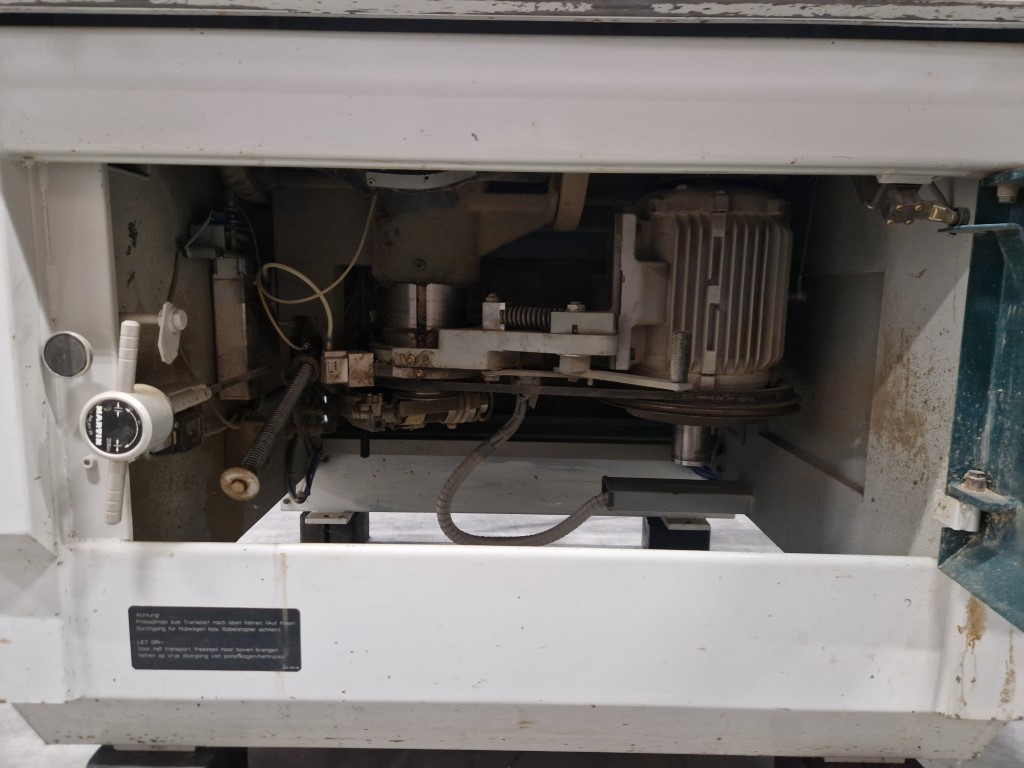

Motor: 7.5/9.5 kW – twin-speed motor
Tilting: -45 tot + 45°

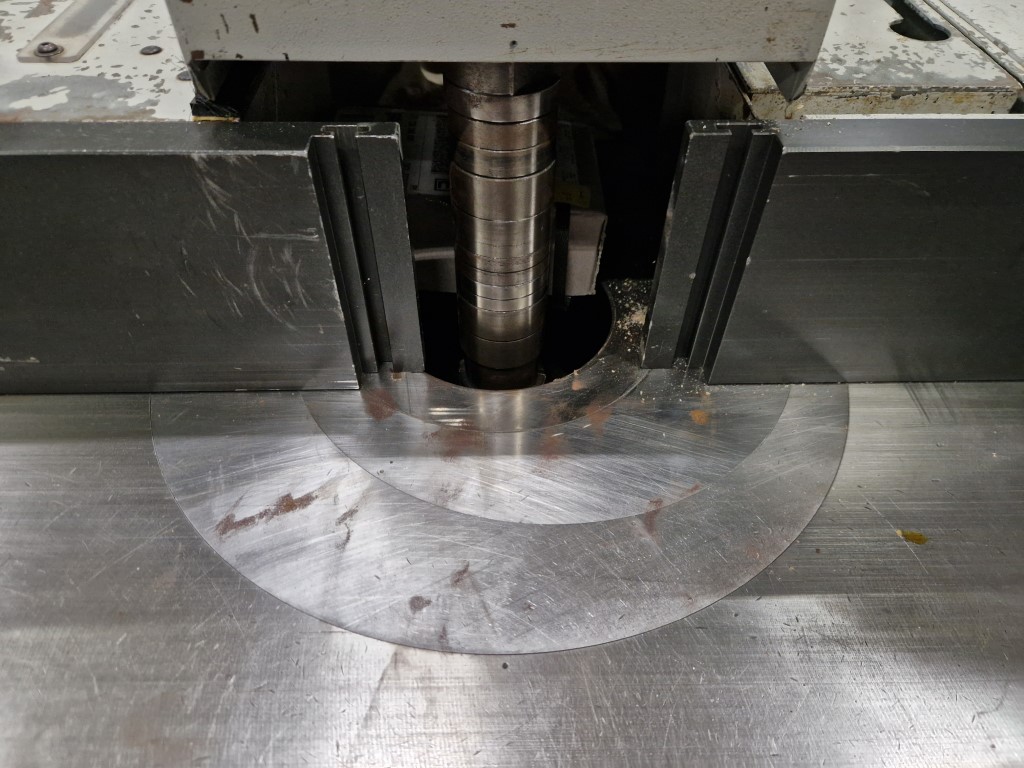

Spindel diam.: ø40 mm spindel SK40 – Dornfix-quick change
Spindel elevation: Electric spindel elevation 150mm (2 speed)
Spindel elevation
Electric-pneumatic spindel lock (Tool changing)
Central greasing
Rotation speed: Twin-speed 3000-6000 rpm or 4.500-9000 rpm, electronic
display, electric -automatic brake
Spindel pick-up: Dornfix-quick change spindel
Table: Table extension, infeed and outfeed 2405mm long, frontside
support 3000mm long, frontside extension 700mm
Control panel: 1. CNC-controlled spindel elevation, with automatic
dept and height control when spindle is tilted
2. CNC-controlled spindel tilting, with automatic dept and height
adjustment when spindle is tilted
3. CNC-controlled fence positioning (L&R together)
4. CNC-controlled table opening positioning

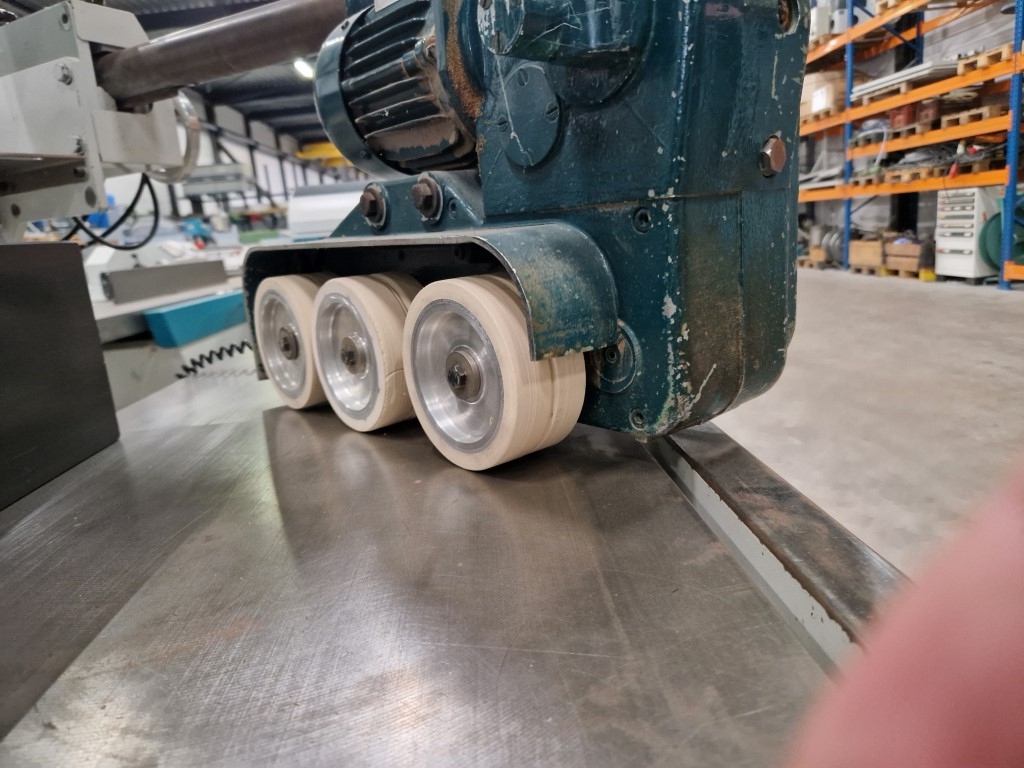

E. Electric controlled feeder (support arm) elevation
