Overview This KHS Innopack SP, built in 2006, is a pick-and-place case
packer for bottles. Empty cases run on the case conveyor into the

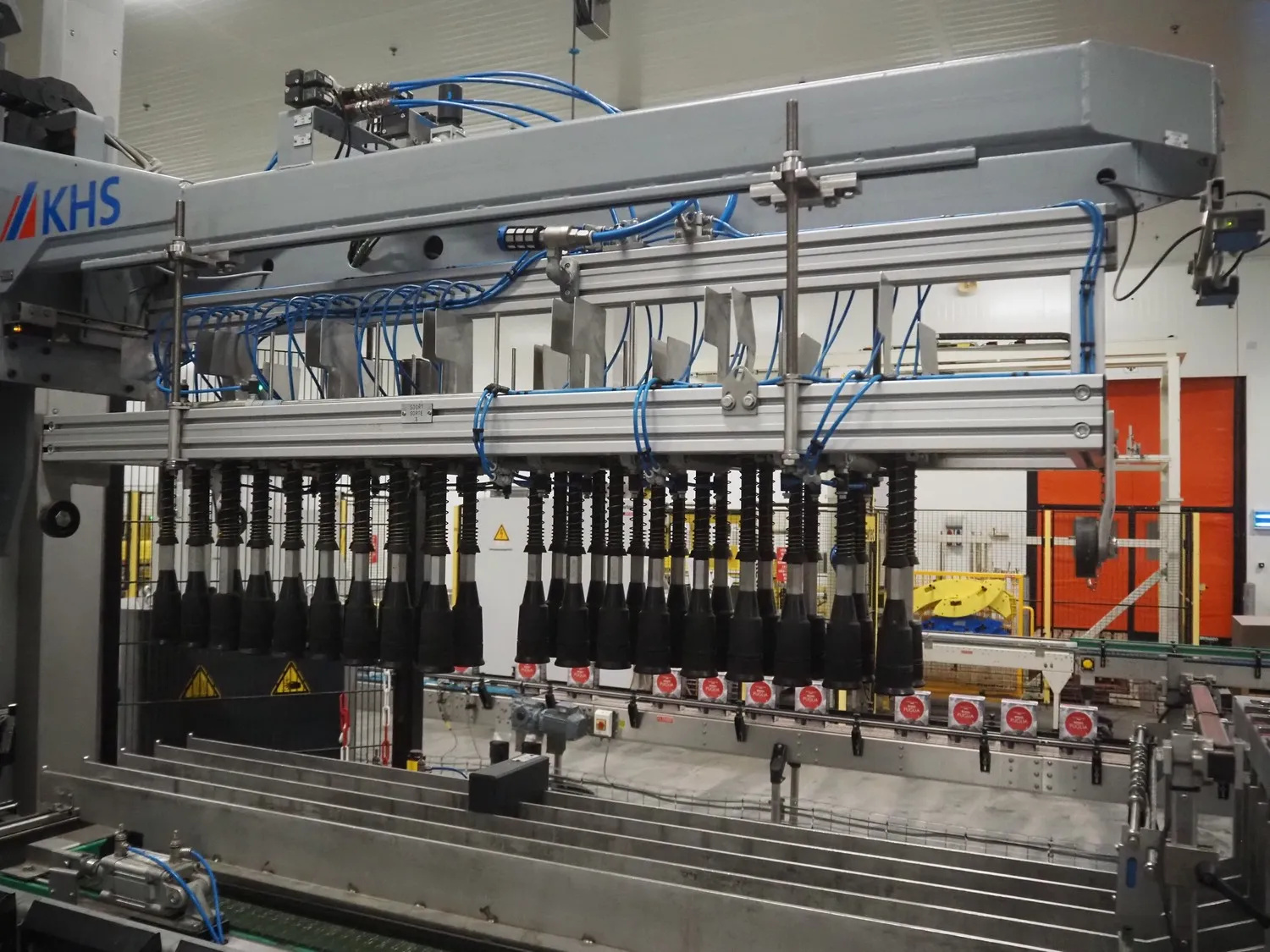

packing zone, where they are stopped and centred; the gripper head
picks the bottle formation from the four-lane infeed table and sets it
into the cases. The lifting unit travels on a vertical lifting column
with counterweight, and the motion is controlled by a KUKA KR C2
controller with KCP teach pendant. Four change-part trolleys with
gripper heads for different bottle sizes are included. The packer is
still installed in a wine bottling and packaging line and can be
inspected on site. Technical data Manufacturer: KHS Model: Innopack SP
Year of manufacture: 2006 Machine type: pick-and-place case packer
Bottle infeed: 4 lanes, lane width 85 mm Gripper head: 2 x 18 bottle
tulips, formation 3 x 6 bottles Case clearance: 175 x 400 mm Power
supply packer: 400 V, 3 Ph, 50 Hz, 27 A Robot controller: KUKA KR C2,
400 V, 3 Ph, 50/60 Hz, 8 A Overall dimensions (L x W x H): 6,000 x
3,250 x 3,650 mm Change-part trolleys: 4 units, each 2,050 x 1,300 x
2,100 mm Equipment Base frame with lifting column, counterweight and

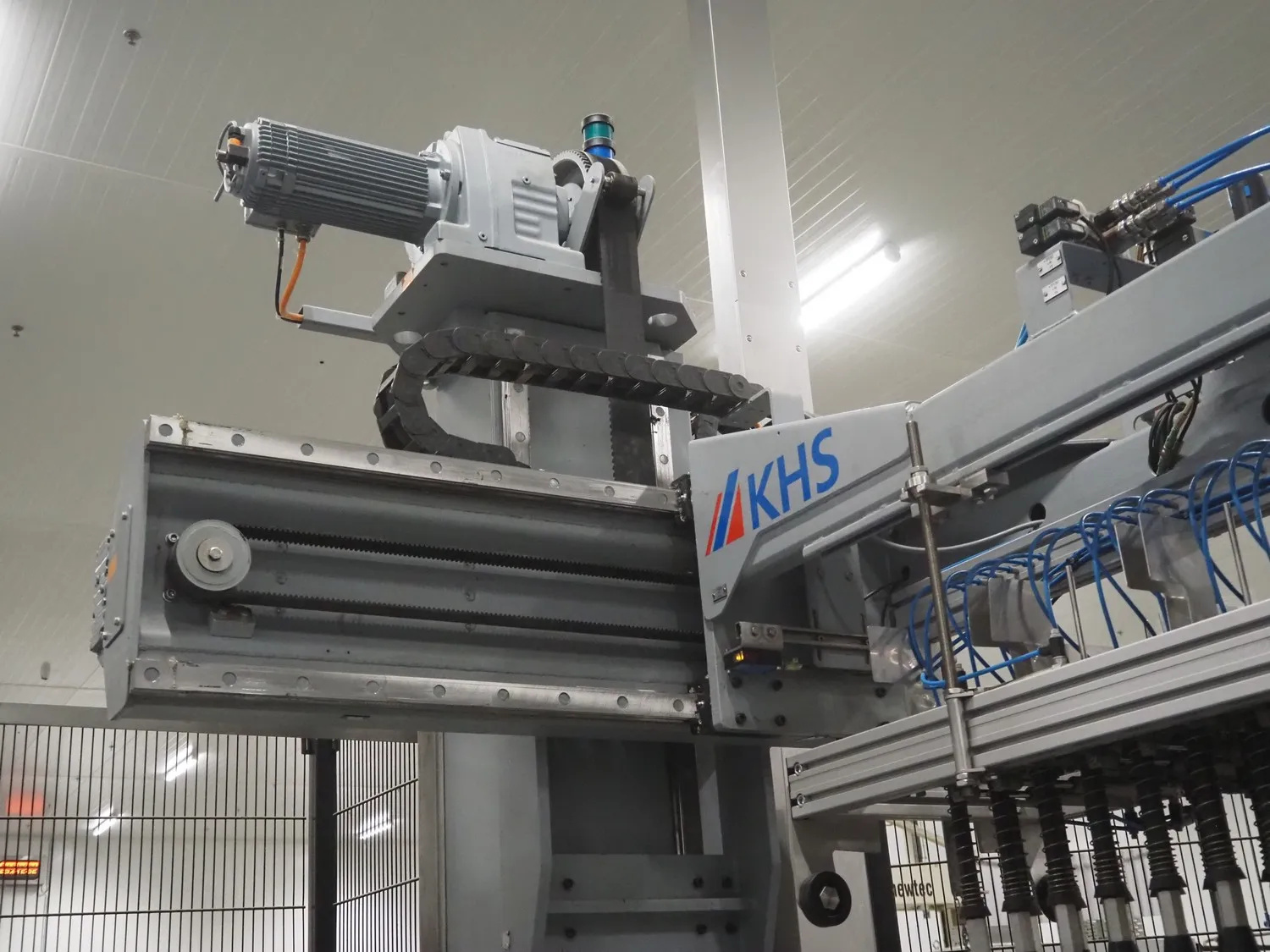

lifting unit Cross conveyor and shifting carriage for the gripper head

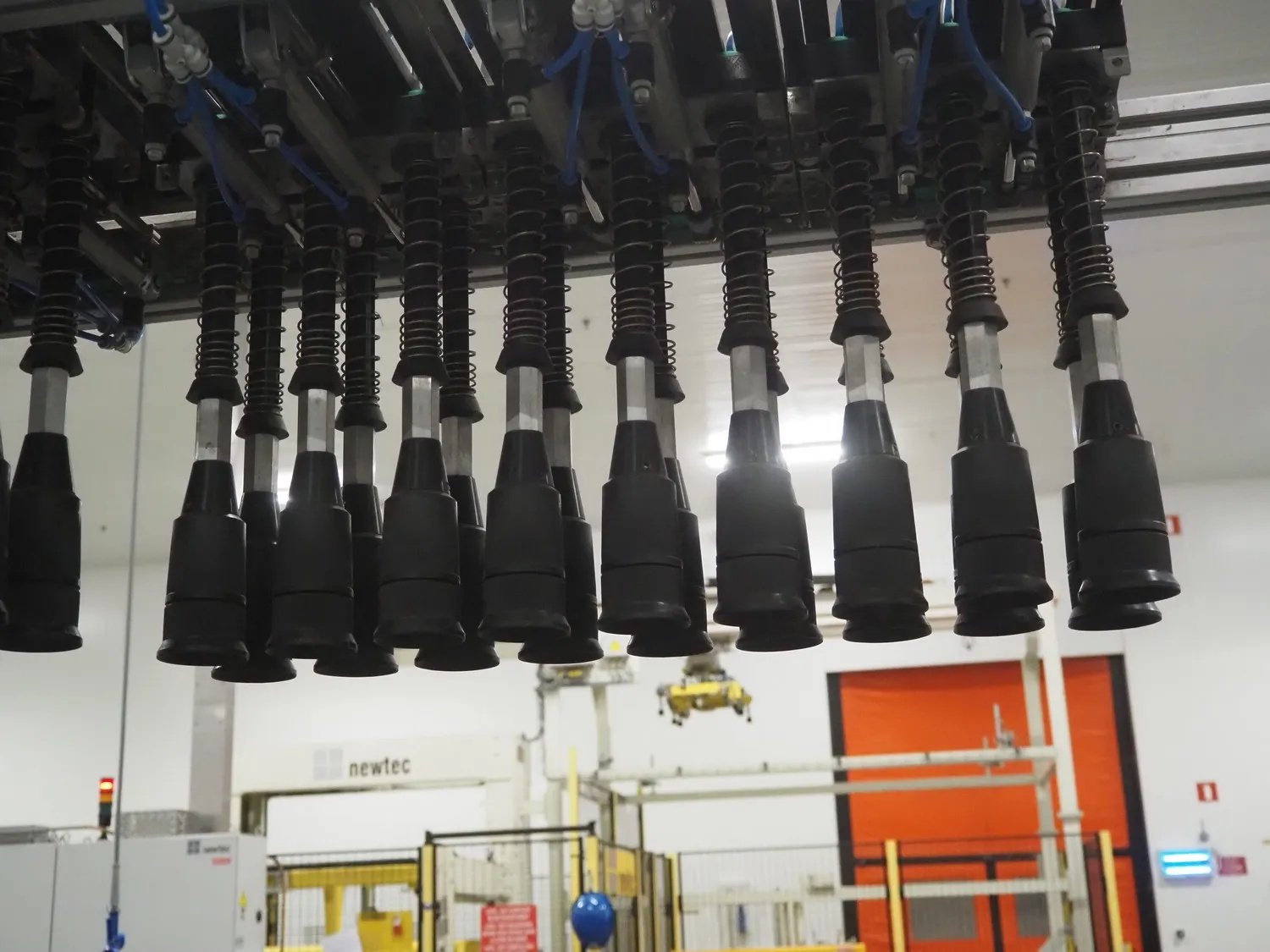

Gripper head with pneumatic bottle tulips Centring device for the
cases in the packing zone Four-lane bottle infeed table with lane

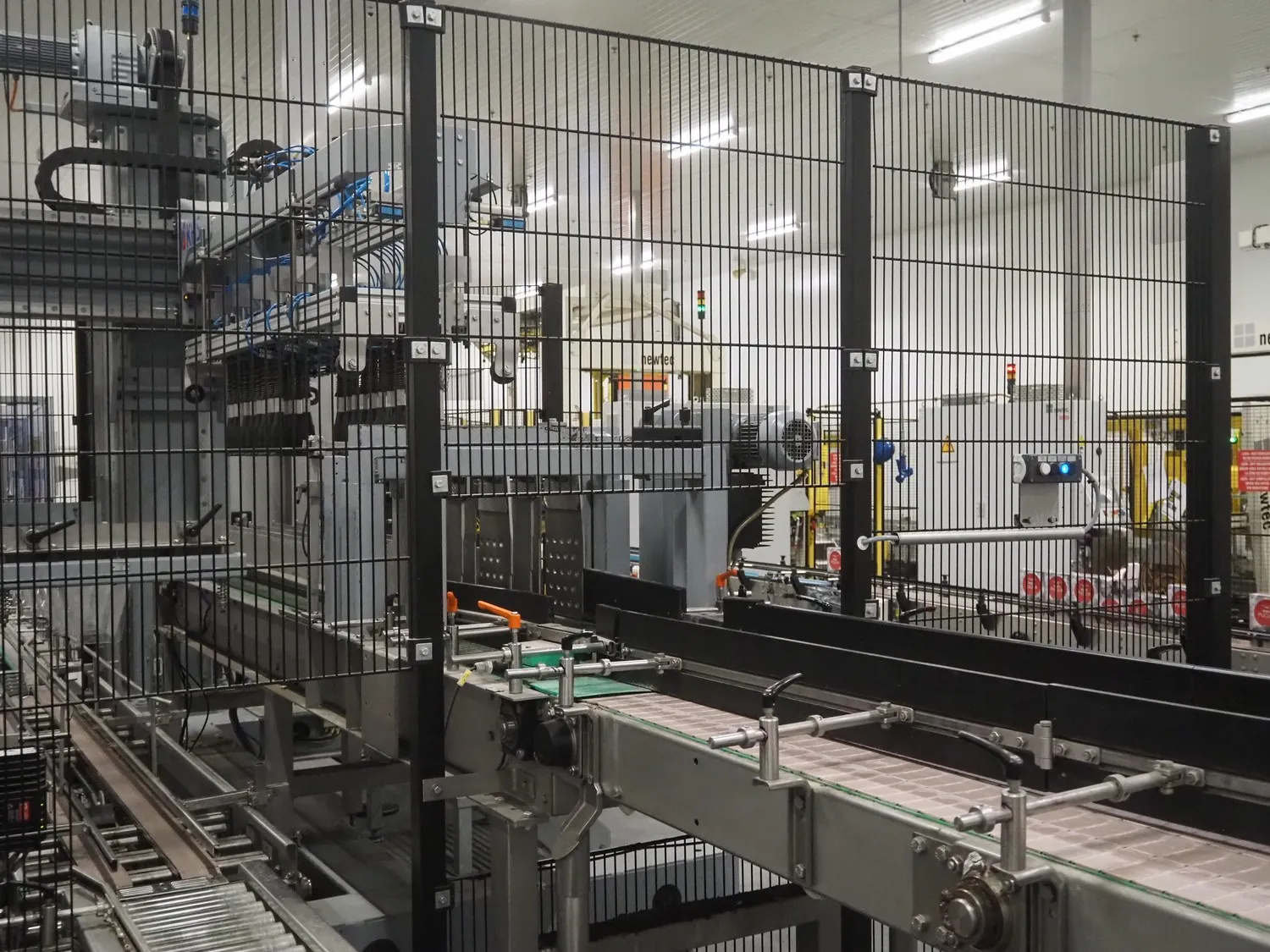

guides Case infeed and outfeed conveyors Enclosure with windowed doors
and safety fencing KUKA KR C2 controller cabinet and KCP teach pendant
on stand KHS control cabinet 4 change-part trolleys with gripper heads
for different bottle sizes Operating manual (Dutch) available
Condition Still installed. An inspection on site is possible.
Availability Available immediately. Location: Belgium.
