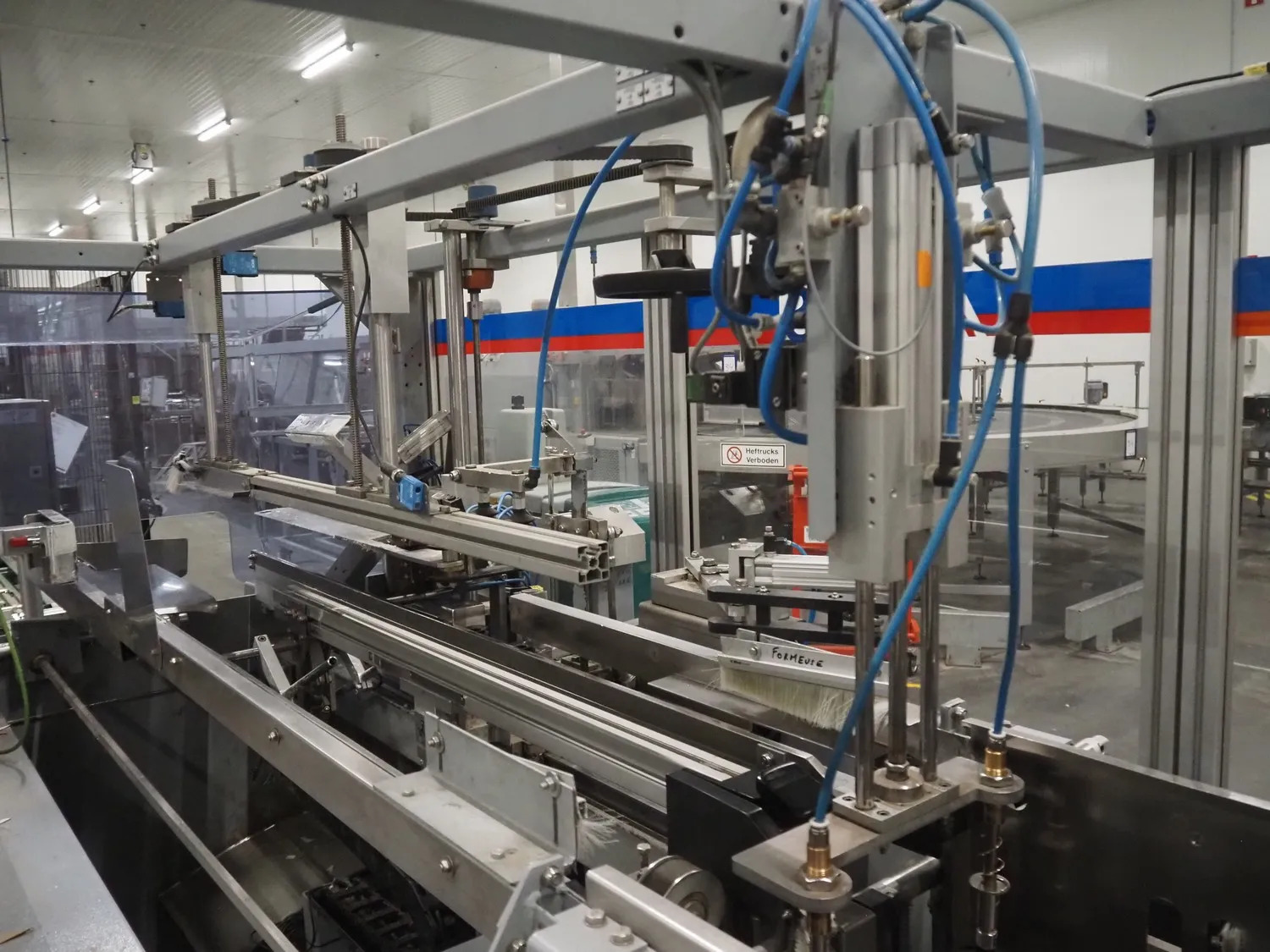

Overview This KHS Innopack CA-1, built in 2006, is a carton erector
that forms cartons from flat blanks and closes their bottom with
hot-melt glue. Blank stacks are fed on a roller conveyor into the
magazine; suction grippers pick each blank, erect it, fold the inner
bottom flaps, apply glue with a Robatech hot-melt unit, close and
press the outer flaps and discharge the carton onto the outfeed roller
conveyor. The machine is still installed in a wine bottling and
packaging line and can be inspected on site. Technical data
Manufacturer: KHS Model: Innopack CA-1 Year of manufacture: 2006
Machine type: carton erector with bottom gluing Glue system: Robatech
Concept hot-melt unit with glue nozzles for the bottom flaps Power
supply: 400 V, 3 Ph, 50 Hz, 15 A Compressed air: min. 5 bar operating
pressure Overall dimensions (L x W x H): 4,550 x 3,450 x 2,720 mm

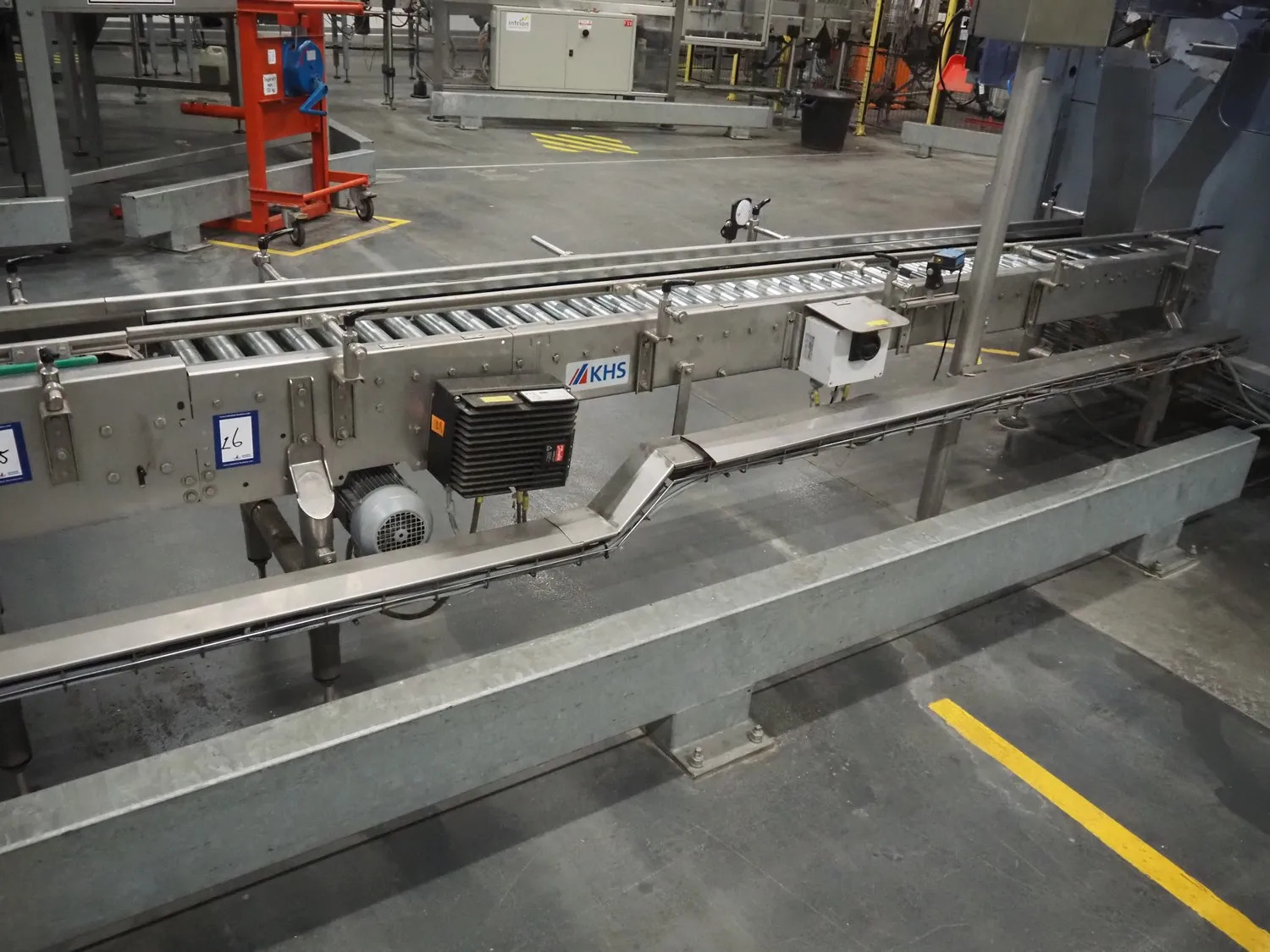

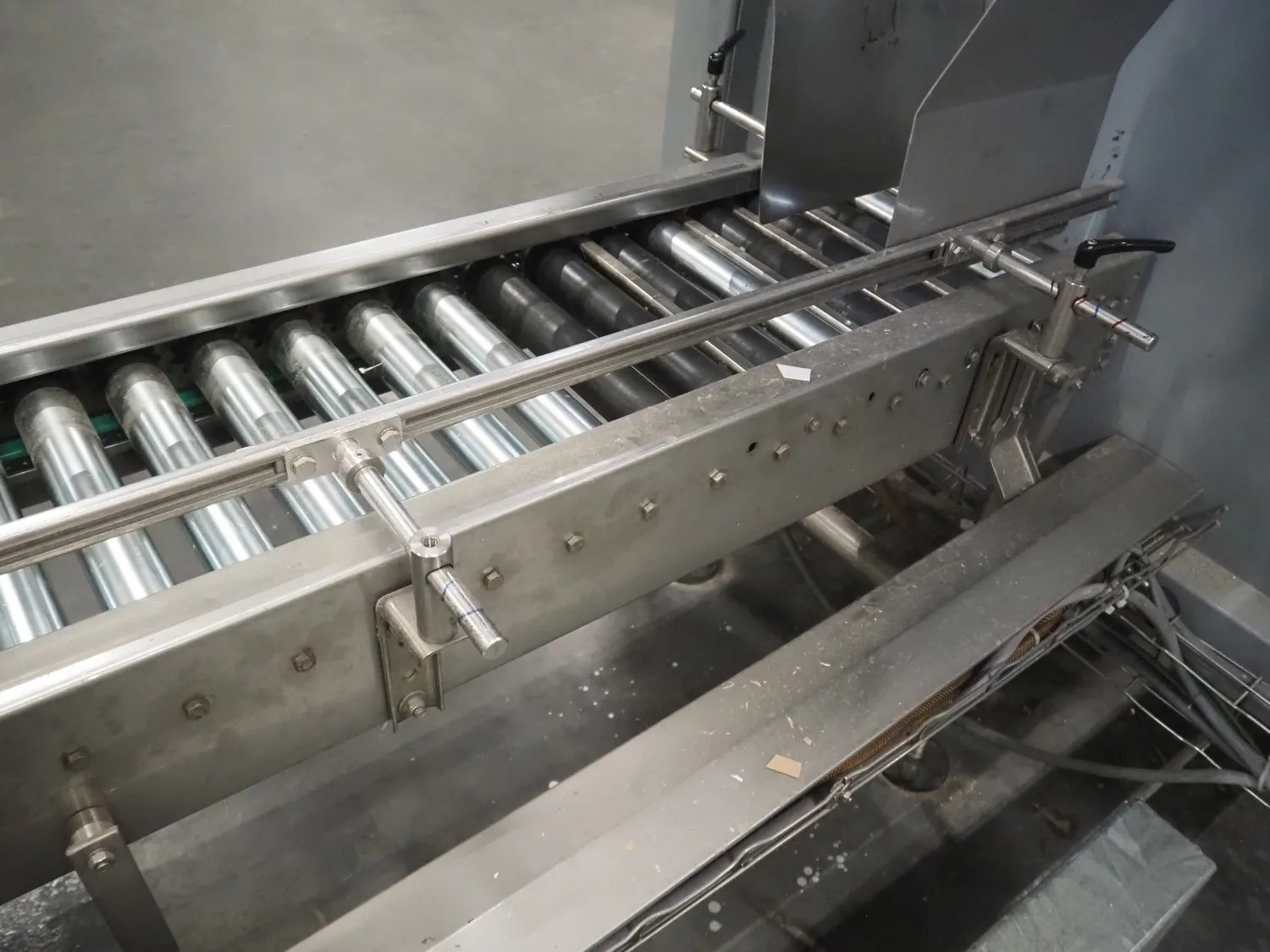

Blank infeed: roller conveyor with stainless steel rollers, roller

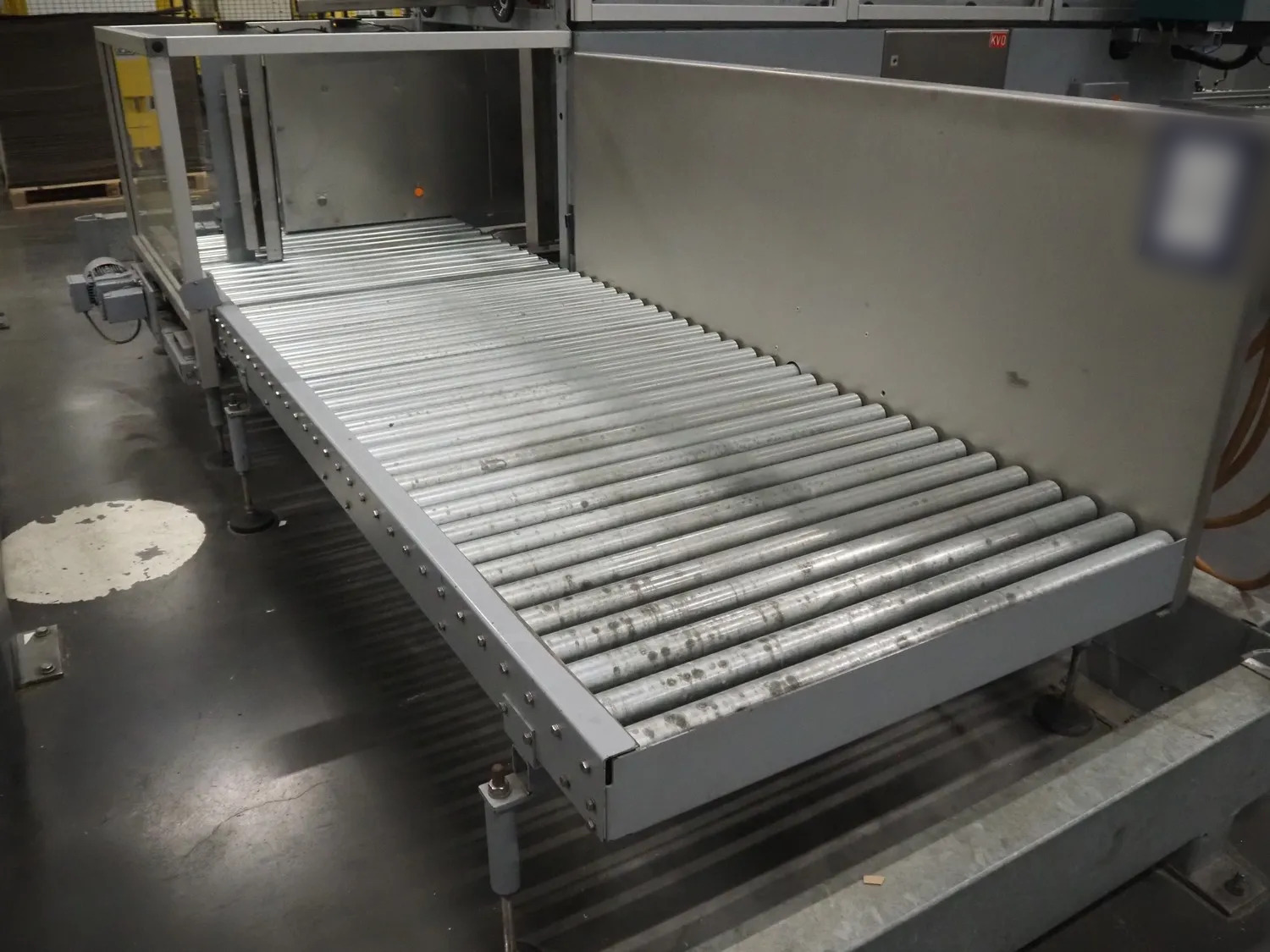

width 1,000 mm, infeed clearance 800 x 450 mm Outfeed: roller conveyor
with stainless steel rollers, roller width 300 mm, 3,050 x 650 x 880
mm Equipment Stack preparation with automatic loading of the blank
magazine Blank magazine with lifting device, side guides and front and
rear stops Pick-up and erecting stations with vacuum suction grippers
and vacuum unit Folding, gluing, closing and pressing devices for the
carton bottom Side and height adjustment by handwheel for different
carton sizes Enclosure with windowed safety doors Operator panel with
display, keypad, start/stop, key switch and emergency stop; operator
texts in French Control cabinet and pneumatic service unit CE marked;
operating manual (Dutch) available Condition Still installed. An
inspection on site is possible. Availability Available immediately.
Location: Belgium.
