Overview KHS Innofill NRF filling and closing monoblock for still wine
in glass bottles, built in 2007. A 50-valve filler is followed by two

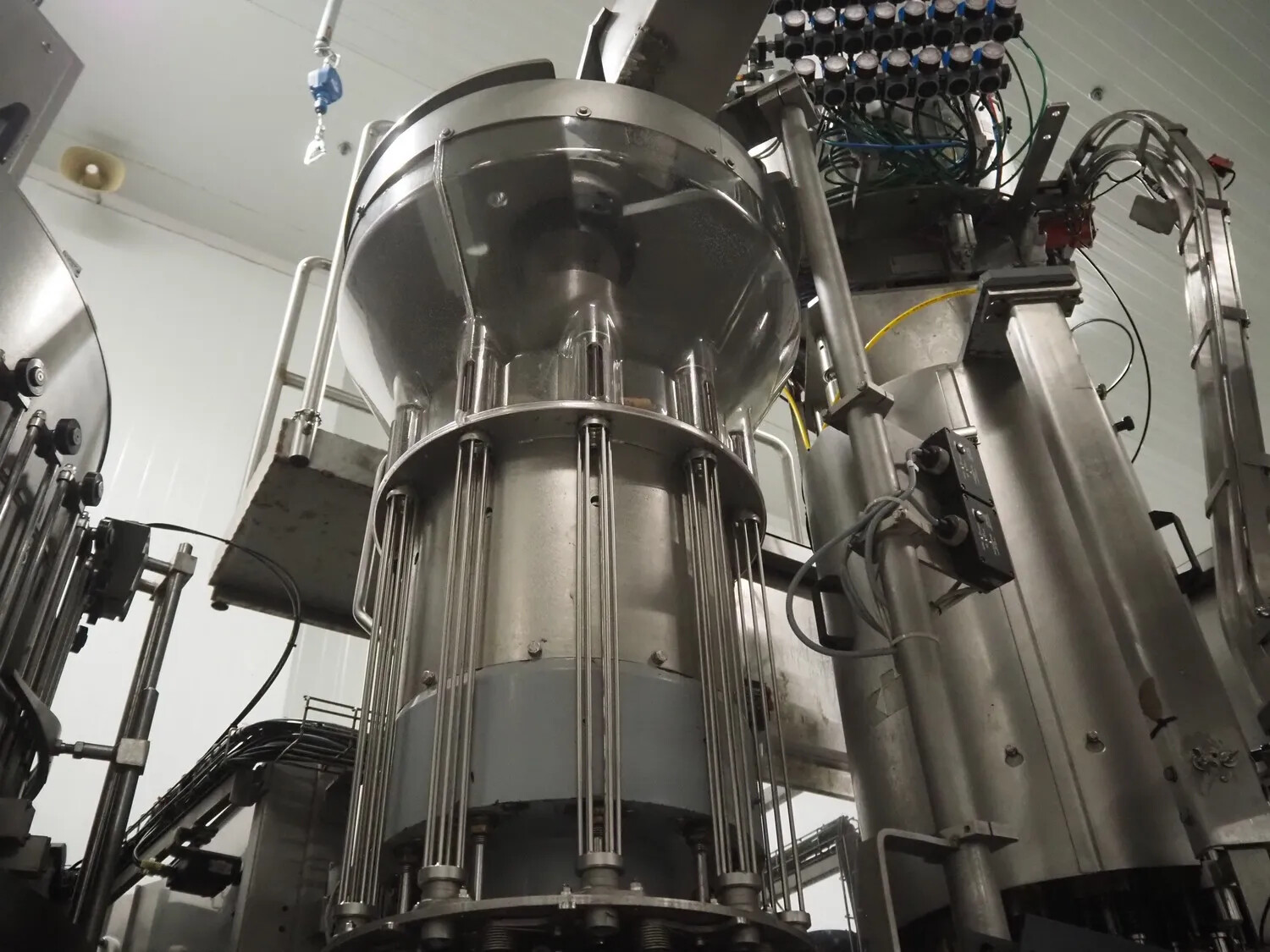

10-head closers: a KHS natural-cork closer with vacuum device and an
aluminium roll-on capper by Zalkin, so the machine closes either corks
or screw caps. Output 12,000 bottles per hour. The operator panel and
software were updated by KHS in 2022. Technical data Manufacturer: KHS
Model: Innofill NRF Year of manufacture: 2007 Output: 12,000 bottles/h

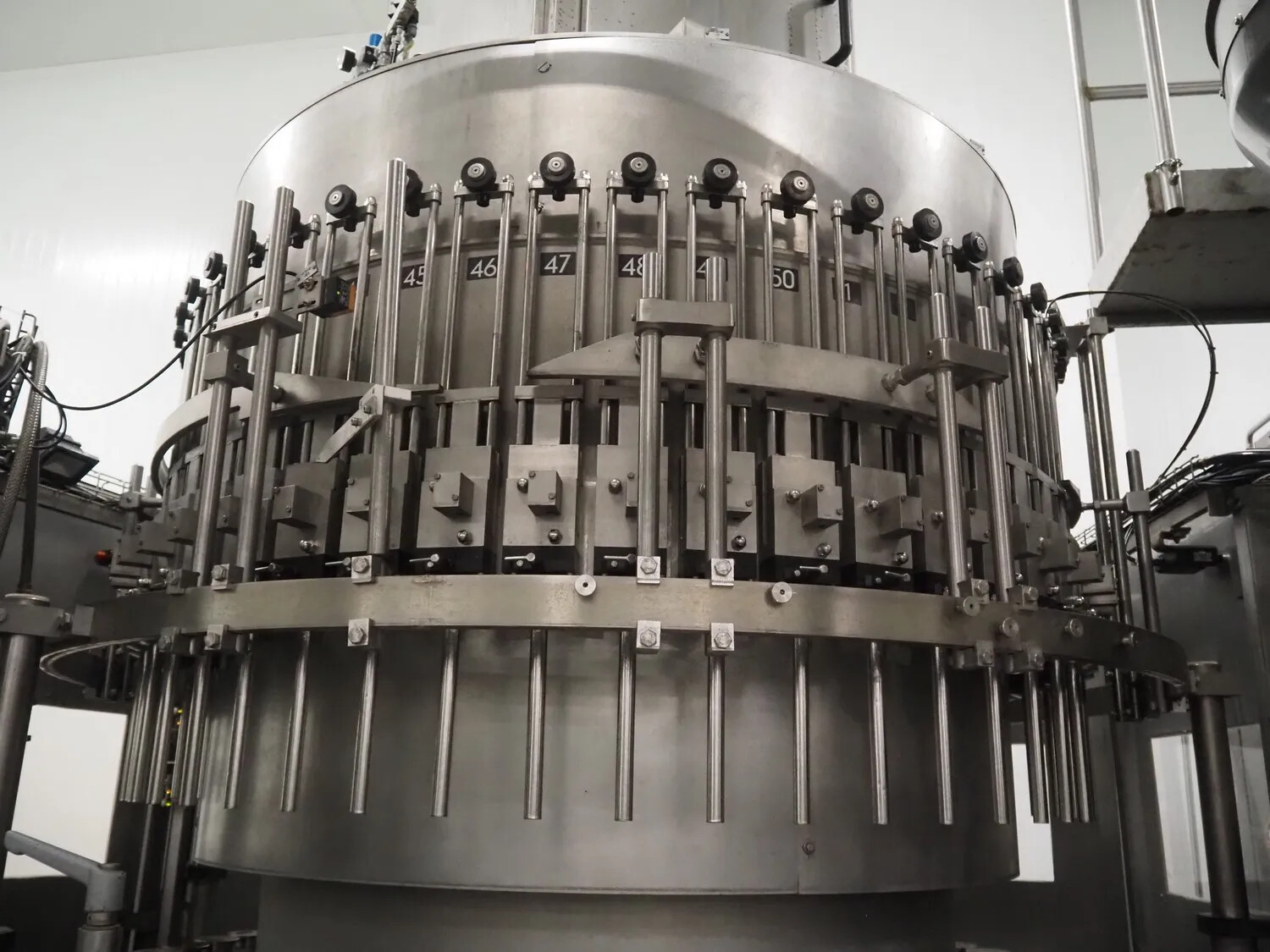

Filler: 50 filling valves, pitch circle 1,800 mm, filling tube
diameter 20 mm Cork closer: KHS, 10 heads, pitch circle 360 mm,
electrically heated cork jaws, cork sorter mounted on top Vacuum
device with vacuum pump Screw-cap closer: Zalkin aluminium roll-on
capper, 10 heads, pitch circle 360 mm, for 31.4 x 24.2 mm aluminium
caps Machine pitch 36π, running direction left to right Conveyor:
stainless steel slat chain, 85 mm wide, conveyor height 1,250 mm Power
supply: 400 V, 3/N/PE, 50 Hz, 90 A nominal current, 100 A slow fuse;
control voltage 24 V DC Enclosure type 12 Overall dimensions approx.

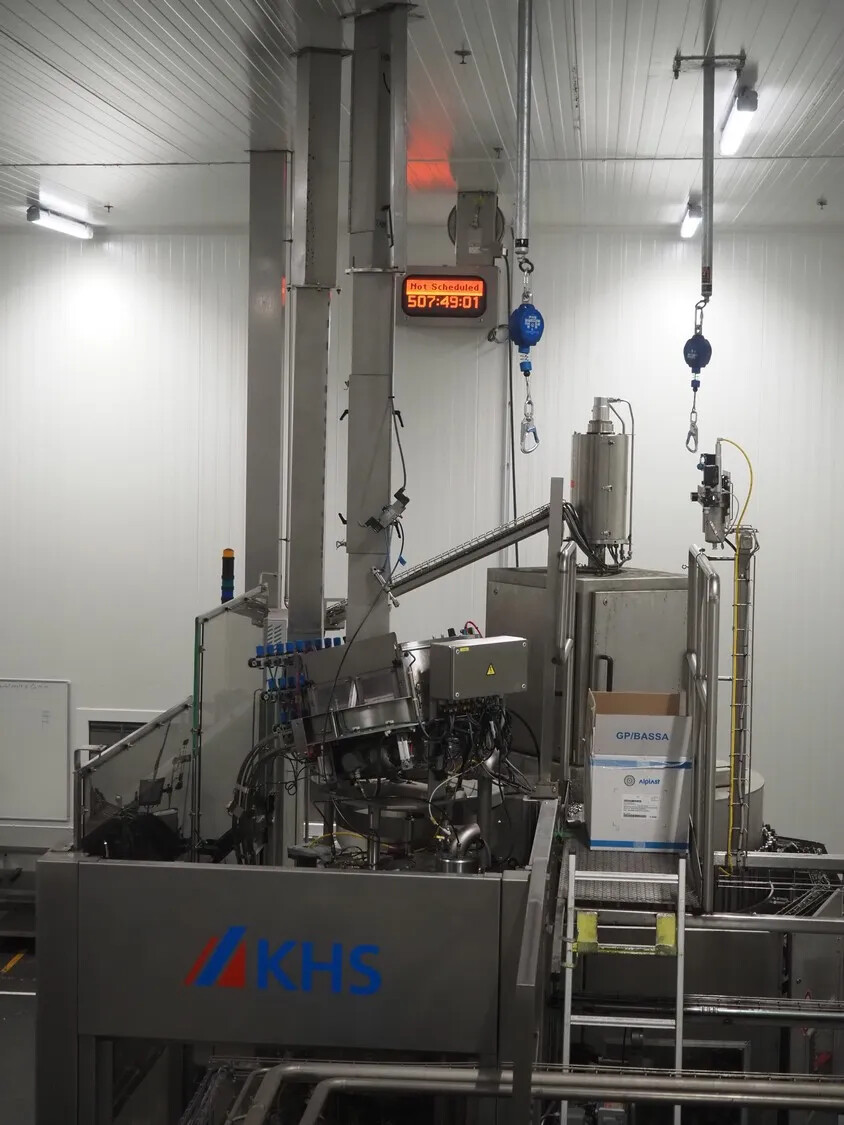

5,300 x 3,600 x H 4,400 mm Scope of delivery Filler-closer monoblock
with guarding, front panels slide up Automatic central lubrication Two
infeed hoppers for corks and caps with elevating feed, approx. 1,600 x
1,200 x 1,720 mm and 1,500 x 1,250 x 1,550 mm Stainless steel CIP

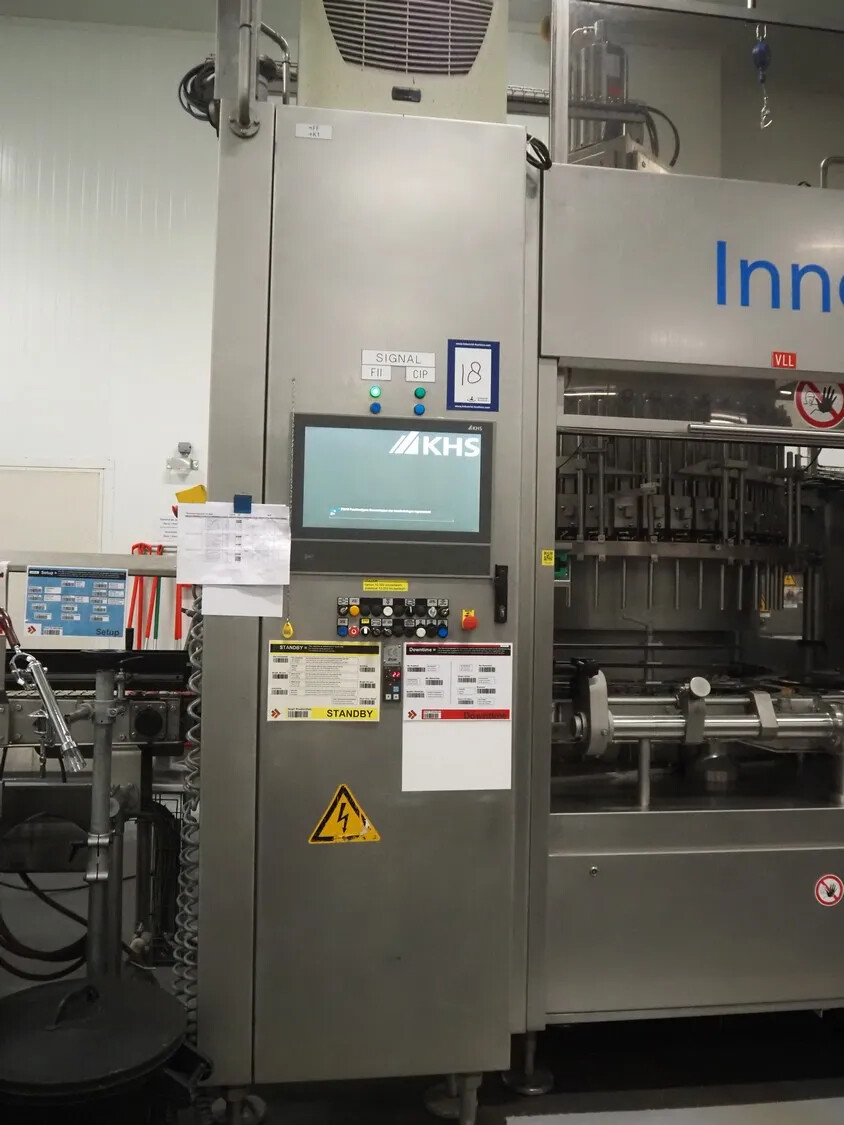

unit, approx. 3,000 x 1,300 x 1,900 mm Stainless steel control
cabinet, approx. 2,500 x 750 x 2,100 mm Stainless steel trolley,
approx. 800 x 750 x 1,650 mm Two trolleys with change parts,
colour-coded format sets KHS documentation: operating manuals, spare
parts list, 2022 operator-panel supplement Condition Used. The machine
is still installed at its production site and can be inspected by
appointment. Availability Immediately.
