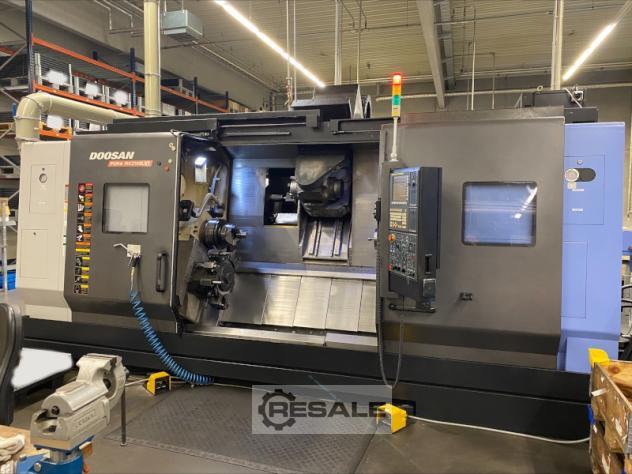

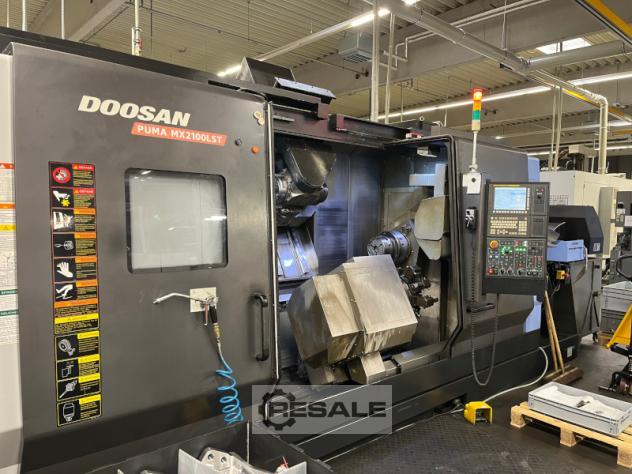

Centros de torneado CNC DOOSAN Puma MX 2100 LST

CNC turning and milling center (9-axis) with Y-axis, B-axis, sub-spindle and tool turret

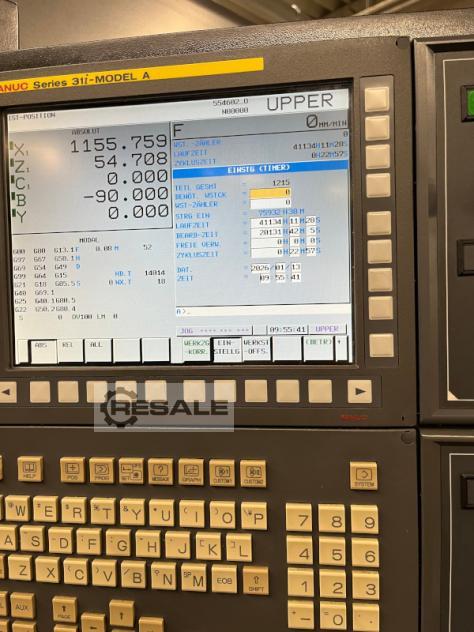

CNC control FANUC 31iTA with Manual Guide i

Swing diameter over bed 750 mm
Swing diameter over cross slide 600 mm
Collision-free turning diameter 210 mm
Max. turning diameter main spindle 540 mm
max. turning length 1520 mm

Main spindle left and right (sub-spindle)
Chuck diameter. 210 mm
Spindle bore 76 mm
Feed passage 66 mm
Speed range up to 5,000 rpm
max. torque 318 Nm

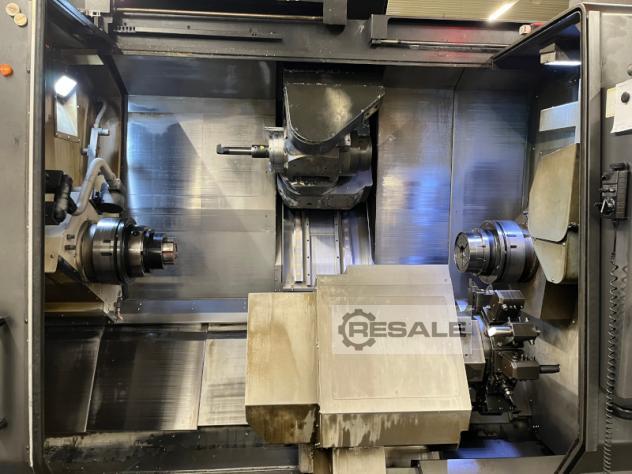

Turning/milling spindle (swivel head, B-axis)
Speed range up to 12,000 rpm
Torque 81 Nm
Drive power 18.5 KW
Positioning 0.001 °
Swivel range 240° (+120°)

Tool magazine ATC
Number of magazine slots 40
Tool holder CAPTO C6

Tool turret at the bottom
Tool Stations 12
Drill bit holder dia. 40 mm
Tool M6145306 shank cross-section 25x25 M6145306 mm
Tool holder type BMT 55P
Drive power motor 5.5 KW
Tool speed 5,000 1/min

- Chip conveyors
- Parts removal with conveyor belt
- Tool measuring arm
- Internal coolant supply through the sub-spindle
- Lining cleaning
- Air/water through the turret

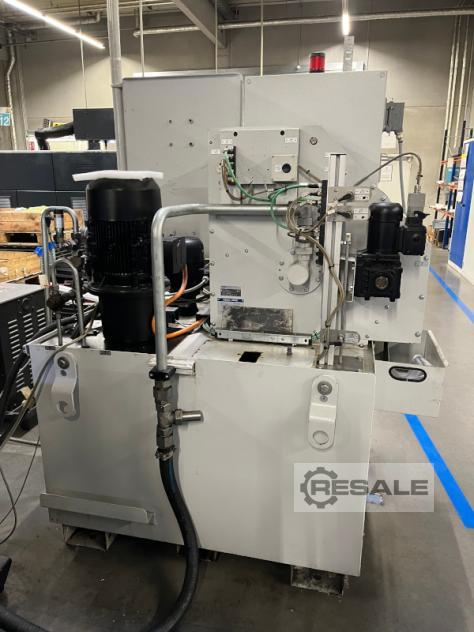

- Knoll compact filter system
- Automatic workpiece measurement
seller offer No. resale 168608042
