BOEHRINGER DUS 400 ti

centre distance: 1000 mm
turning diameter over bed: 420 mm
turning diameter over bed slide: 235
turning length: 1000 mm
spindle taper: DIN 55027 Gr. 6
control: MANUALPlus 4110
spindle bore: 51 mm
turning speed range: 3 - 3000 U/min
feed:: 5.000/10.000 mm / min
drive capacity - spindle motor: 11 kW
taper in tailstock-quill: MK 4
dia. of quill: 70 mm
quill stroke: 110 mm
coolant: ja/yes
voltage: 400 V

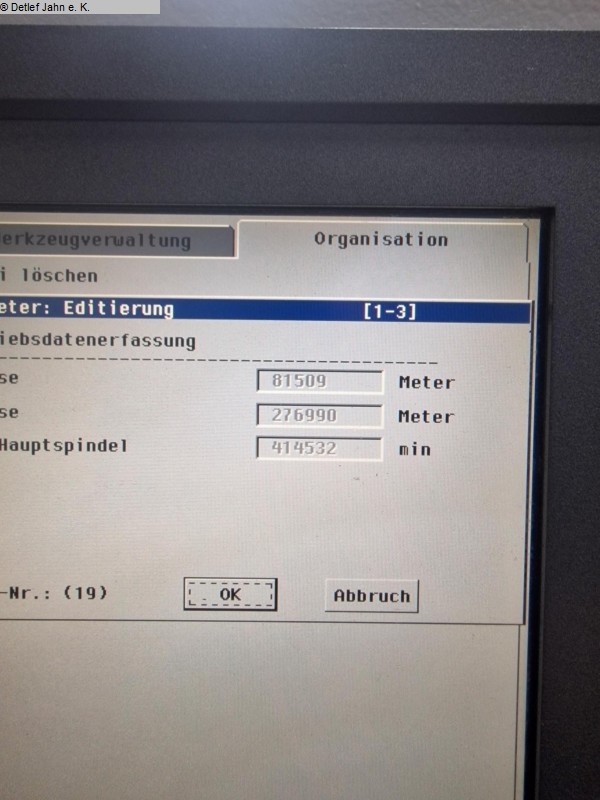

Number of working hours: 6.908 h
weight of the machine ca.: 3 t
dimensions of the machine ca.: 3,4 x 2 x 2,2 m
BOEHRINGER DUS 400 ti CNC cycle-controlled lathe, built in 2006

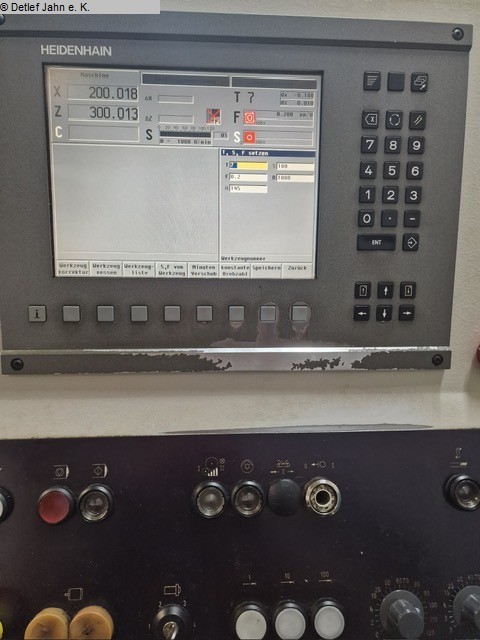

-Control system: Heidenhain ManualPlus 4110
-11 kW AC main drive with 2-stage gearbox
-Work area cover with chip guard door
-Control panel mounted on the support, moves with the machine
-Holding brake
-Programmable cycles
-4-position quick-change turret
-Size 2 tool holder on fixed base
-With 1 WD ‘/25’ tool holder
-Tailstock
-Rapid traverse
-Coolant system
-Machine lamp

Condition:
Machine runs perfectly, no known faults, ready for immediate use.

Accessories:

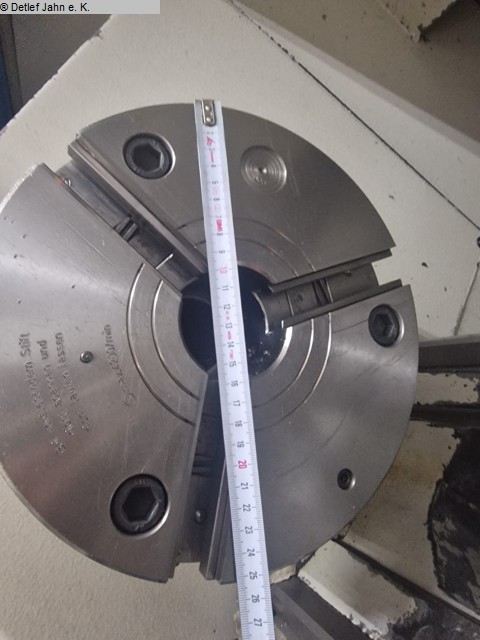

1 three-jaw chuck 250 mm, bore 62 mm
1 set of hard jaws
4 sets of soft jaws including jaw holders
23 tool holders including tools
