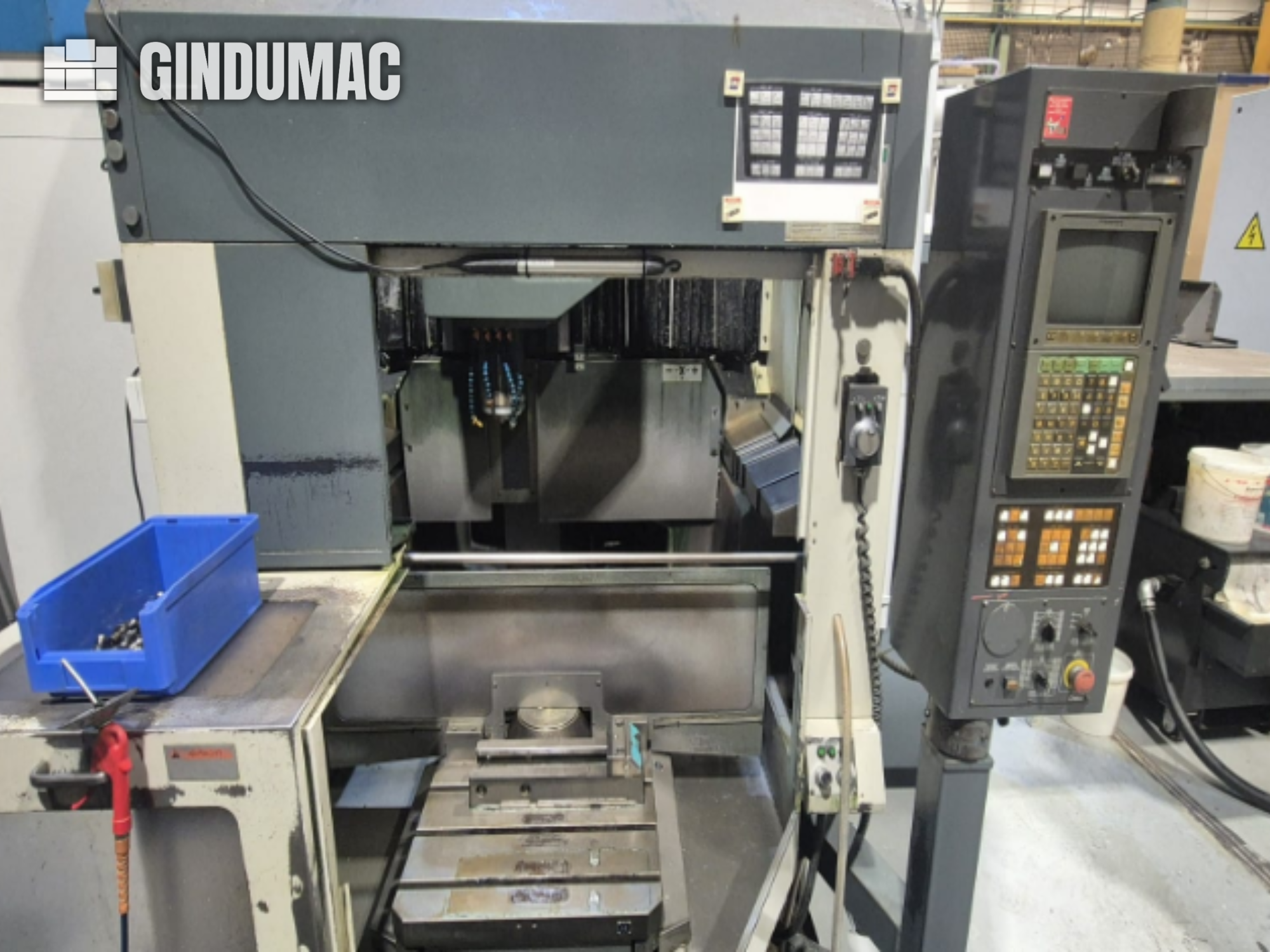

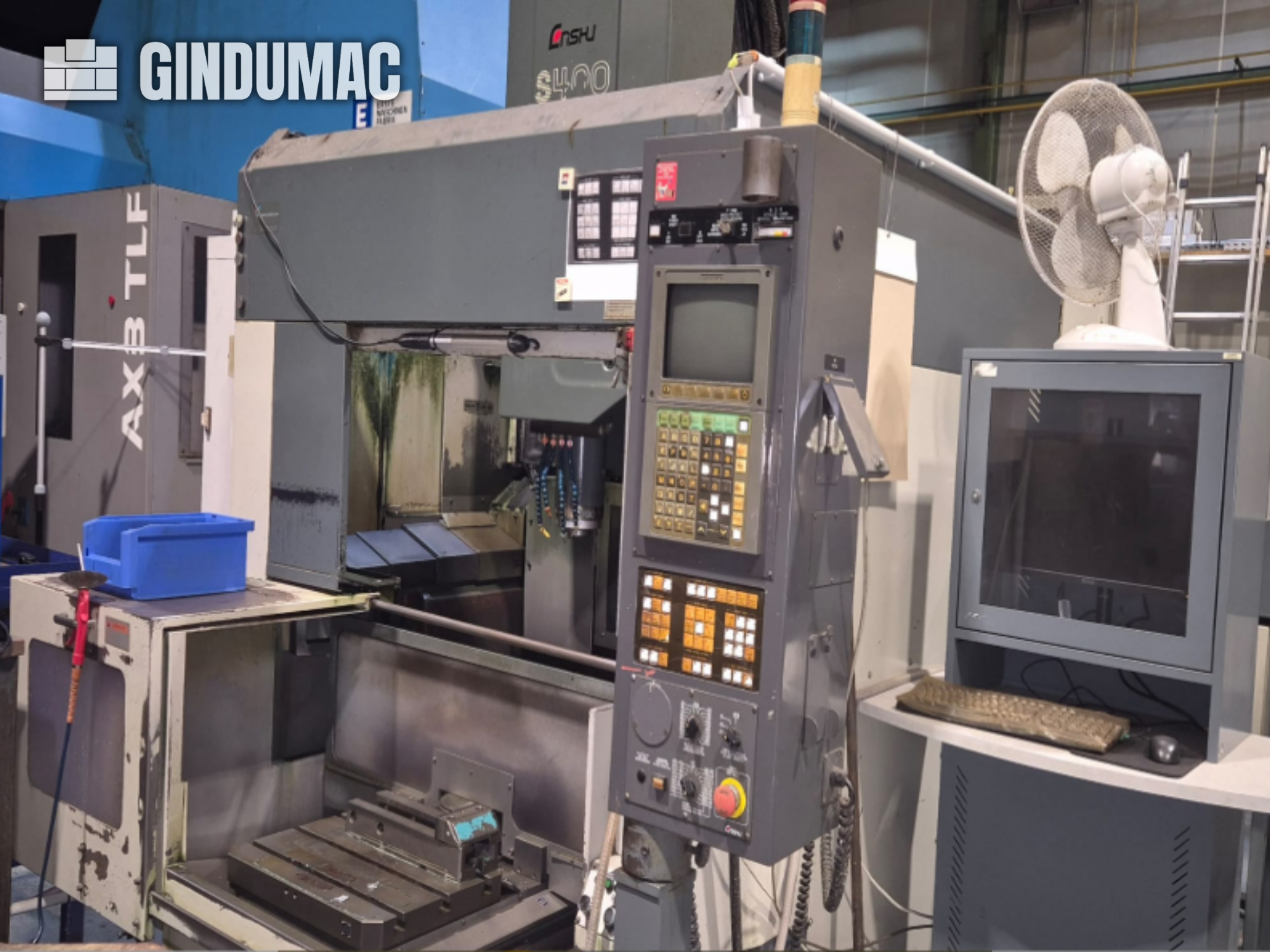

Enshu 450FV CNC Vertical Machining Center The machine is fully functional and is in production. One piece of vise is included. 2pc palettes Spindle maximum speed: 20000rpm External liquid cooling Chip conveyor Model year: 1996 Machine weight: approx. 7500kg Fanuc 16-MA Control 20 tool slots X-axis 700mm Y axis 400mm Z axis 500mm BT40 tools The machine needs a floor space of approx. 4000mm width 3600mm depth 3400mm height NOTE! Tools are not included.
Control unit Fanuc 16-MA X-Axis travel 700 mm Y-Axis travel 400 mm Z-Axis travel 500 mm Spindle distance to table 150 - 610 mm Table length 900 mm Table width 450 mm Table load 500 kg Spindle taper BT40 Spindle speed 20000 rpm Motor power 7.5/5.5 kW Tool magazine 20 positions Dimensions L 3730 x W 2612 x H 2870 mm Weight 7500 kg
Tapping drilling center Year of manufacture: 2010 Roto-pallet Surface area of two tables: 600x350 mm Table load capacity: 200 kg each X stroke: 400 mm Y stroke: 300 mm Z travel: 300 mm Rapid feed speed XYZ: 50000 mm/mn Work feed speed: 1- 15000 mm/mn Spindle taper: BT30 Rotation speed: 100 - 10000 rpm Tapping speed: 6000 rpm Spindle motor power: 5.5 kw Random tool magazine: 12 stations Tool change time: 2 seconds Filtered spindle center coolant, programmable pressure from 7 to 12 bar Cabin shower CNC : FANUC 21i-MB RENISHAW TS27R tool measurement and breakage probe ETHERNET interface Chip conveyor Full documentation Dimensions : 1500x3500x2200 mm Weight : 2500 kg Very good condition visible under power
Find more here - /
x-travel: 400 mm y-travel: 300 mm z-travel: 300 mm control: Jasnac tool taper: BT30 Tools changer for 12 tools: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
