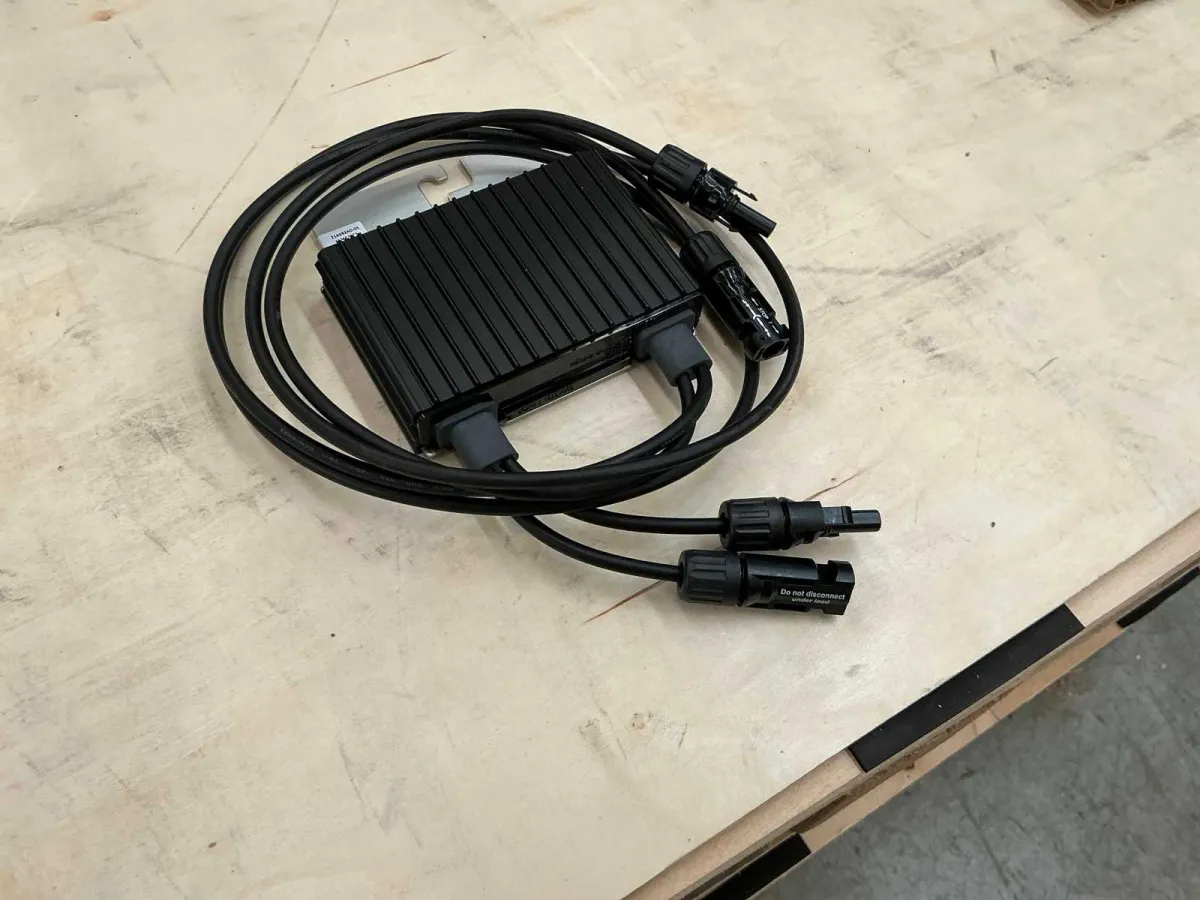

(x5) SOLAR EDGE P401 Power Optimizer (REF: 4003042)

Model: SolarEdge P401

INPUT (DC)
Rated DC input power: 420W
Absolute maximum input voltage (Voc at minimum temperature): 60 Vdc
MPPT operating voltage range: 8 – 60 Vdc
Maximum Short Circuit Current (Isc): 12.5 A
Maximum efficiency: 99.5 %
Weighted efficiency: 98.8 %
Overvoltage category: II

OUTPUT OPERATION (optimizer connected to operational SolarEdge inverter)
Maximum Output Current: 15 Adc
Maximum output voltage: 60 Vdc

STANDBY OUTPUT (optimizer disconnected from SolarEdge inverter or inverter off)
Safety output voltage for optimizer: 1 ± 0.1 Vdc

STANDARDS
COMPLIANCE
Electromagnetic compatibility: FCC Part 15 Class B, IEC 61000-6-2, IEC 61000-6-3
Safety: IEC 62109-1 (Safety Class II), UL1741
RoHS compliant: Yes
Fire safety: VDE-AR-E 2100-712:2013-05

INSTALLATION
SPECIFICATIONS
Maximum allowable system voltage: 1000 Vdc
Dimensions (W × D × H): 129 × 153 × 29.5 mm
Weight (including cables): 655 g
Input Connector: MC4
Input cable length: 0.16 / 0.52 m
Output Connector: MC4
Output cable length: 1.2 m
Operating temperature range: −40°C ~ +85°C
Degree of protection: IP68
Relative humidity: 0 – 100 %

Single piece loading dimensions: 400 x 400 x 300 mm
Auction-ID: A7-51355-1128
