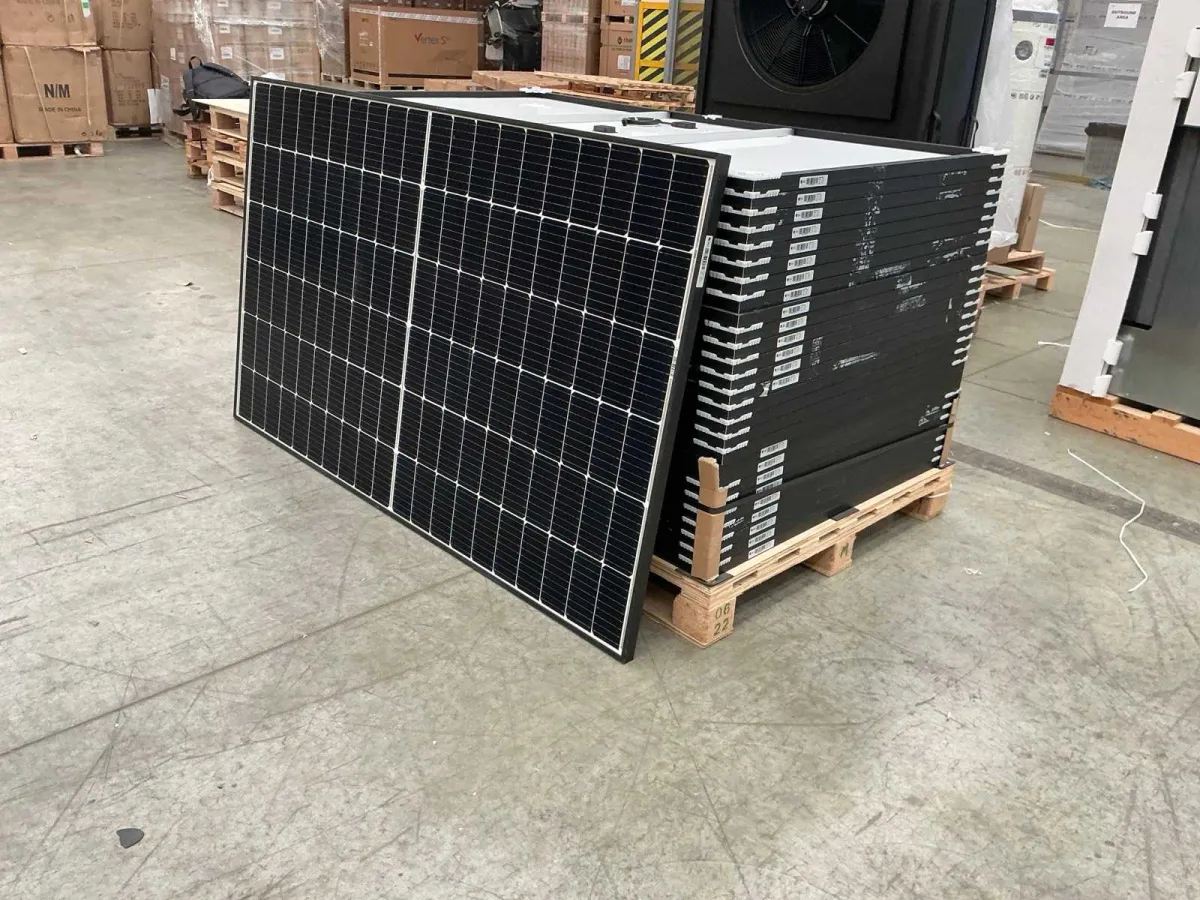

(x5) REC 375 TP4 PV Module (REF: 4005473)
AuctionVerified seller
Bid¹ net
Directly to the seller
255 €
1 / 1
Technical data
· ID 170379498Used machinery
- Bid¹ net
- 255 € (netto)
- Starting price
- 255 € (net)
- Auction end
- The auction ends on 18.11.2026 – 15:13 CET.
- Location
- 00134 Roma - Santa Palomba
¹ Last reported status; the auction house’s information is authoritative.
Identifikation
Item numberb64aaa55-339b-4eea-858b-81f9bbbba019
Technik
Quantity1
Description
Model: REC375TP4
GENERAL DATA
Cells: 120 P-type monocrystalline half-cut cells, 6 strings of 20 cells in series
Glass: 3.2mm solar glass with anti-reflective surface treatment and low iron
content
Backsheet: high-strength
polymer construction
Frame: Black anodized aluminum with hook
support bars
Junction box: 3 parts, 3 by-pass diodes, IP68
rating
Connectors: Stäubli MC4-PV-KBT4 / KST4-4mm², IEC 62852 compliant, IP68 when mated
Cables: 4 mm² solar cable, 1.2 m
length
Dimensions: 1755 × 1040 × 30 mm (68.3\" × 40.9\" × 1.18\")
Weight: 20.0 kg
Origin: Made in Singapore
ELECTRICAL DATA – STC
CONDITIONS
Pmax Rated Power: 375W
Classification tolerance: 0 / +5 W
Vmp Rated Voltage: 35.0V
Imp Current Rating: 10.72A
Open Circuit Voltage Voc: 41.3V
Isc Short Circuit Current: 11.46A
Module efficiency: 20.5 %
ELECTRICAL DATA – NMOT
CONDITIONS
Pmax Rated Power: 283W
Vmp Rated Voltage: 32.7V
Imp Current Rating: 8.66A
Open circuit voltage Voc: 38.6 V
Isc Short Circuit Current: 9.26A
Single piece loading dimensions: 1750 x 1050 x 200 mm
Auction-ID: A7-51355-1317
