WEINGARTEN ARS 80 (UVV) Eccentric Press - Single Column

1970ID 170392436

1970ID 170392436

usedVerified seller
Request price Directly to the seller

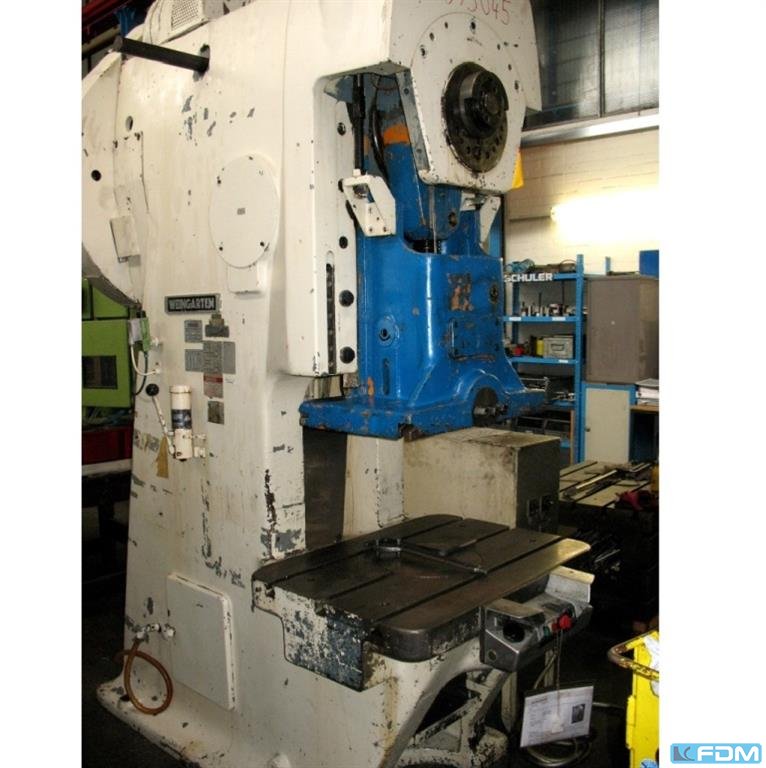

WEINGARTEN ARS 80 (UVV) Eccentric Press - Single Column
1 / 2

Technical data

· ID 170392436
Source: seller information

Used machinery

Condition
used
Year of manufacture
1970
Location
Lager Eislingen, Baden-Württemberg

Identifikation

ManufacturerWEINGARTEN
ModelARS 80 (UVV)
Item number1050-093045

Technik

Quantity1

Description

pressure:080 t
throat:360 mm
stroke:8 - 112 mm
no. of strokes:78 /min
distance table/ram, max. stroke up, adjustment up:467 mm
table surface area:900 x 650 mm
hole in the table:250 mm
table height over floor:800 mm
passage to the back:330 mm
ram surface:650 x 400 mm
ram adjustment:80 mm
power requirement:11,0 kW
dimensions (WxDxH):1,2 x 2,2 x 2,9 m
German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1
overload protection in ram:mechanisch
