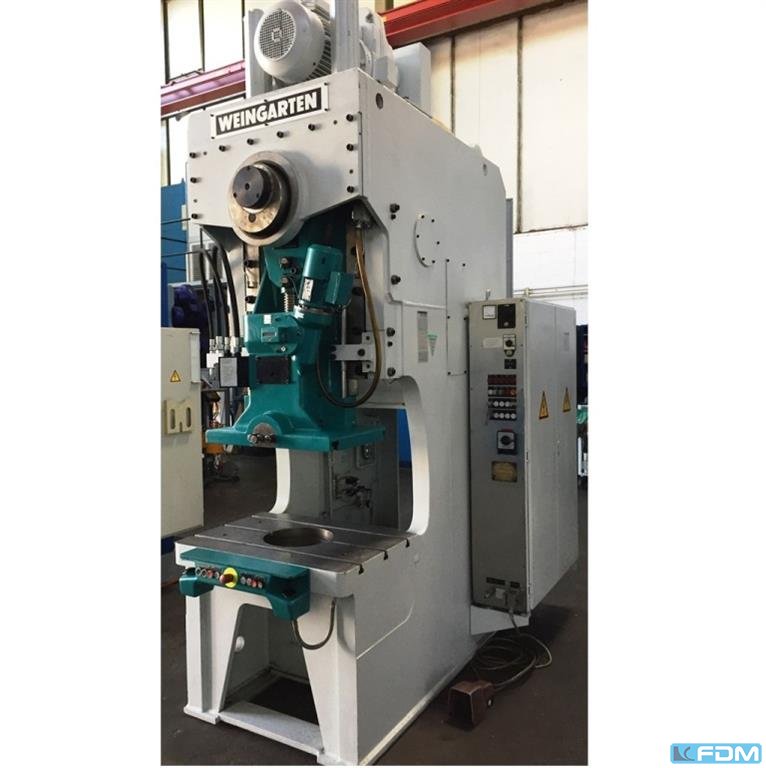

WEINGARTEN ARP 100 (UVV) Eccentric Press - Single Column

1984ID 170392484

1984ID 170392484

usedVerified seller
Request price Directly to the seller
WEINGARTEN ARP 100 (UVV) Eccentric Press - Single Column
1 / 5

Technical data

· ID 170392484
Source: seller information

Used machinery

Condition
used
Year of manufacture
1984
Location
Lager Eislingen, Baden-Württemberg

Identifikation

ManufacturerWEINGARTEN
ModelARP 100 (UVV)
Item number1050-123029

Technik

Quantity1

Description

pressure:100 t
throat:375 mm
stroke:20 - 125 mm
no. of strokes:30 - 80 /min
distance table/ram, max. stroke up, adjustment up:515 mm
table surface area:900 x 635 mm
hole in the table:280 mm
table height over floor:800 mm
passage to the back:570 mm
ram surface:700 x 450 mm
ram adjustment:80 mm
power requirement:15,0 kW
weight:8,0 t
dimensions (WxDxH):1,5 x 2,4 x 3,5 m
German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1
clutch:pneumatic
overload protection in ram:hydraulic
ram adjustment:motoric
ram counterbalance:pneumatic
