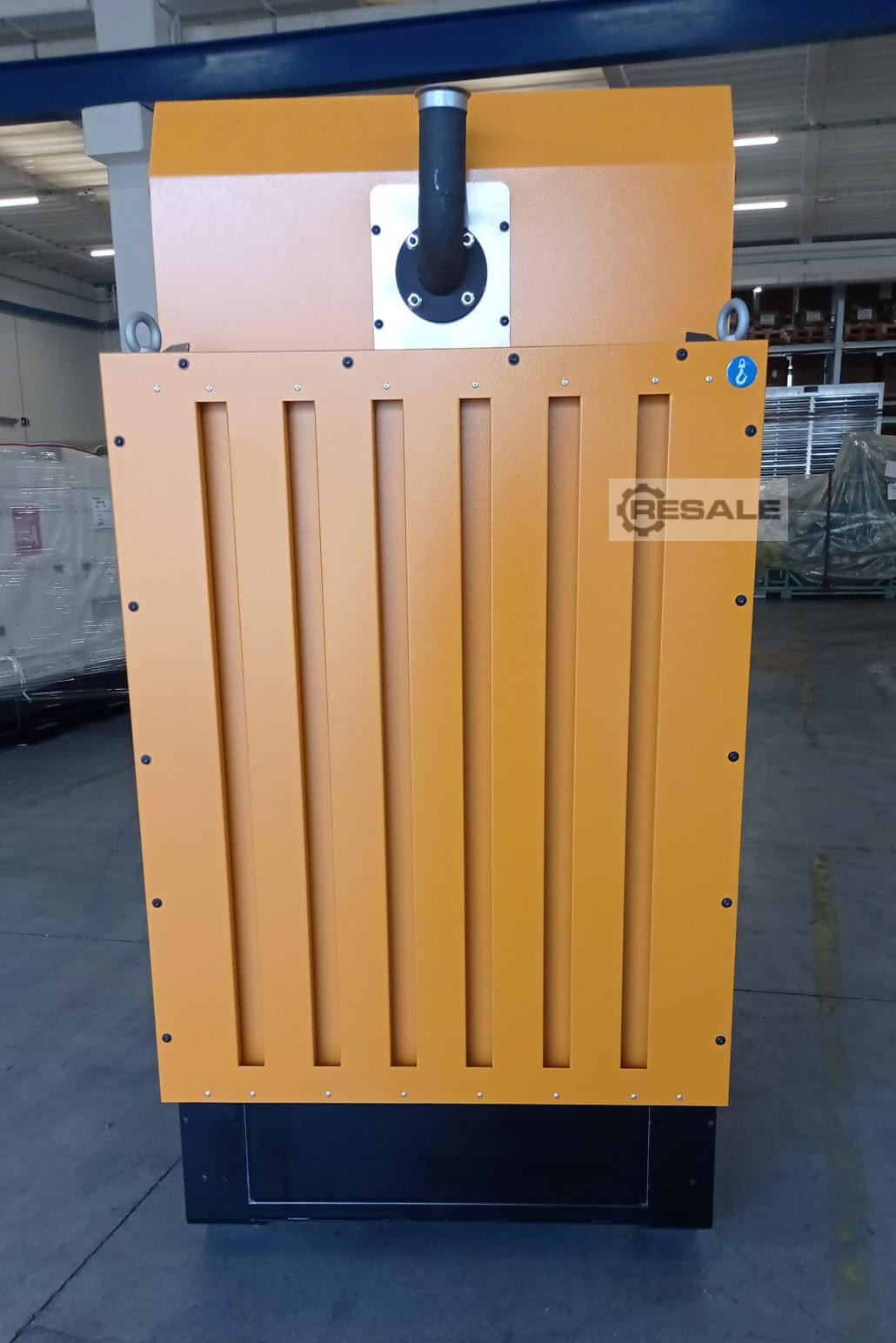

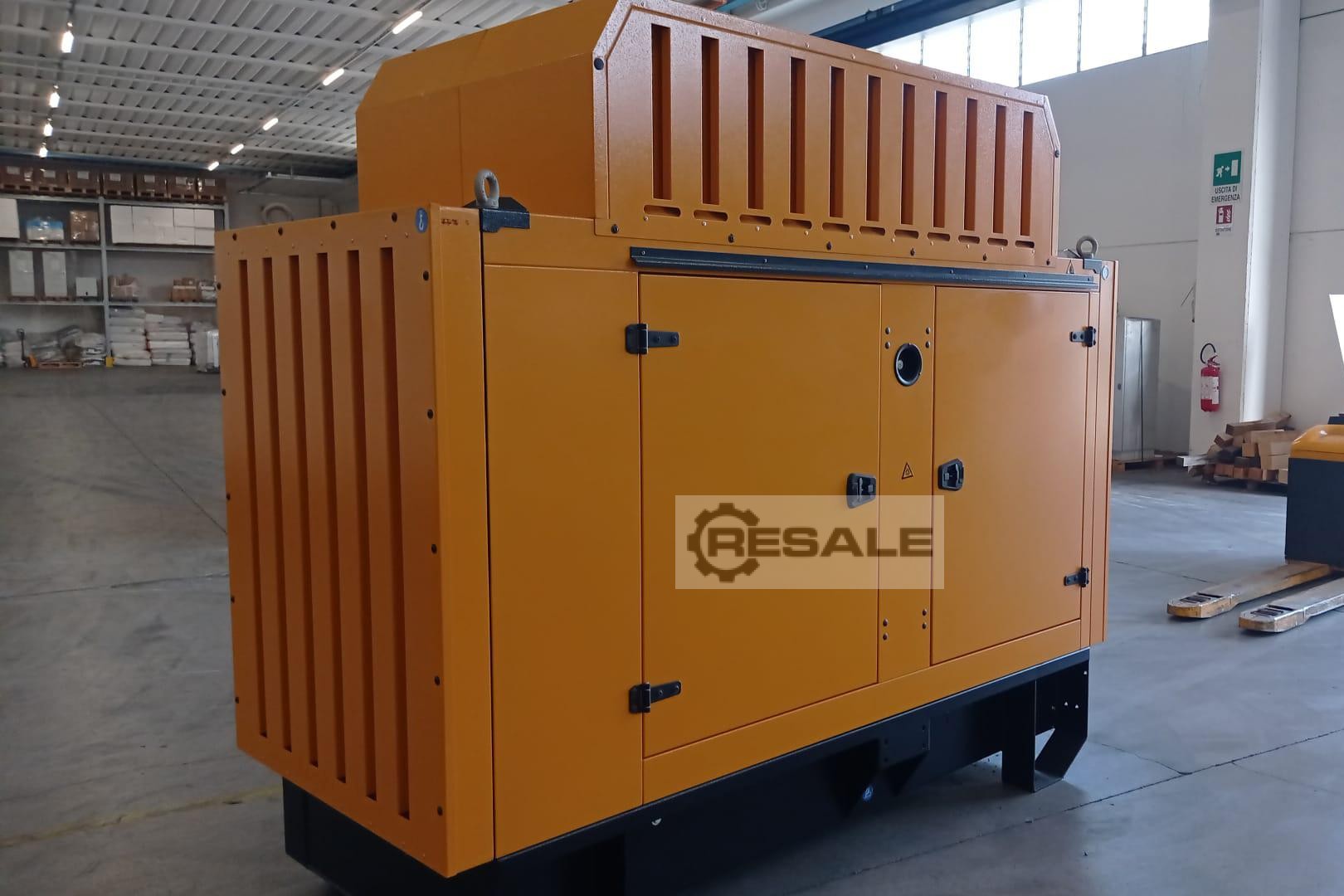

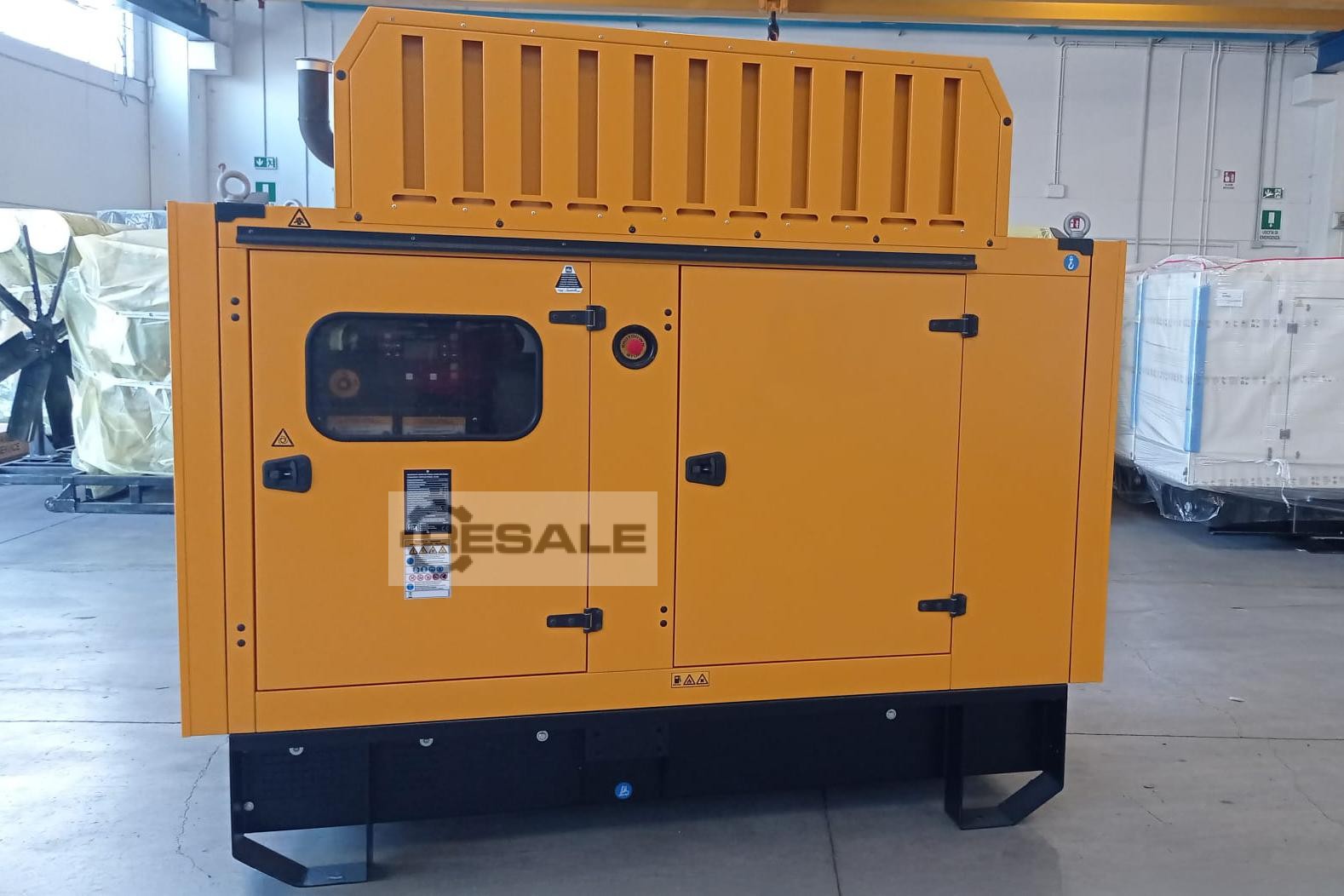

Standby power systems WA NOTSTROMTECHNIK WA - DG 60 S air cooled

Rated capacity: 48 KW Rated capacity in kVA: 60 kVA Output voltage: 400 V
Execution:

Category: Emergency Power Generator Stationary

Aggregate type: stationary

Design: Soundproofed

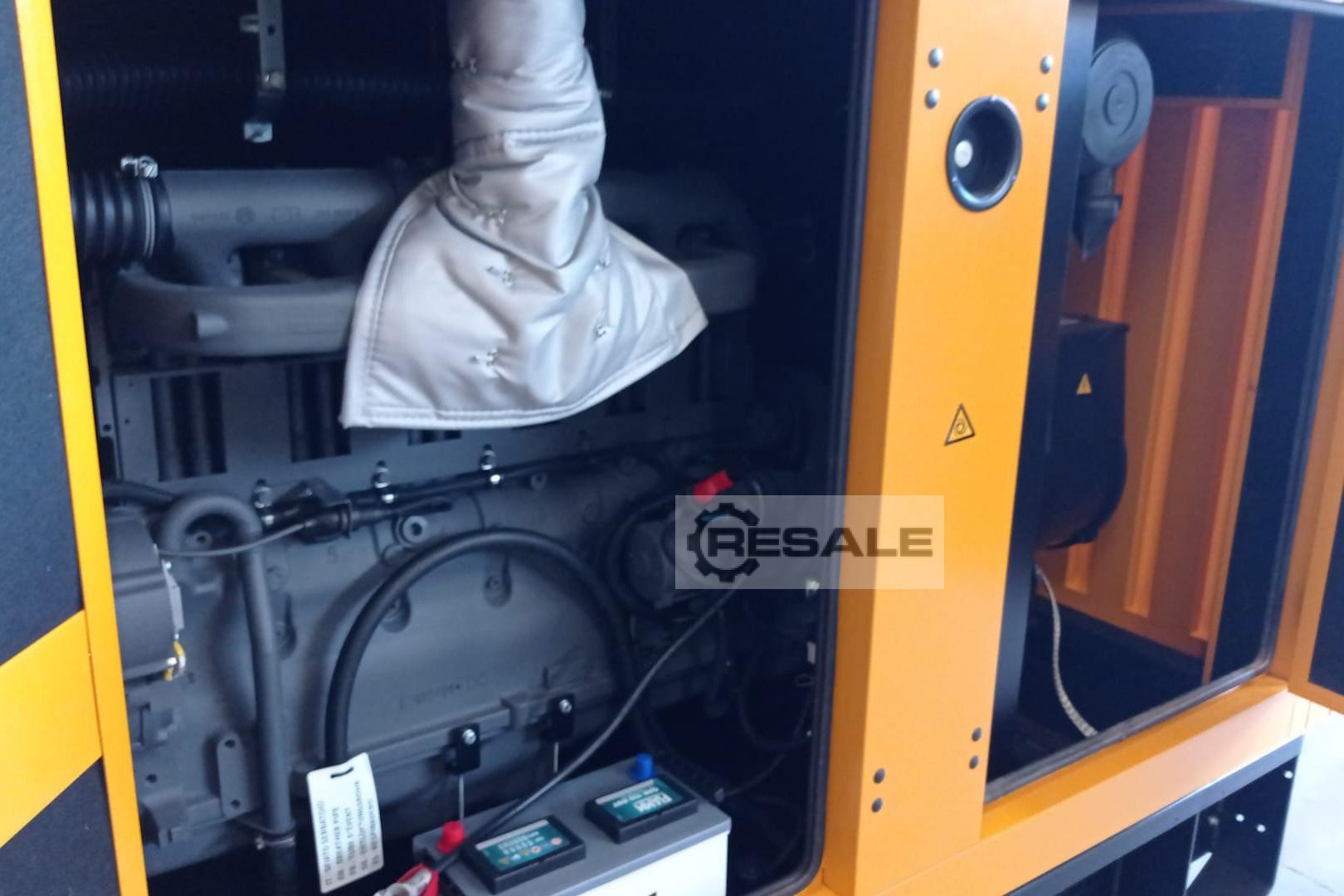

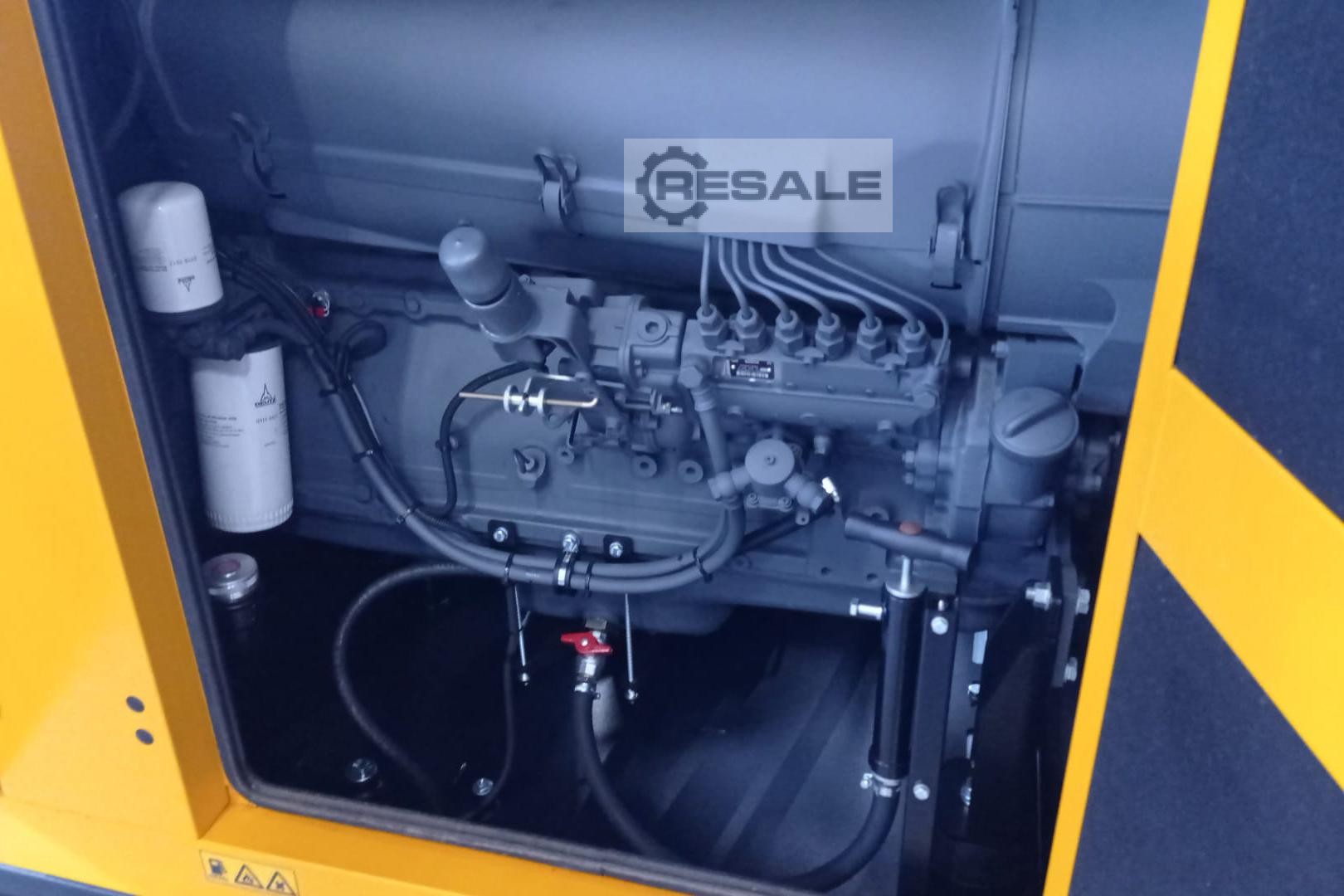

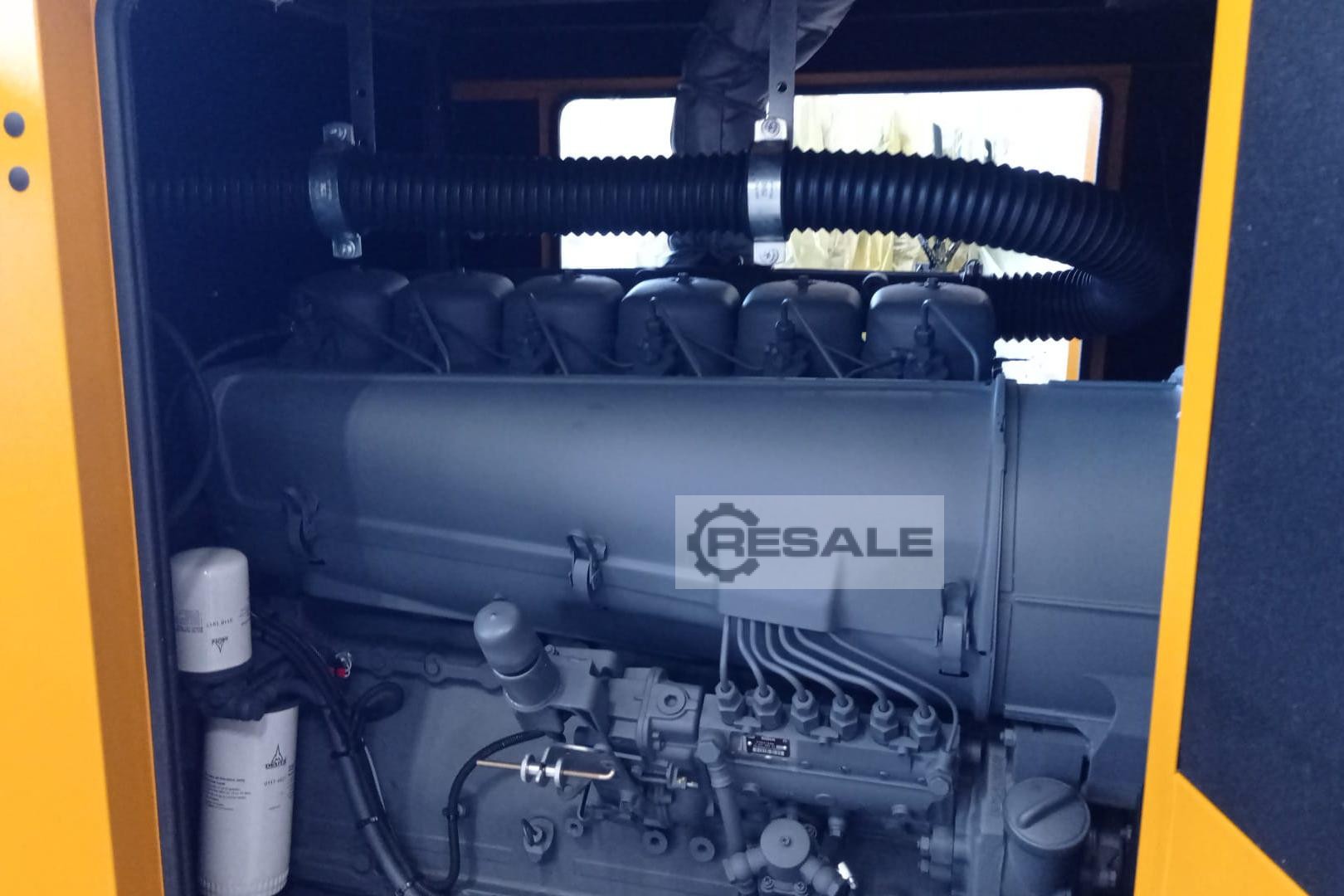

Technical data engine:

Engine manufacturer: Deutz AG

Engine type: F 6 L 912

Motor power: 56 KW

Cooling: Air-cooled

Starting: Electric 12 V DC

Speed: 1500 rpm

Fuel: Low sulphur fuel oil

Emission standard: TA-Luft

Technical data generator:

Generator manufacturer: Stamford

Generator Type: S1L2-Y

Generator power: 60 kVA

Generator current: 86.40 amps

Short-circuit current: 259.2 amps

Overload: 95.04 amps

Voltage 400 / 231 Volt

Voltage regulator: yes electronic AVR

Power factor: cos. - PHI 0.8

Speed: 1500 A51268 rpm

Switchgear:

Version: A51268 Automatic start

Functions: Emergency power operation

Switch: Generator switch 4 poles

Delivery set up

Base frame tank with drip pan

Capacity / litre: 160 litres

Dimensions of the unit:

Width approx. mm: 1.008

Height approx. mm: 2,115

Length approx. mm: 2.405
seller offer No. resale 1457
