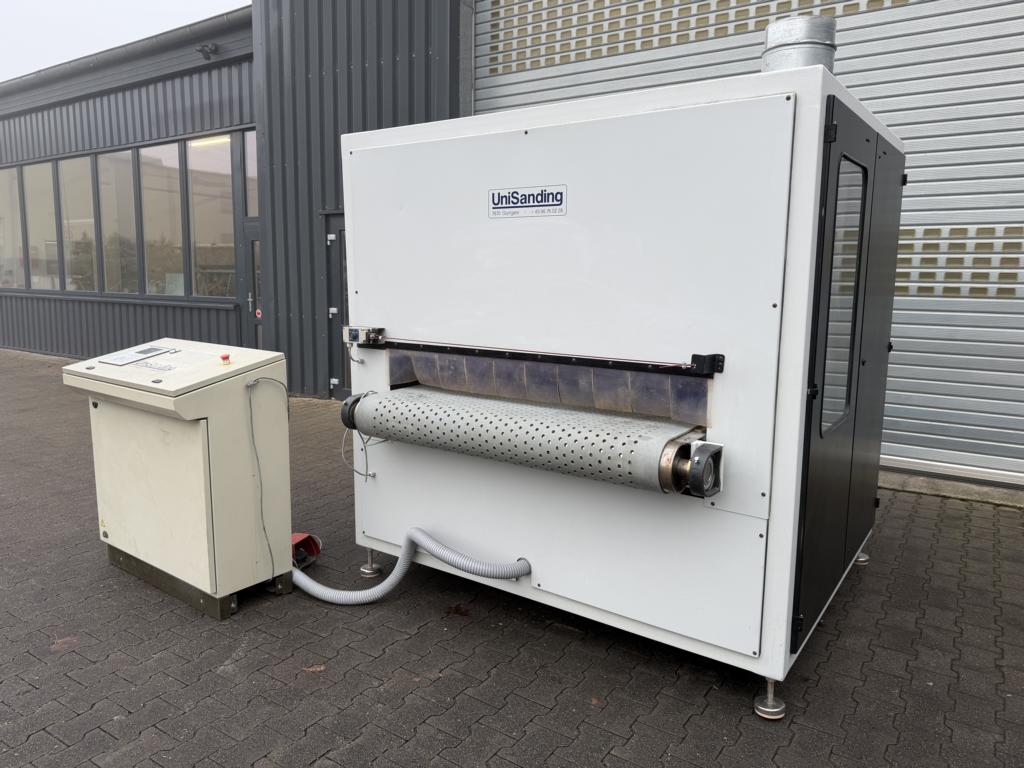

UniSanding 36558

This machine is fitted with a new Siemens PLC and touch panel. Technical specifications:
- Manufacturer: Unisanding
- Model: 2.2.0. 0
-30
- Working width: 1300 mm
- Year of manufacture: 2001, retrofitted in 2025
- 2 rollers, flexibly adjustable from 0–30°, operating from above
- Flex
-Trim special brushes
- Vacuum belt with vacuum motor
- With glass panel on the operator side
- Sanding motors: 2 × 2.2 kW with thermal cut
-out
- Feed motor: 1 × 1.5 kW with thermal cut
-out
- Vacuum motor: 1 × 5.5 kW
- Roller height adjustment axis: 1 × 0.18 kW
- Feed speed: 2–10 m/min, frequency
-controlled
- Brush speed: 50–350 rpm, frequency
-controlled
- Voltage: 3 x 400 V, 50 Hz
- Electrical power rating: 15 kW
- Fuse: 63 A
- Exhaust air volume (vacuum): 3,000 m³/h
- Dust extraction volume: 5,000 m³/h (to be provided by the customer)
- Length: 2,170 mm
- Width: 2,040 mm
- Height: 2,030 mm
- Weight including control cabinet: 2,220 kg
- Colour: RAL 7035 light grey/black
- Operating side: left/right
- Brush replacement side: right
- Explosion
-proof version: No
- Location: at the Blomberg warehouse
