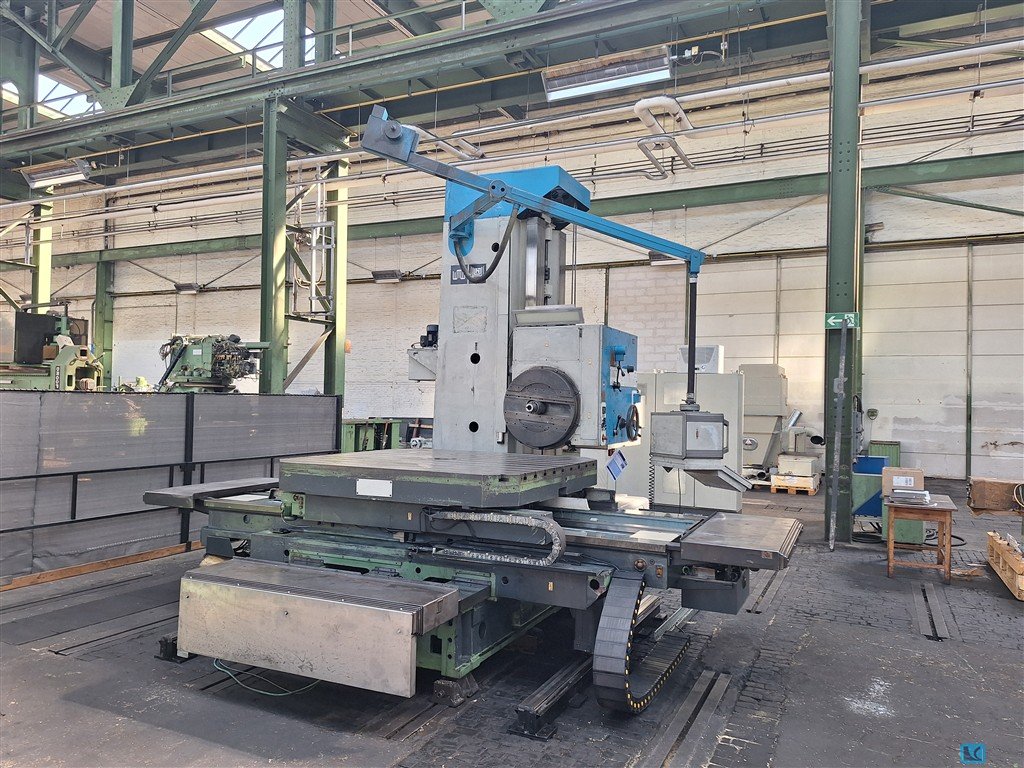

UNION BFT 130/6 Table Type Boring and Milling Machine

1983ID 170392285

1983ID 170392285

usedVerified seller
Request price Directly to the seller
UNION BFT 130/6 Table Type Boring and Milling Machine
1 / 5

Technical data

· ID 170392285
Source: seller information

Used machinery

Condition
used
Year of manufacture
1983
Location
Mönchengladbach

Identifikation

ManufacturerUNION
ModelBFT 130/6
Item number1034-13895

Technik

Quantity1

Description

spindle diameter:130 mm
x-travel:2190 mm
y-travel:1520 mm
z-axis:1520 mm
w-axis:1000 mm
table surface area:2000 x 1800 mm
workpiece weight:8 t
spindle motor:18 kW
spindle taper ISO:50
spindle turning speed range:4,5 - 900 U/min
faceplate diameter:785 mm
rapid traverse:5 m/min
total power requirement:40 kW
dimensions of the machine ca.:5,5 x 6,9 x 5,2 m
weight of the machine ca.:35 t
Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control
- inf. variable spindle spped
- 4 x 90° table positioning
- diverse toolholders
- dDust exhauster
